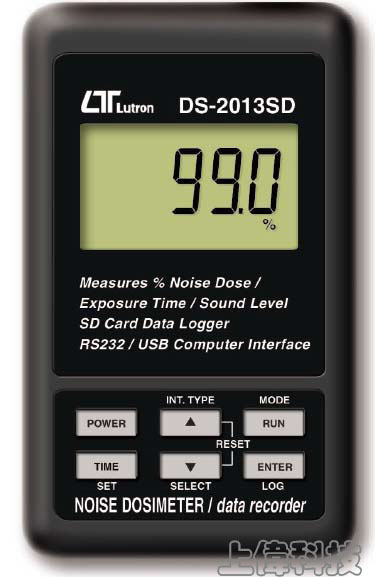

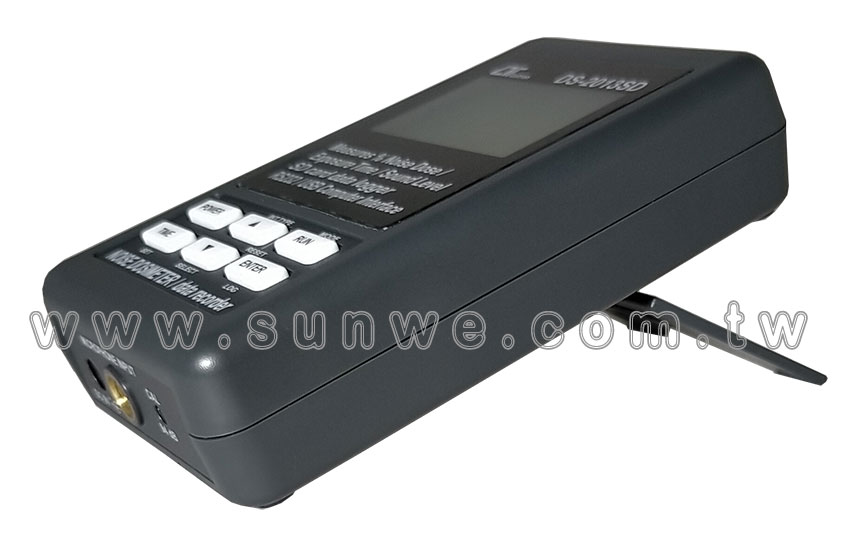

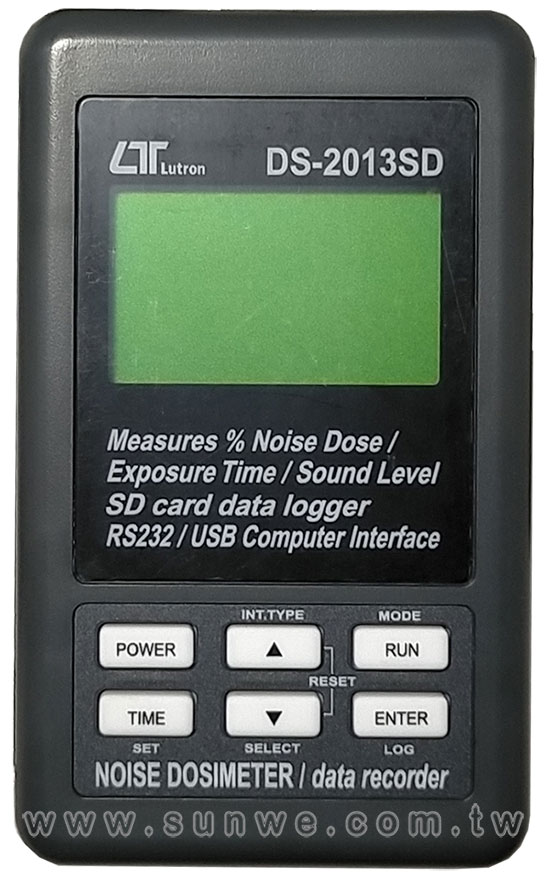

DS-2013SD
噪音劑量計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 : 30dB ~ 130dB(分貝)
±1.4dB
- 測量頻率範圍 : 31.5 ~ 8000Hz
- A&C頻率加權及時間加權選擇'快&慢選擇
- 顯示範圍：0.1 ~ 9999%
- 臨界音壓位準：80,84,85,90dB
- 位準/時間轉換率：3,4,5,6dB
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 132 x 80 x 32mm.
FEATURES
- Personal sound exposure meet IEC
61252
- Frequency and Time weighting are
designed to meet IEC 61672 class 2.
- A & C weighting networks comply
with standards.
- LCD is dot-matrix with backlight
and easy reading.
- Combination Dose meter,
Data-logger and Sound level meter.
- 0.5" standard microphone head.
- Time weighting (Fast & Slow)
dynamic characteristic modes.
- Build External calibration VR.
- User-defined measurement
configurations. Selectable Criterion Level,
- Exchange Rate, Threshold,
Frequency Weighting, and Response Time setting.
- Condenser microphone for high
accuracy & long-term stability.
- Memory function to store the Max.
& Min. value.
- Hold functions.
- Real time Datalogger Records
device of internal memory device (EEPROM) and an external memory
device ( SD memory card ) ,Real time Datalogger, it Built-in
Clock and Calendar, real time data recorder, sampling time set
from 1 second to 3600 seconds.
- Manual datalogger is available (
set the sampling time to 0 second ).
- Innovation and easy operation,
computer is not need to setup extra software, after execute
datalogger, just take away the SD card from the meter and plug
in the SD card into the computer, it can download the all the
measured value with the time information (
year/month/date/hour/minute/second ) to the Excel directly, then
user can make the further data or graphic analysis by
themselves.

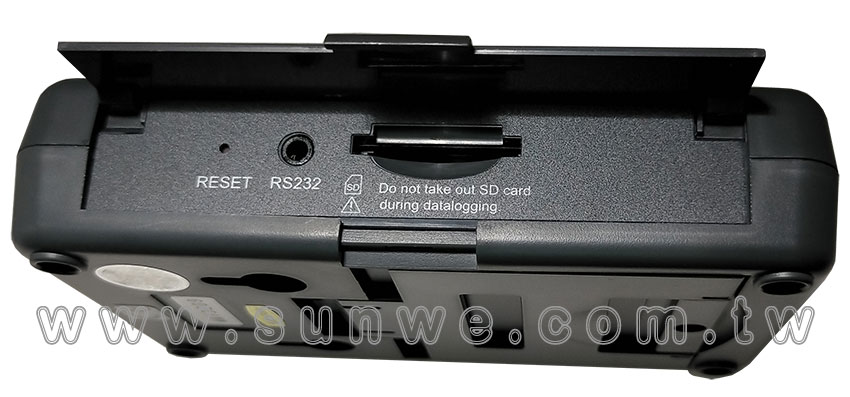

- SD card capacity : 1 GB to 16 GB.
- Can default auto power off or
manual power off.
- Noise Dose %，SPL measurements.
- Microcomputer circuit, high
accuracy.
- Power by UM4/AAA ( 1.5 V ) x 6
batteries or DC 9V adapter.
- RS232/USB PC COMPUTER
- Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 50 mm x 30 mm
- LCD with green backlight ( ON/OFF ).
測量型式 (Measurement Type)
- SPL : Sound pressure level
- Dose：test noise exposure
測量範圍 (Measurement Range)
- SPL：Auto 30 - 130 dB.
- Dose：70∼130dB
解析度 (Resolution)
- 0.1 dB.
功能 (Function)
- dB ( A & C frequency weighting )
- Time weighting ( Fast, Slow )
- Data hold
- Record ( Max., Min. )
精確度 (Accuracy) (23± 5 ℃)
- Characteristics of " A " frequenc weighting network meet IEC 61672 class 2.
Under 94 dB input signal, the accuracy are :
- 31.5 Hz : ± 3.5 dB
- 63 Hz : ± 2.5 dB
- 125 Hz : ± 2.0 dB
- 250 Hz : ± 1.9 dB
- 500 Hz : ± 1.9 dB
- 1 KHz : ± 1.4 dB
- 2 KHz : ± 2.6 dB
- 4 KHz : ± 3.6 dB
- 8 KHz : + 5.6 dB
- Remark : The above spec. are tested under the environment RF Field Strength less than 3 V/M & frequency less than 30 MHz only.
頻率加權網路 (Frequency Weighting Network)
- Characteristics of A & C.
- A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
- C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
快慢時間加權 Time weighting (Fast, Slow)
- Fast - t= 125 ms
- Slow - t = 1 s
- * "Fast" range is simulated the human ear response time.
- * "Slow" range is easy to get the avg. values of vibration sound level.
資料鎖定 (Data hold)
- Freeze the measurement value.
功能選擇器
(Function selector ' SPL ' DOSE)
- Auto range：30∼130dB.
- Threshold Level (Thr)：70∼90dB
in 1dB steps.
- Criterion Level(Crit)：80、84、85、90dB.
- Exchange Rate：3, 4, 5 or 6
dB
測量頻率 (Measurement Frequency)
- 31.5 Hz to 8,000 Hz.

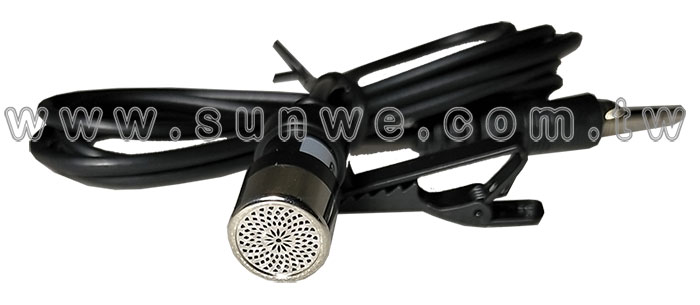

麥克風 (Microphone type)
- Electric condenser microphone.
麥克風尺寸 (Size of microphone)
- Out size, 12.7 mm Dia. ( 0.5 inch).

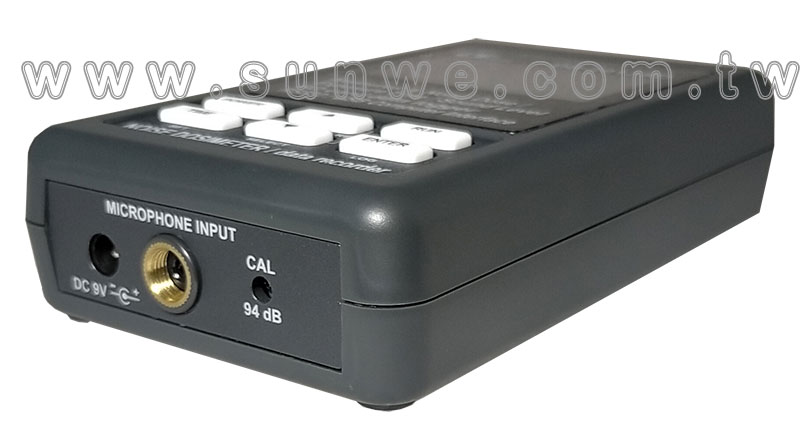

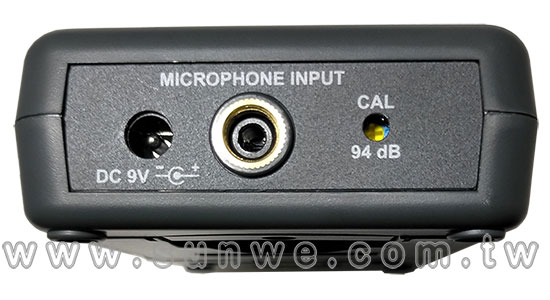

校正 VR (Calibration VR)
- Build in external calibration VR, easy to calibrate on 94 dB level by screw driver.
- * Calibrated via external SOUND CALIBRATOR ( SC-942, optional ).
校正器
(Calibrator)
- B & K (Bruel & kjaer), multi-fuction acoustic
calibrator, model : 4226.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶裝置
(Memory device)
- internal memory device :
EEPROM can be record 16,000 items.

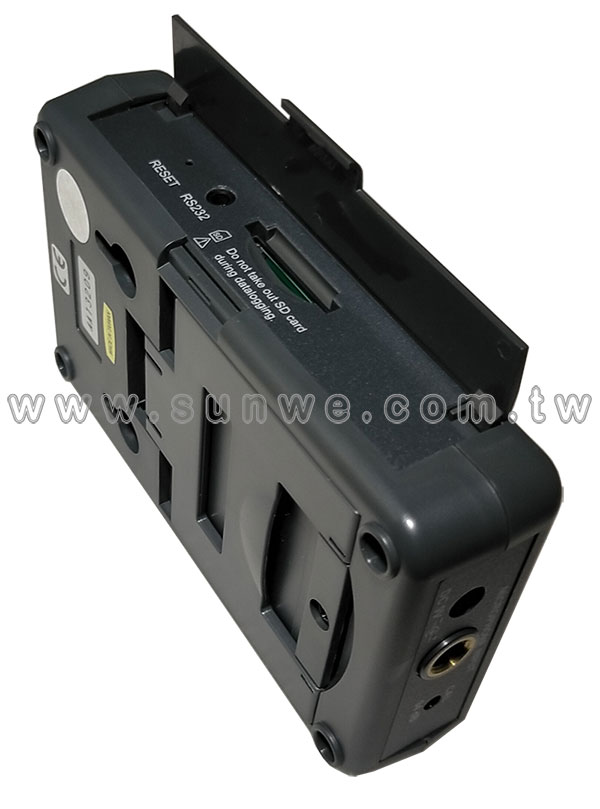

- external memory device ( AC
Adapter only ) : SD memory card. 1 GB to 16 GB.
資料錯誤數
(Data error no.)
- 0.1% ≦ no. of total saved data
typically.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set sampling time
- * SD memory card Format
- * Frequency weighting to A or C setting
過載指示 (Over Indication)
- Show " - - - - ".
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
關機
(Power off)
- Auto shut off saves battery life
or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- DC 9V adapter input or equivalent.
- * AC/DC power adapter .AC/DC power adapter is
optional ).
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD
Backlight is OFF) : Approx. DC 16 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 35 mA.
- * AIf LCD backlight on, the power consumption will
increase approx. 8 mA.
重量 (Weight)
- 250 g/ 0.55 LB. (without battery)
體積 (Dimension)
- 132 x 80 x 32 mm. ( 5.2 x 3.1 x 1.3 inch ).

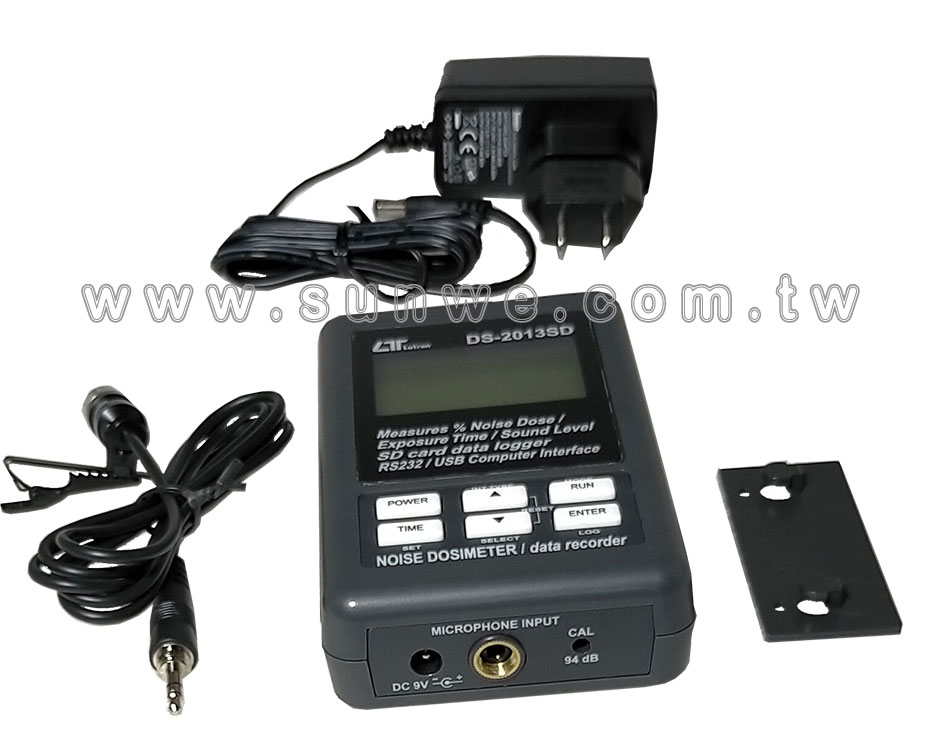

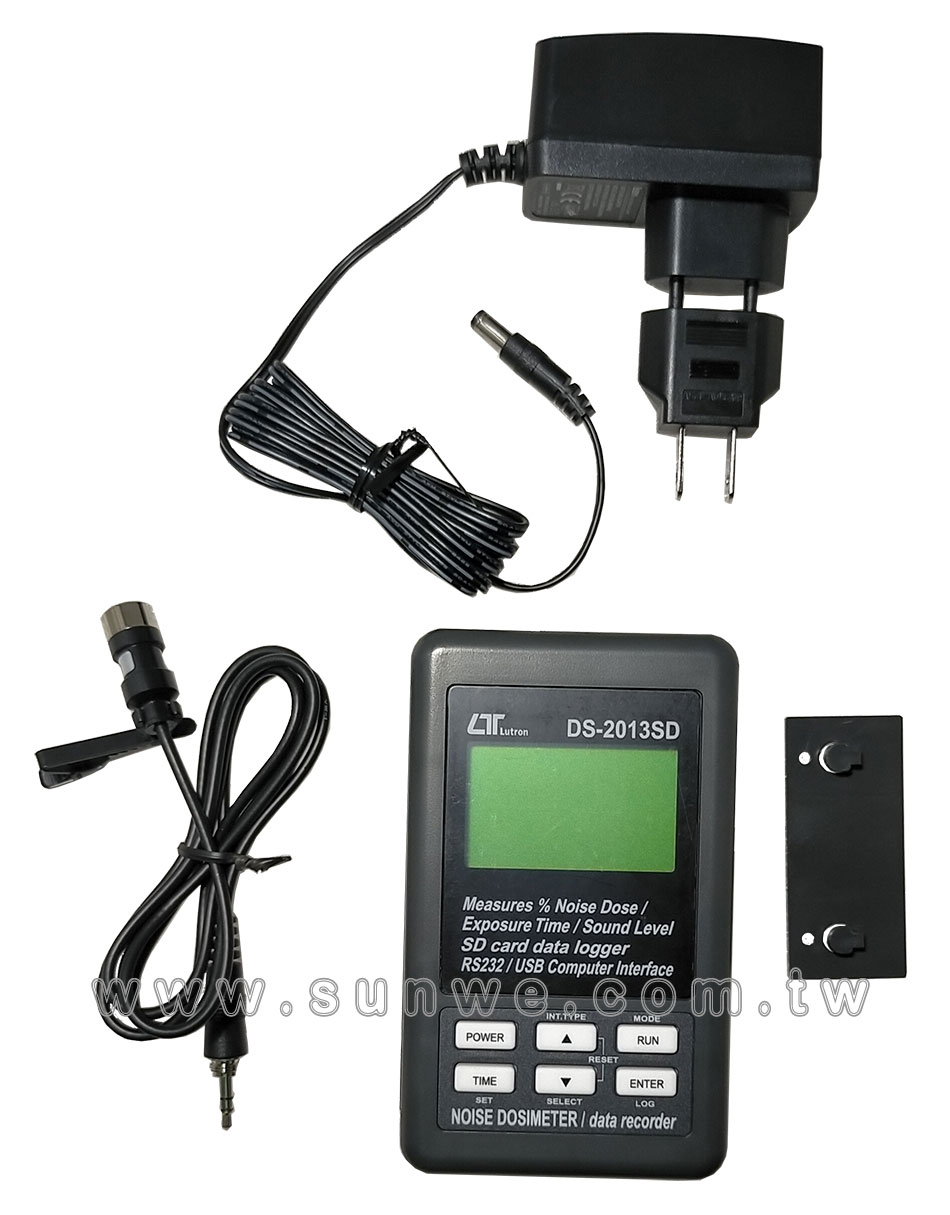

附件 (Accessories
Included)
- * Instruction
manual................1 PC
- * Soft carrying case, CA-05A…………1
PC

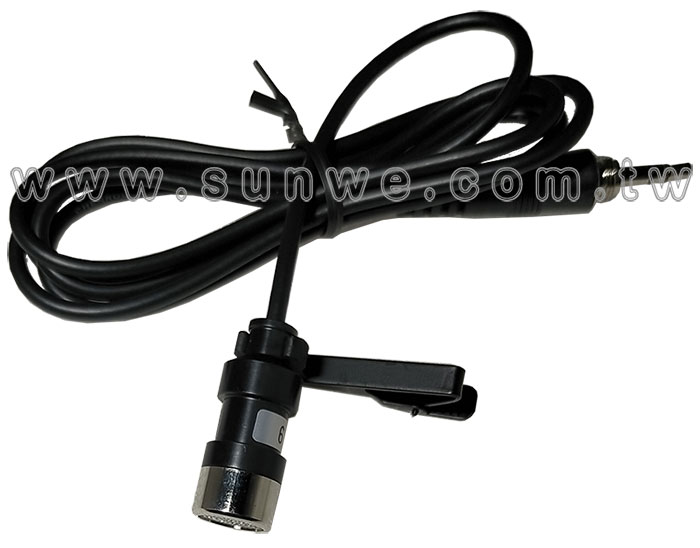

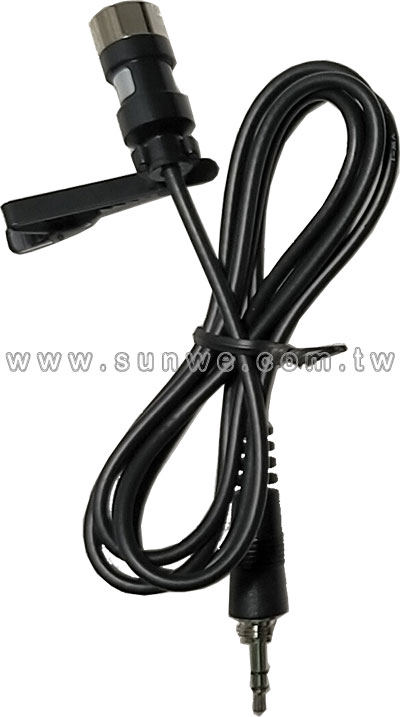

- * Microphone with clip…………………1 PC

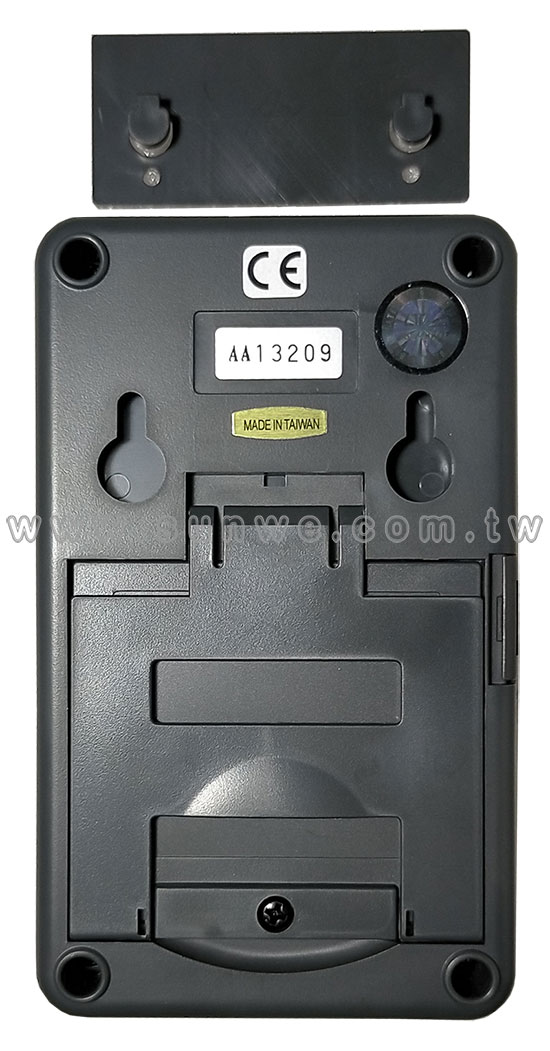

- * Hanging unit ( with sticker
).....1 PC
選購附件 (Optional & accessories Temp. Probe)
- 94 dB sound calibrator : Model : SC-941.
- 94 dB/114 dB sound calibrator : Model : SC-942.
- Wind shield ball :
Model : SB-01
- SD Card ( 4 GB )
- USB cable : Model : USB-01
- RS232 cable : Model : UPCB-02.
- Data acqusition software :
SW-E2005.
- AC to DC 9V adapter.
|
