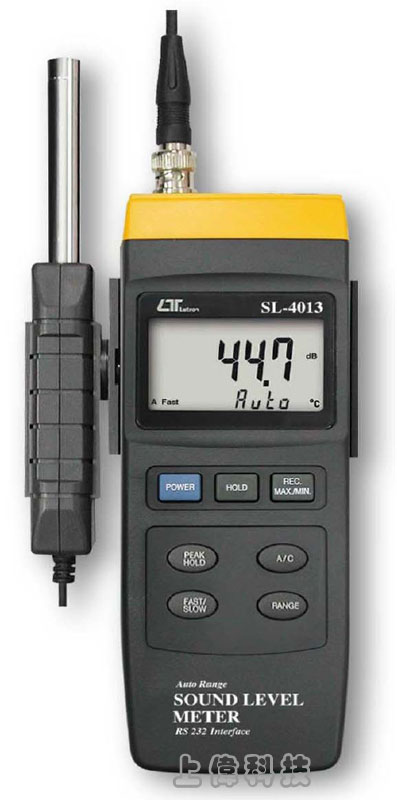

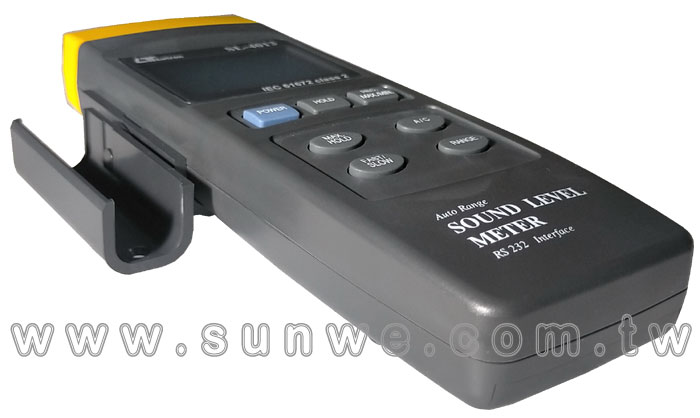

SL-4013
分離式噪音計
特色
- 測量範圍 : 30dB ~ 130dB (分貝)
- 測量頻率範圍 : 31.5 ~ 8000Hz
- 符合國際規範IEC61672 Class2
- A/C頻率加權及時間加權選擇'快&慢選擇

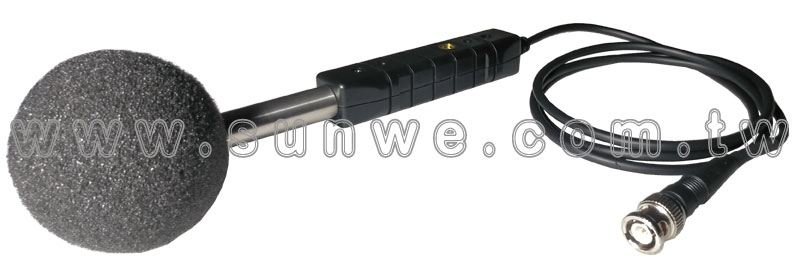

- 採分離式麥克風設計,可延伸2米長
- 自動換檔及手動換檔選擇
- 峰值鎖定及記錄測量中之最大/最小值
- RS-232 / USB 連接介面及AC電軋信號輸出
- Size : 195 x 68 x 30mm.
FEATURES
- Large LCD display, easy to read.
- Frequency weighting networks are designed to meet the IEC 61672 CLASS 2.
- Auto range & mamual range.
- A & C weighting networks are conformity to standards.
- FAST & SLOW dynamic characteristic modes.
- AC output for system expansion.
- RS232/USB computer interface.
- Separete sound probe, easy for remote sound measurement.
- Build in adj. VR is available for easy calibration.
- Hold & Memory record ( max., min. )
- Condenser microphone for high accuracy & long-term stability.
- Peak Hold function for stored the maximum value.
- Warning indicator for over and under load.
- LCD display for low power consumption & clear read-out even in bright ambient light condition.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Compact and light weight plastic housing.
一般規格
顯示 (Display)
- 52 mm x 32 mm LCD (Liquid Crystal Display), 5 digits.
功能 (Function)
- dB (A & C frequency weighting)
- Time weighting(Fast, Slow)
- Hold
- Memory ( max. & min. )
- Peak hold
- AC & RS232 output.
測量範圍 (Measurement Range)
- 30 to 130 dB
解析度 (Resolution)
- 0.1 dB.
精確度 (Accuracy) (23± 5 ℃)
- Frequency weighting meet IEC 61672 class 2, calibrating input signal on 94 dB ( 31.5 Hz to 8 kHz), the accuracy of frequency weighting is specified as following:
- 31.5 Hz : ± 3.5 dB
- 63 Hz ± 2.5 dB
- 125 Hz ± 2.0 dB
- 250 Hz ± 1.9 dB
- 500 Hz ± 1.9 dB
- 1 K Hz ± 1.4 dB
- 2 K Hz ± 2.6 dB
- 4 K Hz ± 3.6 dB
- 8 K Hz ± 5.6 dB
加權網路 (Weighting Network)
- Characteristics of A & C.
- A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
- C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
測量頻率 (Measurement Frequency)
- 31.5 Hz to 8,000 Hz.
校正器 (Calibrator)
- B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226.
麥克風 (Microphone type)
- Electric condenser microphone.
麥克風尺寸 (Size of microphone)
- 1/2 inch standard size.
範圍選擇 (Range selector)
- Auto range : 30 to 130 dB.
- Manual range : 3 range
- 30 to 80 dB
- 50 to 100 dB
- 80 to 130 dB
- 50 dB on each step, with over & under range indicating.
快慢時間
- Fast - t= 200 ms
- Slow - t = 500 ms,
- * "Fast" range is simulated the human ear response time.
- * "Slow" range is easy to get the avg. values of vibration sound level.
- * The "Fast" & "Slow" response range are designed to meet IEC 61672 class 2 requirement.
加權 Time weighting (Fast, Slow)
輸出訊號 (Output Signal)
- * AC output
- AC 0.5 Vrms corresponding to each range step
- Output impedance - 600 ohm.
- * RS232 output.

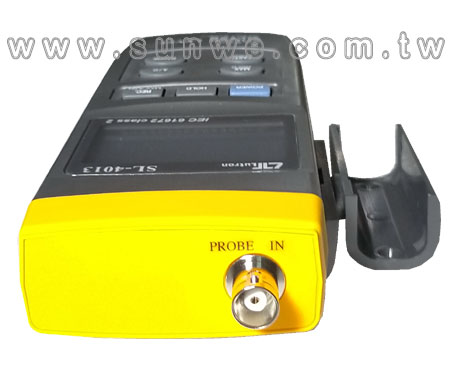

輸出端子 (Output terminal)
- Terminal 1 : RS232 computer interface terminal.
- Terminal 2 : AC output terminal.
- * Terminal socket size : 3.5 mm dia. phone socket.
校正 VR (Calibration VR)
- Build in external calibration VR, easy to calibrate on 94 dB level by screw driver.
操作溫度 (Operating Temp.)
- 0 to 50 ℃. ( 32℉ to 122℉ ).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type)
電源損耗 (Power Consumption)
- Approx. DC 6 mA.
重量 (Weight)
- 405 g/0.89 LB ( including probe ).
尺寸 (Size)
- Main instrument : 205 x 68 x 29 mm ( 8.07x2.7x1.1 inch ).

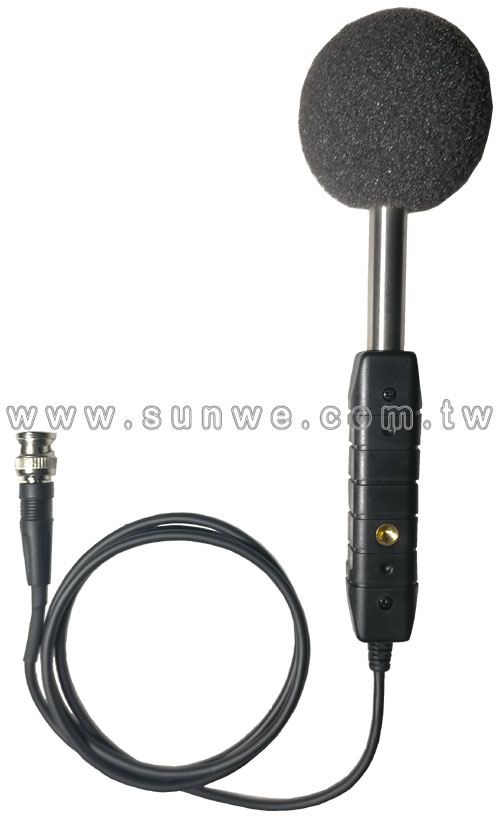

- Sound probe : 170.5 x 24.5 x 19 mm ( 6.7x1.0x0.7 inch ).

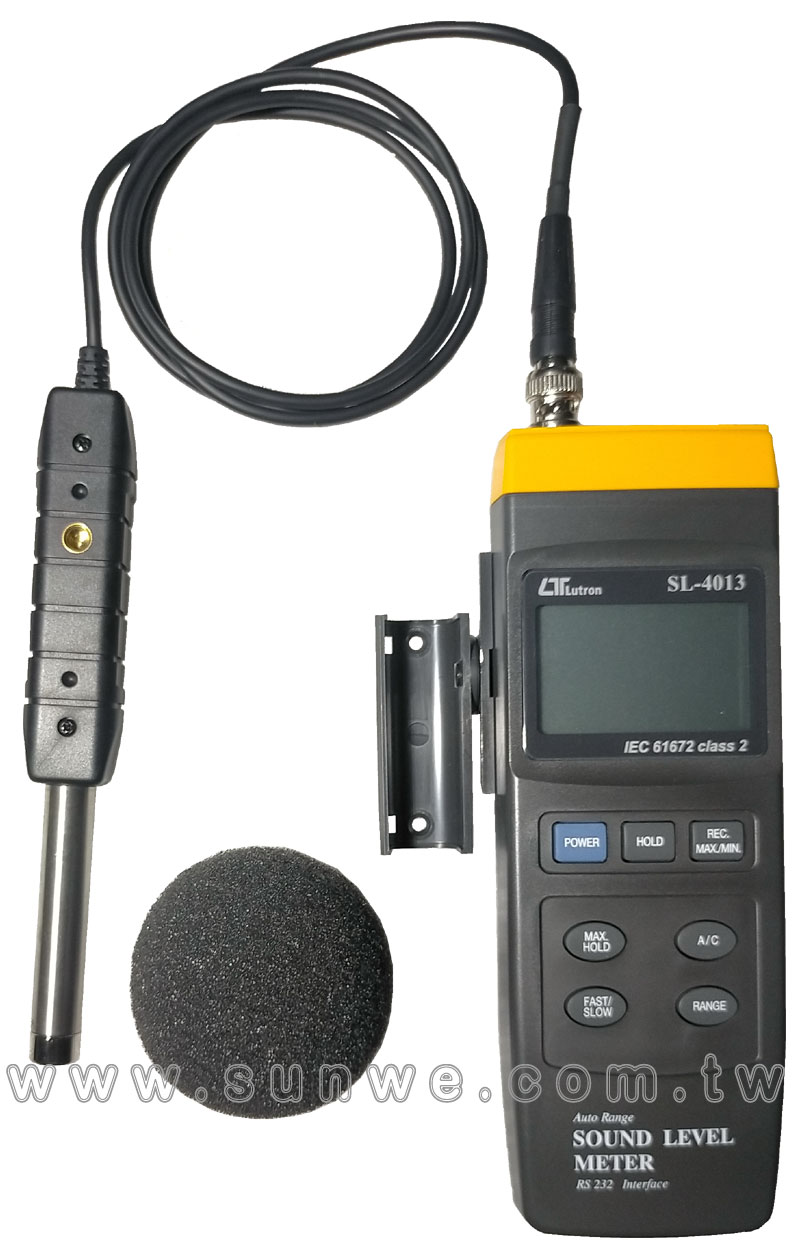

附件 (Standard Accessory)
- Instruction manual ................. 1 PC.
- Separate sound probe................ 1 PC.
- Probe holder........................ 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Sound Calibrator, model : SC-941 ( 94 dB ). SC-942 ( 94dB, 114 dB ).

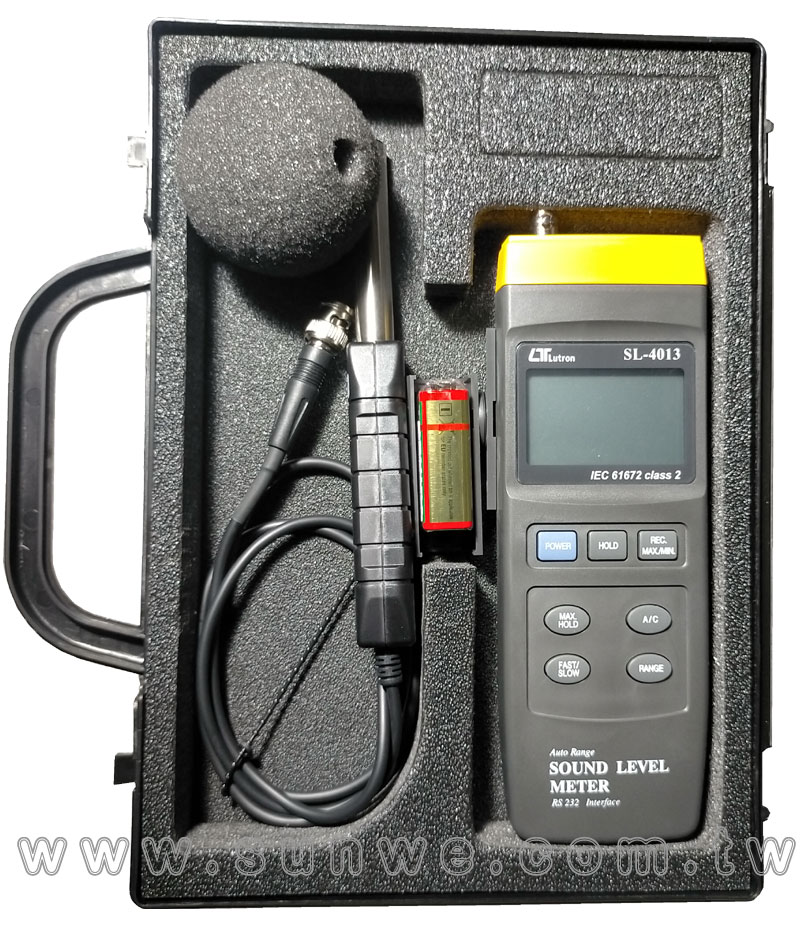

- Carrying case : CA-06
- RS232 cable, Model : UPCB-02
- USB cable, Model : USB-01
- Application software, Model : SW-U801-WIN
|
