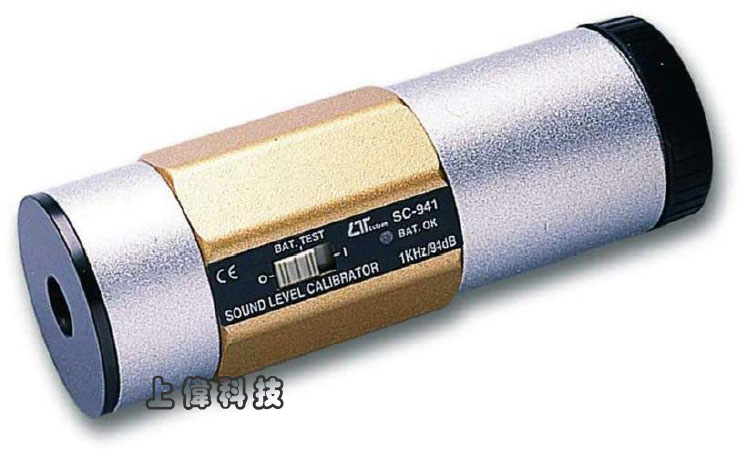

SC-941
噪音計校正器
特色
- 輸出音壓
- SC-941 : 94dB ±0.8dB
- 輸出頻率 : 1000Hz ±5%
- 可校正1英吋及0.5英吋麥克風頭
- 內建電力不足指示功能
- Size : 直徑50 x 長145mm
FEATURES
- Use to calibrate the " Sound Level meter " precisely.
- 1000 Hz frequency .
- 94 dB Sound Pressure Level
- Suitable for 0.5 & 1 inch microphone.
- Total harmonic distortion : 2 %.
- According IEC942, Class 2 Standard
- Power by 006P DC 9V battery, 2 PCs.
- Durable bench type housing case.
- Built-in over input protection
SC-941規格
頻率 (Frequency)
- 1000 Hz ± 2 %.
音壓水平 (Sound Pressure Level)
- 94 dB ± 0.75 dB.
適合的麥克風型式 (Suitable Microphone Type)
0.5 inch or 1 inch microphone.
總諧波失真 (Total harmonic distortion)
± 2 %.
標準規範 (Standard According)
IEC942, Class 2
操作溫度 (Operating Temp.)
0 to 50 ℃. ( 32℉ to 122℉ ).
電源供應 (Power Supply)
Heavy duty or Alkaline type, DC 9V battery. 006P MN1604 ( PP3 ) or equivalent, 2 PCs.
電源損耗 (Power Consumption)
Approx. DC 7 mA.
電池檢查 (Battery Check)
Build in " Battery test indicator "
重量 (Weight)
Approx. 350 g/0.77 LB. ( including batteries )
尺寸 (Size)
Dia 50 mm ( round ) x 145 mm ( length ).
附件 (Standard Accessory)
Instruction manual................. 1 PC.
0.5" mic. adapter.................. 1 PC.
Adjust Screw Driver................ 1 PC.
Carrying case, CA-03............... 1 PC.
校正程序 (CALIBRATION PROCEDURES)
If the calibrated " SOUND LEVEL METER " used the 0.5" microphone, then on the " Couple Section " should install the " 0.5" Mic. Adapter " first.
Consideration :
If the calibrated " SOUND LEVEL METER " used the 1 inch microphone, then on the " Couple Section " should take away the " 0.5" Mic. Adapter ".
Insert the microphone of calibrated " SOUND LEVEL METER " carefully all the way into the coupler section of the Sound Calibrator.
Set the calibrated " SOUND LEVEL METER " to a range suitable for measuring " 94 dB ".
Set the " Off/BAT. TEST/On Switch " to " ON " position. A pure 1,000 Hz tone is produced.
Adjust the calibration VR (knob) of the " Sound Level Meter ". until that the display reach to 94.0 dB exactly.
校準程序
-
1.麥克風轉接器：
如果使用 0.5 吋麥克風，請在耦合部分安裝 0.5 吋麥克風轉接器。
如果使用 1 吋麥克風，請移除 0.5 吋麥克風轉接器。
-
2.插入麥克風： 小心地將聲級計的麥克風插入聲音校準器的耦合器部分。
-
3.設定聲級計： 將聲級計調整到適合測量94 dB的範圍。
-
4.開機： 將「Off/BAT.TEST/On Switch」設定為「ON」位置，即可產生純淨的1000Hz音調。
-
5.調整校準： 調整聲級計的校正 VR（旋鈕），直到顯示幕剛好顯示 94.0 dB。
|
