簡介
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 溫度範圍 : (K Type) -50°C ~ 1300.0°C. ±0.5%
- 同時測量 / 顯示三組溫度值

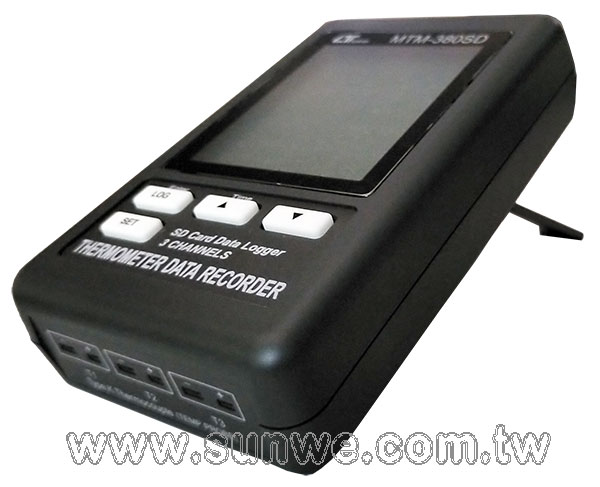

- 壁掛 / 桌立兩用
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232 / USB 連接介面.(軟體選購)
- Size : 132 x 80 x 32mm.
FEATURES
- Monitor with real time data logger, save the measuring data along the time information ( year, month, date, hour, 'minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. user can make the further data or graphic analysis by themselves.

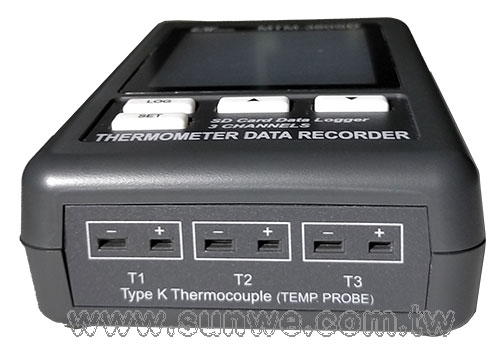

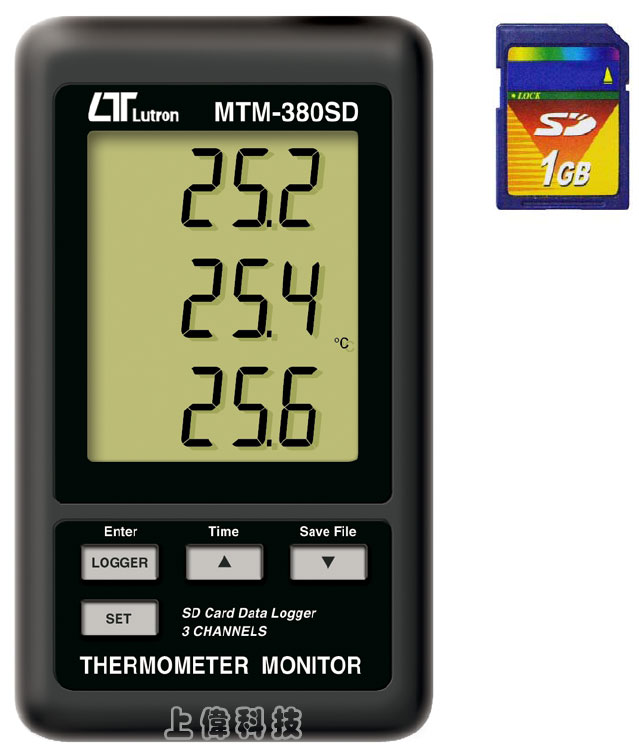

- Show 3 channels ( CH1, CH2, CH3 ) Temp. value in the same LCD.
- Type K Thermometer :
-100 to 1300 ℃, ℃/℉.
- SD card capacity :
1 GB to 16 GB.
- Sampling adjustment :
5/10/30/60/120/300/600 seconds and auto function.
- Large LCD display, easy readout.
- Microcomputer circuit, high accuracy.
- Low power consumption and long battery life when use battery power.
- DC 1.5V ( UM-4, AAA ) battery x 6 PCs or DC 9V adapter in.
- RS232/USB computer interface.

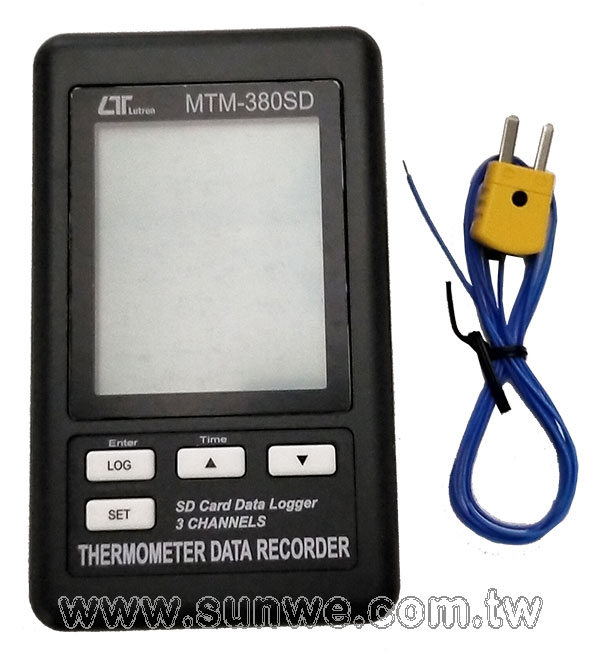

- Type K probe, TP-01 x 1 PC is included.
- Patented
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 60 mm x 50 mm
測量 (Measurement)
- Type K thermometer, ℃ or ℉.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
資料集錄器取樣時間 (Datalogger Sampling Time)
- 5/10/30/60/120/300/600 seconds or Auto.
- * Default sampling time is 60 seconds.
- * The " Auto " sampling . means when the measuring value is changed ( > ± 1 ℃ ) will save the data one time only.
資料錯誤數 (Data error no.)
- ≦ 0.1 % no. of total saved data typically.
優越的設定 (Advanced setting)
- * SD memory card Format
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Set beep Sound ON/OFF
- * Set SD card Decimal character
- * Set temperature unit to ℃ or ℉
- * Set RS232 data output ON/OFF
- * Set save mode type
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the the type K thermometer.
顯示升級時間 (Update Time of Display)
- Approx. 1 second if measuring data is changed.
資料輸出 (Data Output)

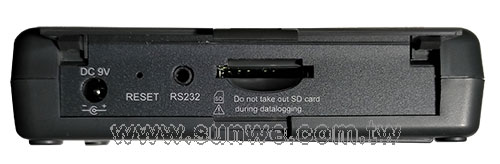

- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電池壽命 (Battery life)
- If use the new battery ( alkaline type ) and sampling time set to 60 seconds, the battery life will be > one month typically.
重量 (Weight)
- 285 g/0.63 LB.
體積 (Dimension)
- 132 x 80 x 32 mm ( 5.2 x 3.1 x 1.3 inch )
附件 (Standard Accessory)
- * Instruction manual.............................. 1 PC
- * Type K Temp. probe, TP-01................. 2 PC
- * Hanging unit ( with sticker )..........1 PC
選購附件 (Optional & accessories Temp. Probe)
- * SD Card ( 2 GB )
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U811-WIN.
- * AC to DC 9V adapter.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
K 型式熱電偶 (Type K thermometer)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.5 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.5 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.5 % + 1.8 ℉ ) |
- @ Above accuracy are specified for the meter only.
|
