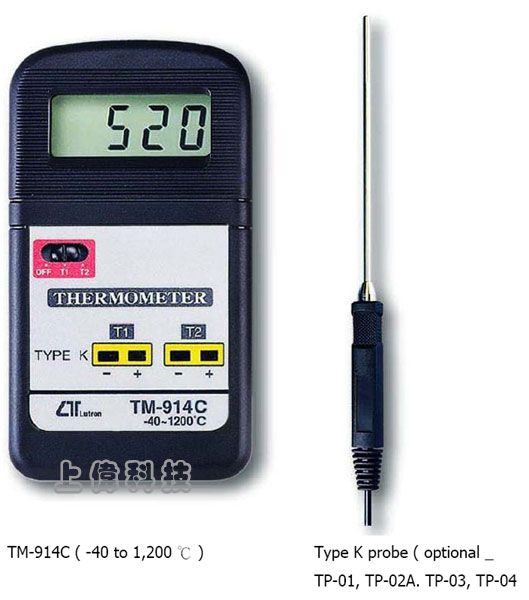

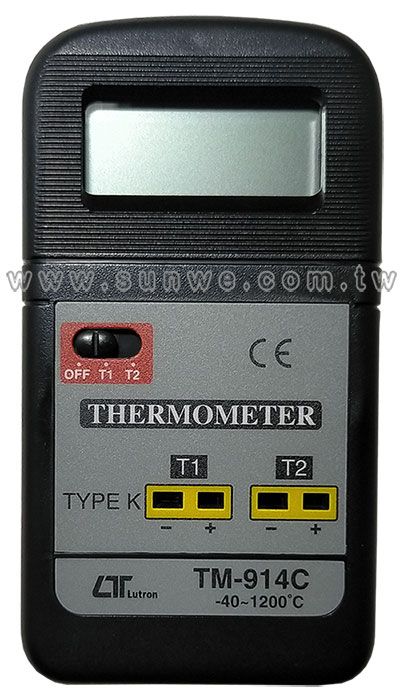

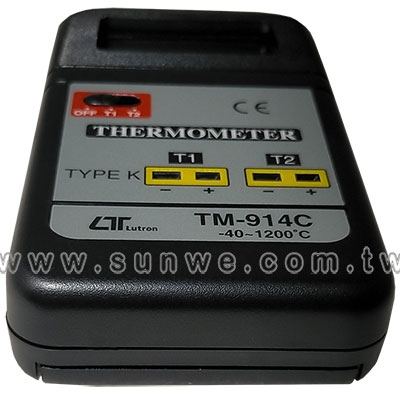

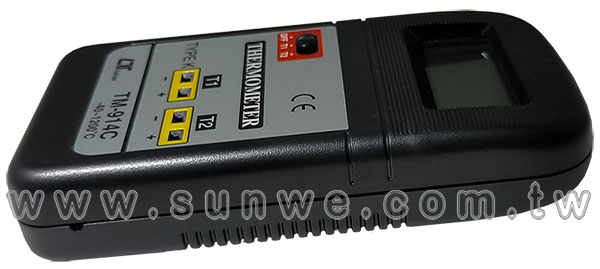

TM-914C
迷你雙組溫度計
特色
- 測量範圍 : -40 ~ 1200°C ±3%
- 精確度 : ±1%
- 兩組溫度測量及顯示(T1或T2)
- 取樣時間 0.4秒
- 感測棒型式 : TYPE K
- 熱電偶測棒
- Size：131 X 70 X 25mm
FEATURES
- Pocket size & compact housing.
- Dual channel input.
- LCD display allows clear read-out even at high ambient light environment.
- Operates from DC 9V battery.
- Low power consumption.
- Meet any standard type K ( NiCr-NiAl ) probe.
- Fitted with standard type K input measuring socket.
- Build in precision cold junction compensation circuit.
- Thermocouple sensor for Temperature measurement, fast response time.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Full line, wide range optional thermocouple probe.
- Optional holster.
一般規格
顯示 (Display)
- 3 1/2 digits with annuciator, 15 mm (0.5") LCD.
感應器型式 (Sensor Type)
- Thermocouple K(NiCr-NiAl), Optional.
測量 (Measurement)
- Two channel temp. input (T1, T2).
範圍 (Range)
- -40 ℃ to 1200 ℃ x 1 ℃ .
取樣時間 (Sampling Time)
- Approx. 0.4 second.
電源供應 (Power Supply)
- DC 9 V battery, 006P, MN1604 or equivalent.
電源電流 (PowerCurrent)
- Approx. DC 1.8 mA.
重量 (Weight)
- 140 g/0.31 LB.
體積 (Dimension)
- 108 x 73 x 23 mm (4.3 x 2.9 x 1.4 inch).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
精確度 ACCURACY ( 23±5 ℃)
- 0 to 750℃ : ± ( 1 % + 1 ℃ )
- 750 to 1000℃ : Typically - ± ( 2 % + 1 ℃
- 1000 to 1200℃ : Typically - ± ( 4 % + 3 ℃
- 0 to -20℃ : Typically ± 2 ℃
- -20 to -40℃ : Typically ± 3
選購溫度測棒及其他附件
Thermocouple Probe
Model : TP-01
- -40 ℃ to 250 ℃ continuous (300℃ short-term).
- Applications : Ultra fast response naked-bead thermocouple wire, suitable for many general purpose application.
Model : TP-02A
- -50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉ ).
- Dimension : 10 cm tube, 3.2 mm Dia. Penetration & Immersion applications.
Model : TP-03
- -50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉ ).
- Dimension : 10 cm tube, 8 mm Dia.
- Applications : High temperature, Penetration & Immersion
Model : TP-04
- -50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉ ).
- TP-04 Dimension : Temp. sensing head-15 mm Dia. Probe length-120 mm.
- Applications : Precision surface temp. measurement usage.
攜帶箱 (Carrying case)
Model : CA-52A
- Soft carrying case with sash 200 X 80 X 50 mm.
Model : CA-04
- Soft carrying case. 140 X 77 X 40 mm.
保護套 (Holster)
Model : HS-02
- High quality rubber protective holster.
|
|
