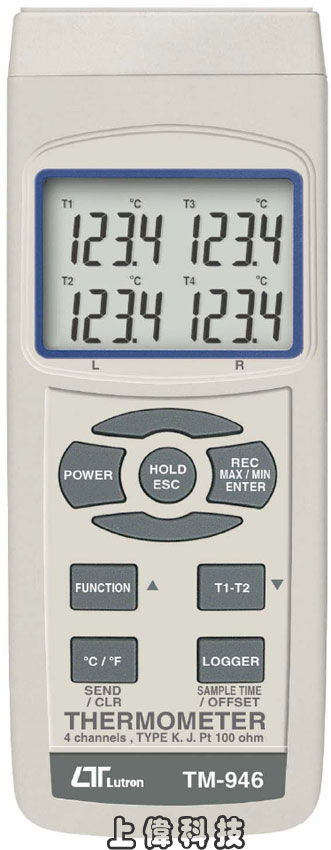

TM-946
四視窗顯示溫度計
特色
- 測量範圍 : Type K : -199.9 to 1370 ℃
- Type J : -199.9 to 1210 ℃
- Pt 100 ohm : -199.9 to 850 ℃
- 可同時測量/顯示四個溫度點 (Type K/J)
- 精確度 : ±0.5%
- 攝氏(°C) / 華氏(°F)單位選擇
- 可記錄1600筆資料
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232 / USB 連接介面 (軟體選購)
- Size：174 X 68 X 42mm
FEATURES
- Type K/J, Pt 100 ohm, measurement with 4 display.
- Show 4 channels display on the LCD at the same time.
- Type K : -199.9 to 1370 ℃.
- Type J : -199.9 to 1210 ℃.
- Pt 100 ohm : -199.9 to 850 ℃.
- ℃/℉, 0.1 degree/1 degree.
- 4 channels ( T1, T2, T3, T4 ), T1-T2.
- Microcomputer circuit provides intelligent function and high accuracy.
- Manual and auto data logger, with flexible sampling time selection, can save max. 16,000 reading data.
- Records Maximum and Minimum readings with recall.
- Data hold function for freezing the desired value.
- Offset adjustment for the Type K and Type J measurement.
- Offset adjustment for the Pt 100 measurement.
- Measuring unit can select to ℃ or ℉.
- DC 1.5V ( UM-4, AAA ) battery x 6 PCs.
- Build in the input socket for DC 9V power adapter.
- RS232 PC serial interface.
- Few panel buttons, easy operation.
- Built-in low battery indicator.
- Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- * Show 4 channels display on the display at the same time.
顯示單位 (Display Unit)
- ℃, ℉.
解析度 (Resolution)
- 0.1 ℃, 0.1 ℉.
測量頻數 (Channels)
- T1, T2, T3, T4, T1-T2.
感應器型式 (Sensor Type)
- Type K thermocouple probe
- Type J thermocouple probe.
- PT 100 ohm probe
- * Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Manual : Push the data logger button once will save data one time. * Set the sampling to 0 second.
- Auto : 1 second to 59 minutes and 59 seconds.
資料集錄器記憶數(Data Logger number)
- Max. 16,000-point Data logger
- Type K, Type J, 4 channels ( T1, T2, T3, T4 ) * Memory use 4 data point space in the memory.
- Pt 100 ohm, 2 channels ( T1,T2 )
- * Memory use 2 data point space in the memory.T1-T2
- * Memory use 4 data point space in the memory.
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction both type K/J thermometer
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- Available for advanced calibration procedure.

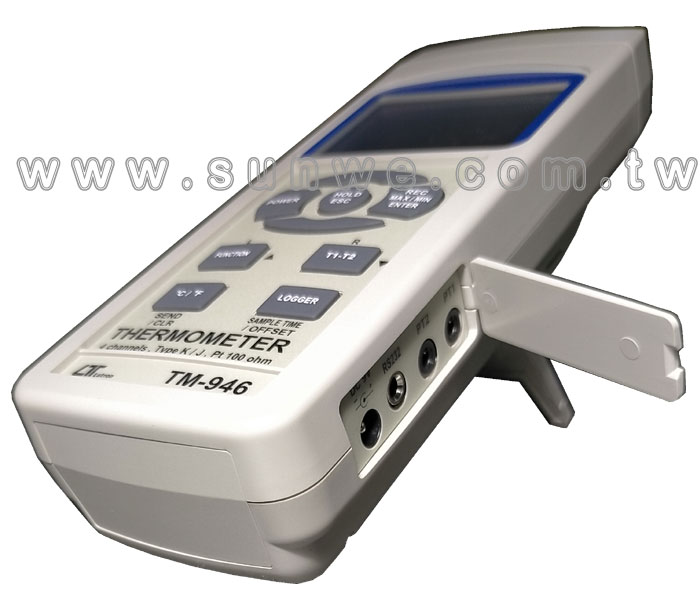

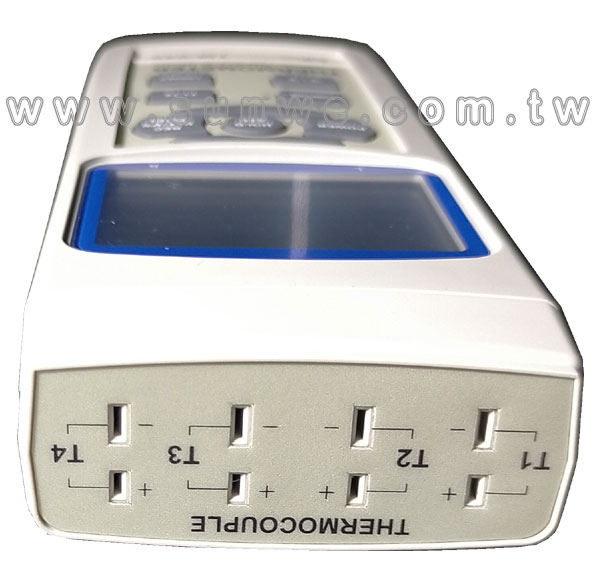

感測器輸入接頭 (Probe Input Socket)
- Type K, Type J :
2 pin thermocouple socket.
- Pt 100 ohm : Ear phone socket.
過載指示 (Over Indication)
- Show of "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS232 PC serial interface.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Approx. DC 9 mA.
重量 (Weight)
- 310 g/0.68 lb.
體積 (Dimension)
- 174 x 68 x 42 mm ( 6.9 x 2.7 x 1.7 inch ).
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * Pt 100 ohm probe, TP-101.
- * AC to DC 9V adapter.
- * RS232 cable, UPCB-02
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
- * Data Logger software, SW-DL2005.
- * Soft carrying case, CA-05A.
- * Hard carrying case, CA-06.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
K型 , J型熱電偶 (Type K, Type J thermocouple)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
1 ℃ |
1000 to 1370.0 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 0.1 ℃ |
-199.9 to 999.9 ℃ |
| 1 ℉ |
1000 to 2498 ℉ |
± ( 0.5 % + 1.8 ℉ ) |
| 0.1 ℉ |
-199.9 to 999.9 ℉ |
| Type J |
1 ℃ |
1000 to 1210 ℃ |
± ( 0.5 % + 1 ℃ ) |
| 0.1 ℃ |
-199.9 to 999.9 ℃ |
| 1 ℉ |
1000 to 2210 ℉ |
± ( 0.5 % + 1.8 ℉ ) |
| 0.1 ℉ |
-199.9 to 999.9 ℉ |
- * Accuracy value is specified for the meter only
- * Type K probe TP-01 TP-02A, TP-03. TP-04 are the optional accessories.
PT 100 歐姆 (PT 100 ohm)
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-199.9 to 850 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
1000 to 1562 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| 0.1 ℉ |
-199.9 to 999.9 ℉ |
| 1 ℉ |
-200 to -327 ℉ |
- * Pt 100 ohm probe TP-101 is the optional accessory.
|
