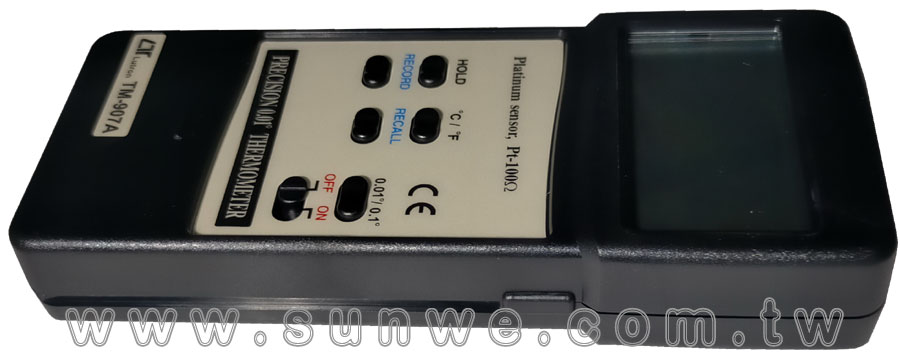

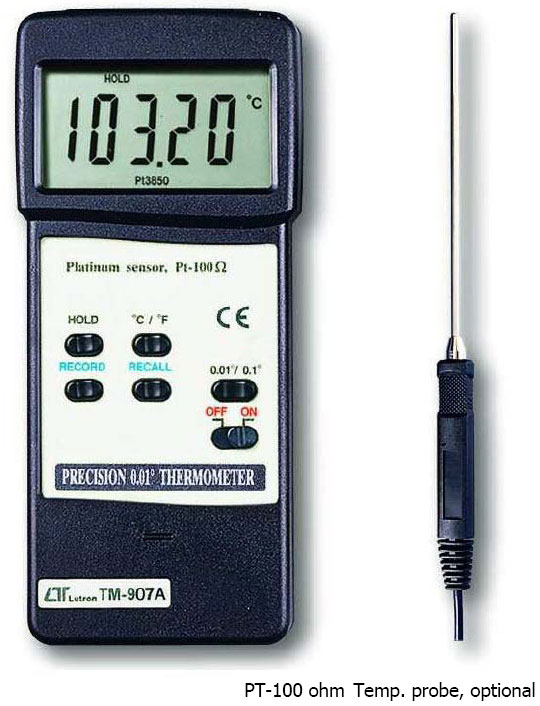

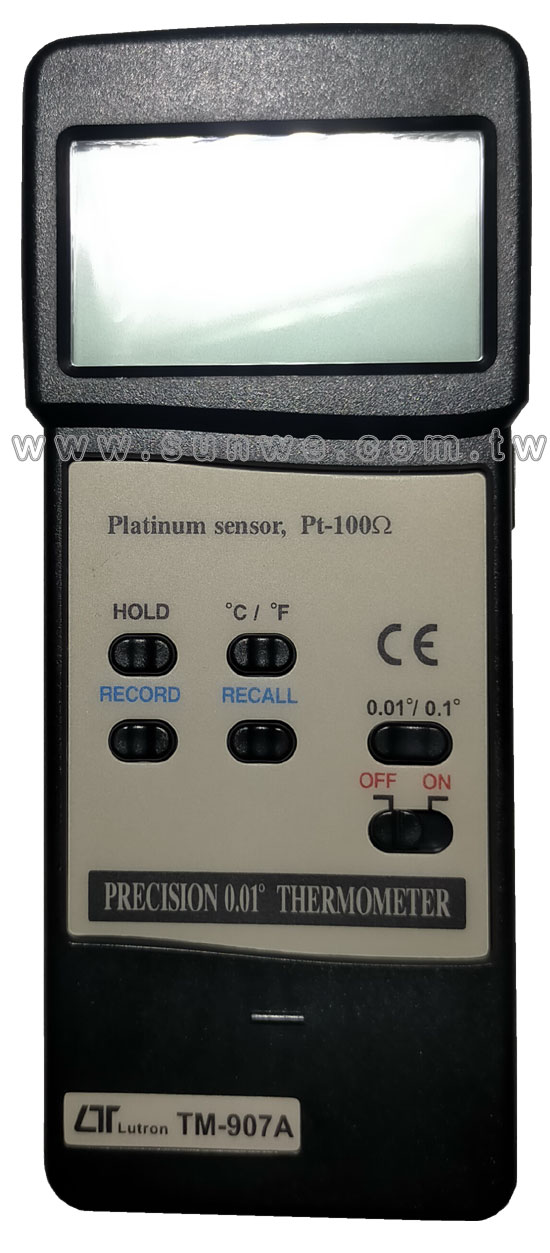

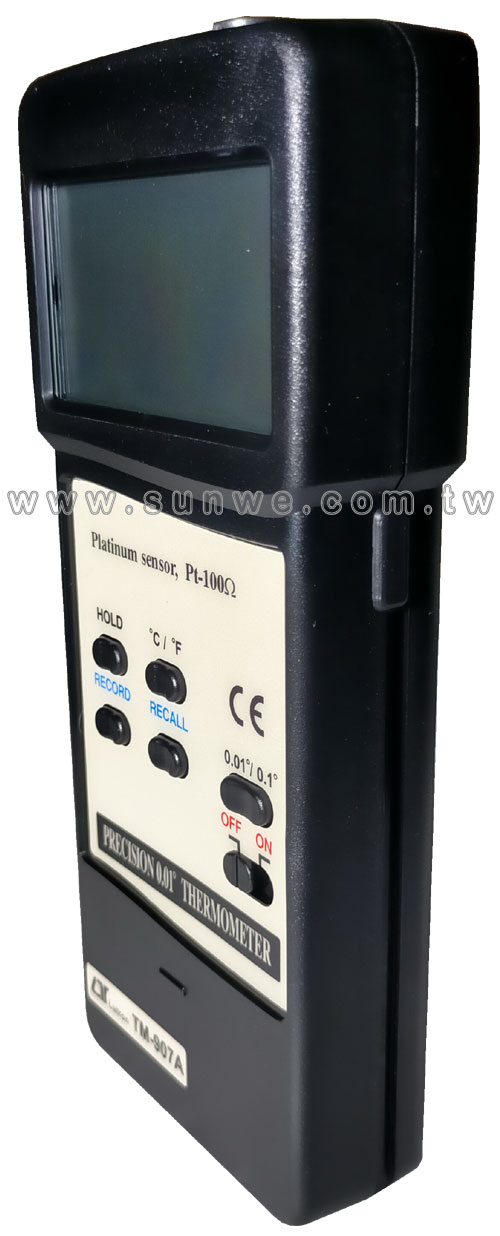

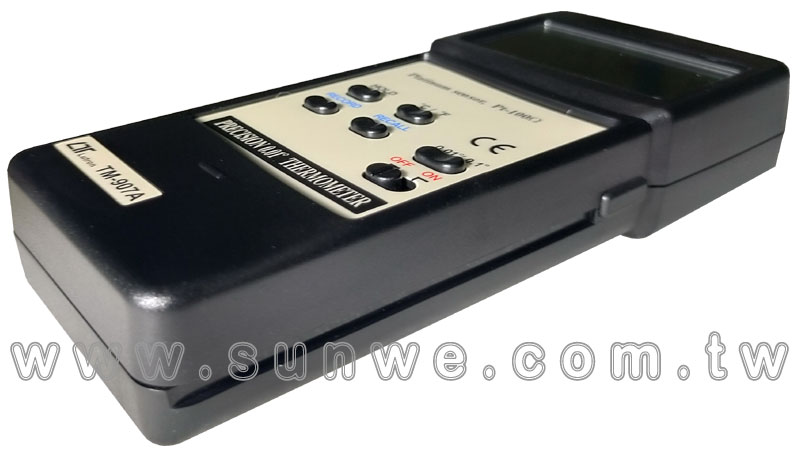

TM-907A
白金電阻溫度計
特色
- 測量範圍 :
- -199.99 ~ 800°C
- -199.99 ~ 1472°F
- 精確度 : ±0.1%
- 解析度選擇 : 0.01 或 0.1
- 可記錄最大值'最小值及讀值鎖定
- 只能搭配TP-100型感溫棒使用(選購品)
- RS-232 / USB 連接介面(軟體選購)
- Size：180 X 72 X 32mm
FEATURES
- Professional thermometer with high accuracy & 0.01 resolution.
- PT 100 probe input cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751.
- Cooperate with 4 wires Pt-100 ohm probe, high precision.
- Wide range display from -199.99 to 850 ℃.
- Build in ℃ & ℉ select button on the front panel.
- Build in 0.01& 0.1select switch on the front panel.
- RS 232 computer serial interface.
- Super large LCD with unit display, easy readout.
- Data hold function to store the desired value.
- Memory function to record the maximum & minimum reading with recall.
- Built-in low battery indicator.
- Optional carrying cases are available.
一般規格
顯示 (Display)
- 62 mm x 34 mm supper large LCD display, 13 mm ( 0.5" ) digit size.
感測棒型態 (Probe type)
- Platinum PT 100 ohm ( 0.00385 alpha coefficient, meet DIN IEC 751 )
功能 (Functions)
- ℃, ℉, 0.010.1 Data hold.
解析度 (Resolution)
- 0.01℃/0.1℃, 0.02℉/0.1℉.
電路 (Circuit)
- Use the software to make linearity correction instead the traditional hardware circuit.

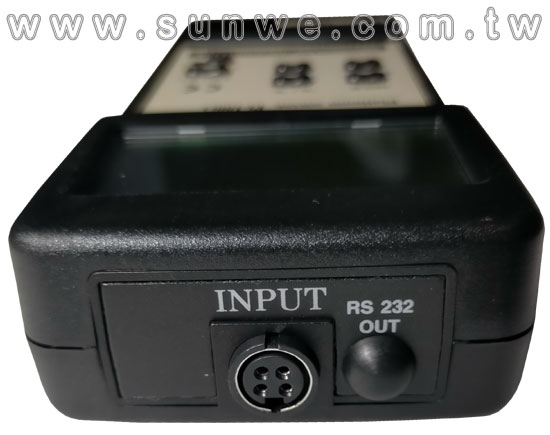

感測棒輸入接頭 (Probe input socket)
- DIN 4 pin socket.
取樣時間 (Sampling Time)
- Approx. 0.4 second.
鎖定功能 (Hold Function)
- To freeze the display reading value.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
過載指示 (Over Indication)
- Show " - - - - ".
資料輸出 (Data Output)
- RS232 PC serial interface.
電源供應 (Power Supply)
- Heavy duty or Akaline type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 15 mA.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉). * Meter only.
操作溼度 (Operating Humidity)
- Less than 80% RH. * Meter only.
重量 (Weight)
- 285 g/0.62 LB.
體積 (Dimension)
- 180x72x32 mm( 7.1x2.8x1.3 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Carrying case
- Pt-100 ohm Temp. probe, TP-100
- RS232 cable, UPCB-01
- USB cable, USB-01
- Application software
- Data acquisition software. SW-U801-WIN
儀器電氣規格 ELECTRICAL SPECIFICATIONS FOR THE METER (23±5 ℃)
| Type |
Resolution |
Range |
Accuracy |
| ℃ |
0.01 ℃ |
-199.99 to 199.99 ℃ |
± ( 0.1 % + 0.2 ℃ ) |
| 0.1 ℃ |
200.0 to 850.0 ℃ |
| ℉ |
0.01 ℉ |
-199.99 to 392.00 ℉ |
± ( 0.1 % + 0.4 ℉ ) |
| 0.1 ℉ |
392.0 to 1562.0 ℉ |
Remark
- * The accuracy is specified for the meter only
選購溫度感測棒及其他附件 (OPTIONAL TEMPERATURE PROBE & OTHER ACCESSORIES)
Carrying Case
- Model : CA-03, Vinyl soft carrying case, size : 190 x 90 x 55 mm.
- Model : CA-05A, Soft carrying case with sash, 260 x 110 x 55 mm.
- Model : CA-06, Hard carrying case, 280 x 195 x 65 mm.

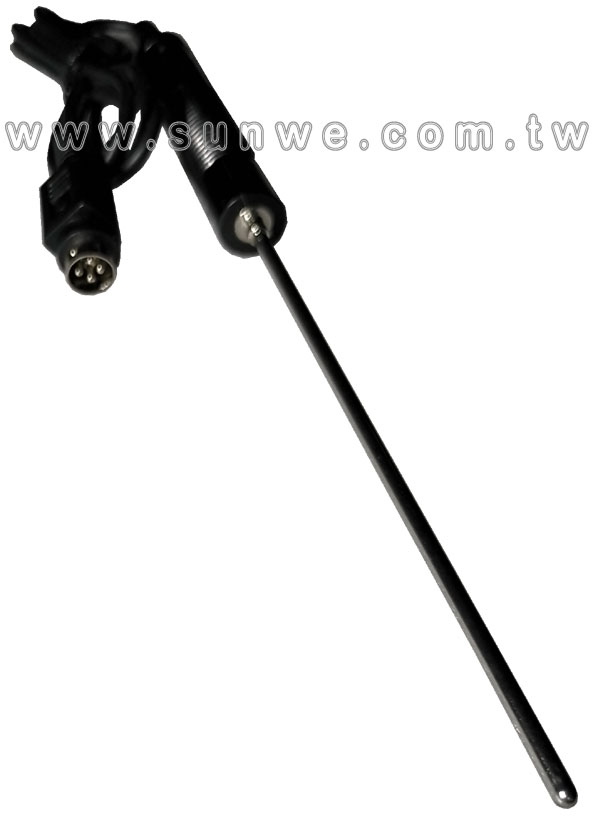

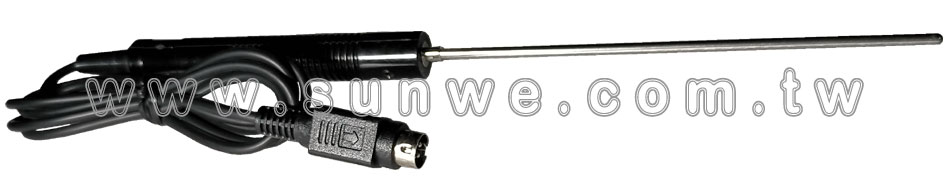

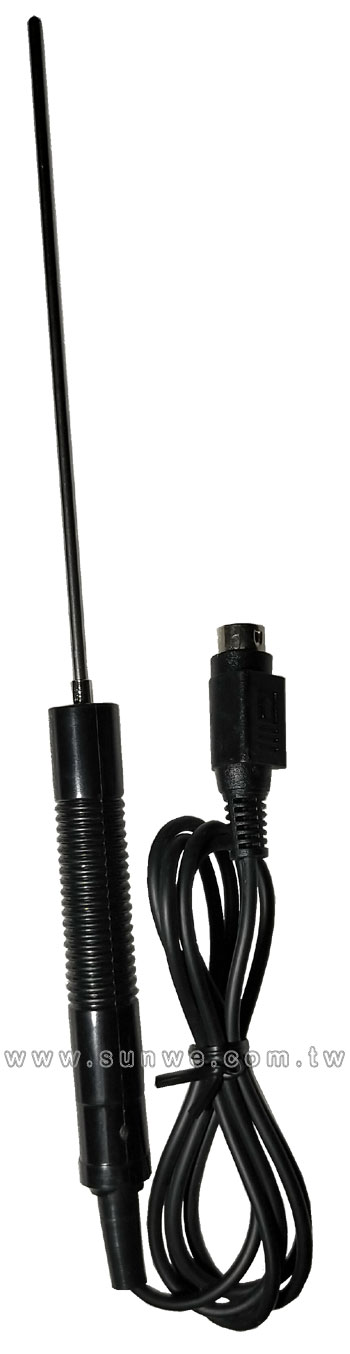

PT-100感測棒 (Pt-100 ohm Probe Model : TP-100)
- * -50 ℃ to 400 ℃ (-58 ℉ to 752 ℉), DIN plug, 4 pins/4 wires, Class A, Cooperate with an 0.00385 alpha coefficient, meet DIN IEC 751. Accuracy : (0.15 + (0.002 x T)) C. T : measuring temperature.
- * Dimension Sensing head - 152 mm tube, Probe length - 245 mm.
- * Cable length : 100 cm.
RS-232 電纜 (RS232 cable)
- RS232 cable for connecting between the meter & the computer ( COM port )
- Model : UPCB-01
USB 電纜 (USB cable)
- USB cable for connecting between the meter & the computer ( USB port )
- Model : USB-01
軟體 (Software)
- Model : SW-U801-WIN, Windows version.
- * Software apply as the performance of data logging system & data recorder
|
