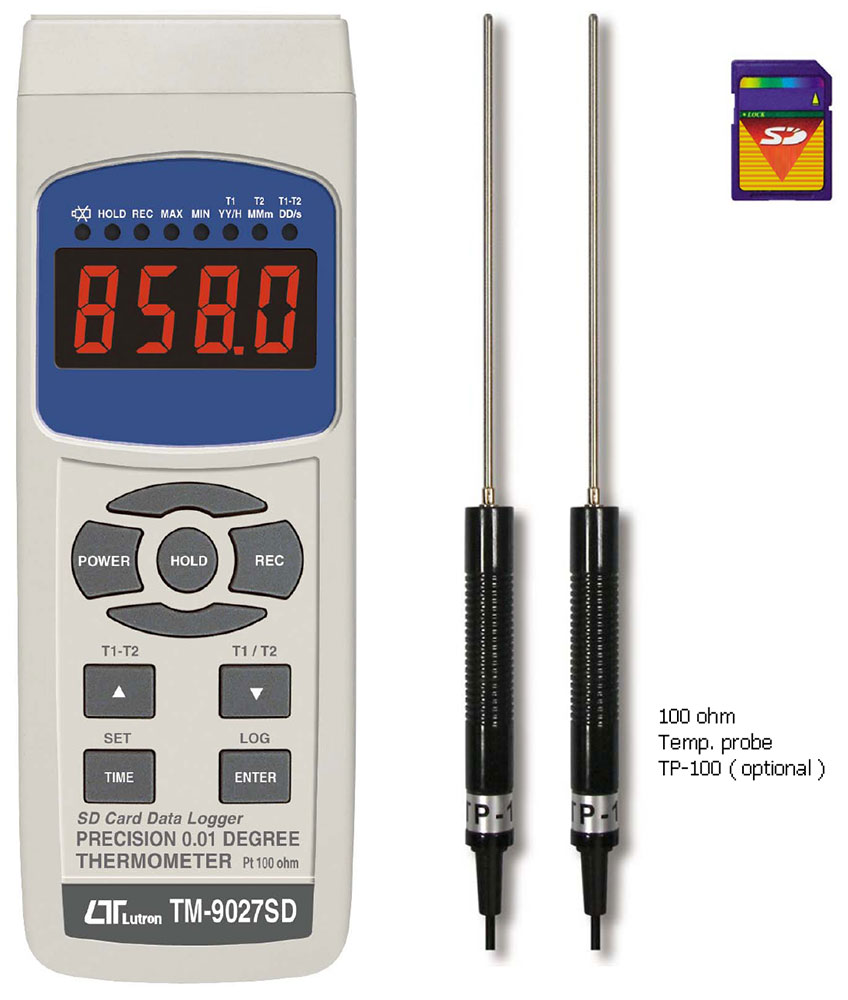

TM-9027SD
記憶式雙通道LED精密溫度計

- Pt 100 ohm,測量 .
- Pt 100 ohm : -199.99 至 850.00 °C。
- 解析度 0.01℃ / 0.1℃ / 1℃ 及 0.01℉ / 0.1℉ / 1℉
- 2 個通道(Pt 1、Pt 2、Pt 1- Pt 2)。
- 微電腦電路提供智慧功能和高精度。
- Pt 100 測量的偏移調整。
- 測量單位可選擇 °C 或 °F 。
- 即時 SD 儲存卡資料記錄器,內置時鐘和日曆,實時數據記錄器,採樣時間設置為 1 秒至 3600 秒。
- 手動資料記錄器可用(將採樣時間設置為 0 秒),在執行手動數據記錄器功能時,它可以設置不同的位置(位置)編號。(位置 1 到位置 99)。
- 創新且易於作,計算機無需設置額外的軟體,執行數據記錄器
後,只需從儀錶中取出 SD 卡並將 SD 卡插入電腦,即可將所有測量值和時間資訊(年/月/日/小時/分鐘/秒)直接下載到 Excel, 然後使用者可以自己進行進一步的數據或圖形分析。
- SD 卡容量:1 GB 至 16 GB。
- 可以預設自動關機或手動關機。
- 資料鎖定、記錄最大和最小讀值。
- 微電腦電路,精度高。
- 由 UM3/AA ( 1.5 V ) x 6 電池或 DC 9V 適配器供電。
- RS232/USB PC 電腦介面。
- 堅固且耐用的外殼。
特色
- TM-9027SD 精密溫度計具有先進的功能,提供準確可靠的溫度測量,使其成為各種科學和工業應用的重要工具。
- 雙通道測量:支援兩個通道的 Pt 100 歐姆輸入,可以同時測量 Pt 1、Pt 2 和 Pt 1-Pt 2。
- 即時數據記錄:配備 SD 卡即時數據記錄器、內建時鐘和日曆,可準確記錄帶有時間戳記的數據。數據可以直接匯出到 Excel 進行進一步分析。
- 高精度、高靈活性:對 Pt 100 歐姆全範圍測量(-199.99℃ 至 850.00℃(-327℉ 至 1562℉))提供高精度線性補償。測量單位可選擇℃或℉。
- 使用者友善操作:具有紅色 LED 顯示屏,清晰易讀,資料保持功能,最大值和最小值記憶調用,以及偏移調整和各種採樣時間設定等簡單操作。
- 全面的資料管理:包含 RS232/USB PC 電腦接口,方便傳輸資料。支援自動和手動資料記錄模式,採樣時間可在 1 秒至 3600 秒之間調整。
FEATURES
- * Pt 100 ohm, measurement .
- * Pt 100 ohm : -199.99 to 850.00 ℃.
- * ℃ / ℉ , 0.01 degree / 0.1 degree / 1 degree.
- * 2 channels ( Pt 1, Pt 2, Pt 1- Pt 2 ).
- * Microcomputer circuit provides intelligent function and high accuracy.
- * Offset adjustment for the Pt 100 measurement.
- * Measuring unit can select to ℃ or ℉ .
- * Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder, sampling time set from 1 second to 3600 seconds.
- * Manual datalogger is available ( set the sampling time to 0 second), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- * Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves.
- * SD card capacity : 1 GB to 16 GB.
- * Can default auto power off or manual power off.
- * Data hold, record max. and min. reading.
- * Microcomputer circuit, high accuracy.
- * Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- * RS232/USB PC COMPUTER interface.
- * Heavy duty & compact housing case.
規格
電路
- 客製化單晶片微處理器LSI電路。
顯示
- 4 位紅色 LED,
數位高度 14 毫米(0.55 吋)。
測量範圍
- Pt 100 歐姆:-199.99℃ 至 850.00℃ / -327℉ 至 1562℉
解析度
- 0.01°C/0.1°C/1°C,0.01°F/0.1°F/1°F。
準確性
- -199.9℃至99.9℃為±(0.4% + 1℃)
- -327℉ 至 199.9℉ 為 ±(0.4% + 1.8℉)
記憶卡
- 1 GB 到 16 GB SD 記憶卡。
數據記錄器採樣時間
- 自動:
1,2,5,10,30,60,120,300,600,1800,3600秒
- @採樣時間可設定為1秒,
但記憶體資料可能會遺失。
- 手動:
按一次資料記錄器按鈕將儲存一次資料。
- @將採樣時間設定為
0秒。
- @手動模式下,也可以選擇
1至99的位置(Location)號。
資料錯誤號
- 最大佔總保存資料的 0.1% 以下。
進階設定
- 設定時鐘時間(年/月/日,時/分/秒)
- 設定取樣時間
自動關機管理
- 設定蜂鳴聲 聲音開/關
- SD 卡小數點設定
- SD 記憶卡格式
- *將溫度單位設定為 °C 或 °F
數據輸出
- RS 232/USB PC 電腦介面。
- 連接選購的 RS232 電纜 UPCB-02 。
- 連接選購的 USB 連接線 USB-01。
工作溫度
- -20 至 50 攝氏度
工作濕度
- 相對濕度低於 85%
電源
- 電池:(UM3,AA)x 6 塊,或同等電池。
- AC/DC 電源供應器(變壓器是可選的)。
耗電量:
- 正常運作(不儲存 SD 卡資料):約直流24毫安培
- 使用 SD 卡儲存資料:約直流 50 毫安培
重量
- 278 克/0.61 磅(僅儀表)。
尺寸
- 主儀器:177 x 68 x 45 毫米(7.0 x 2.7 x 1.9 英吋)
資料鎖定
- 凍結顯示讀數。
記憶回叫
- 最大值和最小值。
顯示採樣時間
- 大約 1秒。
超過指示
- 顯示 ” - - - - ”。
功能
- Pt1,Pt2,Pt1-Pt2。
探頭輸入插座
- Pt100 歐姆:4 DIN 插座。
標準配件
- 說明書:1本
選購配件
- Pt100歐姆探頭,TP-100。
- SDCard(4GB)
- USB 線,USB-01。
- RS232 電纜,UPCB-02。
- 數據採集軟體,SW-U801-WIN.,SW-E802。
- AC 至 DC 9V 變壓器。
- 硬手提箱,CA-06。
- 軟質便攜包,CA-05A
|
|
