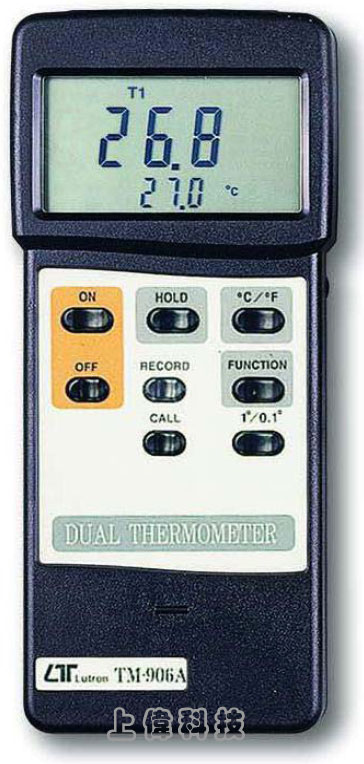

TM-906A
智慧型雙組溫度計
特色
- 測量範圍 : -50 ~ 1230°C (-50 ~ 1999ºF)
- 精確度 : ±0.75%
- 兩組溫度同時測量顯示
- 解析度選擇 : 0.1或1
- 感測棒形式 : TYPE K 熱電偶測棒
- 可記錄最大值'最小值及讀值鎖定
- RS-232連接介面(軟體選購)
- Size：180 X 72 X 32mm
FEATURES
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD display with contrast adjustment for best viewing angle.
- Dual function meter's display.
- Heavy duty & compact housing case.
- Records Maximum and Minimum readings with RECALL.
- Data hold.
- Auto shut off saves battery life.
- Operates from 006P DC 9V battery.
- RS 232 PC serial interface.
- Multi functions, dual channel temp. input, differential temp. measurement, ℃/℉, 0.1/1 degree, data hold.
- Wide measuring range from -50 ℃ to 1230 ℃.
- Meet any standard type K(NiCr-NiAl) probe.
- Fitted with standard type K thermocouple input measuring socket.
- Build in temperature linearity & precision cold junction compensation circuit, high accuracy.
- Low battery indicator.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 13 mm(0.5") Super large LCD display with contrast adjustment for best viewing angle.
- * Dual function meter's display.
感應器型式 (Sensor Type)
- Thermocouple K(NiCr-NiAl).
測量 (Measurement)
- Two channel temp. input (T1, T2), differential temperature measurement(T1 -T2), ℃/℉, 0.11 data hold.
範圍 (Range)
- - 50 ℃ to 1230 ℃, - 50 ℉ to 1999 ℉.
極性 (Polarity)
- Automatic switching, '-' indicates negative polarity.
輸入阻抗 (Input Impedance)
- 10 Mega ohm.
過載輸入指示 (Over input Indication)
- Indication of "- - - -".
資料輸出 (Data Output)
- RS232 PC serial interface.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
取樣時間 (Sampling Time)
- Approx. 0.8 to 1.0 second.
電源供應 (Power Supply)
- 006P DC 9V battery. (Heavy Duty Type)
電源電流 (PowerCurrent)
- Approx. DC 6.2 mA.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
重量 (Weight)
- 275 g/0.61 LB.
體積 (Dimension)
- 180 x 72 x 32 mm. (7.1 x 2.8 x1.3 inch).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Temperature probe., Carrying case.
- * RS232 cable, UPCB-01
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
| |
TEMP. RANGE |
RESOLUTION |
ACCURACY |
| ℃ |
-200 ℃ to 1370 ℃ |
0.1 ℃ |
-199.9 ℃ to 199.9 ℃ |
± ( 0.75% + 1 ℃ ) |
| 1 ℃ |
-200 ℃ to 1370 ℃ |
| ℉ |
-328 ℉ to 2498 ℉ |
0.1 ℉ |
-199.9 ℉ to 199.9 ℉ |
± ( 0.75% + 2 ℉ ) |
| 1 ℉ |
-328 ℉ to 2498 ℉ |
| ℃ |
T1 - T2 |
|
|
± ( 0.75% + 1 ℃ ) |
| ℉ |
T1 - T2 |
|
|
± ( 0.75% + 2 ℉ ) |
選購溫度測棒及其他附件
Thermocouple Probe (Type K) TP-01
- Measure Range: -40 ℃ to 250 ℃, -40 ℉ to 482 ℉
- Max. short-term operating Temperature: 300 ℃ (572 ℉).
- It is an ultra fast response naked-bead thermocouple, suitable for many general purpose application.
Thermocouple Probe (Type K), TP-02A
Measure Range: -50 ℃ to 900 ℃ (-50 ℉ to 1650 ℉).
Dimension: 10cm tube, 3.2mm Dia.
Thermocouple Probe (Type K), TP-03
Measure Range: -50 ℃ to 1200 ℃ (-50 ℉ to 2200 ℉).
Dimension: 10cm tube, 8mm Dia.
Surface Probe (Type K), TP-04
Measure Range: -50 ℃ to 400 ℃ (-50 ℉ to 752 ℉).
Size: Temp. sensing head - 15 mm Dia, Probe length - 120 mm.
|
