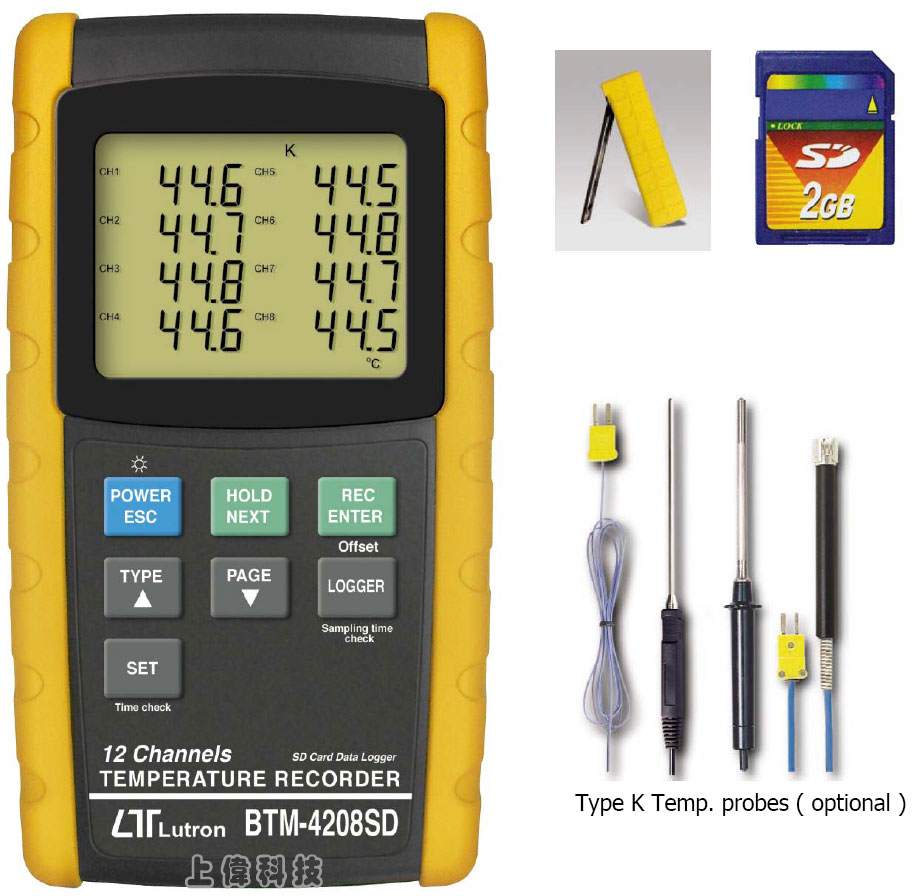

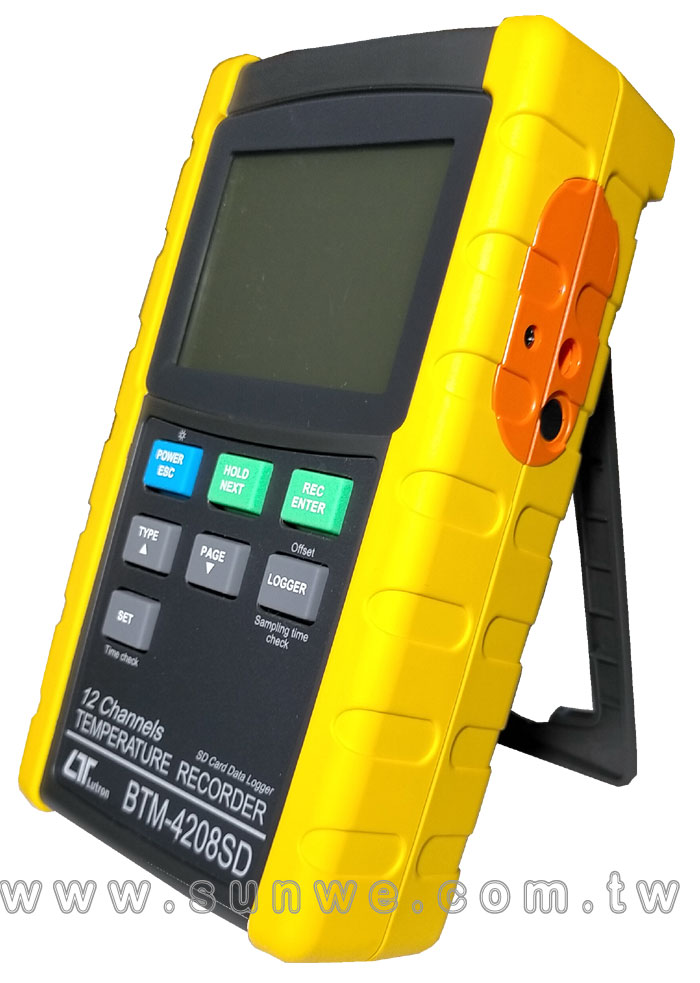

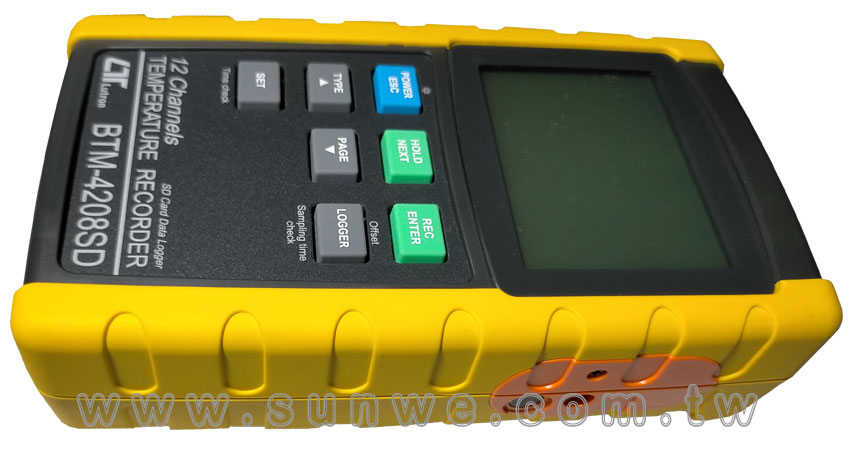

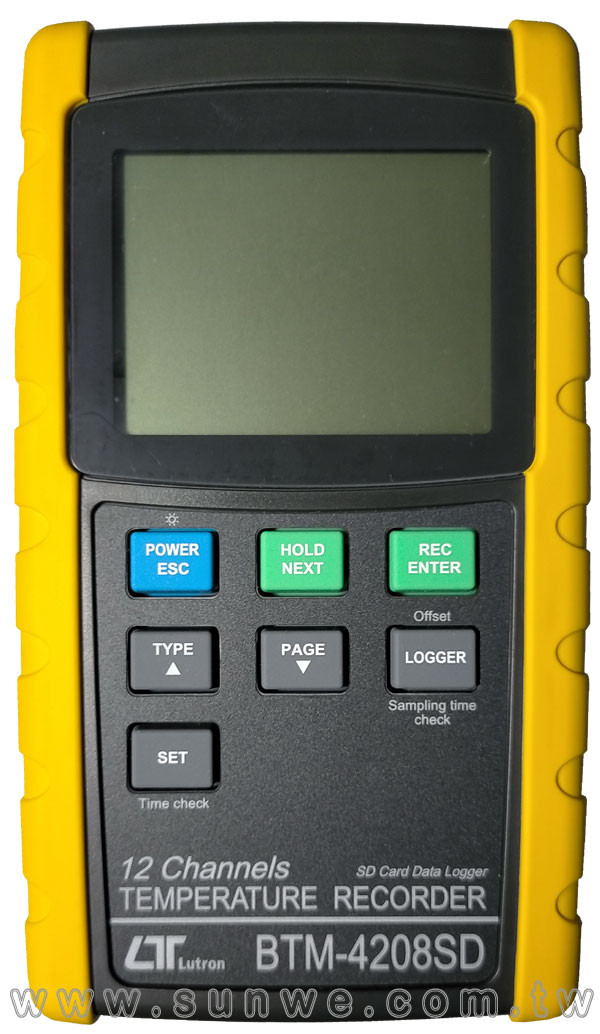

BTM-4208SD
12點記憶溫度計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 12點溫度測量及記錄功能 (SD 卡記錄儲存)
- 測量範圍 : TYPE K : -100.0 ~ 1300.0°C
- 精確度：±0.4% + 1°C
- 適用 J/T/E/R/S 等熱電偶測量
- 支援 1GB ~ 16GB記憶卡
- SD卡可自動或手動紀錄儲存
- 資料記錄取樣時間設定：1 ~ 3600秒接可設定
- 內建萬年曆及時鐘功能
- 讀值鎖定及記錄測量中之最大 / 最小值
- RS-232 / USB 連接介面(軟體選購)
- Size：225 X 125 X 64mm
FEATURES
- 12 channels Temperature recorder, use SD card to save the data along with time information, paperless.
- Real time data logger, save the 12 channels Temp. measuring data along the time information ( year, month, date, minute, second ) into the SD memory card and can be down load to the Excel, extra software is no need. User can make the further data or graphic analysis by themselves.
- Channels no. :
12 channels ( CH1 to CH12 ) temperature measurement.
- Sensor type : Type J/K/T/E/R/S thermocouple.
- Auto datalogger or manual datalogger. Data logger sampling time range : 1 to 3600 seconds.
- Type K thermometer : -100 to 1300 ℃.
- Type J thermometer : -100 to 1200 ℃.
- Page select, show CH1 to CH8 or CH9 to CH12 in the same LCD.
- Display resolution :
1 degree/0.1 degree.
- Offset adjustment.
- SD card capacity :
1 GB to 16 GB.
- RS232/USB computer interface.
- Microcomputer circuit provides intelligent function and high accuracy.
- Jumbo LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold to freeze the measurement value.
- Record function to present the max. and min. reading.
- Power by UM3/AA ( 1.5 V ) x 8 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
- Heavy duty & compact housing case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 82 mm x 61 mm. * with green color backlight.
頻數 (Channels)
- 12 channels : T1, T2, T3, T4, T5, T6, T7, T8, T9, T10, T11 and T12.
感測器型態 (Sensor type)
- Type K thermocouple probe.
- Type J/T/E/R/S thermocouple probe.
解析度 (Resolution)
- 0.1℃/1℃, 0.1℉/1 ℉.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time. @ Set the sampling time to 0 second.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the type K/J/T/E/R/S thermometer.
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- To adjust the zero temperature deviation value.

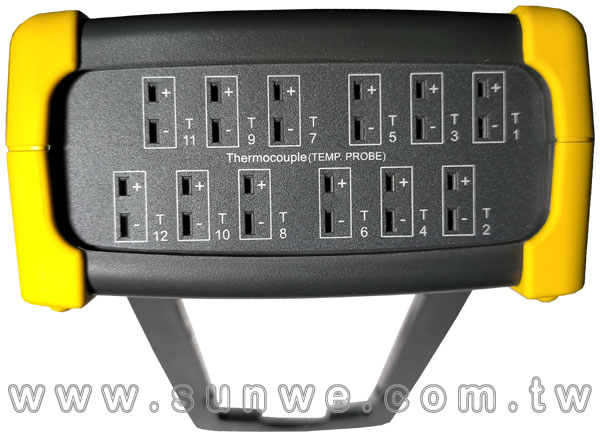

感測器輸入接頭 (Probe Input Socket)
- 2 pin thermocouple socket.
過載指示 (Over Indication)
- Show of "- - - -".
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 7.5 mA.
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
- * If LCD backlight on, the power consumption will increase approx. 11 mA.
重量 (Weight)
- Meter : 948g ( includes batteries )
體積 (Dimension)
- 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )

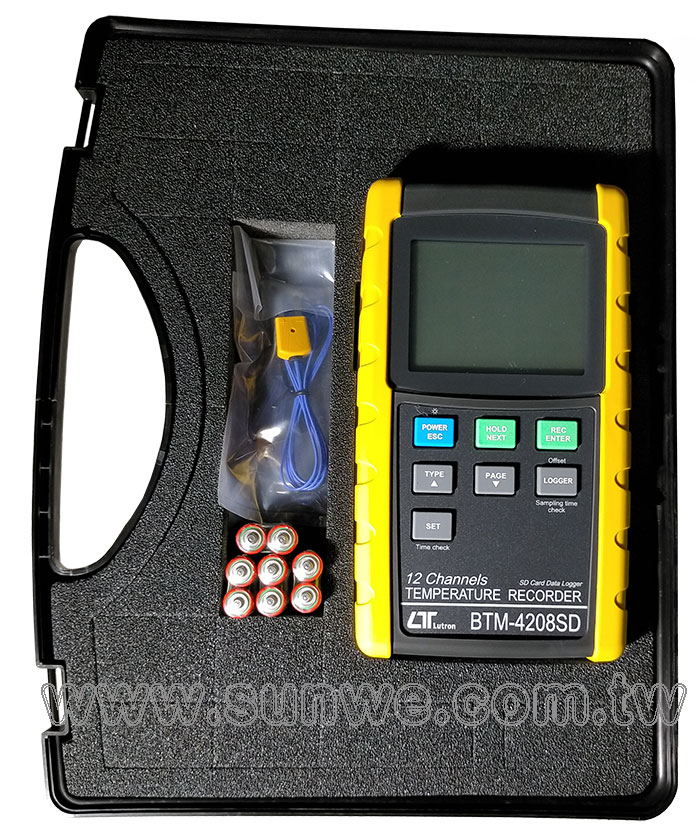

附件 (Standard Accessory)
- * Instruction manual.............................. 1 PC
- * Type K Temp. probe, TP-01................. 2 PC
- * SD Card ( 2 GB )................................. 1 PC

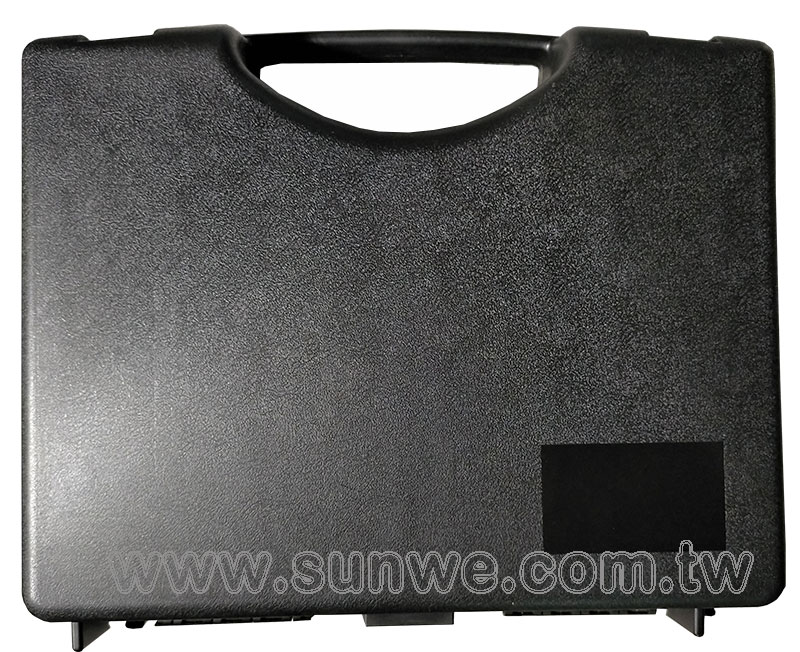

- * Hard carrying case, CA-08....................1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U811-WIN.
- * AC to DC 9V adapter.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1300 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2372 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type J |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 999.9 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 1 ℃ |
1000 to 1150 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 2102 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type T |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 400.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 752.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| Type E |
0.1 ℃ |
-50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| -50.0 to 900.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 0.1 ℉ |
-58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| -58.0 to 999.9 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1 ℉ |
1000 to 1652 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type R |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1700 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 3092 ℉ |
± ( 0.4 % + 2 ℉ ) |
| Type S |
1 ℃ |
0 to 600 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| 601 to 1500 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 1 ℉ |
32 to 1112 ℉ |
± ( 0.4 % + 1 ℉ ) |
| 1113 to 2732 ℉ |
± ( 0.4 % + 2 ℉ ) |
Remark :
- * Accuracy value is specified for the meter only.
- * Accuracy is tested under the meter's environment temperature within 23 ± 5℃.
- * Linearity Correction : Memorize the thermocouple's curve into the intelligent CPU circuit,
|
