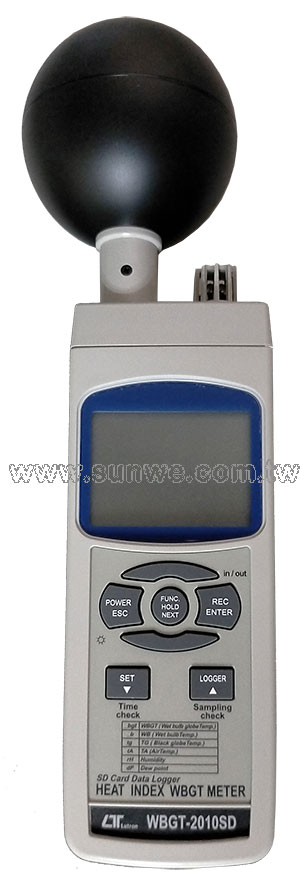

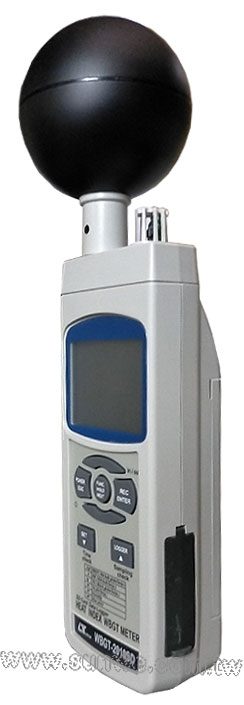

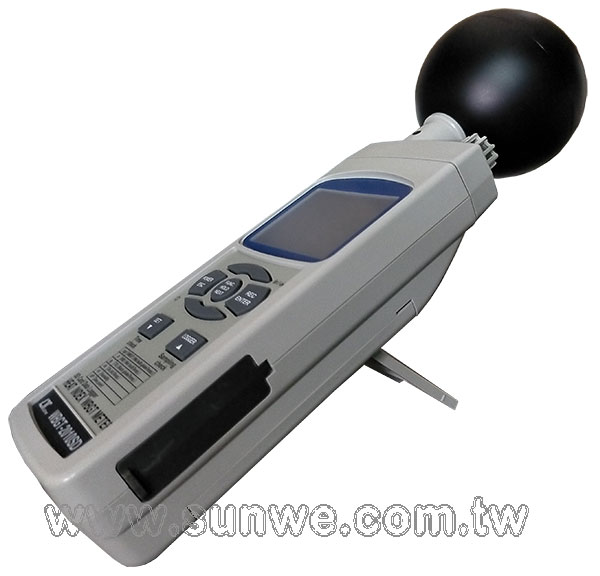

WBGT-2010SD
記憶式熱指數偵測儀
簡介
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 濕球溫度 WBGT : (室內)0 ~ 59°C. (室外) 0 ~ 59°C
- 黑球溫度 (TG) : 0 ~ 80°C.
- 空氣溫度 (TA) : 0 ~ 50°C
- 濕球溫度 (WB) : -21.6 ~ 50.0°C.
- 濕球範圍 : 5 ~ 95% RH.
- 露點範圍 : -25.3 ~ 48.9°C
- WBGT 值可警報設定及蜂鳴警示
- 讀值鎖定及記錄測量中之最大/最小值.
- RS-232 / USB 連接介面.(軟體選購)
- 主機 Size : 177 x 68 x 45mm.
- 黑球直徑 : 75mm
FEATURES
- Introduction : WBGT ( wet-bulb globe temperature ) was developed as a monitoring basis at US military training camps and became widespread for the use in workplaces and sports situation It is suggested in the international standard ISO 7243, OSHA ( US Occupation Safety ), Japan Society for Occupational Health and the SMA ( Sports Medicine Australia ) in establishing the permissible heat exposure limits in health , sports or other physical activities.
- Measurement : WBGT value ( Indoor/Outdoor Wet bulb globe temperature ), Black globe temperature, Humidity, Air temperature, Wet bulb temperature, Dew point Temp..
- Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display.
- Using to control and monitor of physical activity in hot environment to limit the danger of heat related injuries.
- Globe temperature measurement use the Pt sensor, high accuracy.
- Fast humidity measuring response time.

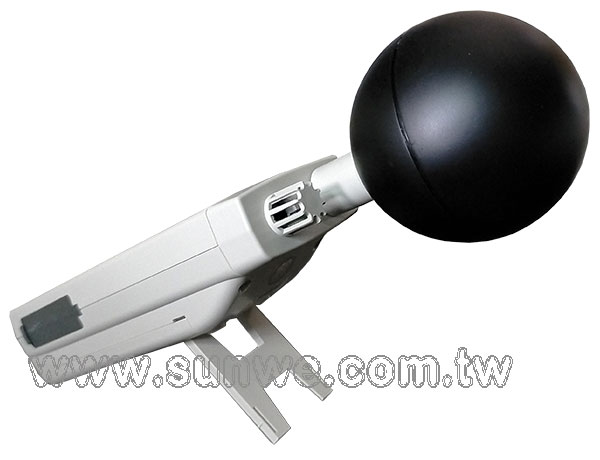

- Direct measurement of the radiation effect with a brass black ball in 75 mm dia.
- Sensor protecting mechanism.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).

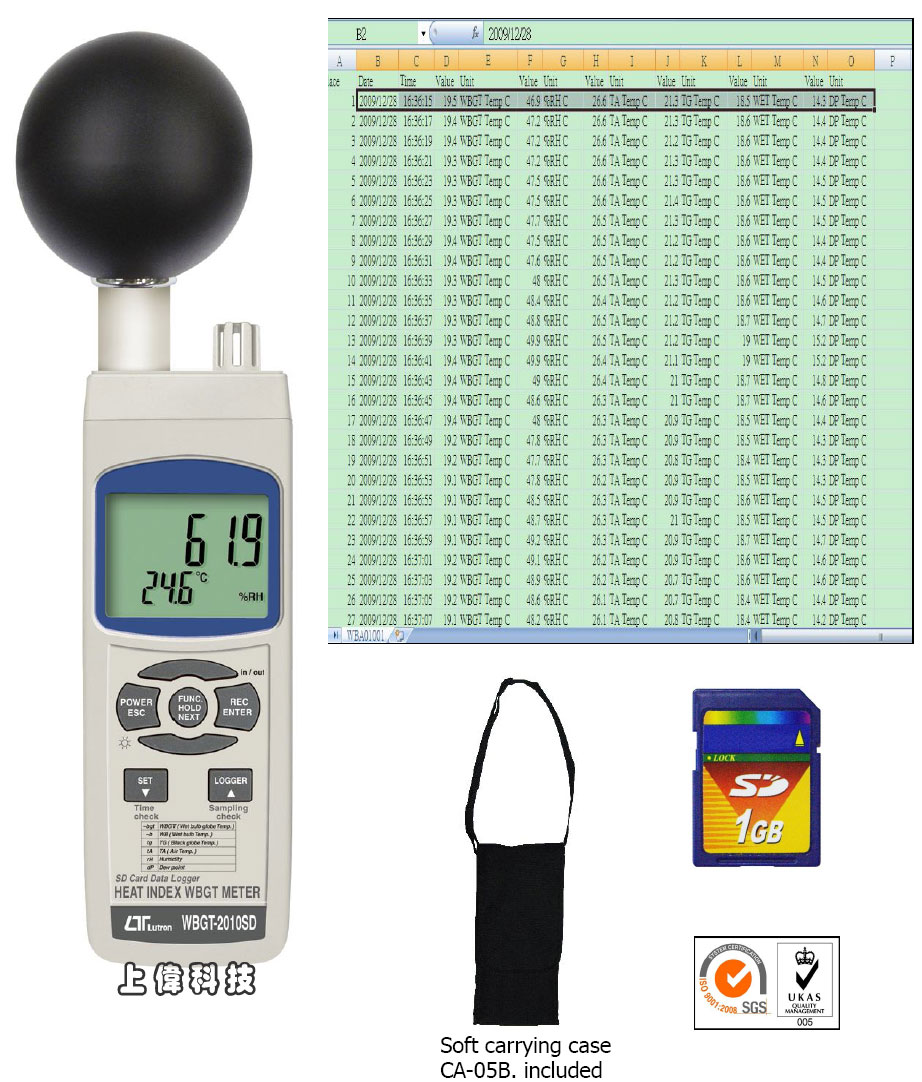

- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量 (Measurement)
- * Wet bulb globe temperature ( WBGT ) @ Indoor/Outdoor
- * Black globe temperature ( TG )
- * Air temperature ( TA )
- * Wet bulb temperature ( WB )
- * Humidity
- * Dew point temperature
WBGT 公式 (WBGT formula) * Wet bulb globe Temp.
- Indoor/Outdoor and no sun :
WBGT = ( 0.7 x WB ) + ( 0.3 x TG )
- Outdoor and full sun :
WBGT = ( 0.7 x WB ) + ( 0.2 x TG ) + ( 0.1 x TA )
WBGT 警報設定 (WBGT alarm setting)
- Adjustable WBGT alarm setting, if the WBGT value over the alarm threshold, the buzzer will sound along with the flashing Display.
資料集錄器取樣時間 (Sampling Time of Data Logger)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
資料錯誤數 (Data error no.)
- 0.1% of total saved data max.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set WBGT alarm value
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.

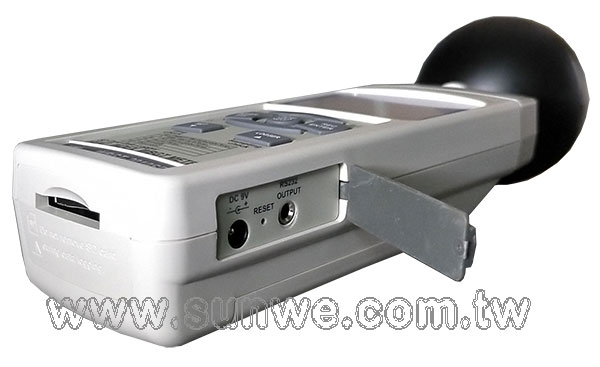

資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 85% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4, AAA ) x 6 PCs, or equivalent.
- DC 9V adapter input. * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 5 mA.
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 25 mA.
- * If LCD backlight on, the power consumption will increase approx. 11 mA.
重量 (Weight)
- 489 g/1.08 LB.
體積 (Dimension)
- Meter : 177 x 68 x 45 mm (7.0 x 2.7x 1.9 inch)
- Black brass ball : (7.0 x 2.7x 1.9 inch) Round, 75 mm dia
附件 (Standard Accessory)
- * Instruction manual.................... 1 PC
- * Black brass ball ( with sensor )...... 1 PC
- * Soft carrying case, CA-05B................1 PC
選購附件 (Optional & accessories Temp. Probe)
- * SD Card ( 2 GB )
- * AC to DC 9V adapter.
- * RS232 cable, UPCB-02
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
- * Hard carrying case, CA-08. Size : 370 x 310 x 115 mm.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
濕球溫度 Wet bulb globe temperature ( WBGT )
| Range |
℃ |
Indoor |
0 ℃ to 59 ℃ |
| Outdoor |
0 ℃ to 56 ℃ |
| ℉ |
Indoor |
32 to 138 ℉ |
| Outdoor |
32 to 132 ℉ |
| Accuracy * Indoor |
℃ |
± 1 ℃ ( 15 to 59 ℃ ) |
| ± 1.5 ℃ ( Others ) |
| ℉ |
± 1.8 ℉ ( 59 to 138 ℉ ) |
| ± 2.7 ℉ ( Others ) |
| Accuracy |
℃ |
± 1.5 ℃ ( 15 to 56 ℃ ) |
| ± 2 ℃ ( Others ) |
| ℉ |
± 2.7 ℉ ( 59 to 132 ℉ ) |
| ± 3.6 ℉ ( Others ) |
WBGT 公式 (WBGT Formula :)
| Indoor ( Outdoor and no sun ) |
WBGT= 0.7WB + 0.3TG |
| Outdoor ( Outdoor and full sun ) |
WBGT= 0.7WB + 0.2TG + 0.1TA |
空氣溫度 Air temperature ( TA )
| Range |
℃ |
0 to 50 ℃ |
| ℉ |
32 to 122 ℉. |
| Resolution |
℃ |
0.1 ℃ |
| ℉ |
0.1 ℉ |
| Accuracy @ 15 to 40 ℃ |
℃ |
± 0.8 ℃ |
| ℉ |
± 1.5 ℉ |
黑球溫度 Black globe temperature ( TG )
| Range |
℃ |
0 to 80 ℃ |
| ℉ |
32 to 176 ℉. |
|
Resolution |
℃ |
0.1 ℃ |
| ℉ |
0.1 ℉ |
|
Accuracy
@ 15 to 40 ℃ |
℃ |
± 0.6 ℃ |
| ℉ |
± 1.1 ℉ |
濕度 Humidity
| Range |
5 % to 95 % R.H. |
| Resolution |
0.1 % R.H. |
| Accuracy @ 15 to 40 ℃ |
≧70% RH : ± (3% reading + 1% RH). < 70% RH : ± 3% RH. |
露點溫度 Dew Point Temp.
| ℃ |
Range |
-21.6 ℃ to 48.9 ℃ |
| Resolution |
0.1 ℃ |
| ℉ |
Range |
-6.9 ℉ to 120.1 ℉. |
| Resolution |
0.1 ℉. |
Remark :
- * Dew Point Temp. value is calculated from the Humidity/Air Temp. measurement automatically.
- * The Dew Point Temp. accuracy is sum accuracy value of Humidity & Air Temperature measurement..
濕球溫度 Wet bulb Temp
| ℃ |
Range |
-21.6 ℃ to 50.0 ℃ |
| Resolution |
0.1 ℃ |
| ℉ |
Range |
-6.9 ℉ to 122.0 ℉. |
| Resolution |
0.1 ℉. |
Remark :
- * Wet bulb display value is calculated from the Humidity/Air Temp. measurement automatically.
- * The Dew Point accuracy is sum accuracy value of Humidity & Air temperature measurement..
- ecommendations to heat exposure for working and physical activity. ( Permissible heat exposure threshold limit )
| Work/rest regimen ( Each hour ) |
Light |
Moderate |
Heavy |
| Continuous work |
30 ℃ ( 86 ℉ ) |
26.7 ℃ ( 80 ℉ ) |
25 ℃ ( 77 ℉ ) |
| 75% work, 25% rest |
30.6 ℃ ( 87 ℉ ) |
28 ℃ ( 82 ℉ ) |
25.9 ℃ ( 78 ℉ ) |
| 50% work, 50% rest |
31.4 ℃ ( 89 ℉ ) |
29.4 ℃ ( 85 ℉ ) |
27.9 ℃ ( 82 ℉ ) |
| 25% work, 75% rest |
32.2 ℃ ( 90 ℉ ) |
31.1 ℃ ( 88 ℉ ) |
30 ℃ ( 86 ℉ ) |
- Source : AGGIH 1992 ( The American Conference of Governmental Industrial Hygienists )
WBGT 索引及實體驗證 WBGT INDEX and PHYSICAL EXERCISE
| WBGT |
Flag |
Activity Intensity |
| < 26.7 ℃ ( < 80 ℉ ) |
White |
Normal activity. Caution should be taken. |
| 26.7 to 29.4 ℃ ( 80 to 84.9 ℉ ) |
Green |
Descretion is required in planning intense physical activity. |
| 29.5 to 31 ℃ ( 85 to 87.9 ℉ ) |
Yellow |
Intense activity for new and unacclimatized persons should be curtailed. |
| 31.1 to 32.2 ℃ ( 88 to 89.9 ℉ ) |
Red |
Intense exercise must be curtailed for those with less than 12 weeks training in hot weather. Be on high alert |
| ≧ 32.2 ℃ ( ≧ 90 ℉ ) |
Black |
Cancel all outdoor exercise. |
|
