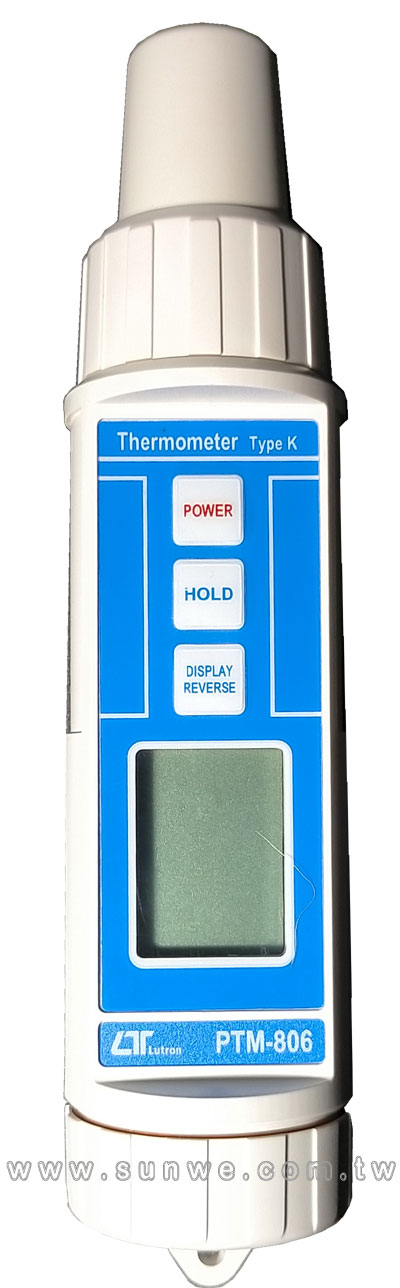

PTM-806
溫度計
特色
- 測量範圍 : -50.0 ~ 1300.0°C
- 攝氏(°C) / 華氏(°F)單位選擇
- 讀值鎖定功能
- 顯示器正 / 倒轉顯示選擇功能
- 具有自動溫度補償功能
- Size：210 X 80 X 50mm
FEATURES
- Both type K temp. measurement, wide range.
- ℃/℉, 0.1 degree.
- Meter can default the measuring unit to ℃ or ℉.
- Standard type K input socket, can cooperate the full line optional type K temp. probe.
- Two type display, normal or reverse, easy for operation.
- Data hold to freeze the display value.
- Bright LCD display.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Auto power off saves battery life.
- Operates from DC 1.5V ( UM4/AAA ) x 4 PCs batteries.
- Durable, long-lasting components, enclosed in strong, compact ABS-plastic housing.
一般規格
顯示 (Display)
- LCD size : 28 mm x 19 mm.
溫度單位 (Temp. unit)
- ℃ or ℉ with default.
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
熱電偶型式 (Thermocouple Type)
- Type K.
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction
線性補償 (Linear Compensation)
- Linear Compensation for the full range.

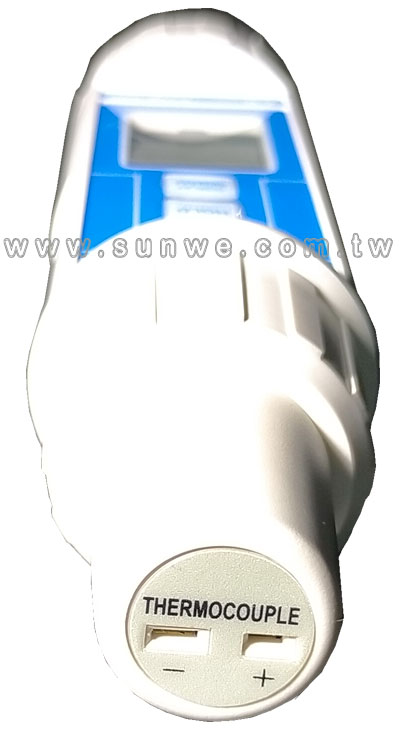

感測器輸入接頭 (Probe Input Socket)
- Standard 2 pin thermocouple socket.
資料鎖定 (Data Hold)
- Freeze the display reading.
過載指示 (Over Indication)
- Show "- - - -".
取樣時間 (Sampling Time)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- DC 1.5 V battery ( UM4/AAA ) x 4 PCs,
電源電流 (PowerCurrent)
- Approx. DC 6.5 mA.
重量 (Weight)
- 156 g/ 0.34 LB.
體積 (Dimension)
- 175 x 40 x 40 mm (6.9" x 1.6" x 1.6")
附件 (Standard Accessory)
- Instruction manual........................1 PC
- Type K thermocouple probe, TP-01.........1 PC
選購附件 (Optional & accessories Temp. Probe)
- * Soft carrying case with sash ( 210 x 80 x 50 mm ), Model : CA-52A
- * Type K thermocouple probe, TP-02A. TP-03, TP-04

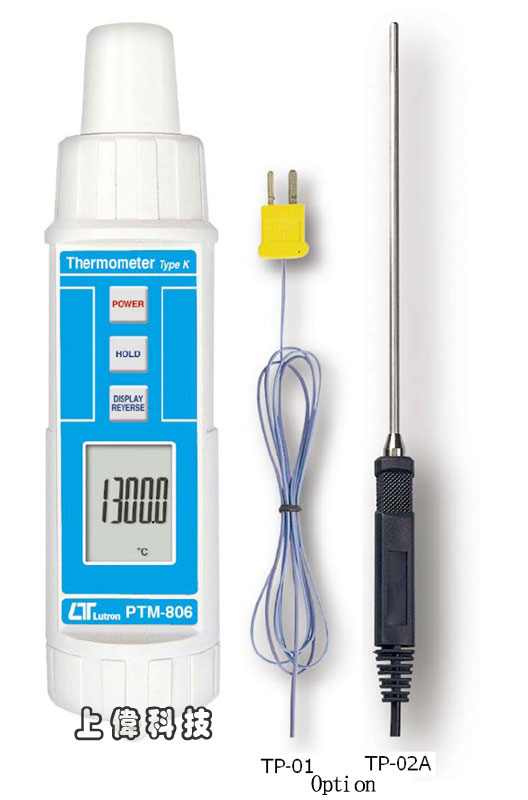

TP-01 K型熱電偶感測棒 (TYPE K THERMOCOUPLE PROBE, TP-01)
- * TP-01 Temp. probe is standard accessory.
- * Max. short-tern operating Temperature: 300 ℃ (572 ℉).
- * It is an ultra fast response naked-bead thermocouple suitable for many general purpose application.
儀器電氣規格 ELECTRICAL SPECIFICATIONS FOR THE METER (23±5 ℃)
| Resolution |
Range |
Accuracy |
| 0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
- * Accuracy Is specified for the meter only.
- * Type K probe TP-01 is the standard accessory.
- * Type K probe TP-02A, TP-03. TP-04 are the optional accessories.
選購K型熱電偶感測棒 (OPTIONAL TYPE K TEMPERATURE PROBE)
Thermocouple Probe, TP-02A
- * Measure Range : -50 ℃ to 900 ℃ ( -50 ℉ to 1650 ℉ ).
- * Dimension : 10 cm tube, 3.2 mm Dia. Penetration & Immersion applications
Thermocouple Probe, TP-03
- * Measure Range : -50 ℃ to 1200 ℃ ( -50 ℉ to 2200 ℉ ).
- * Dimension : 10 cm tube, 8 mm Dia.
- * Applications : High temperature, Penetration & Immersion
Surface Probe, TP-04
- * -50 ℃ to 400 ℃ ( -50 ℉ to 752 ℉ ).
- * TP-04 Dimension : Temp. sensing head-15 mm Dia. Probe length-120 mm.
- * Applications : Precision surface temp. measurement usage.
|
