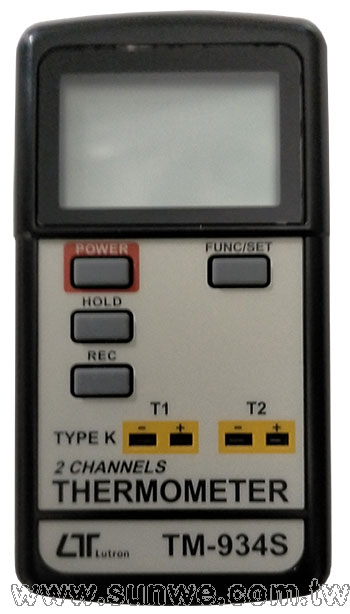

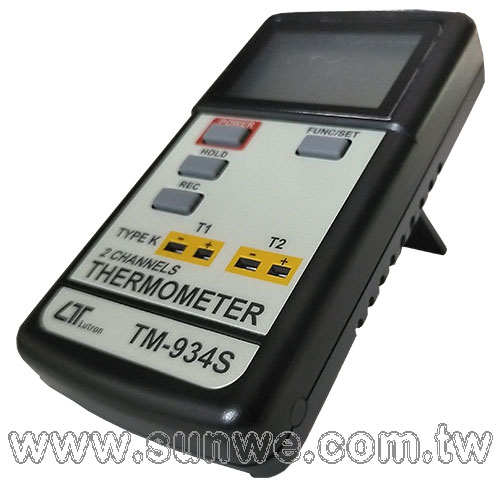

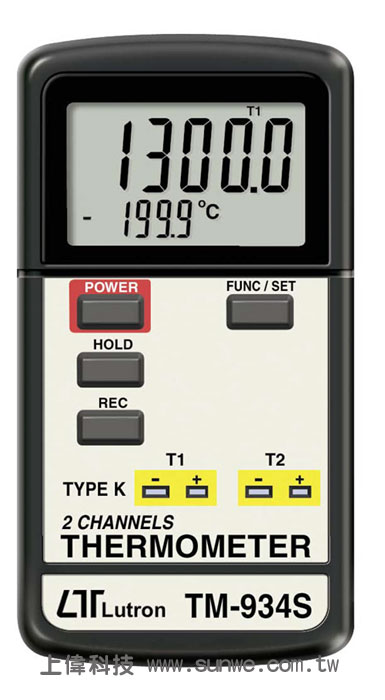

TM-934S
雙組溫度計
簡介
- 測量範圍 : -199.9°C ~ 1370.0°C
- 兩組溫度同時測量顯示
- 記錄測量中之最大/最小值及讀值鎖定
- 感測棒形式 : TYPE K 熱電偶測棒
- Size：131 X 70 X 25mm
FEATURES
- Two channels thermometer, T1, T2, T1-T2, T1 only.
- type K temp. measurement, wide range.
- ℃/℉, 0.1 degree.
- Microcomputer circuit provides intelligent function and high accuracy.
- LCD with two display, easy readout.
- Records Maximum and Minimum readings with recall.
- Data hold function for freezing the desired value.
- Meter can default auto power off or manual power off.
- Meter can default the measuring unit to ℃ or ℉.
- Build in the input socket for DC 9V power adapter.
- Few panel buttons, easy operation.
- Built-in low battery indicator.
- Heavy duty & compact housing
case.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 44 mm x 29 mm dual function LCD display.
顯示單位 (Display Unit)
- ℃, ℉.
解析度 (Resolution)
- 0.1 ℃, 0.1 ℉.
測量通道 (Channels)
- T1, T2, T1-T2, T1 only.
感應器型式 (Sensor Type)
- Type K
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the cold junction both type K thermometer
線性補償 (Linear Compensation)
- Linear Compensation for the full range.
差距值,取值調整 (Offset, Span Adjustment)
- Available for advanced calibration procedure.
過載指示 (Over Indication)
- Show "- - - -".
感測器輸入接頭 (Probe Input Socket)
- Standard 2 pin thermocouple socket.
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Memorize the Maximum, Minimum reading with recall.
顯示之取樣時間 (Sampling Time of display)
- Approx. 1 second.
電源關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery. (Heavy Duty Type)
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (PowerCurrent)
- Approx. DC 5.5 mA.
重量 (Weight)
- 196 g/0.43 LB.
體積 (Dimension)
- 135x60x33 mm, ( 5.3x2.4x1.3 inch ).
附件 (Standard Accessory)
- Operational manual..... 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- * Type K thermocouple probe. TP-01, TP-02A. TP-03, TP-04
- * Carrying case, CA-52A.
電氣規格 ELECTRICAL SPECIFICATIONS (23± 5 ℃)
| Sensor Type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
- * Accuracy value is specified for the meter only.
- * Type K probe TP-01 TP-02A, TP-03. TP-04 is the optional type K Temp. probe.
|
