LX-101

照度計

特色

測量範圍 :

0 ~ 2000LUX

20000 ~ 20000LUX

20000 ~ 50000LUX

精確度 : ±5%

感光器光譜反應符合C.I.E規範

色溫2856度K標準燈校正

Size : 108 x 73 x 23mm.

FEATURES

Sensor used the exclusive photo diode & multi-color correction filters, spectrum meet C. I. E. standard.

Sensor COS correction factor meet standard.

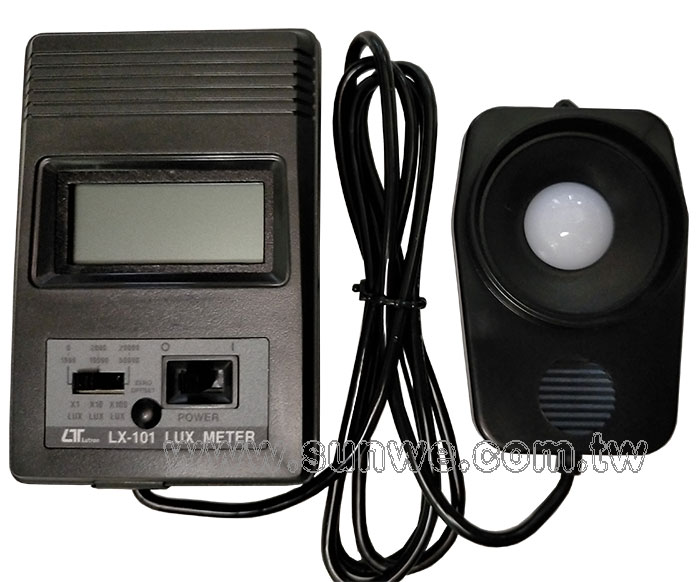

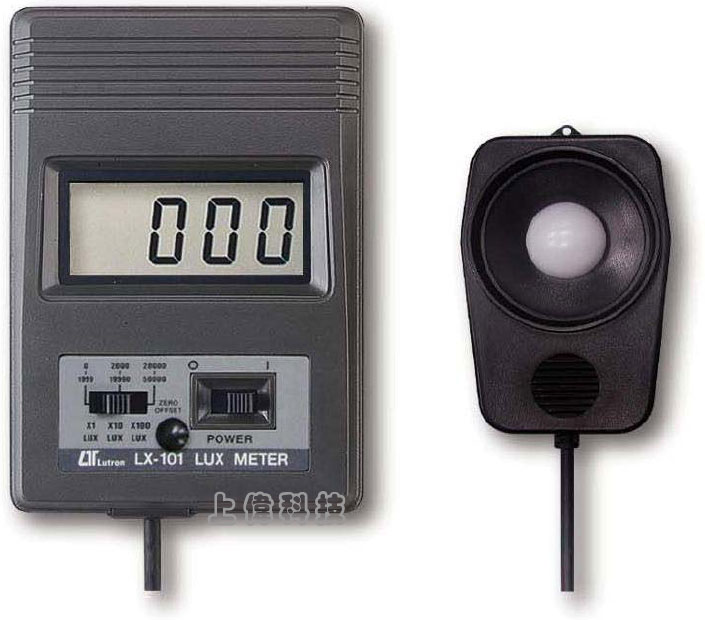

Separate LIGHT SENSOR allows user take measurements of an optimum position.

Precise and easy readout, wide range.

High accuracy in measuring

Built-in low battery indicator.

LSI-circuit use provides high reliability and durability.

LCD display provides low power consumption.

Compact, light-weight, and excellent operation.

LCD display can clearly read out even of high ambient light.

一般規格

顯示 (Display)

13 mm ( 0.5" ) LCD.

範圍 (Ranges)

0-50,000 Lux. 3 Ranges.

歸零調整 (Zero adjustment)

Internal adjustment .

過載輸入指示 (Over Input )

Indication of "1 "

取樣時間 (Sampling time)

0.4 second .

感應器結構 (Sensor structure)

The exclusive photo diode & color correction filter.

操作溫度 (Operating Temp. )

 0 to 50 ℃. (32 to 122° F)

操作溼度 (Operating Humidity)

Max. 80% RH.

電源供應 (Power Supply)

DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent

電源損耗 (Power Consumption)

Approx. DC 2 mA

重量 (Weight)

Main Instrument : 108x73x23 mm ( 4.3x2.9x0.9 inch)

Sensor probe : 82x55x7 mm ( 3.2x2.2x0.3 inch )

體積 (Dimension)

160g ( 0.36 LB ) with batteries

附件 (Standard Accessory)

Instruction manual............1 PC.

Carrying case ................1 PC.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

Note : Accuracy tested by a standard parallel light tungsten lamp of 2856K temperature.

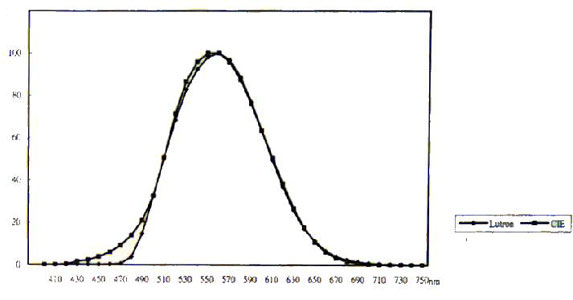

照度感應器光譜 (LIGHT SENSOR SPECTRUM)

　

　

　

　
