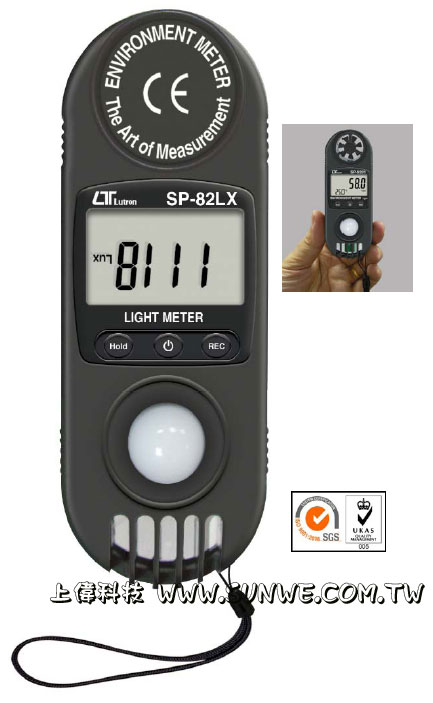

SP-82LX

掌上型照度計

簡介

極為輕巧細緻的外觀設計,適合單手操作

測量範圍:

0~20000LUX(流明)

0~2000Ft-cd(呎/燭光)

精確度:±5%

感光器光譜反應符合C.I.E規範

讀值鎖定及記錄測量中之最大/最小值

Size:120*45*20mm.

FEATURES

Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.

Wristlet design provides extra protection to the instrument especially for user one hand operation.

Exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic.

Sensor cosine correction factor meet standard.

Built- in microprocessor circuit assures excellent performance and accuracy.

Concise and compact buttons arrangement, easy operation.

Memorize the maximum and minimum value with recall.

Hold function to freeze the current reading value.

一般規格

顯示 (Display)

8 mm LCD display

測量 (Measurement)

Light value.

操作溫度 (Operating Temp.)

0 to 50 ℃. (32 to 122° F)

操作溼度 (Operating Humidity)

Max. 80% R.H.

過載輸入指示 (Over Range Indication)

Indication of "- - - -"

電源供應 (Power Supply)

CR 2032 DC 3V battery

電源損耗 (Power Consumption)

Approx. DC 5 mA

重量 (Weight)

160g (battery included)

體積 (Dimension)

HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch).

附件 (Standard Accessory)

Instruction Manual........ 1 PC

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

　
