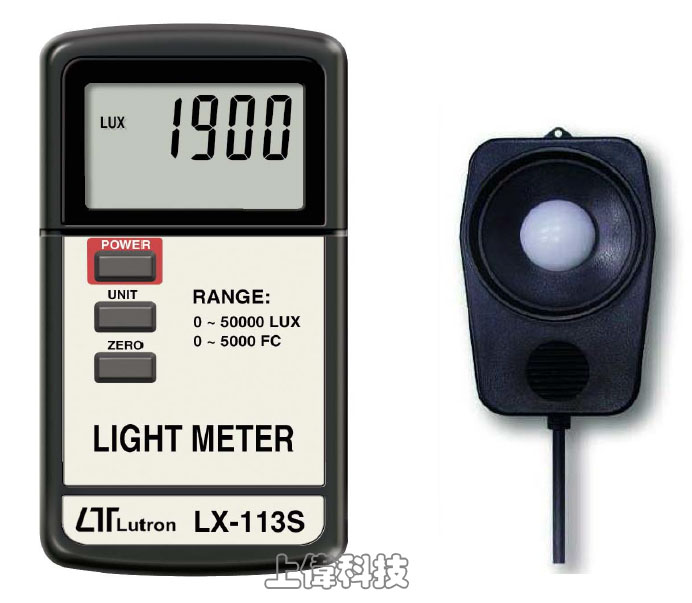

LX-113S
照度計
特色
- 測量範圍 :
- 0 ~ 2000 LUX / 0 ~ 200.0 Fc
- 2000 ~ 20000 LUX / 200 ~ 2000 Fc
- 20000 ~ 50000 LUX / 2000 ~ 5000Fc
- 精確度 : ±5%
- 感光器光譜反應符合C.I.E規範
- LUX(照度)/FC(呎/燭光)單位切換
- Size : 135 x 60 x 33mm.
FEATURES
- 2,000/20,000/50,000 Lux ,
Autorange.
- Light sensor used the exclusive
photo diode & color correction filter, spectrum meet C.I.E.
photopic.
- Light sensor cosine correction
factor meet standard.
- Separate Light Sensor allows user
to measure the light at an optimum position.
- Light meter can default the
display unit to Lux or Ft-cd with default.
- Zero key function.
- Sepeare light probe, easy
operation
- Microprocessor circuit.
- DC 9V battery ( 006 P ).
- Microcomputer circuit provides
high accuracy.
- Data hold function for freezing
the desired value.
- Built-in low battery indicator.
一般規格
電路 (Circuit)
- Custom one-chip
of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 44 mm x 29 mm dual function LCD display.
照度表 (Light Meter)
- Range :
- 0 to 50,000 LUX
- 0 to 5,000 Feet-candle ( Ft-cd ),
- *3 ranges
- *Auto range.
- Unit :
- LUX, Feet-candle ( Ft-cd ).
- Sensor :
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
- Zero Adjustment :
- External adjustment by pushing
button.
過載輸入指示 (Over
Indication )
- Show " ---- "
讀值鎖定 (Data Hold)
- Freeze the display reading.
取樣時間 (Sampling Time)
- Approx. 1 second.
電源關機 (Power off)
- Manual off by push button.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- DC 9V battery. ( Alkaline or Heavy
duty type ).
電源損耗 (Power Consumption)
- Approx. DC 5mA
重量 (Weight)
- 278 g/0.61 LB.
體積 (Dimension)
- Main Instrument :
135 x 60 x 33 mm. ( 5.3
x 2.4 x 1.3 inch ).
- Sensor probe : 82x55x7 mm ( 3.2x2.2x0.3 inch ).
附件 (Standard Accessory)
- Instruction Manual........ 1 PC.
- Sensor probe.............. 1 PC.
選購附件 (Optional Accessories)
- * Carrying case, CA-52A.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
LUX @ auto
range
|
Range |
In-range Display |
Resolution |
Accuracy |
| 2,000 LUX
|
0-1,999 LUX |
1 LUX |
± ( 5 % + 4
LUX ) |
| 20,000 LUX |
2,000-19,990 LUX |
10 LUX |
± ( 5 % +
40 LUX ) |
| 50,000 LUX |
20,000-50,000 LUX |
100 LUX |
± ( 5 % +
400 LUX ) |
Feet-candle (
Ft-cd ) @ auto range
|
Range |
In-range Display |
Resolution |
Accuracy |
| 200 FC |
0-199.9 Ft-cd |
0.1 FC |
± ( 5 % +
0.4 FC ) |
| 2,000 FC |
200-1,999
Ft-cd |
1 FC |
± ( 5 % + 4
FC ) |
| 5,000 FC |
2,000-5,000
Ft-cd |
10 FC |
± ( 5 % +
40 FC ) |
|
