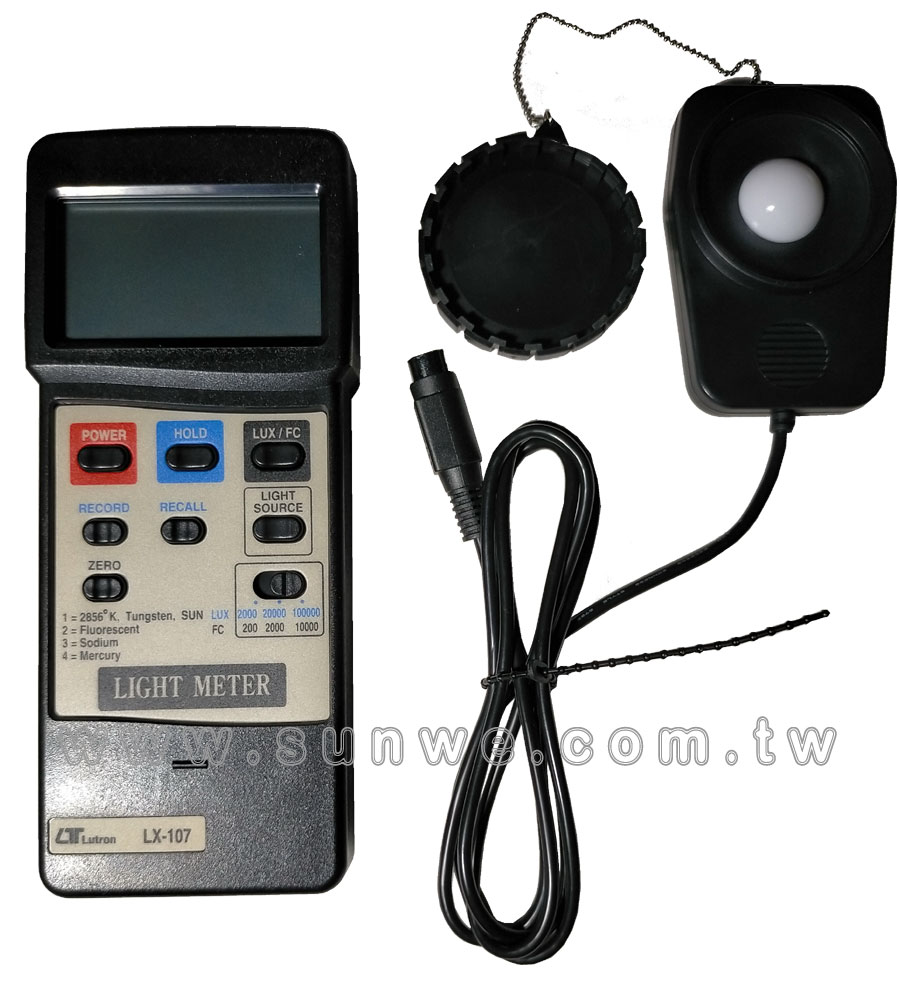

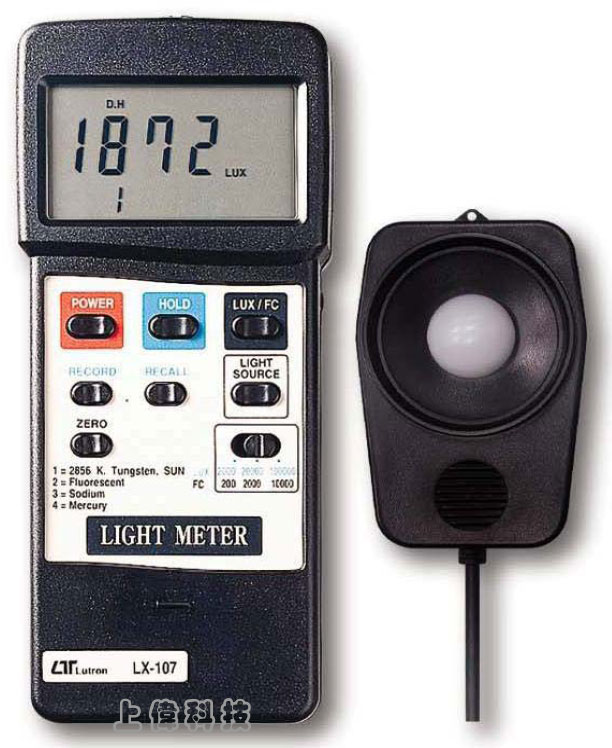

LX-107
智慧型照度計
特色
- 測量範圍 : 0 ~ 100000 LUX / 0 ~ 10000 Fc
- LUX (照度) / Ft-cd (呎/燭光) 單位選擇切換
- 精確度 : ±5%
- 可對不同光源做修正補償
- 讀值鎖定記錄測量中之最大/最小值
- 感光器光譜反應符合C.I.E規範
- Size : 180 x 72 x 32mm.
FEATURES
- Selection of lighting type (Tungsten, Fluorescent, Sodium or Mercury).
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD display, easy readout.
- Dual function meter's display.
- Zero adjustment by push button.
- Heavy duty & compact housing case.
- Records Maximum, Minimum and Average readings with recall.
- Data hold.
- Auto shut off saves battery life.
- Operates from 006P DC 9V battery.
- Spectrum of photo sensor meets C.I.E..
- Wide measurement both of Lux & Foot Candle measurement.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 13 mm(0.5") Super large LCD display with contrast adjustment for best viewing angle.
- * Dual function meter's display.
測量及範圍 (Measurement & Ranges)
- Lux : 0 to 100,000 Lux, 3 ranges.
- Ft-candle : 0 to 10,000 Ft-candle, 3 ranges.
照度型態選擇 (Lighting Type Selection)
- Daylight or Tungsten, Fluorescent, Mercury lamp.
感應器 (Sensor)
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
記憶回叫 (Memory Recall)
- Records Maximum, Minimum and Average readings with RECALL.
歸零調整 (Zero Adj.)
- By push button.
取樣時間 (Sampling Time)
- Approx. 0.4 sec.
電源關機 (Power off)
- Auto shut off saves battery life, or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface
過載輸入指示 (Over Input )
- Indication of "- - - -".
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery (Heavy Duty Type).
電源損耗 (Power Consumption)
- Approx. DC 5.3 mA
重量 (Weight)
- 335 g/0.77 LB
體積 (Dimension)

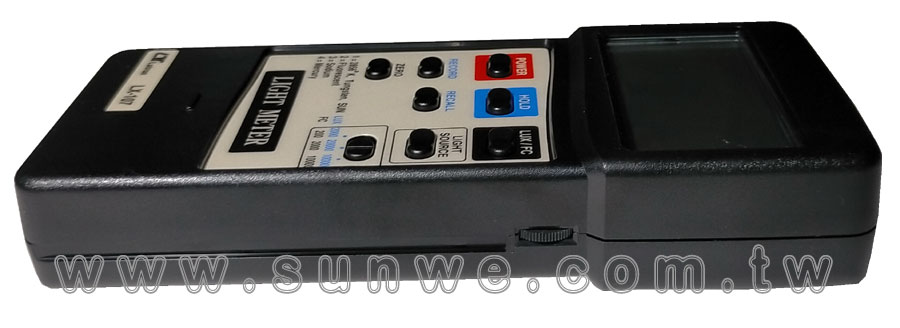

- Main Instrument : 180 x 72 x 32 mm (7.1 x 2.8 x1.3 inch).

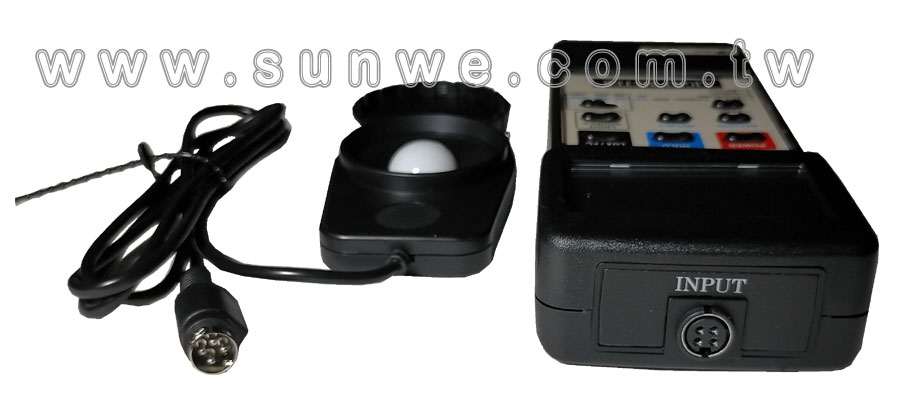

- Sensor probe : 85x55x12 mm(3.2x2.2x0.5 inch)
附件 (Standard Accessory)
- Instruction Manual........ 1 PC.
- Sensor probe.............. 1 PC.
選購附件 (Optional Accessories)
- * Hard carrying case, CA-06
- * Soft carrying case, CA-05A
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
| Lux |
2,000 Lux |
0 - 1,999 Lux |
1 Lux |
± ( 5 % + 2 d ) |
| 20,000 Lux |
1,800 - 19,990 Lux |
10 Lux |
± ( 5 % + 2 d ) |
| 100,000 Lux |
18,000 - 100,000 Lux |
100 Lux |
50,000 Lux :#( 5 % + 2 d ) |
> 50,000 Lux :for reference only, fno specify the accuracy. |
| Foot-candle (Fc) |
200 Fc |
0 - 186.0 Fc |
0.1 Ft-candle |
± ( 5 % + 2 d ) |
| 2,000 Fc |
167 - 1,860 Fc |
1 Ft-candle |
± ( 5 % + 2 d ) |
| 10,000 Fc |
1,670 - 10,000 Fc |
10 Ft-candle |
4,650 Fc :#( 5 % + 2 d ) |
> 4,650 Fc :for reference only, fno specify the accuracy. |
|
