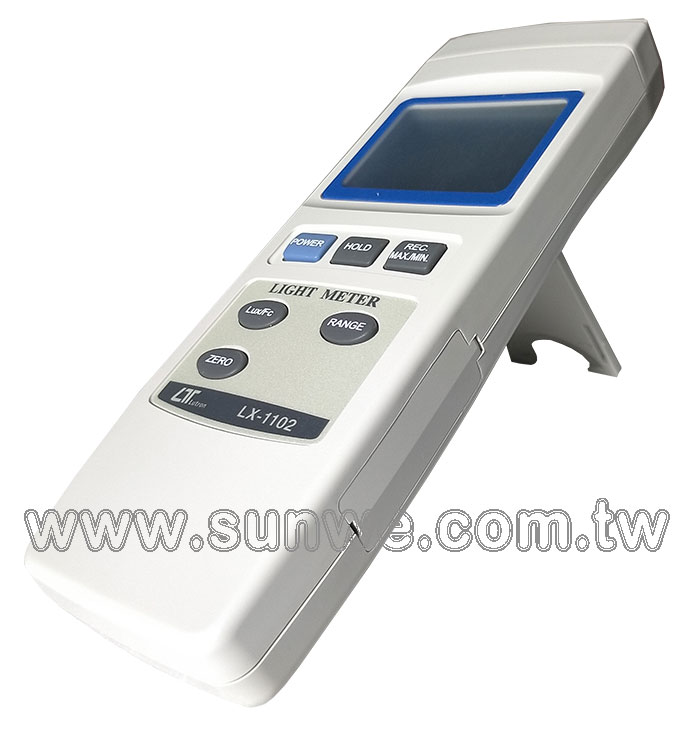

LX-1102
照度計
特色
- 測量範圍 : 0.01 ~ 400000 LUX / 0.001 ~ 40000 Fc
- LUX (照度) /Ft-cd (呎/燭光) 單位選擇切換
- 精確度 : ±3%. 感光器光譜反應符合C.I.E規範
- 讀值鎖定記錄測量中之最大/最小值
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 200 x 68 x 30mm.
FEATURES
- 5 ranges : 40.00/400.0/4,000/40,000/400,000 Lux, wide measuring range.
- High resolution : 0.01 Lux to 100 Lux, 0.01 Ft-cd to 10 Ft-cd
- Sensor used the exclusive photo diode & color correction filter, spectrum meet C.I.E. photopic.
- Sensor cosine correction factor meet standard.

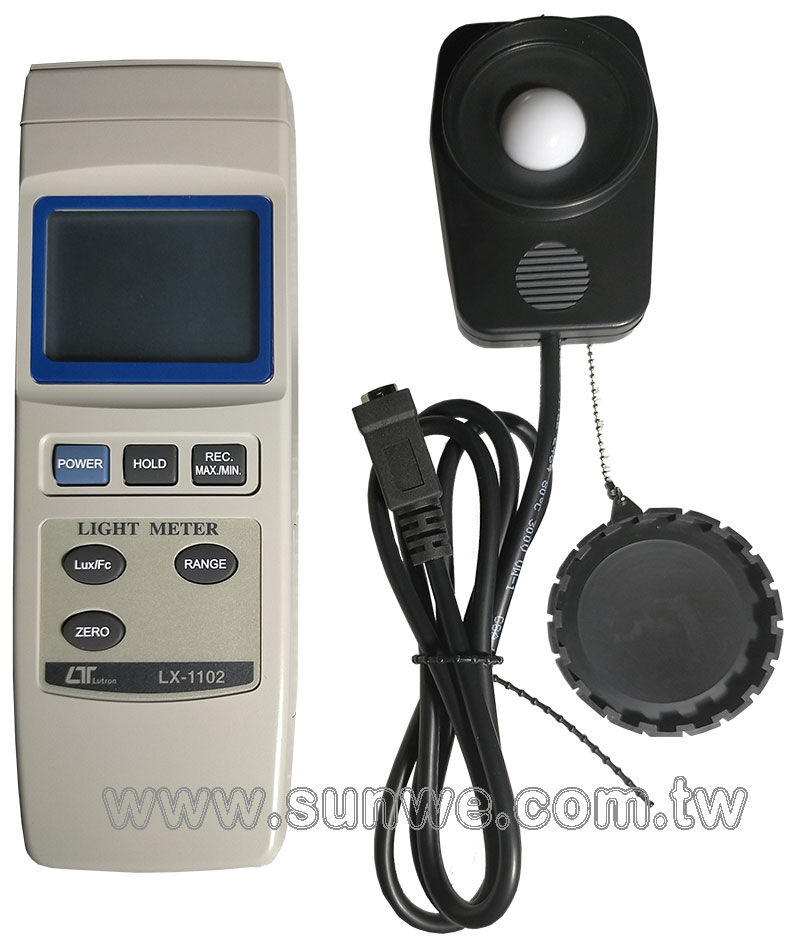

- Separate Light Sensor allows user to measure the light at an optimum position.
- Lux & Foot-candle unit selection.
- Large LCD display with bargraph and indicator.
- Water resistance front panel
- Use the rubber key for the function select.
- LSI circuit provides high reliability and durability.
- Zero adjusting button.
- Data hold.
- Memory function to display the max. & min. display value with Recall.
- Auto power auto off or manual power off.
- Compact size and excellent operation.
- Built-in low battery indicator.

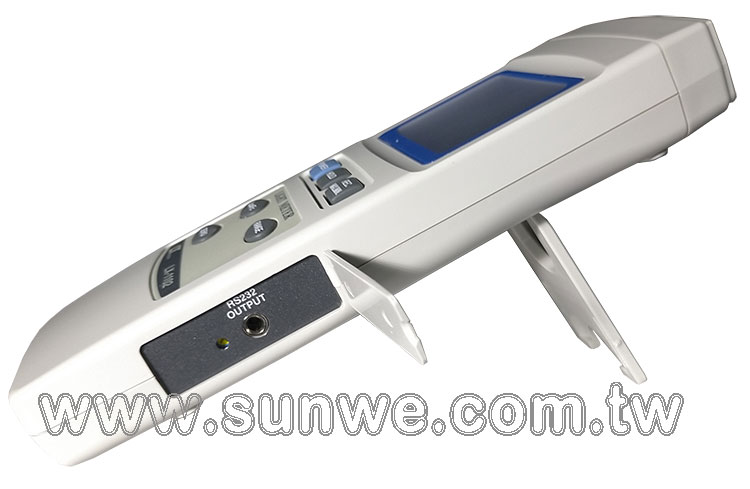

- RS-232 computer serial data output.
一般規格
顯示 (Display)
- Large LCD dispaly.
- LCD size 52 x 38 mm, 4 digits. with bargraph indicator
測量及範圍 (Measurement & Ranges)
- 5 ranges : 40.00/400.0/4,000/40,000/400,000 Lux,
照度型態選擇 (Lighting Type Selection)
- Daylight or Tungsten, Fluorescent, Mercury lamp.
單位 (Unit)
- Lux, Foot-candle ( Ft-cd ).
感應器 (Sensor)
- The exclusive photo diode & color correction filter, spectrum meet C.I.E. Cosine correction factor meet standard.
歸零調整 (Zero Adjustment)
- External adjustment by pushing button. ( 40.00 Lux range only )
峰值鎖定 (Peak Hold)
- To hold the peak display
資料鎖定 (Data Hold)
- To freeze the display value.
記憶回叫 (Memory Recall)
- Records Maximum, Minimum and Average readings with RECALL.
過高及過低範圍指示
- Over range Indicator : "- - - - "
- Under range Indicator : "_ _ _ _ "
電源關機 (Power off)
- Auto or manaual power off.
資料輸出 (Data Output)
- RS 232 PC serial interface
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Max. 80% RH.
電源供應 (Power Supply)
- DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 8 mA
重量 (Weight)
- 220 g/0.48 LB.
體積 (Dimension)
- Main Instrument : 200 x 68 x 30 mm ( 7.9 x 2.7 x 1.2 inch ).
- Sensor probe : 82 x 55 x 7 mm ( 3.2 x 2.2 x 0.3 inch ).
附件 (Standard Accessory)
- Instruction Manual.................. 1 PC.
- Light Sensor with protection cover.. 1 PC.
選購附件 (Optional Accessories)
- * Hard carrying case, CA-06
- * Soft carrying case, CA-05A
- * RS232 cable, UPCB-02
- * USB cable, USB-01
- * Data Acquisition software, SW-U801-WIN
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Measurement |
Range |
In-range Display |
Resolution |
Accuracy |
| Lux |
40.00 Lux |
0 - 40.00 Lux |
0.01 Lux |
± ( 3% rdg + 0.5 % F.S.. ) |
| 400.0 Lux |
36.0 - 400.0 Lux |
0.1 Lux |
| 4,000 Lux |
360 - 4,000 Lux |
1 Lux |
| 40,000 Lux |
3,600 - 40,000 Lux |
10 Lux |
| 400,000 Lux |
10,000 - 400,000 Lux |
100 Lux |
< 100,000 Lux :
± ( 3% rdg + 0.5 % F.S.. )
≧ 100,000 Lux :
@ for refereence only |
| Foot-candle (Fc) |
4.000 Fc |
0 - 3.720 Fc |
0.001 Fc |
± ( 3% rdg + 0.5 % F.S.. ) |
| 40.00 Fc |
3.35 - 37.20 Fc |
0.01 Fc |
| 400.0 Fc |
33.5 - 372.0 Fc |
0.1 Fc |
| 4,000 Fc |
335 - 3,720 Fc |
1 Fc |
| 40,000 Fc |
930 - 37,200 Fc |
10 Fc |
< 9,300 Fc :
± ( 3% rdg + 0.5 % F.S.. )
≧ 9,300 Fc
@ for refereence only |
- Note : Accuracy tested by a standard parallel light tungsten lamp of 2856 K degree temperature.
|
