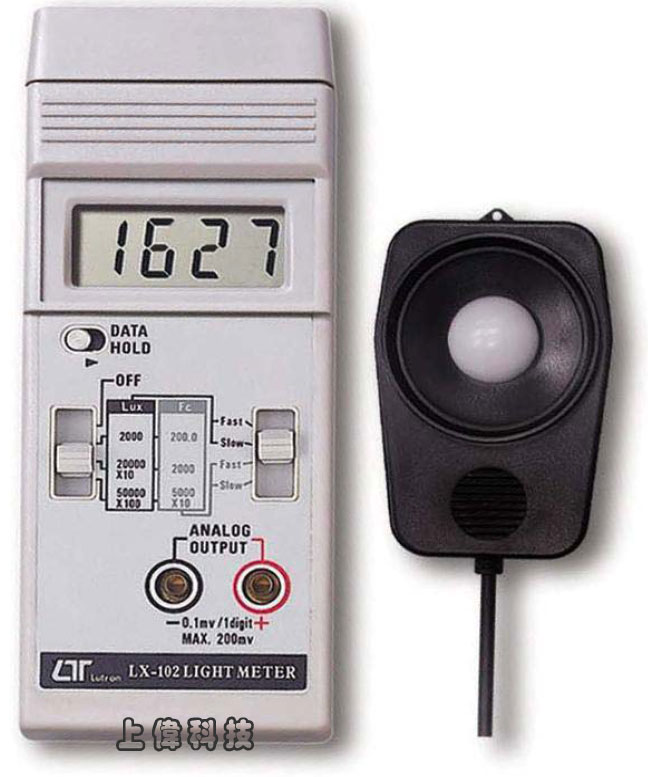

LX-102
照度計
特色
- 測量範圍 :
- 0 ~ 20000 LUX / 0 ~ 200.0 Fc
- 2000 ~ 20000 LUX / 200 ~ 2000 Fc
- 20000 ~ 50000 LUX / 2000 ~ 5000 Fc
- LUX (照度) / Ft-cd (呎/燭光) 單位選擇切換
- 感光器光譜反應符合C.I.E規範
- 精確度 : ±5%
- 讀值鎖定及類比訊號(mV)輸出功能
- Size : 163 x 70 x 30mm.
FEATURES
- Sensor used the exclusive photo diode & color correction filter, spectrum meet C. I. E. photopic.
- Sensor COS correction factor meet standard.
- Separate LIGHT SENSOR allows user take measurements of an optimum position.
- Precise and easy readout, wide range.
- High accuracy in measuring
- Built-in low battery indicator.
- LSI-circuit use provides high reliability and durability.
- LCD display provides low power consumption.
- Compact, light-weight, and excellent operation.
- LCD display can clearly read out even of high ambient light.
一般規格
顯示 (Display)
- 13 mm ( 0.5" ) LCD.
測量 (Measurement)
- Lux, Foot-candle. Data hold, Analog output.
範圍 (Ranges)
- Lux : 0 to 50,000 Lux, 3 ranges.
- Ft-candle : 0 to 5,000 Ft-candle, 3 ranges.
歸零調整 (Zero adjustment)
- Internal adjustment .
過載輸入指示 (Over Input )
- Indication of "1 "
取樣時間 (Sampling time)
- Approx. 0.4 second.
感應器結構 (Sensor structure)
- The exclusive photo diode & color correction filter.
輸出 (Output)
- Analog output.
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent
電源損耗 (Power Consumption)
- Approx. DC 2 mA
重量 (Weight)
- 220g ( 0.52 LB ) with batteries.
體積 (Dimension)
- Main Instrument : 163x70x30 mm(6.4x2.8x1.2 inch )
- Sensor probe : 82x55x7 mm ( 3.2x2.2x0.3 inch ).
附件 (Standard Accessory)
- Instruction manual............1 PC.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Range |
Resolution |
Accuracy |
| 2,000 Lux |
1 Lux |
± ( 5 % + 2 d ) |
| 20,000 Lux |
10 Lux |
± ( 5 % + 2 d ) |
| 50,000 Lux |
100 Lux |
± ( 5 % + 2 d ) |
| 200 Ft-candle |
0.1 Ft-candle |
± ( 5 % + 2 d ) |
| 2000 Ft-candle |
1 Ft-candle |
± ( 5 % + 2 d ) |
| 5000 Ft-candle |
10 Ft-candle |
± ( 5 % + 2 d ) |
類比輸出 (ANALOG OUTPUT)
- 0.1 mV/1 digit, Max. 200.0 mV.
|
