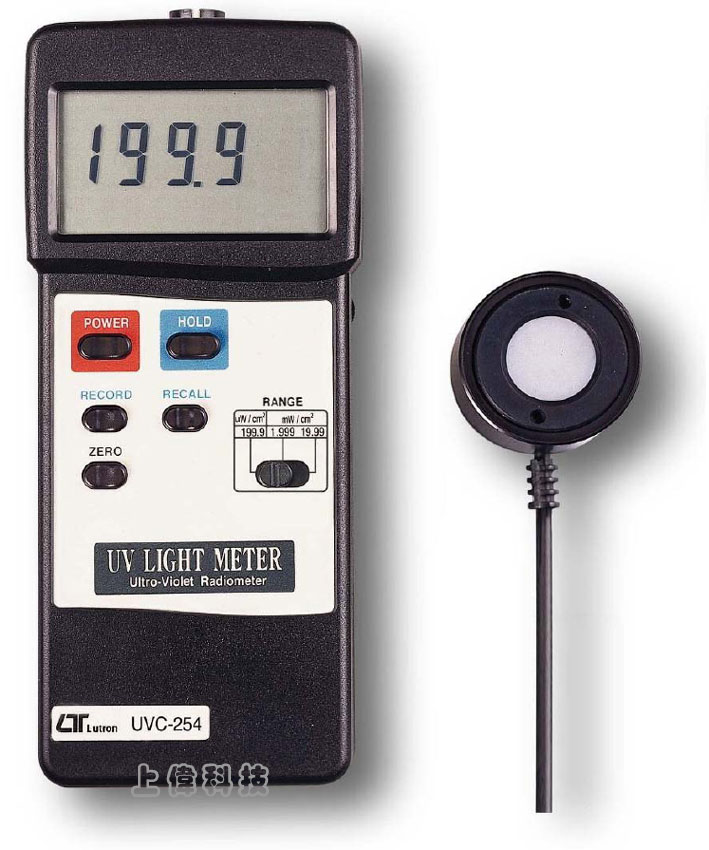

UVC-254

紫外線光強度計

特色

紫外線波長範圍 : 254nm

紫外線強度範圍 :

0 ~ 199.9 uW/cm²

0 ~ 1.999 mW/cm²

0 ~ 19.99 mW/cm²

精確度 : ±2%

讀值鎖定記錄測量中之最大/最小值

RS-232 / USB 輸出介面 (軟體選購)

Size : 180 x 72 x 32mm.

FEATURES

Short wave 254 nm ultra-violet irradiance measurement.

Professional, high quality UVC meter.

Wide measurement range, 199.9 uW/cm^2, 1.999 mW/cm^2 and 19.99 mW/cm^2.

Microprocessor circuit assures maximum possible accuracy, provided special functions and features.

Exclusive UVC sensor with correction filter.

Super large LCD display, easy readout.

Heavy duty & compact housing case.

Records Maximum, Minimum with recall.

Data hold.

Auto power off saves battery life.

Operates from 9V battery.

RS232 PC serial interface.

Zero adjustment by push button.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

13 mm ( 0.5" ) large LCD display.

Dual function display.

感應器頻譜反應範圍 (Spectral response range of sensor)

Point : 254 nm.

Band pass : 254 nm with narrow.

測量及範圍 (Measurement & ranges)

199.9 uW/cm^2 x 0.1 uW/cm^2

1.999 mW/cm^2 x 0.001 mW/cm^2

19.99 mW/cm^2 x 0.01 mW/cm^2

線性 (Linearity)

± 1%.

感應器 (Sensor)

The exclusive photo diode & UVA color correction filter.

記憶回叫 (Memory Recall)

Records Maximum & Minimum reading with recall.

歸零調整 (Zero Adjustment)

by pushing button.

取樣時間 (Sampling Time)

Approx. 0.4 sec

關機 (Power off)

Manual off by push button, or auto shut off after 10 minutes approximately

過載輸入指示 (Over Range Indication)

Indication of "- - - -".

資料輸出 (Data Output)

RS 232/USB PC serial interface.

操作溫度 (Operating Temp.)

0 to 50 ℃.

操作溼度 (Operating Humidity)

Max. 80% RH.

電源供應 (Power Supply)

DC 9V 006P, MN1604 ( PP3 ) or equivalent. (Alkaline or Heavy duty type).

電源電流 (Power Current)

Approx. DC 5.3 mA.

重量 (Weight)

355 g/0.77 LB (included batteries)

體積 (Dimension)

Main instrument : 185 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).

Sensor probe : 38 mm DIA. x 25 mm.

附件 (Standard Accessory)

Instruction manual....... 1 PC

UVC sensor probe..........1 PC

Hard carrying case .......1 PC

選購附件 (Optional & accessories Temp. Probe)

Data Acquisition software, SW-U811-WIN.

RS232 cable, UPCB-01.

USB cable, USB-01.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

Range	Resolution	Accuracy
199.9 uW/cm^2	0.1 uW/cm^2	± ( 2 % FS + 2 dgt) FS : full scale
1.999 mW/cm^2	0.001 mW/cm^2
19.99 mW/cm^2	0.01 mW/cm^2

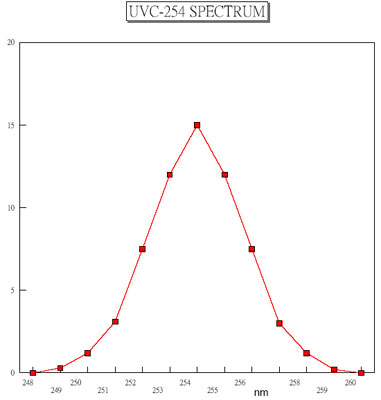

UVC-254 頻譜

　
