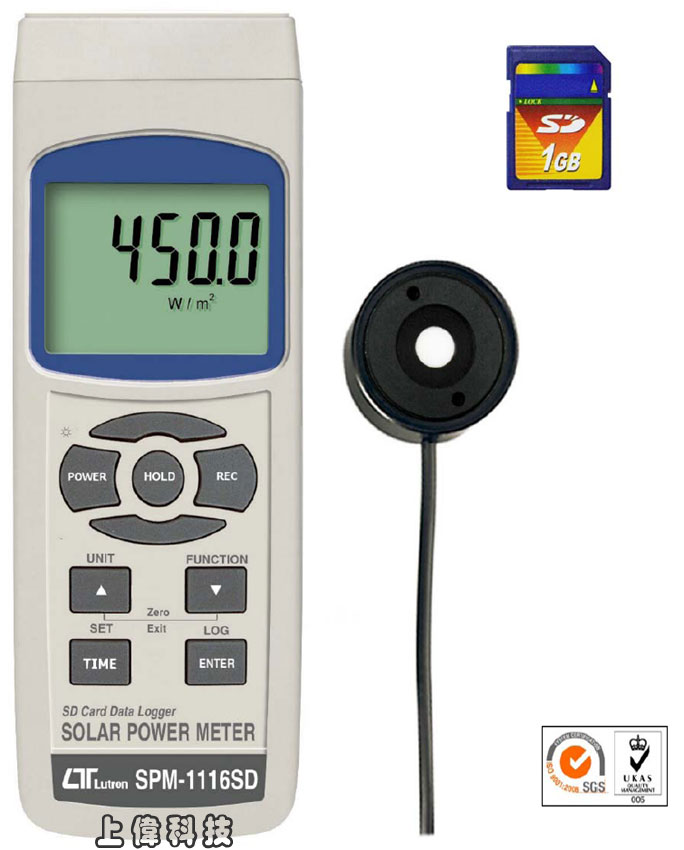

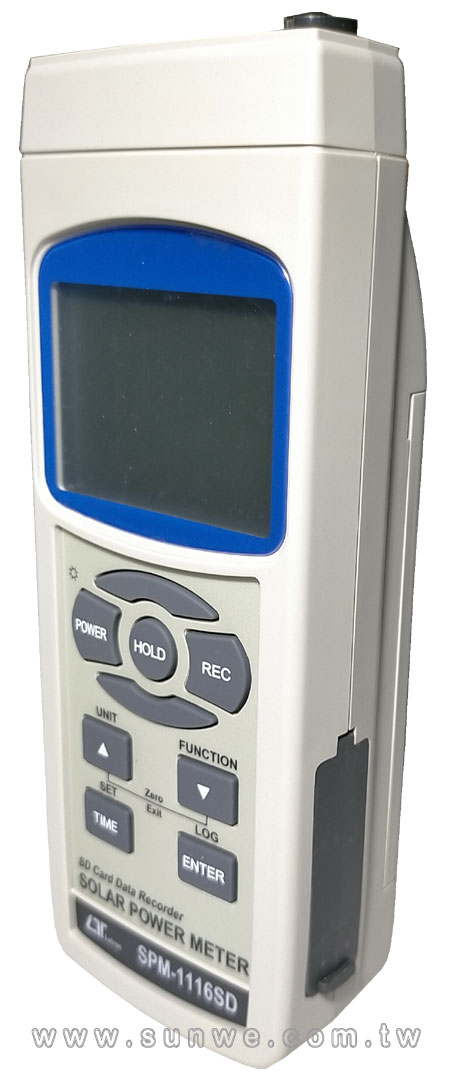

SPM-1116SD
記憶式太陽能功率計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 測量範圍 :
- 0.1 ~ 2000 W/cm² ±10W/cm²
- 0.1 ~ 634 Btu (ft²/h) ±3Btu 或讀值 ±5%
- 餘光校正 <5% (角度 <60° 時)
- 光譜範圍 : 400~ 1100nm
- 自動記錄或手動紀錄 (手動 99 筆) 功能
- 讀值鎖定記錄測量中之最大/最小值.
- RS-232 / USB 輸出介面.(軟體選購)
- Size : 182 x 73 x 47.5mm.
FEATURES
- 3 functions : Solar power, Power integration, Transmission.
- Wide spectral range.
- Excellent long term stability.
- Select either W/m^2 or Btu / (ft^2xh) power units.
- Cosine corrected.
- Application : Meteorology agriculture solar radiation measurement solar power research physics and optical laboratories solar transmission measurement identify high performance windows

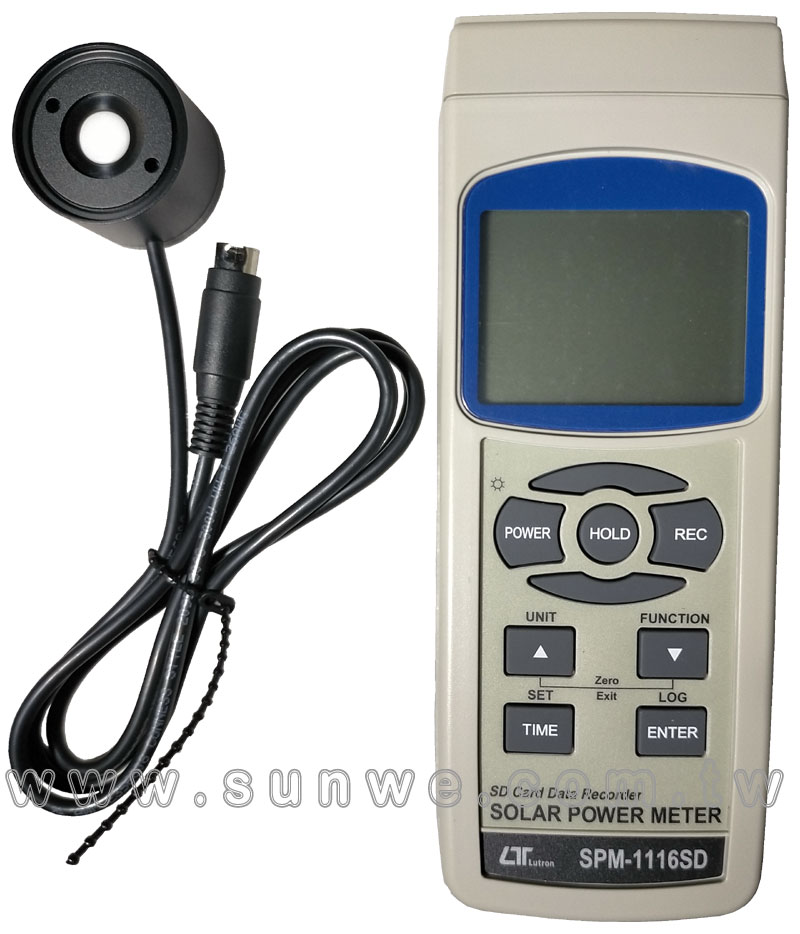

- Separate probe, easy for operation of different measurement environment.

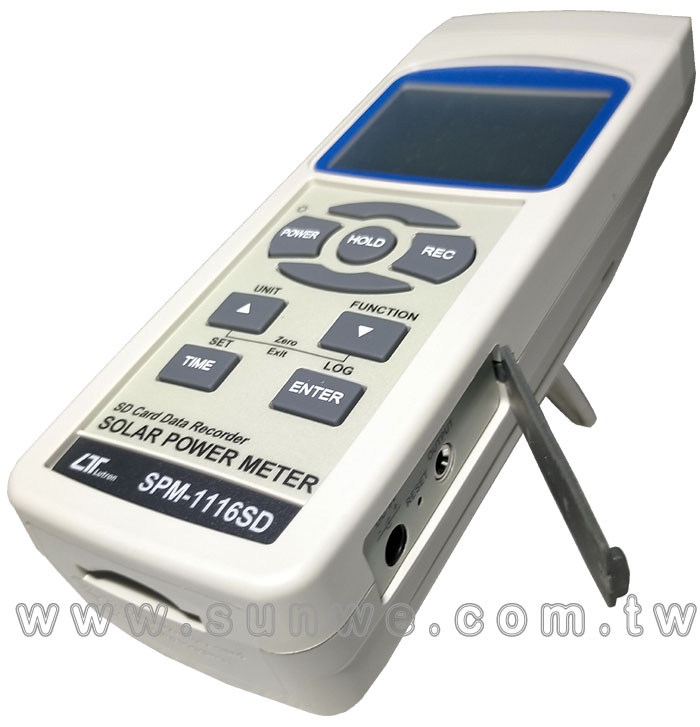

- Both meter and probe are built the Tripod Fix Nut, easy installation.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, thenuser can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC computer interface.
- Patented.
一般規格
功能 (Circuit)
- Solar power
- Transmission ( % )
- Solar power integration
光譜範圍 (Spectral response)
- 400 to 1100 nm
量測單位 (Measuring Unit)
- Solar power : W/m^2, Btu/( ft^2 x h )
- Transmission : %
- Solar power integration : Wh/m^2, Btu/( ft^2 )
太陽能範圍 (Solar power Range)
- 2000 W/m^2, 634 Btu/( ft^2 x h )
太陽能解析度 (Solar power Resolution)
- <1000 W/m^2 : 0.1 W/m^2
- ≧1000 W/m^2 : 1 W/m^2
- < 317 Btu/( ft^2 x h ) : 0.1 Btu/( ft^2 x h )
- ≧317 Btu/( ft^2 x h ) : 1 Btu/( ft^2 x h )
太陽能精確度 (Solar power Accuracy)
- 0± 10 W/m^2 typically,± 3 Btu / ( ft^2 x h ) typically,or ± 5% reading
- @ whichever is greater in sunlight * AC to DC 9V adapter.
- @ 23 ± 5 ℃
角度精確度 (Angular Accuracy)
- Cosine corrected <5% for angles < 60°
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
歸零調整 (zero Adjustment)
- by pushing button.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Set sampling time
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Decimal point of SD card setting
- * SD memory card Format
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory with Recall)
- Records Maximum & Minimum reading with recall.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec

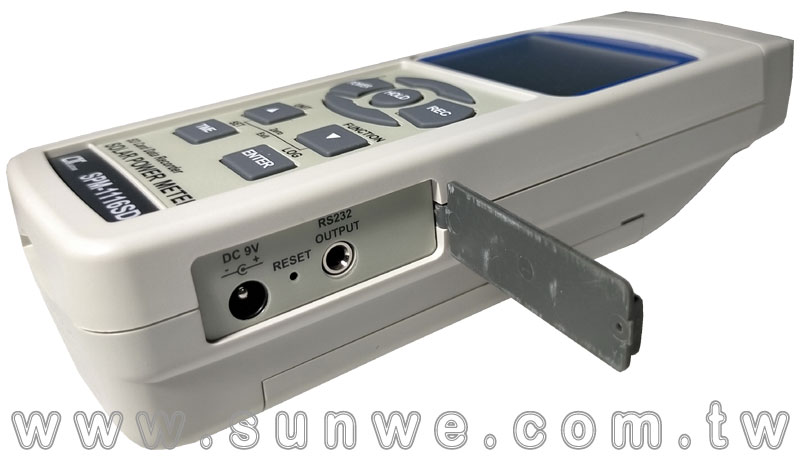

資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6.5 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.
- * AIf LCD backlight on, the power consumption will increase approx. 16 mA.
重量 (Weight)
- 346 g/0.76 LB.
體積 (Dimension)
- Meter : 182 x 73 x 47.5 mm (7.1 x 2.9 x 1.9 inch)

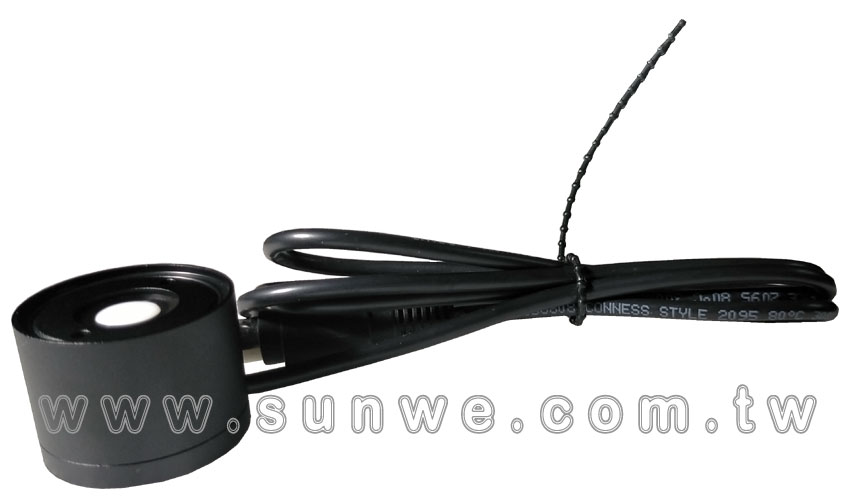

- Sensor probe : 38 mm DIA. x 25 mm.

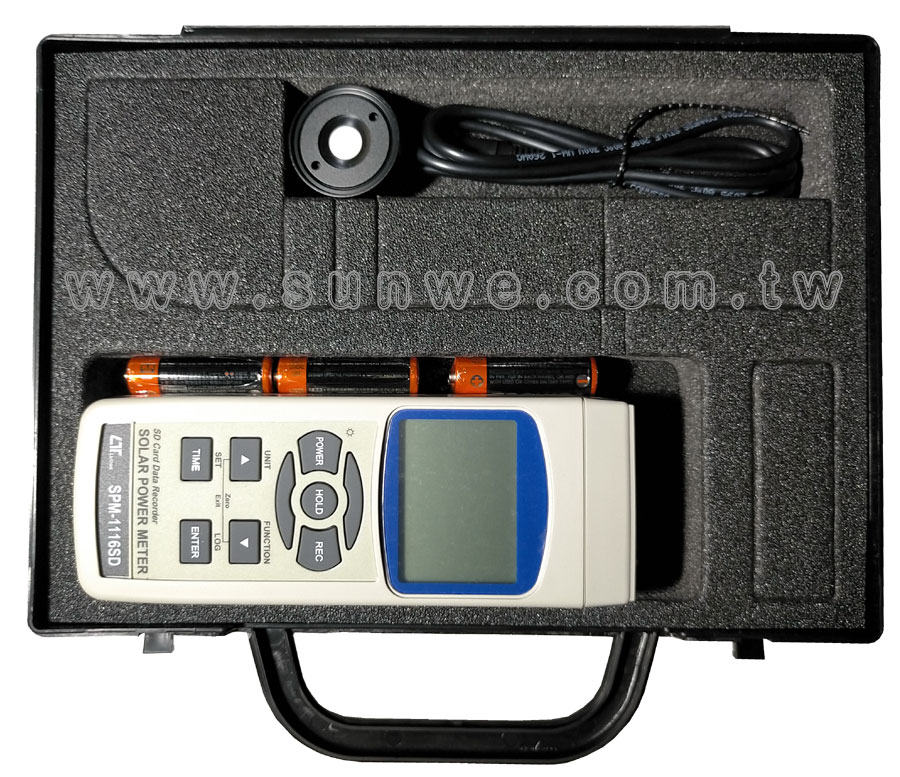

附件 (Standard Accessory)
- Instruction manual...................... 1 PC
- Solar sensor............................ 1 PC
- Hard carrying case, CA-06................1 PC
選購附件 (Optional & accessories Temp. Probe)
- SD Card ( 1 GB )
- SD Card ( 2 GB )
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U811-WIN. SW-E802
|
