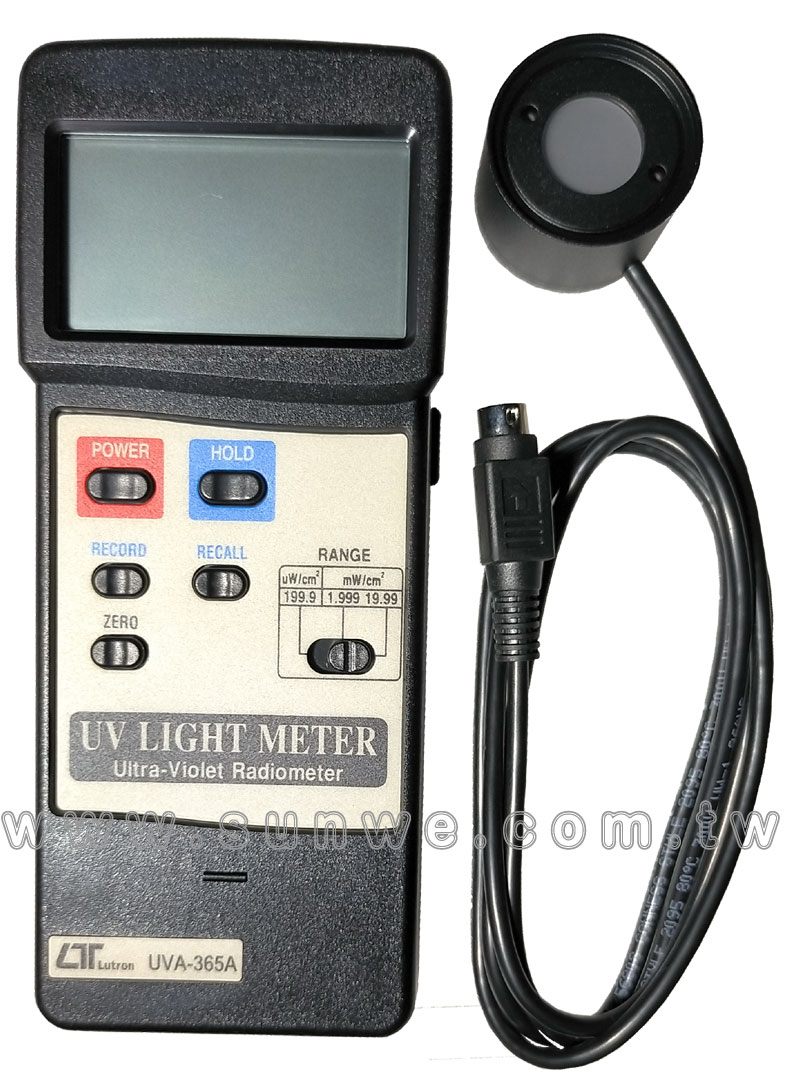

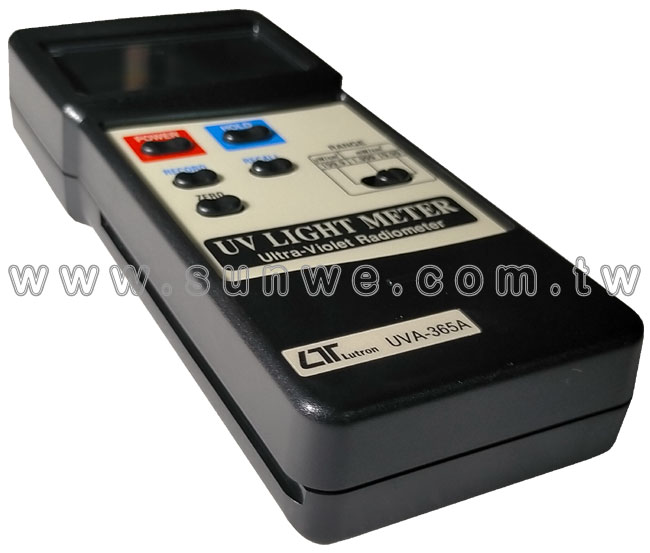

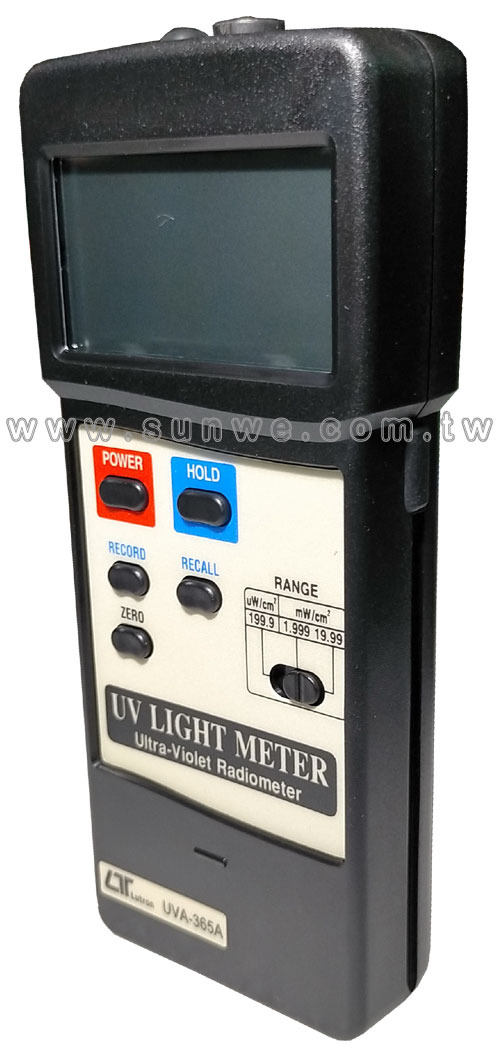

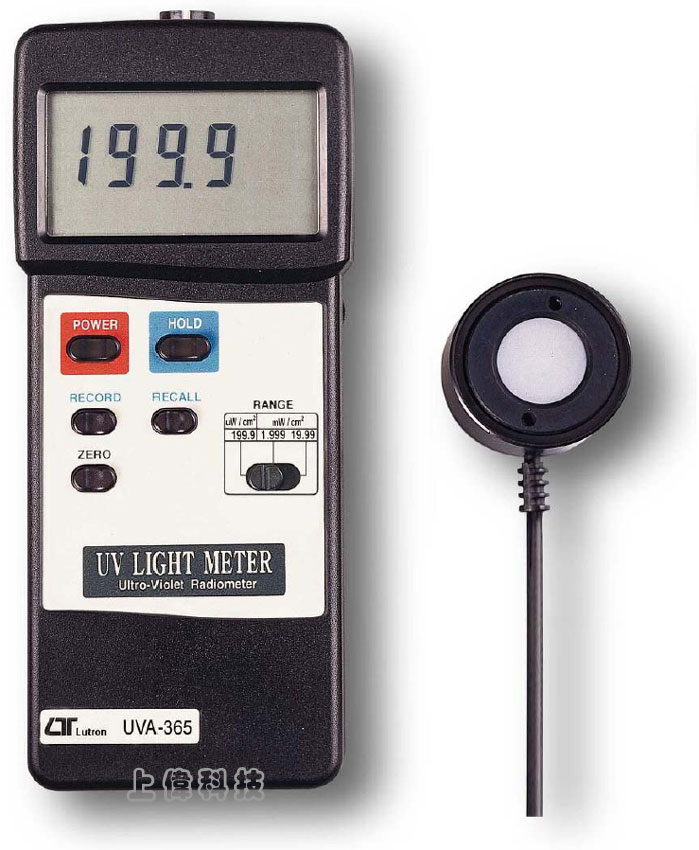

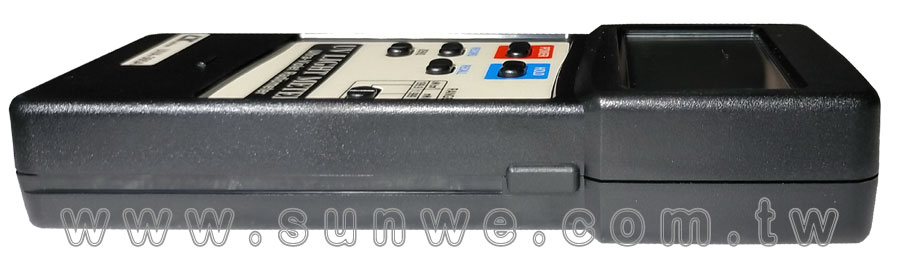

UVA-365
紫外線光強度計
特色
- 紫外線波長範圍 : 365nm
- 紫外線強度範圍 :
- 0 ~ 199.9 uW/cm²
- 0 ~ 1.999 mW/cm²
- 0 ~ 19.99 mW/cm²
- 精確度 : ±2%
- 讀值鎖定記錄測量中之最大/最小值
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32mm.
FEATURES
- Short wave 365 nm ultra-violet irradiance measurement.
- Professional, high quality UVA meter.
- Wide measurement range, 199.9 uW/cm^2, 1.999 mW/cm^2 and 19.99 mW/cm^2.
- Microprocessor circuit assures maximum possible accuracy, provided special functions and features.
- Exclusive UVA sensor with correction filter.
- Super large LCD display, easy readout.
- Heavy duty & compact housing case.
- Records Maximum, Minimum with recall.
- Data hold.
- Auto power off saves battery life.
- Operates from 9V battery.
- RS232 PC serial interface.
- Zero adjustment by push button.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- 13 mm ( 0.5" ) large LCD display.
- Dual function display.
感應器頻譜反應範圍 (Spectral response range of sensor)
- Point : 365 nm.
- Band pass : 320 - 390 nm.
測量及範圍 (Measurement & ranges)
- 199.9 uW/cm^2 x 0.1 uW/cm^2
- 1.999 mW/cm^2 x 0.001 mW/cm^2
- 19.99 mW/cm^2 x 0.01 mW/cm^2
線性 (Linearity)
- ± 1%.
感應器 (Sensor)
- The exclusive photo diode & UVA color correction filter.
記憶回叫 (Memory Recall)
- Records Maximum & Minimum reading with recall.
歸零調整 (Zero Adjustment)
- by pushing button.
取樣時間 (Sampling Time)
- Approx. 0.4 sec
關機 (Power off)
- Manual off by push button, or auto shut off after 10 minutes approximately
載輸入指示 (Over Range Indication)
- Indication of "- - - -".

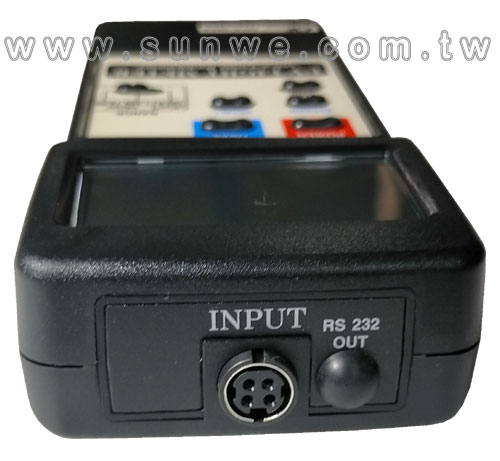

資料輸出 (Data Output)
- RS 232/USB PC serial interface.
操作溫度 (Operating Temp.)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Max. 80% RH.
電源供應 (Power Supply)
- DC 9V 006P, MN1604 ( PP3 ) or equivalent. (Alkaline or Heavy duty type).
電源電流 (Power Current)
- Approx. DC 5.3 mA.
重量 (Weight)
- 355 g/0.77 LB (included batteries)
體積 (Dimension)
- Main instrument : 185 x 72 x 32 mm ( 7.1 x 2.8 x 1.3 inch ).
- Sensor probe : 38 mm DIA. x 25 mm.
附件 (Standard Accessory)
- Instruction manual....... 1 PC
- UVA sensor probe..........1 PC
- Hard carrying case .......1 PC
選購附件 (Optional & accessories)
- Data Acquisition software, SW-U811-WIN.
- RS232 cable, UPCB-01.
- USB cable, USB-01.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
| Range |
Resolution |
Accuracy |
| 199.9 uW/cm^2 |
0.1 uW/cm^2 |
± ( 2 % FS + 2 dgt) FS : full scale |
| 1.999 mW/cm^2 |
0.001 mW/cm^2 |
| 19.99 mW/cm^2 |
0.01 mW/cm^2 |

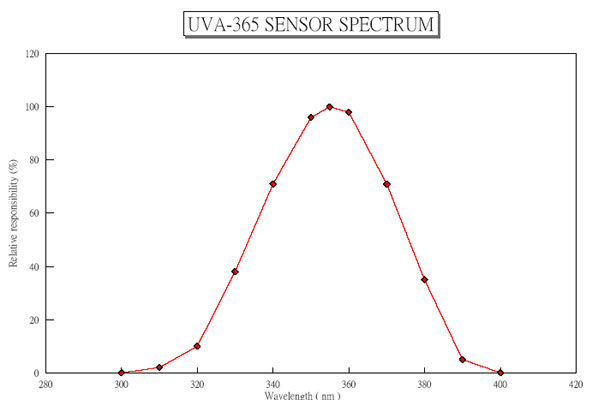

UVA-365 頻譜
|
