SP-82UV
紫外線光強度計
特色
- 紫外線波長範圍 : 250 ~ 390nm (UVA&UVB).
- 紫外線強度範圍 :
- 0 ~ 1999 uW/cm2
- 2 ~ 19.99 mW/cm2.
- 輕巧單體設計 , 方便操作測量.
- 讀值鎖定記錄測量中之最大/最小值.
- 適用範圍廣泛,適用於陽光監測,紫外線燈具測量,曝光機測量,實驗室設備及醫療設備檢測使用.....等.
- Size : 120x45x20mm.
FEATURES
- UV light measurement, calibration is executed under the UVA light & and compare with the standard UVA light
meter.
- UV sensor structure The exclusive UV photo sensor with the cosine correction filter.
- UV sensor spectrum Band pass 250 nm to 390 nm.
- Tiny bone shape with light weight and small size case design are suitable for handling with one hand.
- Wristlet design provides extra protection to the instrument especially for user one hand operation.
- Built- in microprocessor circuit assures excellent performance and accuracy.
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- Hold function to freeze the current reading value.
一般規格
顯示 (Display)
- 8 mm LCD display
測量 (Measurement)
- UV Light
過載輸入指示 (Over Range Indication)
- Indication of "- - - -".
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- CR 2032 DC 3V battery
電源損耗 (Power Consumption)
- Approx. DC 5 mA
重量 (Weight)
- 160g (battery included)
體積 (Dimension)
- HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch).
附件 (Standard Accessory)
- Instruction Manual........ 1 PC.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
UV Light * auto range * UVA light measurement
| Range |
Resolution |
Accuracy |
| 0 to 1999 uW/cm^2 |
1 uW/cm^2 |
± ( 4 % FS + 2 dgt) FS : full scale |
| 2 to 20.00 mW/cm^2 |
0.01 mW/cm^2 |
Remark
- * Calibration is executed under the UVA light & and compare with the standard UVA light meter.
- * UV Sensor structure : The exclusive UV photo sensor with the cosine correction filter.
- * UV sensor spectrum Band pass 250 nm to 390 nm.

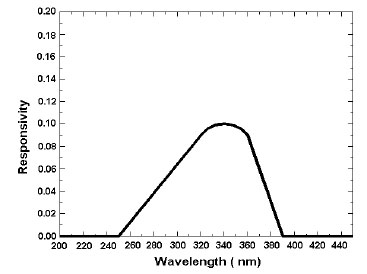

UV 感應器頻譜
|
