特色

即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)

紫外線波長範圍 : 254nm

紫外線強度範圍 :

0 ~ 1.999 mW/cm²

0 ~ 19.99 mW/cm²

精確度 : ±4% (滿刻度)

溫度 TYPE K : -50 ~ 1300.0°C.±4%

讀值鎖定記錄測量中之最大/最小值

RS-232 / USB 輸出介面 (軟體選購)

Size : 177 x 68 x 45mm.

FEATURES

Professional UVC light measurement.

Long wave 254 nm ultra-violet irradiance measurement.

Two ranges : 2 mW/cm^2, 20 mW/cm^2.

Exclusive UVC sensor structure with metallic housing case.

UVA Sensor with cosine correction filter.

UVA function build Zero button.

Application for the UVC light measurement : No. UV-C has been used for over 100 years in various applications to kill germs on surfaces, in the air and in the water. UV-C has been proven to kill up to 99.9% of germs. Many hospitals use UV-C to sanitize.

Microprocessor circuit provides high reliability and durability.

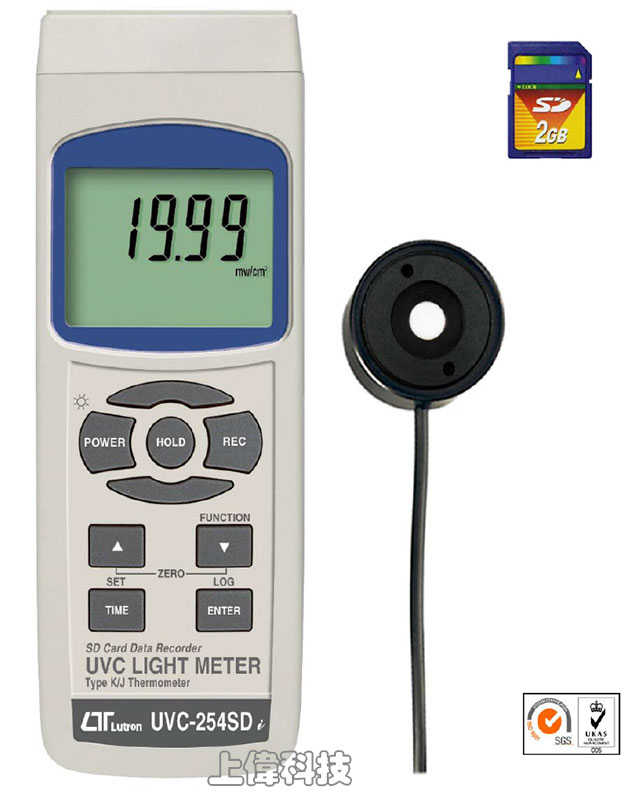

Separate UV LIGHT probe allows user to measure the UVC light at an optimum position.

Type K, Type J thermocouple thermometer.

Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).

Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.

SD card capacity : 1 GB to 16 GB.

LCD with green light backlight, easy reading.

Can default auto power off or manual power off.

Data hold, record max. and min. reading.

Microcomputer circuit, high accuracy.

Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

RS232/USB PC computer interface.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

顯示 (Display)

LCD size : 52 mm x 38 mm

LCD with green backlight ( ON/OFF ).

測量 (Measurement)

UV Light : UVC

Type K/J thermometer

UV傳感器頻譜覆蓋範圍 (UV Sensor spectrum cover range)

Please refer to the attach spectrum diagram.

UVC傳感器結構 (UVC 'sensor structure)

The exclusive UVC photo sensor with the cosine correction filter.

UVC 照度歸零調整 (UVC light Zero Adjustment)

by pushing button.

資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)

Auto : 1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.

Manual : Push the data logger button once will save data one time.

@ Set the sampling time to 0 second. @ Manual mode, can also select the 1 to 99 position ( Location ) no.

記憶卡 (Memory Card)

SD memory card. 1 GB to 16 GB.

優越的設定 (Advanced setting)

* Set clock time ( Year/Month/Date, Hour/Minute/ Second )

* Decimal point of SD card setting

* Auto power OFF management

* Set beep Sound ON/OFF

* Set thermometer type to Type K or Type J

* Set temperature unit to ℃ or ℉

* Set sampling time

* SD memory card Format

溫度補償 (Temperature Compensation)

Automatic temp. compensation for the type K/J thermometer.

資料鎖定 (Data hold)

Freeze the display reading.

記憶回叫 (Memory Recall)

Records Maximum & Minimum reading with recall.

顯示的取樣時間 (Sampling Time of display)

Approx. 1 sec

資料輸出 (Data Output)

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.

操作溫度 (Operating Temp. )

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent

DC 9V adapter input.

* AC/DC power adapter is optional.

電源電流 (Power Current)

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 6.5 mA

When SD card save the data but and LCD Backlight is OFF) : Approx. DC 30 mA.

* AIf LCD backlight on, the power consumption will increase approx. 16 mA.

重量 (Weight)

Meter : 351 g.

UVC probe : 103 g.

體積 (Dimension)

Meter : 177 x 68 x 45 mm

UVC probe : Head 38 mm dia x 25 mm

附件 (Standard Accessory)

Instruction manual...................... 1 PC

UVC light sensor.........................1 PC

Hard carrying case, CA-06................1 PC

選購附件 (Optional & accessories Temp. Probe)

SD Card ( 2 GB )

Type K thermocouple probe.

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software, SW-U811-WIN.

電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)

UVC 照度  ( UVA Light )

測量範圍及解析度 (Measurement ranges & resolution)

Range 1 : 2 mW/cm^2 : 1.999 mW/cm^2 x 0.001 mW/cm^2

Range 2 : 20 mW/cm^2 : 19.99 mW/cm^2 x 0.01 mW/cm^2

精確度 (Accuracy)

± ( 4 % FS + 2 dgt ). FS : full scale

* UVA Calibration is executed under the UVA light & and compare with the standard UVA light meter.

* UVC Calibration is executed under the UVC light & and compare with the standard UVC light meter.

K/J型溫度計 (Type K/J thermometer)

Sensor type	Resolution	Range	Accuracy
Type K	0.1 ℃	-50.0 to 1300.0 ℃	± ( 0.4 % + 0.5 ℃ )
		-50.1 to -100.0 ℃	± ( 0.4 % + 1 ℃ )
	0.1 ℉	-58.0 to 2372.0 ℉	± ( 0.4 % + 1 ℉ )
		-58.1 to -148.0 ℉	± ( 0.4 % + 1.8 ℉ )
Type J	0.1 ℃	-50.0 to 1200.0 ℃	± ( 0.4 % + 0.5 ℃ )
		-50.1 to -100.0 ℃	± ( 0.4 % + 1 ℃ )
	0.1 ℉	-58.0 to 2192.0 ℉	± ( 0.4 % + 1 ℉ )
		-58.1 to -148.0 ℉	± ( 0.4 % + 1.8 ℉ )

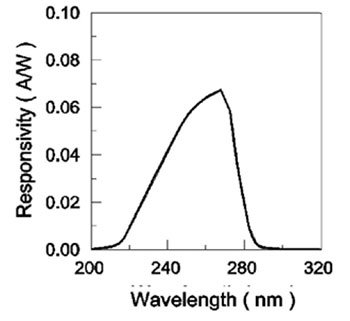

UV傳感器頻譜

　
