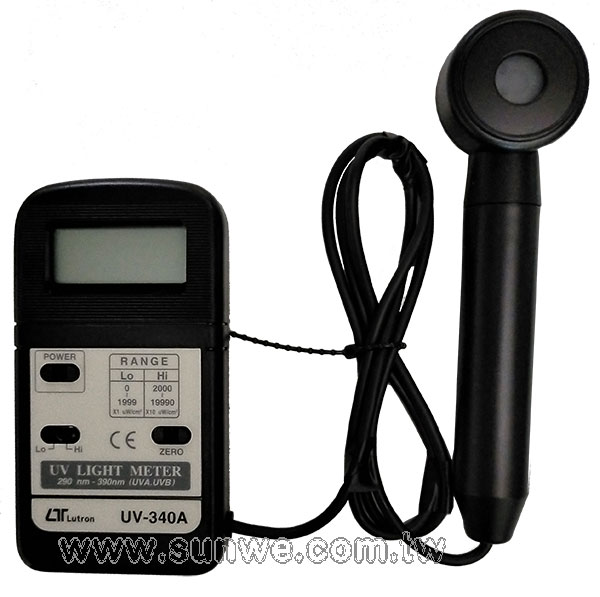

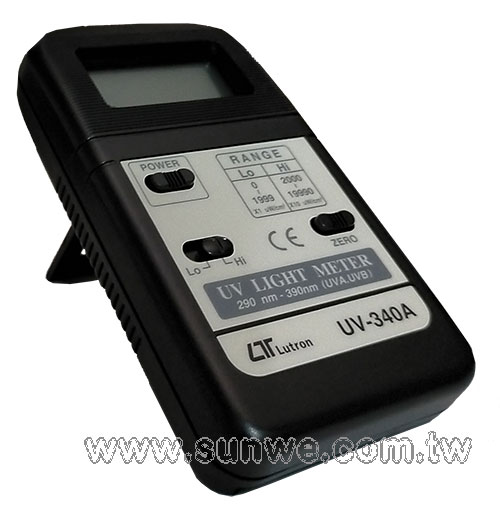

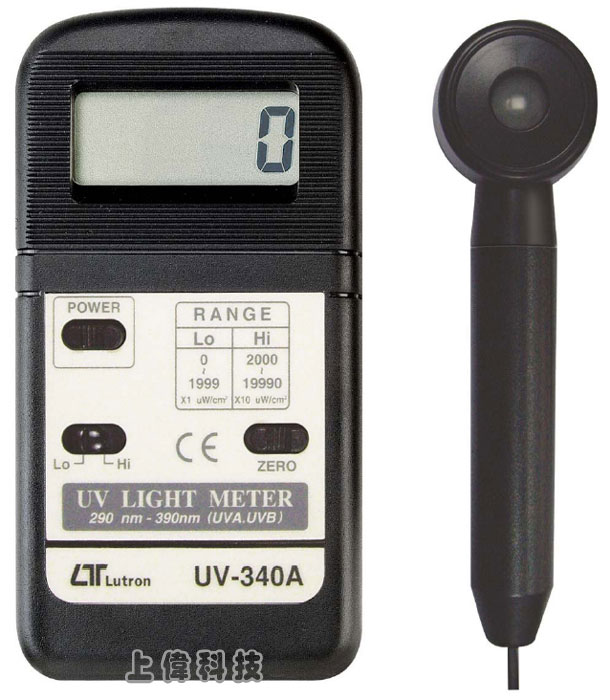

UV-340A
紫外線光強度計
特色
- 紫外線波長範圍 : 290 ~ 390nm (UVA&UVB).
- 紫外線強度範圍 :
- 0 ~ 1999 uW/cm²
- 10 ~ 19990 uW/cm²
- 分離式測棒設計,方便操作測量
- 適用範圍廣泛,適用於陽光監測,紫外線燈具測量,曝光機測量,實驗室設備及醫療設備檢測使用.....等.
- Size : 131x70x25mm.
FEATURES
- Professional, high quality UV meter.
- Ultra-violet irradiation measurement for UVA & UVB.
- UV detector spectrum from 260 nm to 390 nm.
- Hi, Lo measurement range. 19990 and 1999 uW/cm^2.
- Exclusive UV sensor structure.
- Sensor with cosine correction filter.
- Build Zero button.
- Microprocessor circuit provides high reliability and durability.
- Separate UV LIGHT probe allows user to measure the UV light at an optimum position.
- LCD display, easy readout.
- Heavy duty & compact housing case.
應用 (APPLICATIONS)
工業 (Industrial)
- Monitoring blue light radiation hazards in welding.
- UV sterilization
- Graphic arts.
- Photochemical matching.
- UV EPROM erasure.
- Photoresist exposure.
- Curing of inks, adhesives and coatings.
實驗室 (Laboratory)
- Weathering " degradation studies."
- UV sterilization
- Virology.
- Microbial genetics.
- DNA research. * Biologic hoods.
- General laboratory use.
一般規格
顯示 (Display)
- LCD size : 18 mm x 45 mm.
- Maximum indication 1999.
測量及範圍 (Measurement & Ranges)
- 2 ranges : Hi & Lo range
- Lo range : 1999 uW/cm^2 x 1 uW/cm^2
- Hi range : 19990 uW/cm^2 x 10 uW/cm^2
- * 1000 uW/cm^2 = 1 mW/cm^2
UV感應器頻譜 (UV sensor spectrum)
- Band pass 260 nm to 390 nm..
精確度 (Accuracy)
- ± ( 4 % FS + 2 dgt ) FS : full scale
- * Calibration is executed under the UVA light and and compare with the standard UVA light meter.
- * Spec. tested under the environment RF Field Strength less than 3 V/M & frequency less than the 30 MHz only.
切換感應器結構按鍵 (Sensor Structure Buttons. Switch)
- The exclusive UV photo sensor with the cosine correction filter.
Power button, Zero button, Range switch
取樣時間 (Sampling Time)
- Approx. 1 sec
感應器結構 (Sensor Structure)
- Microprocessor circuit.
過載輸入指示 (Over Range Indication)
- Indication of "- - - -".
操作溫度 (Operating Temp. )
- 0 to 50 ℃. (32 to 122° F)
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- DC 9V battery. 006P, MN1604 ( PP3 ) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 6 mA
重量 (Weight)
- 251 g / 0.55 LB (including battery)
體積 (Dimension)
- Main Instrument : 131 x 70 x 25 mm.
- Sensor probe head :
45 mm dia x 32 mm.
- Sensor probe handle : 125 x 24 mm dia
附件 (Standard Accessory)
- Instruction Manual... 1 PC.
- UV sensor probe...... 1 PC.
選購附件 (Optional Accessories)
- Soft carrying case, CA-52A, CA-03.
|
