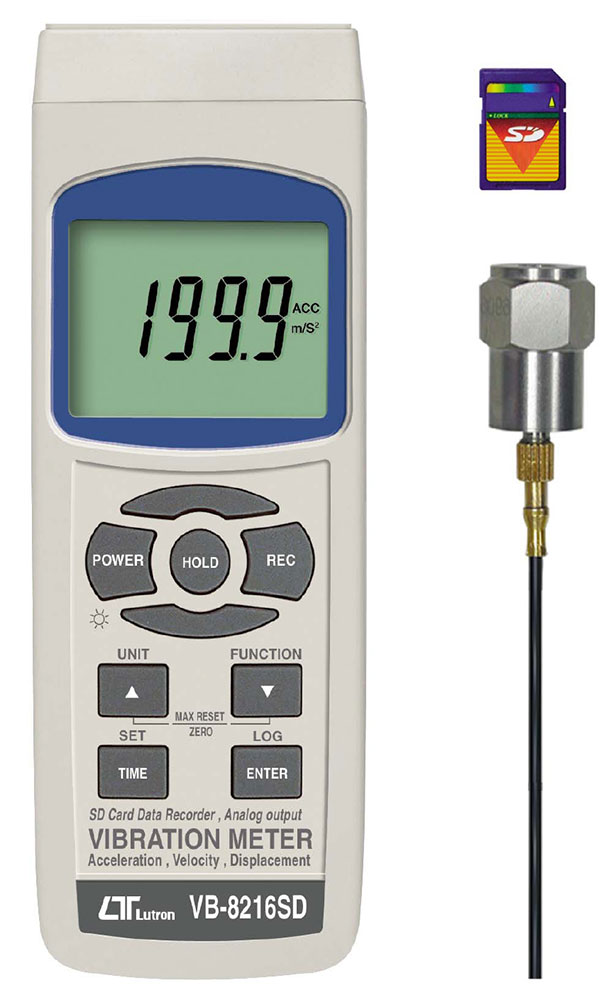

VB-8216SD
記憶式振動計

- 工業振動監測應用:所有工業機械振動。振動水準是了解機器狀況的有用指南。平衡不良、錯位和結構鬆動將導致振動水準增加,這確實是需要維護的跡象。
- 類比輸出。
- 頻率範圍 10 Hz -1 kHz,靈敏度相對符合 ISO 2954。
- 全套專業振動計供應,配有振動感測器和磁性底座。
- 公製和英制顯示單位
- 加速度、速度、位移測量。
- RMS、最大保持、峰值測量。
- 最大按住複位按鈕、歸零按鈕。
- 頻率範圍寬。
- 讀值鎖定按鈕可凍結所需的讀數。
- 記憶功能可記錄最大和最小讀數並調用。
- 帶磁性底座的獨立振動探頭,作方便。
- 即時 SD 儲存卡資料記錄器,內置時鐘和日曆,實時數據記錄器,採樣時間設置為 1 秒至 3600 秒。
- 手動資料記錄器可用(將採樣時間設置為 0),在執行手動數據記錄器功能時,它可以設置不同的位置(位置)編號。(位置 1 到位置 99)。
- 創新易作,電腦無需設置額外的軟體,執行數據記錄器後,只需從儀錶中取出SD卡,將SD卡插入電腦,即可將所有測量值連同時間資訊(年/月/日/時/分/秒)直接下載到Excel中, 然後使用者可以自己進行進一步的數據或圖形分析。
- SD 卡容量:1 GB 至 16 GB。
- 帶綠燈背光的 LCD,易於閱讀。
- 可以預設自動關機或手動關機。
- 讀值鎖定、記錄最大和最小讀數。
- 微電腦電路,精度高。
-
由 UM3/AA ( 1.5 V ) x 6 電池或 DC 9V 適配器供電。
-
RS232/USB PC 電腦介面。
特色
- VB-8216SD 振動計具有先進的數據記錄和連接功能,可提供準確可靠的加速度、速度和位移測量,使其成為各種工業應用的重要工具。
- 即時數據記錄器:將帶有時間資訊(年、月、日、時、分、秒)的測量數據儲存到 SD
記憶卡上,無需額外的軟體即可輕鬆將數據下載到 Excel 進行進一步分析。
- 綜合測量:以公制和英制單位測量加速度、速度和位移。支援 RMS、峰值和最大保持測量,以進行詳細的振動分析。
- 頻率範圍寬:工作頻率範圍為 10 Hz 至 1 kHz,符合 ISO 2954
標準,適用於廣泛的工業振動監測應用。
- 用戶友好界面:具有綠色背光的大型 LCD
顯示屏,方便閱讀,並包括數據保持、最大/最小值調用和自動關機等功能,方便用戶使用。
- 多功能連接:配備RS232/USB
PC介面用於資料輸出,並支援選購的資料擷取軟體以增強資料管理。
FEATURES
- Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance,misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
- Analog output.
- Frequency range 10 Hz -1 kHz, sensitivity relative meet ISO 2954.
- Professional vibration meter supply with vibration sensor & magnetic base, full set.
- Metric & Imperial display unit
- Acceleration, Velocity, Displacement measurement.
- RMS, Max hold, Peak value measurement.
- Max. Hold reset button, Zero button.
- Wide frequency range.
- Data hold button to freeze the desired reading.
- Memory function to record maximum and minimum reading with recall.
- Separate vibration probe with magnetic base, easy operation.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar,real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路
- 客製化單晶片微處理器LSI電路。
顯示
- LCD 尺寸:52 毫米 x 38 毫米
- LCD,綠色背光(開/關)。
測量功能
- 加速度範圍:0.5 至 199.9 m/s²,0.05 至 20.39 g
- 解析度:0.1 m/s²,0.01 g²
- 精準度:±(5%+
5d)@ 160 Hz,80 Hz,23±5℃
- 校準點:50 m/s²(160 Hz)
- 速度範圍:0.5 至 199.9 毫米/秒、0.05 至 19.99 公分/秒、0.02 至 7.87 吋/秒
- 解析度:0.1 mm/秒、0.01 公分/秒、0.01 吋/秒
- 精準度:±(5%+
5d)@ 160 Hz,80 Hz,23±5℃
- 校準點:50 毫米/秒(160 赫茲)
- 位移範圍:0.014 至 1.999 毫米,0.001 至 0.078 英寸
- 解析度:0.001 毫米,0.001 英寸
- 精準度:±(5%+
5d)@ 160 Hz,80 Hz,23±5℃
- 校準點:0.141毫米(160赫茲)
- 頻率範圍:10 Hz至1 kHz
- 靈敏度:符合 ISO 2954 標準
功能
- 微電腦電路:確保高精度和特殊功能。
- 讀值鎖定功能:凍結顯示器上的所需值。
- 最大/最小值:記憶回叫最大和最小讀數。
- 自動關機:透過自動關閉或按按鈕手動關閉來節省電池壽命。
- SD 卡功能:無需額外的軟體即可透過 Excel 輕鬆傳輸和分析資料
- 數據記錄器:
- 自動:1秒至3600秒
- 手動:按一次數據記錄器按鈕即可儲存數據
- SD卡容量:1 GB至16 GB
進階設定
- * 設定時鐘時間(年/月/日,時/分/秒
- * SD 卡設定的小數點
- * 自動關機管理
- * 設定蜂鳴聲開/關
- * 設定採樣時間
- * SD 記憶卡格式化
數據輸出
- RS 232/USB PC 電腦介面。
- * 連接選購的 RS232 電纜 UPCB-02
- * 連接選購的 USB 連接線
USB-01
顯示器取樣時間
- 約 1秒。
電源供應
- 1.5V AA(UM-3)電池 x 6 顆或 DC 9V 變壓器(選購)
功耗
- 約 DC 15 mA(正常運作)、DC 36 mA(SD 卡和背光開啟)
操作環境
- 溫度:0至50℃
- 濕度:小於85%RH
尺寸
-
儀表:203 x 76 x 38 毫米
-
振動感測器探頭:圓形 16 毫米直徑。 x 37 毫米。
-
電纜長度:1.2公尺
重量
-
儀表:515 克/1.13 磅
-
帶電纜和磁性底座的探頭:99 克(0.22 磅)
標準配件
-
說明書:1本
-
硬質便攜包(CA-06):1個
- 帶電纜的振動感測器:1台
- 磁性底座:1個
選購配件
- *SD 卡(4 G)
- *AC 至 DC
9V 變壓器
- *USB 電纜,USB-01
- *RS232 電纜,UPCB-02
- *資料擷取軟體,SW-E816
進階功能
-
微處理器電路:確保高精度和高可靠性。
-
雙通道測量:為工業機械提供全面的振動分析。
-
自動/手動資料記錄:增強資料管理和分析能力。
-
RS232/USB 介面:增強資料管理和與電腦系統的整合。
|
|
