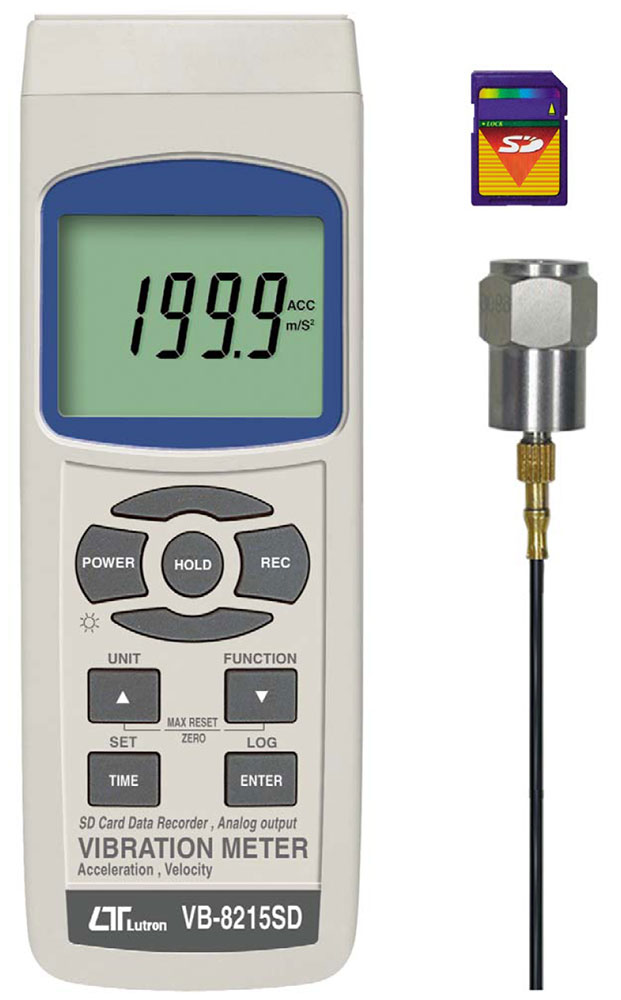

VB-8215SD
記憶式振動計

- 工業振動監測應用:所有工業機械振動。振動水準是了解機器狀況的有用指南。平衡不良、錯位和結構鬆動將導致振動水準增加,這確實是需要維護的跡象。
- 類比輸出。
- 頻率範圍 10 Hz -1 kHz,靈敏度相對符合
ISO 2954。
- 全套專業振動計供應,配有振動感測器和磁性底座。
- 公製和英制顯示單位
- 加速度、速度、位移測量。
- RMS、最大保持、峰值測量。
- 最大按住複位按鈕、歸零按鈕。
- 頻率範圍寬。
- 讀值鎖定按鈕可凍結所需的讀數。
- 記憶功能可記錄最大和最小讀數並調用。
- 帶磁性底座的獨立振動探頭,作方便。
- 即時 SD 儲存卡資料記錄器,內置時鐘和日曆,實時數據記錄器,採樣時間設置為 1 秒至 3600 秒。
- 手動資料記錄器可用(將採樣時間設置為 0),在執行手動數據記錄器功能時,它可以設置不同的位置(位置)編號。(位置 1 到位置 99)。
- 創新易作,電腦無需設置額外的軟體,執行數據記錄器後,只需從儀錶中取出SD卡,將SD卡插入電腦,即可將所有測量值連同時間資訊(年/月/日/時/分/秒)直接下載到Excel中, 然後使用者可以自己進行進一步的數據或圖形分析。
- SD 卡容量:1 GB 至 16 GB。
- 帶綠燈背光的 LCD,易於閱讀。
- 可以預設自動關機或手動關機。
- 讀值鎖定、記錄最大和最小讀數。
- 微電腦電路,精度高。
-
由 UM3/AA ( 1.5 V ) x 6 電池或 DC 9V 適配器供電。
-
RS232/USB PC 電腦介面。
特色
- VB-8215SD 振動計提供準確可靠的振動測量並具有即時數據記錄功能,使其成為各種工業應用的必備工具。
- 即時數據記錄:配備SD記憶卡數據記錄器,可記錄即時數據和時間信息,方便直接在Excel中下載和分析數據。
- 雙重測量模式:能夠測量加速度和速度,為不同的應用提供多功能性。提供 RMS、峰值和最大保持測量功能。
- 使用者友好介面:具有綠色背光的大型 LCD
顯示屏,方便讀數,數據保持功能以及記憶功能,可記錄最大和最小讀數並具有調用功能。
- 專業級感測器:包含一個帶有磁性底座的獨立振動探頭,便於操作並提高測量精度。符合
ISO 2954 靈敏度相關標準。
- 先進的連接性:配備RS232/USB電腦介面用於數據輸出,並配備可選的數據採集軟體以增強數據管理。
FEATURES
- Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance,misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
- Analog output.
- Frequency range 10 Hz -1 kHz, sensitivity relative meet ISO 2954.
- Professional vibration meter supply with vibration sensor & magnetic base, full set.
- Metric & Imperial display unit
- Acceleration, Velocity, Displacement measurement.
- RMS, Max hold, Peak value measurement.
- Max. Hold reset button, Zero button.
- Wide frequency range.
- Data hold button to freeze the desired reading.
- Memory function to record maximum and minimum reading with recall.
- Separate vibration probe with magnetic base, easy operation.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar,real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off.
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER interface.
一般規格
電路
- 客製化單晶片微處理器LSI電路。
顯示
- LCD 尺寸:52 毫米 x 38 毫米
- LCD,綠色背光(開/關)。
測量功能
- 加速度範圍:0.5 至 199.9 m/s²,0.05 至 20.39 g,2 至 656 ft/s²
- 解析度:0.1 m/s²,0.01 g,1 ft/s²
- 精準度:±(5%+
5d)@ 160 Hz,80 Hz,23±5℃
- 校準點:50 m/s²(160 Hz)
- 速度範圍:0.5 至 199.9 毫米/秒、0.05 至 19.99 公分/秒、0.02 至 7.87 吋/秒
- 解析度:0.1 mm/秒、0.01 公分/秒、0.01 吋/秒
- 精準度:±(5%+
5d)@ 160 Hz,80 Hz,23±5℃
- 校準點:50 毫米/秒(160 赫茲)
- 頻率範圍:10 Hz至1 kHz
- 類比輸出:透過「振動模擬輸出端子」輸出振動模擬訊號
- 典型輸出:AC 250 mV @ 100 m/s²
功能
- RMS、峰值、最大保持測量
- 讀值鎖定功能可凍結所需讀數 * 僅適用於 RMS 功能
- 記憶回叫功能可記錄最大和最小讀數 * 僅適用於 RMS 功能
- 數據記錄器:
- 自動:1秒至3600秒
- 手動:按一次數據記錄器按鈕即可儲存數據
- SD卡容量:1 GB至16 GB
進階設定
- * 設定時鐘時間(年/月/日,時/分/秒
- * SD 卡設定的小數點
- * 自動關機管理
- * 設定蜂鳴聲開/關
- * 設定採樣時間
- * SD 記憶卡格式
化
數據輸出
- RS 232/USB PC 電腦介面。
- * 連接選購的 RS232 電纜 UPCB-02
- * 連接選購的 USB 連接線
USB-01
顯示器取樣時間
- 約 1秒。
電源供應
- 1.5V AA(UM-3)電池 x 6 顆或 DC 9V 變壓器(選購)
功耗
- 約 DC 15 mA(正常運作)、DC 36 mA(SD 卡和背光開啟)
操作環境
- 溫度:0至50℃
- 濕度:小於85%RH
尺寸
-
儀表:203 x 76 x 38 毫米
-
振動感測器探頭:圓形 16 毫米直徑。 x 37 毫米。
-
電纜長度:1.2公尺
重量
-
儀表:515 克/1.13 磅
-
帶電纜和磁性底座的探頭:99 克(0.22 磅)
標準配件
-
說明書:1本
-
硬質便攜包(CA-06):1個
- 帶電纜的振動感測器:1台
- 磁性底座:1個
選購配件
- *SD 卡(4 G)
- *AC 至 DC
9V 變壓器
- *USB 電纜,USB-01
- *RS232 電纜,UPCB-02
- *資料擷取軟體,SW-E816
|
|
