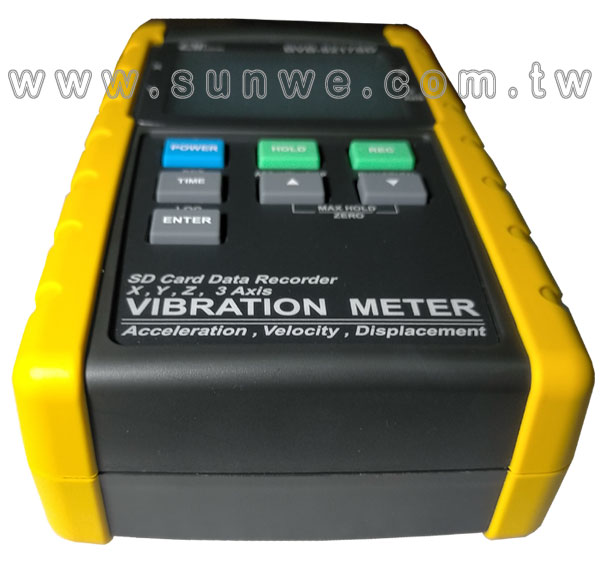

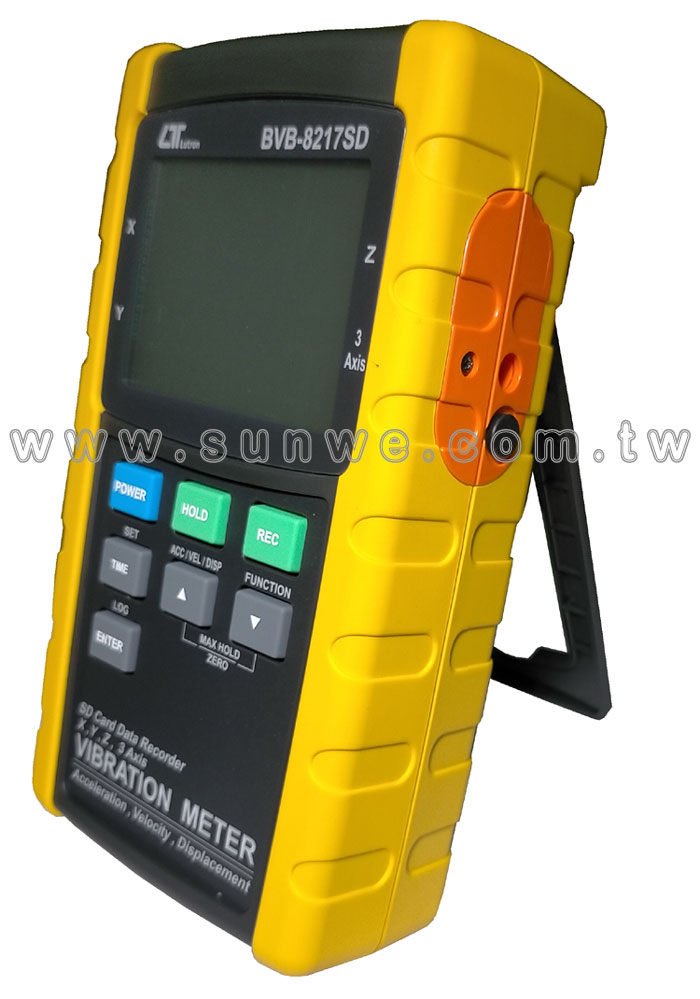

X, Y, Z, 3 Axis vibration meter.

3 channels vibration meter, use SD card to save the data 3 channels vibration meter, use SD card to save the data minute, second ) into the SD memory card and can be downloaded to the Excel, extra software is no need.

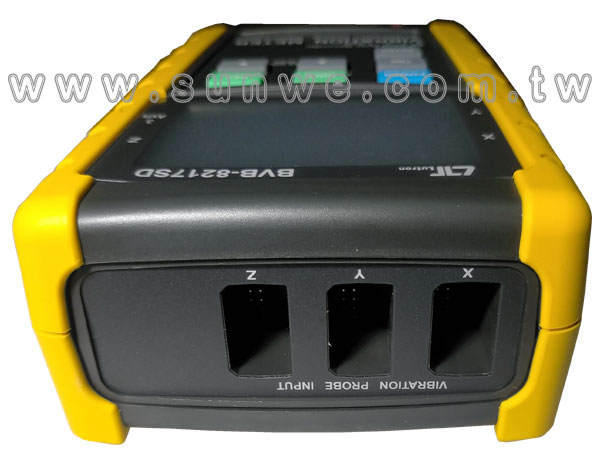

Show X, Y, Z ( CH1 to CH3 ) and 3 Axis vibration values in the same LCD.

Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.

Display no. : X, Y, X and 3 Axis.

Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.

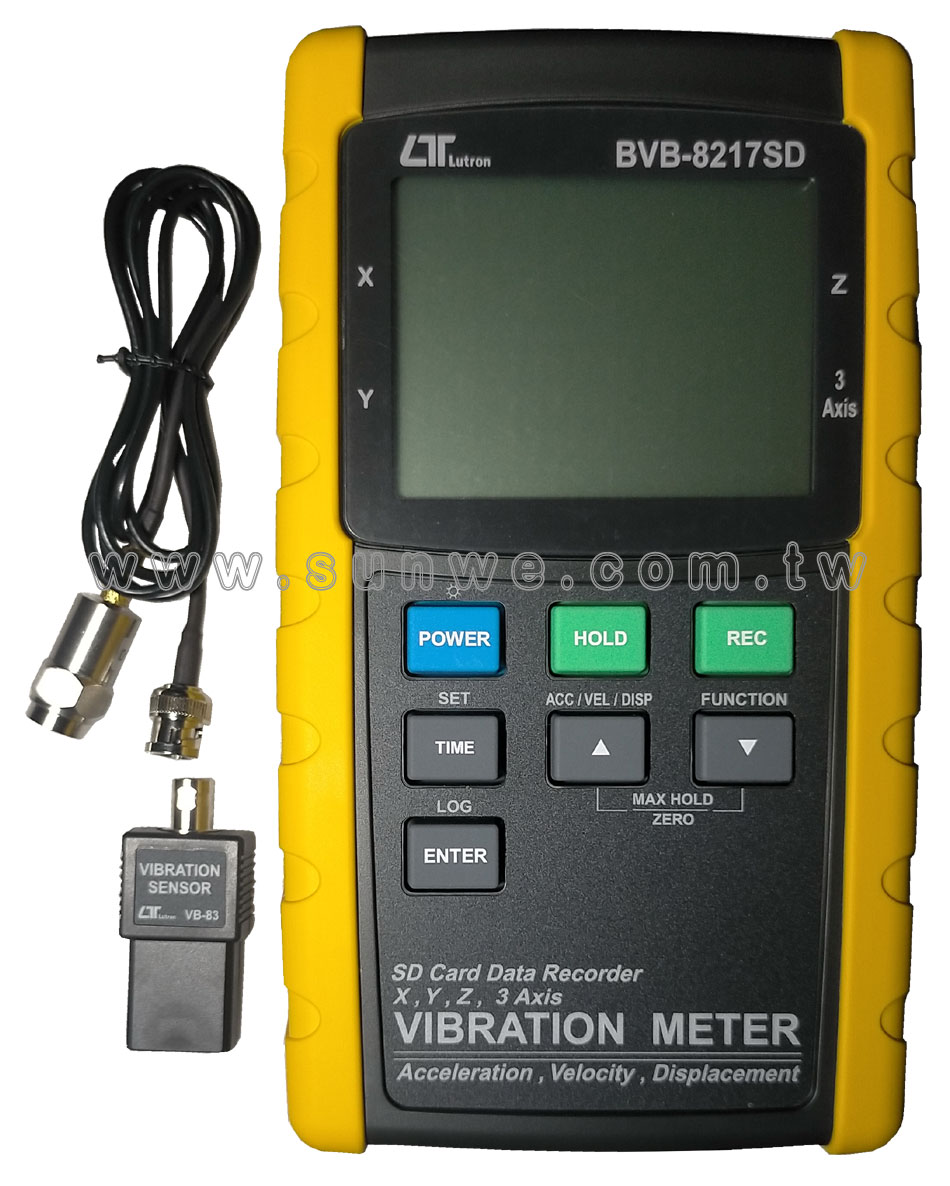

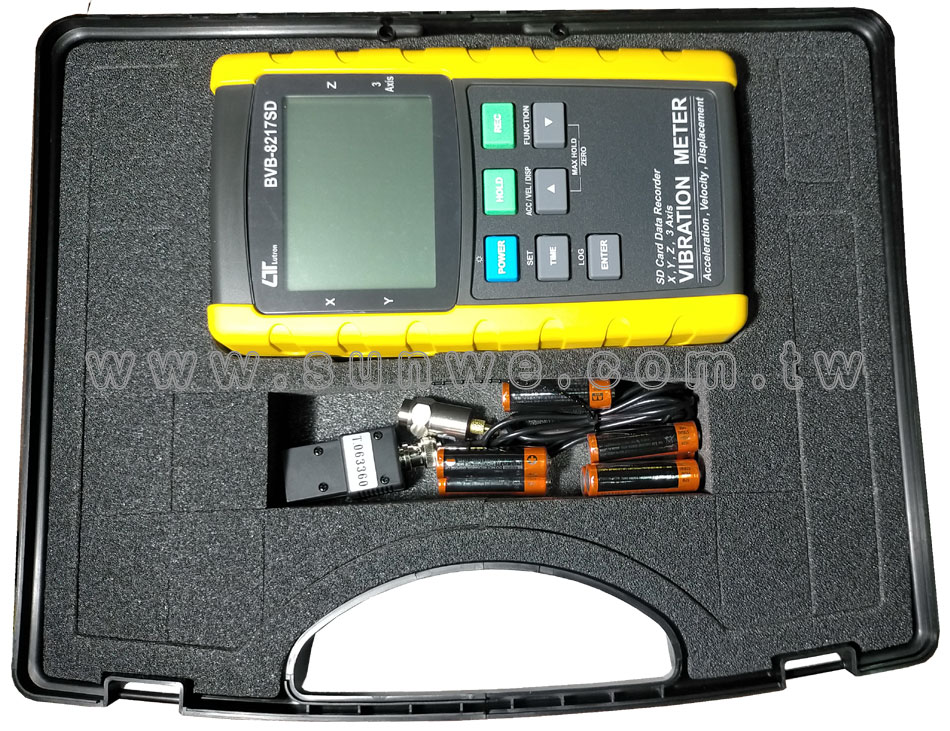

Professional vibration meter supply with onevibration sensor ( X axis sensor ) and magnetic base, full set.

Metric & Imperial display unit

Acceleration, Velocity, Displacement measurement.

Acceleration : 200 m/s2.

Velocity : 200 mm/s.

Displacement ( p-p ) : 2 mm.

RMS, Max hold, Peak value measurement.

Max. Hold reset button, Zero button.

Wide frequency range.

Data hold button to freeze the desired reading.

Memory function to record maximum and minimum reading with recall.

Separate vibration probe with magnetic base, easy operation.

Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.

Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).

Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.

SD card capacity : 1 GB to 16 GB.

LCD with green light backlight, easy reading.

Can default auto power off or manual power off.

Data hold, record max. and min. reading.

Microcomputer circuit, high accuracy.

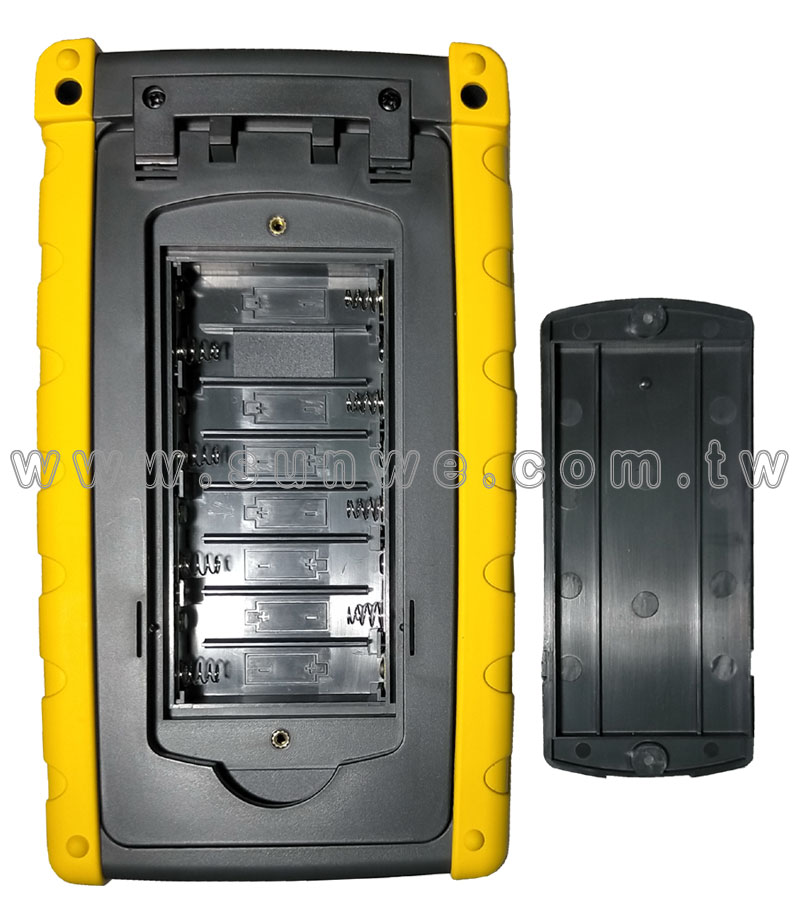

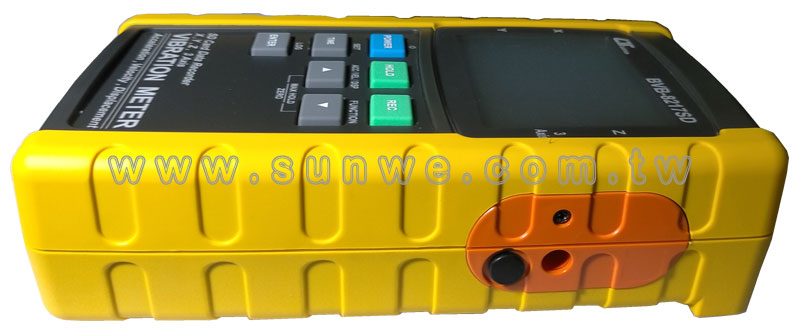

Power by UM3/AA ( 1.5 V ) x 8 batteries or DC 9V adapter.

RS232/USB PC COMPUTER interface.

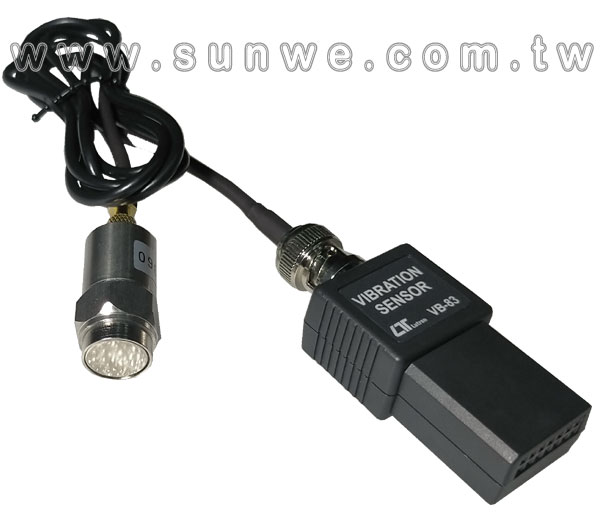

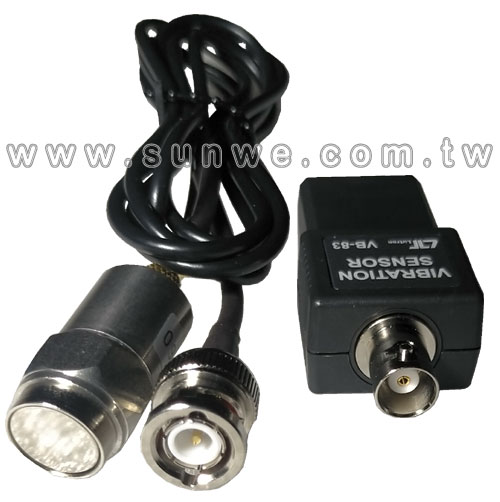

Include 1 PC sensor ( X sensor ) vibration set, VB-83. Extra vibration sensors ( X, Y sensor ) set, VB-83 can be ordered. When changing the VB-83, it is not necessary to make the new calibration again.

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit.

通道 (Channels)

Show X, Y, Z ( CH1 to CH3 ) and 3 Axis vibration values in the same LCD.

測量 (Measurement)

Velocity, Acceleration, Displacement

功能 (Function)

Acceleration ' Velocity :

RMS

Peak

Max Hold.

Displacement :

p-p ( peak-peak )

Max-hold p-p.

單位 (Unit)

頻率範圍 (Frequency range)

10 Hz to 1 KHz.

* Sensitivity relativive during the the frequency range meet ISO 2954.

電路 (Circuit)

Exclusive microcomputer circuit.

峰值測量 (Peak Measurement)

Acceleration, Velocity : To measure and update value.

Displacement : To measure and update the peak to peak ( p-p ) value.

最大值測量 (Max. Hold Measurement)

Acceleration, Velocity : Measurement To measure and update value.

Displacement : To measure and update the peak to peak ( p-p ) value.

歸零鍵 (Zero Button)

Under Acceleration ( RMS ) measurement, sensor motionless , press Logger Button > 5 seconds.

最大鎖定重置建 (Max. Hold Reset Button)

Under Max. hold measurement, press Logger Button > 5 seconds.

資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)

Auto :  1 second to 3600 seconds @ Sampling time can set to 1 second, but memory data may loss.

Manual : Push the data logger button once will save data one time.

@ Set the sampling time to 0 second.

@ Manual mode, can also select the 1 to 99 position ( Location ) no.

資料錯誤數 (Data error no.)

 ≦ 0.1 % no. of total saved data typically.

記憶卡 (Memory Card)

SD memory card. 1 GB to 16 GB.

優越的設定 (Advanced setting)

* Set clock time ( Year/Month/Date, Hour/Minute/ Second )

* Set sampling time

* Auto power OFF management

* Set beep Sound ON/OFF

* Decimal point of SD card setting

* SD memory card Format

資料鎖定 (Data hold)

Freeze the display reading. * Only available for the RMS function.

記憶回叫 (Memory Recall)

Maximum & Minimum value. * Only available for the RMS function.

資料輸出 (Data Output)

RS 232/USB PC computer interface.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

* Connect the optional USB cable USB-01 will get the USB plug.

取樣時間 (Sampling Time)

Approx. 1 sec

操作溫度 (Operating Temp. )

0 to 50 ℃.

操作溼度 (Operating Humidity)

Less than 85% R.H.

電源供應 (Power Supply)

Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent.

DC 9V adapter input.

* AC/DC power adapter is optional.

電源電流 (Power Current)

Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 12 mA

When SD card save the data but and LCD Backlight is OFF) : Approx. DC 35 mA.

重量 (Weight)

Meter : 515 g/ 1.13 LB.

Probe with cable and magnetic base : 99 g/0,22 LB

體積 (Dimension)

Meter : 203 x 76 x 38 mm

Vibration sensor probe : Round 16 mm Dia. x 37 mm.

Cable length : 1.2 meter.

附件 (Standard Accessory)

* Instruction manual.......................1 PC

選購附件 (Optional accessories)

Vibration sensor set with cable, VB-83.

SD Card ( 4 G ).

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software,SW-U801-WIN.

電器規格 ELECTRICAL SPECIFICATIONS (23±5 ℃)

加速度 Acceleration ( RMS, Peak, Max Hold )

速度 Velocity ( RMS )

位移 Displacement ( p-p, Max Hold p-p )
