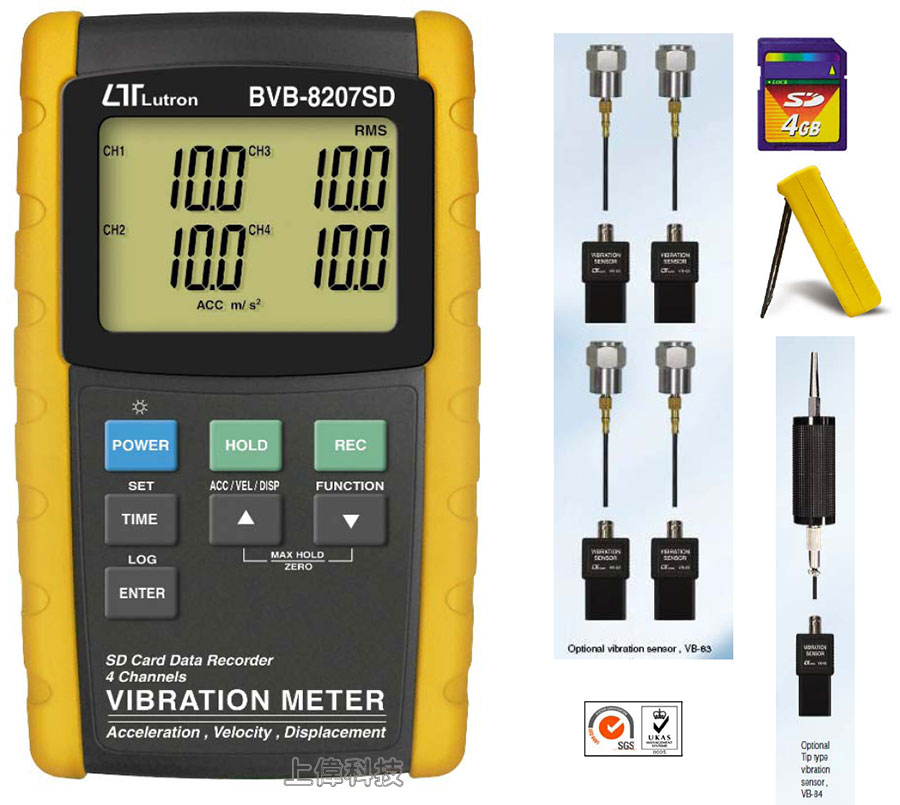

BVB-8207SD
記憶式四通道振動計

特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 做圖表分析 (記憶卡選購)
- 測量範圍 :
- 速度(VEL): 0.5 ~ 199.9 mm/s
- 加速度(ACC):0.5 ~ 199.9 m/s²
- 位移(DSP):0.005 ~ 1.999 mm
- 四通道、四視窗同時測量顯示即紀錄
- 頻率範圍 : 10Hz ~ 1 KHz
- 精確度 : ±5%
- DC 4~20mA 訊號輸出
- 讀值鎖定及記錄測量中之最大/最小值
- RS-232/USB 輸出介面 (軟體選購)
- Size : 203 x 76 x 38 mm
FEATURES
- 4 channels
vibration recorder, use SD card to save the 4 channels' data
along with time information, paperless.
- Applications for
industrial vibration monitoring : All industrial machinery vibrates. The
level of vibration is a useful guide to machine condition. Poor balance,
misalignment & looseness of the structure will cause the vibration level
increase, it is a sure sign that the maintenance is needed.
- Channels no. : 4 channels
( CH1 to CH4 ) vibration measurement.
- Frequency range 10 Hz - 1
kHz, sensitivity relative meet ISO 2954.
- Professional vibration
meter supply with vibration sensor & magnetic base, full set.
- Metric & Imperial display
unit
- Acceleration, Velocity,
Displacement measurement.
- RMS, Max hold, Peak value
measurement.
- Max. Hold reset button,
Zero button.
- Wide frequency range.
- Data hold button to freeze
the desired reading.
- Memory function to record
maximum and minimum reading with recall.
- Separate vibration probe
with magnetic base, easy operation.
- Real time SD memory card
Datalogger, it Built-in Clock and Calendar, real time data recorder ,
sampling time set from 1 second to 3600 seconds.
- Manual datalogger is
available ( set the sampling time to 0 ), during execute the manual
datalogger function, it can set the different position ( location ) No. (
position 1 to position 99 ).
- Innovation and easy
operation, computer is not need to setup extra software, after execute
datalogger, just take away the SD card from the meter and plug in the SD
card into the computer, it can down load the all the 4 channels measured
value with the time information ( year/month/date/ hour/minute/second ) to
the Excel directly, then user can make the further data or graphic analysis
by themselves.
- SD card capacity : 1 GB to
16 GB.
- LCD with green light
backlight, easy reading.
- Can default auto power off
or manual power off.
- Data hold, record max. and
min. reading.
- Microcomputer circuit,
high accuracy.
- Power by UM3/AA ( 1.5 V )
x 8 batteries or DC 9V adapter.
- RS232/USB PC COMPUTER
interface.
- Include 1 PC vibration
sensor, VB-83.
- Extra vibration sensor,
VB-83 can be ordered. When change the VB-83, it is not necessary to make
calibration again.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 82 mm x
61 mm.
* with green color backlight.
通道 (Channels)
- 4 channels : CH1,
CH2, CH3, CH4.
測量 (Measurement)
- Velocity, Acceleration, Displacement
功能 (Function)
- Acceleration ' Velocity :
- RMS
- Peak
- Max Hold.
- Displacement :
- p-p ( peak-peak )
- Max-hold p-p.
單位 (Unit)
Measurement |
Metric |
Imperial |
Acceleration |
meter/s^2,G |
ft/s^2 |
Velocity |
mm/s, cm/s |
inch/s |
Displacement |
mm |
inch |
頻率範圍 (Frequency range)
- 10 Hz to 1 KHz.
- * Sensitivity relativive during the the frequency range meet ISO 2954.
電路 (Circuit)
- Exclusive microcomputer circuit.
峰值測量 (Peak Measurement)
- Acceleration, Velocity : To measure and update value.
- Displacement : To measure and update the peak to peak ( p-p ) value.
最大值測量 (Max. Hold Measurement)
- Acceleration, Velocity :
Measurement To measure and update value.
- Displacement : To measure and update the peak to peak ( p-p ) value.
歸零鍵 (Zero Button)
- Under Acceleration ( RMS ) measurement, sensor motionless , press Logger Button > 5 seconds.
最大鎖定重置建 (Max. Hold Reset Button)
- Under Max. hold measurement, press Logger Button > 5 seconds.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1 sec to 8 hour 59 min. 59 sec @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
資料錯誤數 (Data error no.)
- ≦ 0.1 % no. of total saved data
typically.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set sampling time
- * SD memory card Format
資料鎖定 (Data hold)
- Freeze the display reading.
* Only available for the RMS function.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
* Only available for the RMS function.
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
取樣時間 (Sampling Time)
- Approx. 1 sec
操作溫度 (Operating Temp. )
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x
8 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation (
w/o SD card save data and LCD Backlight is OFF) : Approx. DC 12 mA
- When SD card save
the data but and LCD Backlight is OFF) : Approx. DC 35 mA.
重量 (Weight)
- Meter : 515 g/ 1.13 LB.
- Probe with cable and magnetic base :
99 g/0,22 LB
體積 (Dimension)
- Meter : 203 x 76 x 38 mm
- Vibration sensor probe :
Round 16 mm Dia. x 37 mm.
- Cable length : 1.2 meter.
附件 (Standard Accessory)
- * Instruction manual.......................1 PC
- * Vibration sensor
set, VB-83 with cable..............1 PC
* Magnetic base........................... 1 PC
*
Carrying case ( CA-08 )................... 1 PC
選購附件 (Optional accessories)
- Vibration sensor set with cable, VB-83.
- Tip type vibration sensor set, VB-84.
- SD Card ( 4 G ).
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software,SW-U801-WIN.
電器規格
ELECTRICAL SPECIFICATIONS (23±5 ℃)
加速度 Acceleration ( RMS, Peak, Max Hold )
Unit |
m/s² |
Range |
0.5 to 199.9m/s² |
Resolution |
0.1m/s² |
Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Unit |
g @ 1 g = 9.8m/s² |
Range |
0.05 to 20.39 g |
Resolution |
0.01 g |
Accuracy |
± ( 5 % + 5 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Unit |
ft/s² |
Range |
2 to 656 ft/s² |
Resolution |
1ft/s² |
Accuracy |
± ( 5 % + 5 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Remark :
RMS : To measure the true RMS value.
Peak : To measure and update the peak value.
Max. Hold : To measure and update the max. peak value.
速度 Velocity ( RMS )
Unit |
mm/s |
Range |
0.5 to 199.9 mm/s |
Resolution |
0. 1 mm/s |
Accuracy |
± ( 5 % + 5 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Unit |
cm/s |
Range |
0.05 to 19.99 cm/s |
Resolution |
0. 01 cm/s |
Accuracy |
± ( 5 % + 5 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Unit |
inch/s |
Range |
0.02 to 7.87 inch/s |
Resolution |
0.01 inch/s |
Accuracy |
± ( 5 % + 5 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
位移 Displacement ( p-p, Max Hold p-p )
Unit |
mm |
Range |
1.999 mm |
Resolution |
0.001 mm |
Accuracy |
± ( 5 % + 5 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Unit |
inch |
Range |
0.078 inch |
Resolution |
0.001 inch |
Accuracy |
± ( 5 % + 5 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
Calibration Point |
50 m/s²( 160 Hz ) |
Remark :
Humidity p-p : To measure the Peak to Peak value.
Max. Hold p-p : To measure and update the max. Peak to Peak value.
|
|
