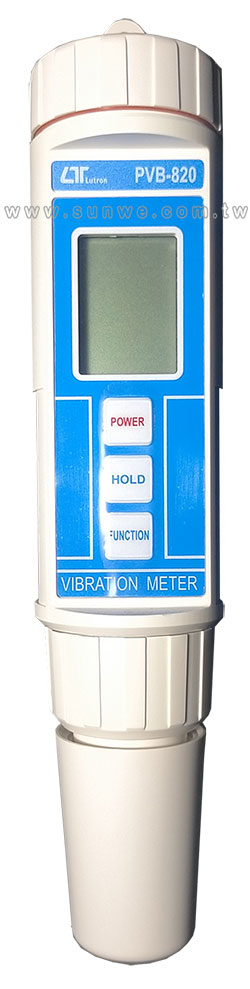

PVB-820
筆型振動計
特色
- 測量範圍 :
- 速度(VEL) 0.5 ~ 199.9 mm/s
- 加速度(ACC) 0.5 ~ 199.9 m/s²
- 頻率範圍 : 10~1 KHz
- 精確度 : ±5%
- 公制/英制測量單位切換
- 符合ISO2954規範
- Size : 175 x 40 x 32 mm
FEATURES
- Applications for industrial vibration monitoring : All industrial machinery vibrates. The level of vibration is a useful guide to machine condition. Poor balance, misalignment & looseness of the structure will cause the vibration level increase, it is a sure sign that the maintenance is needed.
- Pen type digital vibration meter, vibration sensor is built in, all in one.
- Acceleration, Velocity measurement, RMS measurement value.
- Metric & Imperial display unit.
- Frequency range 10 Hz - 1 kHz, sensitivity relative meet ISO 2954.
- Microcomputer circuit, intelligent function, high accuracy.
- LCD display, easy read out.
- Complete set with the Test pin and the Magnetic base are the standard accessories.
- Built-in low battery indicator.
- Heavy duty & compact housing case.
- IP65 protection.
- Compact size, light weight.
- Soft carrying case is the optional accessory
一般規格
顯示 (Display)
- LCD, size : 20 mm x 28 mm.
測量 (Measurement)
- Velocity, Acceleration * RMS value.
頻率範圍 (Frequency range)
- 10 Hz to 1 KHz.
- * Sensitivity relativive during the the frequency range meet ISO 2954.
電路 (Circuit)
- Exclusive microcomputer circuit.
歸零調整 (Zero adjust)
- Build in the Zero adjustment VR, easy to make adjustment.
取樣時間 (Sampling Time)
- Approx. 1 sec
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.

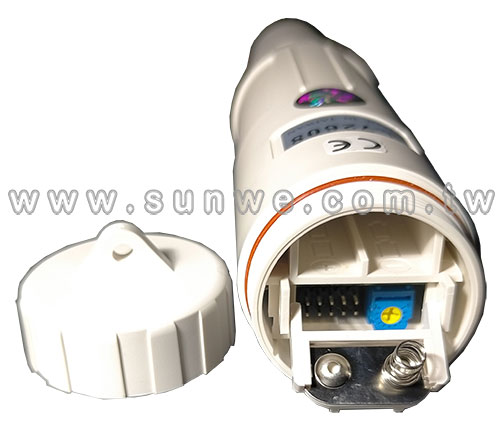

電源供應 (Power Supply)
- DC 1.5V battery ( UM-4/AAA ) x 4 PCs.
電源損耗 (Power Consumption)
- Approx. DC 12 mA.
重量 (Weight)
- 240 g ( 0.53 lb ).
尺寸 (Size)
- Meter : 175 x 40 x 32 mm ( 6.9 x 1.6 x 1.3 inch ).
- * Meter without sensing head,

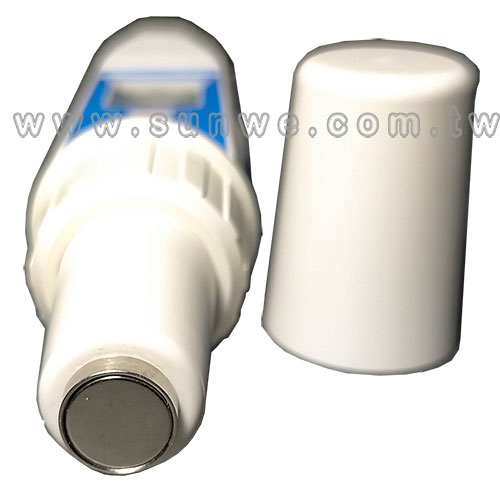

- Sensing head : 110 g/0.24 LB Round 9 mm Dia. x 30 mm.
附件 (Standard Accessory)
- Instruction manual................... 1 PC.
- Meter with sensing head.............. 1 Set
- Magnetic base........................ 1 PC. Point
- Soft carrying case, CA-52A........... 1 PC.
電器規格
ELECTRICAL SPECIFICATIONS
加速度 Acceleration ( RMS )
| Unit |
m/s² |
| Range |
0.5 to 199.9m/s² |
| Resolution |
0.1m/s² |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
g @ 1 g = 9.8m/s² |
| Range |
0.05 to 20.39 g |
| Resolution |
0.01 g |
| Accuracy |
± ( 5 % + 2 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
ft/s² |
| Range |
2 to 656 ft/s² |
| Resolution |
1ft/s² |
| Accuracy |
± ( 5 % + 2 d ) @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
速度 Velocity ( RMS )
| Unit |
mm/s |
| Range |
0.5 to 199.9 mm/s |
| Resolution |
0. 1 mm/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
cm/s |
| Range |
0.05 to 19.99 cm/s |
| Resolution |
0. 01 cm/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
| Unit |
inch/s |
| Range |
0.02 to 7.87 inch/s |
| Resolution |
0.01 inch/s |
| Accuracy |
± ( 5 % + 2 d ) reading @ 160 Hz, 80 Hz, 23 ± 5 ℃ |
| Calibration Point |
50 m/s²( 160 Hz ) |
|
