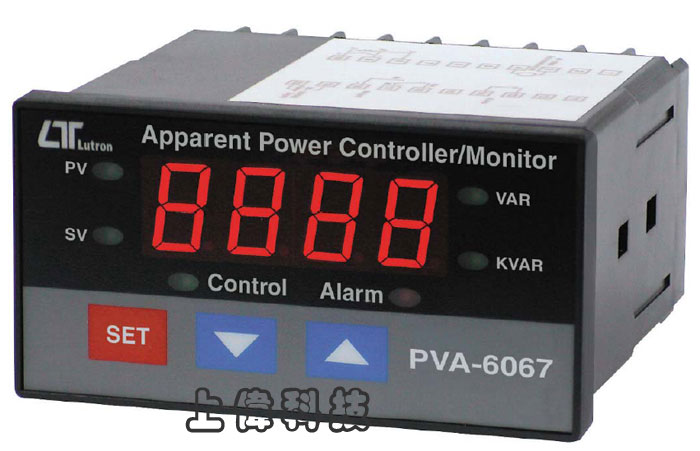

PVA-6067
視在功率控制顯示錶
簡介
- 測量範圍(不外接 CT/PT 時)：
- VA：0 ~ 6000VA (真均方根植測量)
- 交流電壓 : 0 to 600.0 ACV, 40 to 400 Hz.
- 交流電流 : -0 to 10.00 A, 40 to 400 Hz.
- 電流輸入可外接 CT . CT100A/5A 或 CT1000A/5A
- 電壓輸入可外接PT測量使用
- 上限或下限範圍設定及警報設定功能
- 上限或下限設定及警報設定繼電器輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- RS-232 / USB 連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- Professional Apparent power meter with standard DIN case ( 96 x 48 mm ) and Control/Alarm function.
- Microprocessor circuit ensures high accuracy and provide special functions and features.
- Large red LED display, high brightness and easy to read
- Measurement range ( no cooperate the external CT and the PT ) : Watt : 0 to 6,000 VA.
- Input signal ( without PT, CT ) : ACV : 0 to 600 ACV, 40 to 400 Hz. ; ACA : 0 to 10 A, 40 to 400 Hz.
- Current input can cooperate the external CT ( current transformer ) such as CT 1000/5A, CT 100/5A ...to expend the measurement range. The CT range can be adjusted with default.
- Voltage input can cooperate the external PT ( voltage transformer ) to expend the measurement range. The PT range can be adjusted with default.
- Control setting, Hi/Lo alarm setting.
- Control relay output, alarm relay output.
- Control Relay will make action when the reading value reach to control value.
- Alarm Relay will make action when the reading value reach to high/low alarm value.
- Hysteresis value setting for control and alarm function.
- Power : 90 ACV to 264 ACV, 50/60 Hz.
- RS232/USB computer interface.
- Option data acquisition software.
一般規格
顯示 (Display)
- 4 digits red LED, digit size 14 mm ( 0.55 inch ) digit height .
- 6 indicators
- PV ( process value ) indicator
- SV ( set value ) indicator
- Control out indicator
- Alarm out indicator
- VA indicator
- KVA indicator
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
VA 測量 (VA measurement )
- 0 - 6,000 VA.
- * True power
- * w/o PT. CT.
輸入訊號 (Input signal)
- ACV : 0 to 600 ACV, 40 to 400 Hz.
- ACA : 0 to 10 A, 40 to 400 Hz.
- * w/o PT. CT.
取樣時間 (Sampling Time)
- Approx. 0.8 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : control relay.
- Relay 2 : High/Low alarm relay.
- Max load :
- 0.5 ACA/250 ACV
- 0.5 DCA/24 DCV
- *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
資料輸出 (Data Output)
- RS232 / USB PC Computer interface.
- * Connect the optional RS232 cable , UPCB - 02 will get the RS232 plug.
- * Connect the optional USB cable, USB - 01 will get the USB plug.
設定功能 (Setting Function)
- 1st layer setting procedures
- CtLo ( Control low limit )
- CtHi ( Control high limit )
- ALLo ( Alarm low limit )
- ALHi ( Alarm high limit ).
- Second layer setting procedures
- CtSt ( CT rate setting )
- PtSt ( PT rate setting )
- CtHy ( Control hysteresis value setting )
- ALHy ( Alarm hysteresis value setting )
過載輸入 (Over input)
- " - - - - " mark indication.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 261 g/ 0.57 LB.
電源損耗 (Power Consumption) * Under no load
- Approx. 3.3 VA/AC 110V.
- Approx. 4.9 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Panel cut size : 92 x 46 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual.................1 PC
- Case holder with screw............ 2 PCs
選購附件 (Optional Accessories)
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Real time SD card datalogger DL-9602SD
- GSM controller, GSM-889.I
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
電器規格
沒有PT 及 CT直接輸入 (Without PT and CT ( direct input )
- Range : 0 VA to 6,000 VA
- Resolution : 1 VA
- Accuracy : ± ( 0.5 % + 5d ) reading
- Remark :
- * T11, T15 ACV input : 10 ACV to 600 ACV.
- * T16, T15 ACA input : 0.05 ACA to 10 ACA.
- * Accuracy is test under input signal is sine wave, 50/60 Hz.
- * ACV, ACA frequency response is from 40 to 400 Hz
- * Accuracy value is specified within 23℃ ± 5℃
含 PT 及 CT ( With PT and CT)
- Range : 0 to 999.9 KVA
- Resolution : 0.1 KVA
- Accuracy : ± ( 0.5 % + 5d ) reading
- Remark :
- * Measuring Signal come from the rear terminals .
- * T11, T15 ACV input : 10 ACV to 600 ACV.
- PT ( Potential transformer ) adjust value : x 1 to x 100.
- * T16, T15 ACA input : 0.05 ACA to 10 ACA.
- CT ( current transformer ) adjust value : x 1 to x 200.
- * Accuracy is test under input signal is sine wave, 50/60 Hz.
- * Accuracy is specified for the meter only, not include the accuracy of CT ( current transformer ) and the PT ( potential transformer ).
|
|
