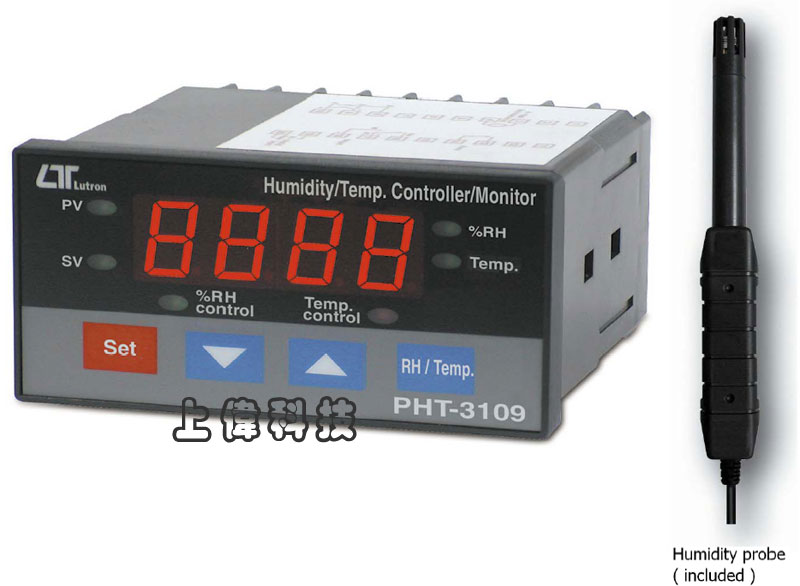

PHT-3109
溫濕度設定顯示錶
簡介
- 濕度範圍：10 ~ 95.0(RH) ±3%
- 溫度範圍：-0 ~ 60.0°C ±0.8%
- 上/下限設定及警報設定功能
- 上/下限及警報設定繼電器輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- PH電極及感溫棒皆為選購品
- RS-232 / USB 連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- Professional Humidity measurement monitor and controller.
- Build in humidity control relay and the Temp. control relay.
- Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value.
- Offset value setting.
- Hysteresis value setting for high and low alarm.
- ℃,℉ temp. unit setting with default.
- High precision humidity sensor with fast response time and high accuracy.
- Large red LED display, high brightness and easy to read.
- RS232 computer interface, send out the humidity and the temperature data at the same time.
- Optional data acquisition software.
- Optional GSM controller.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Standard 96 X 48 mm DIN case.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
單位 (Unit)
- Temp. : ℃, ℉
- Humidity : %RH
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
感應器結構 (Sensor Structure)
- Humidity : Semiconductor
- Temperature : Semiconductor
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : Humidity control relay.
- Relay 2 : Temperature control relay
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV
設定值 (Setting Value)
- 1. High limit value setting.
- 2. Low limit value setting.
- 3. Hysteresis value setting.
- 4. Offset value setting.
- * 1, 2, 3 Setting for Humidity and Temp.
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V.
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual....................1 PC
- Humidity/Temp. probe..................1 PC
- Case holder with screw............... 2 PCs
- Probe fix holder......................1 PC
選購附件 (Optional Accessories)
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- GSM controller, GSM-889.
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
電器規格 (23±5 ℃)
濕度 (Humidity)
- Range : 10 % to 95 %
- R.H.Resolution : 0.1 %
- R.H.Accuracy
- ≧70% RH : ± (3% reading + 1% RH).
- < 70% RH : ± 3% RH.
溫度 (Temperature)
- Measuring Range : 0 ℃ to 50 ℃/32 ℉ to 122 ℉
- Resolution : 0.1 ℃/0.1 ℉
- Accuracy : ± 0.8 ℃/1.5 ℉
|
