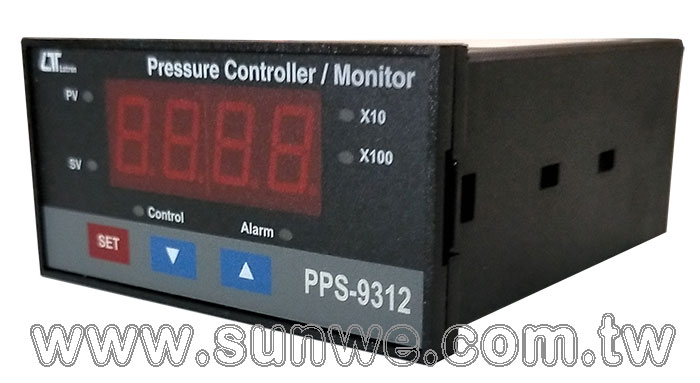

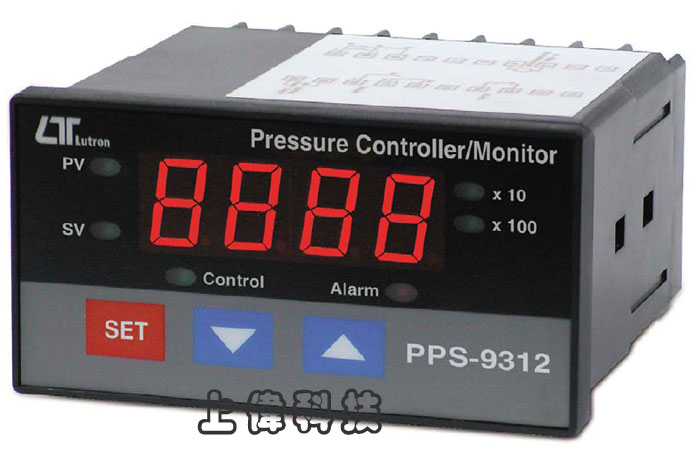

PPS-9312
壓力控制顯示錶
簡介
- 主機適用 2, 5, 10, 20, 50, 100, 400 bar 等壓力傳送器 (TR-PS2W **BAR 為選購品)
- 8種單位選擇切換 : Bar, PSI, Kg/cm^2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere.
- 上限或下限範圍設定及警報設定功能
- 上限或下限設定及警報設定繼電器輸出
- 內建直流電壓 12V 輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- RS-232 / USB 連接介面(軟體選購)
- Size : 96x48x107mm
FEATURES
- Meter connects with 2, 5, 10, 20, 50, 100, 400 bar sensor, no calibration procedures are necessary typically when change a new sensor .
- Unit select : Bar, PSI, Kg/cm^2, inch Hg, mm Hg, inch H2O, meter H2O, Atmosphere, hPa, KPa.
- Large red LED display, high brightness and easy to read.
- Control setting, Hi/Lo alarm setting.
- Control relay output, alarm relay output.
- Alarm Relay will make action when the reading value reach to high/low alarm value.
- Control Relay will make action when the reading value reach to control value.
- Hysteresis value setting for control and alarm function.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Power : 90 ACV to 264 ACV, 50/60 Hz.
- Cooperate the 4-20 mA pressure input, sensor can install in the faraway position.
- DC 12V output, used for the power of pressure sensor.
- RS-232/USB computer interface.
- DIN size : 96 x 48 mm. Depth : 107 mm.
- Optional pressure sensor, TR-PS2W-xxBAR, PS93MA-xxBAR.
- Optional USB cable, USB-01.
- Optional data acquisition software.
- Optional GSM controller.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
感應器型式 (Sensor Structure)
- Can cooperate with optional 2, 5, 10, 20, 50, 100, 200, 400 bar two wires 4 to 20 mA pressure sensor, new calibration are not necessary typically when change the new sensor
- * Sensor type can make the internal setting with default
顯示單位 (Display units)
- Bar, Psi, Kg/cm^2, mm Hg, inch Hg, meter H2O, inch H2O, Atmosphere, hPa, KPa.
- * Unit can make the internal setting with default
精確度 (Accuracy)
- ± ( 0.5% + 2 d )
- * Meter only.
- Within 23 ℃± 5 ℃
壓力感應器 (Pressure sensor) * optional
- Cooperate the optional two wires ( or four wires ) 4 to 20 mA pressure sensors ( transmitters ).
- * two wires sensor : TR-PS2W-xxBAR
- * Four wires sensor : PS93MA-xxBAR
補償調整 (Offset adjust)
- It can make the internal Offset setting with default.
增益調整 (Gain adjust)
- It can make the internal Gain setting with default
從感應器輸入訊號 (Input signal from sensor)
- * Input 4 mA = 0 pressure
- * Input 20 mA = full scale pressure
取樣時間 (Sampling Time)
- Approx. 1 second.

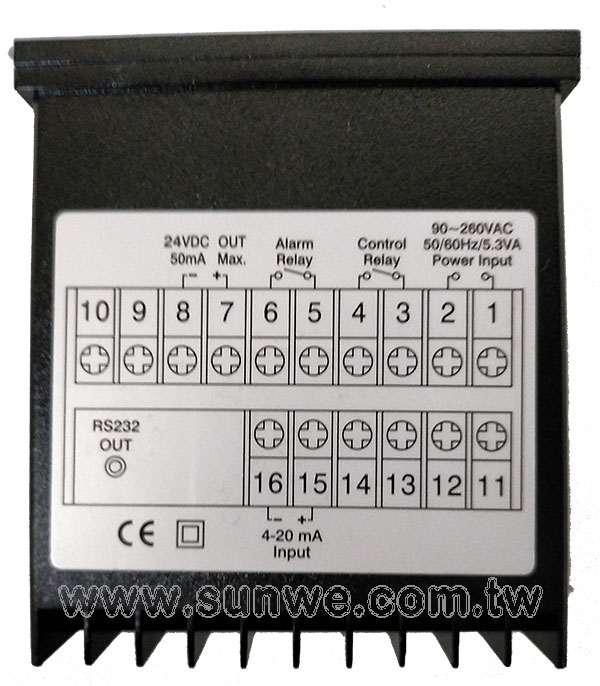

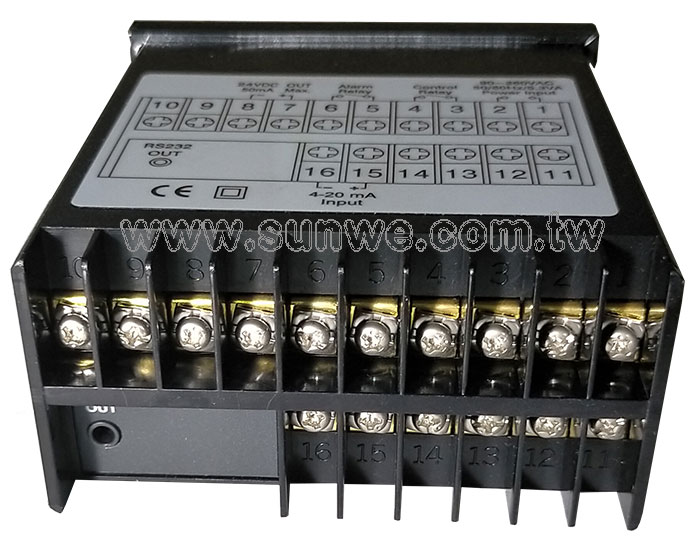

繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : control relay.
- Relay 2 : High/Low alarm relay.
- Max load :
- 0.5 ACA/250 ACV
- 0.5 DCA/24 DCV
- *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定功能 (Setting Function)
- 1st layer setting procedures
- CtLo ( Control low limit )
- CtHi ( Control high limit )
- ALLo ( Alarm low limit )
- ALHi ( Alarm high limit ).
- Second layer setting procedures
- tyPE ( Sensor type )
- FiLt ( Digital filter )
- CtHy ( Control hysteresis set )
- ALHy ( Alarm hysteresis set )
- oFSt ( Offset adjustment )
- GAin ( Gain adjustment )
- Unit ( Unit set )
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 5.3 VA/AC 110V.
- Approx. 7.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual......................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- Two wires pressure transmitters, Model : TR-PS2W-xx BAR * Range : 2, 5, 10, 20, 50, 100, 400 BAR.
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- Real time SD card datalogger DL-9602SD
- GSM controller, GSM-889.I
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
|
