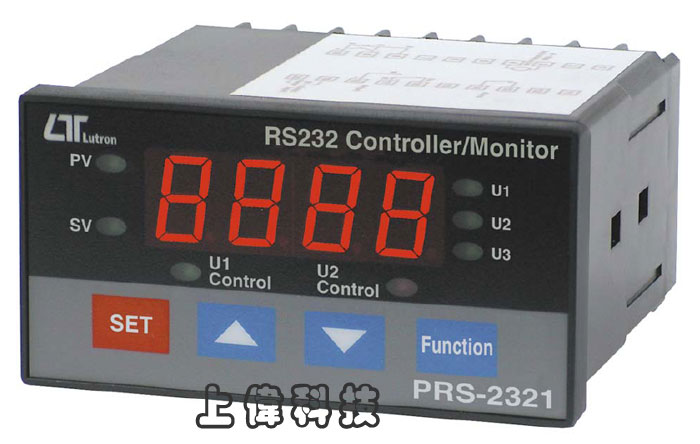

PRS-2321
RS-232控制顯示錶
簡介
- 搭配路昌電子所生產具有 RS-232 輸出介面之儀錶 . 接受 RS-232 訊號作顯示及控制 .
- 可接受雙視窗顯示儀表 , 最多可達 3 視窗儀錶 (單一儀錶) .
- 可同時收受兩組 RS-232 訊號做控制 (同一儀錶).
- 上限或下限範圍設定 (繼電器開/關)
- 內建兩組控制繼電器
- 工作電源：AC90 ~ 264V (50/60HZ)
- RS-232 / USB 連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- RS232 input, can cooperate full line LUTRON instruments ( build RS232 output ) be used as a professional controller/monitor.
- It can control max. two reading value ( Unit 1, Unit 2 value ) if the LUTRON RS232 meter build two displays.
- It can show max. three reading value ( Unit 1, Unit 2, Unit 3 value ) if the LUTRON RS232 meter build in three displays.
- Professional monitor and controller.
- Build in Unit 1 control relay and the Unit 2 control relay.
- Relay will be make action ( On/Off ) when the reading value reach high limit or low limit value.
- Offset value setting.
- Hysteresis value setting for high and low alarm.
- Large red LED display, high brightness and easy to read.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Standard 96 X 48 mm DIN case.
一般規格
應用 (Application)
- RS232 data input, it can cooperate full line LUTRON instruments ( build RS232 output ) be used as a professional controller/monitor.
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
單位 (units)
- Unit 1 : Controller and monitor.
- Unit 2 : Controller and monitor.
- Unit 3 : Monitor only.
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
取樣時間 (Sampling Time)
- Approx. 1 second.
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : Unit 1 control relay.
- Relay 2 : Unit 2 control relay.
- Max load :
- 0.5 ACA/250 ACV
- 0.5 DCA/24 DCV
- *Do not apply the relay contact load current > 0.5 A, other wise the relay may be damaged permanently without warranty.
設定值 (Setting value)
- High limit value setting. Low limit value setting.
- Hysteresis value setting. Offset value setting.
- * Setting for Unit 1 and Unit 2 value.
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸入 (Data Input)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V.
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual....................1 PC
- IDouble earphone cable, UPCB-03 ......1 PC
- Case holder with screw............... 2 PCs
|
