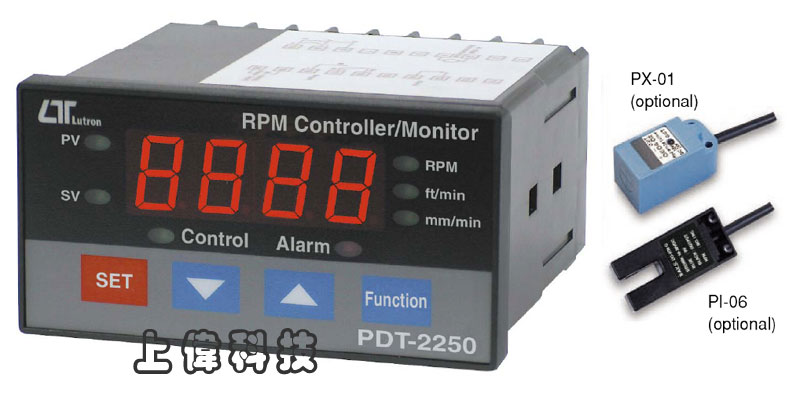

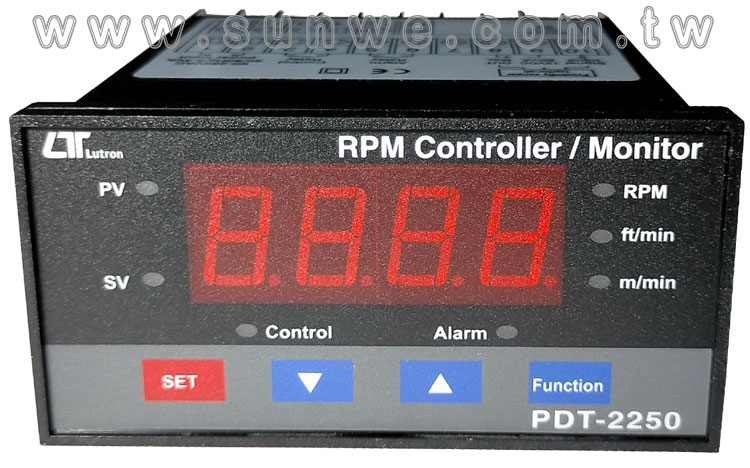

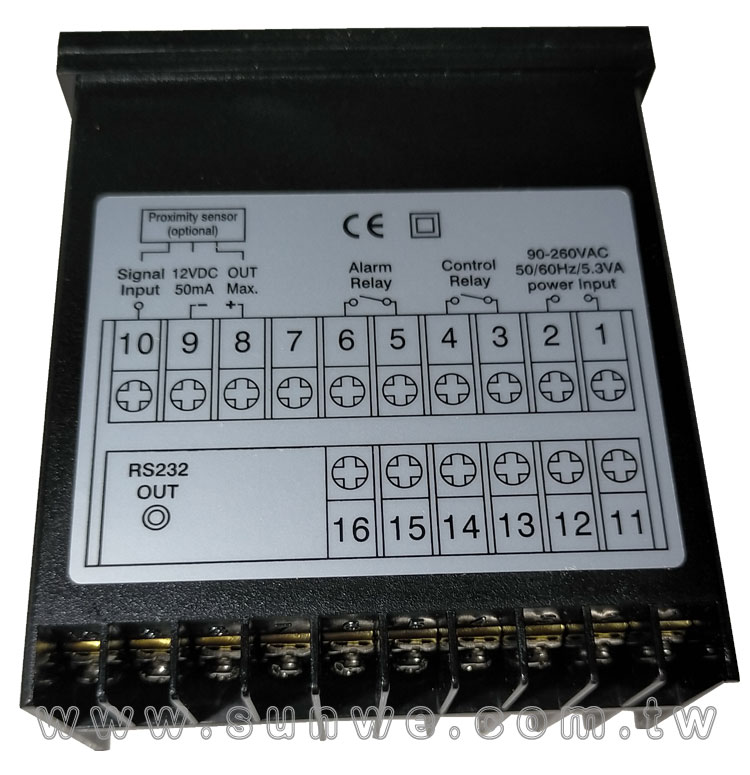

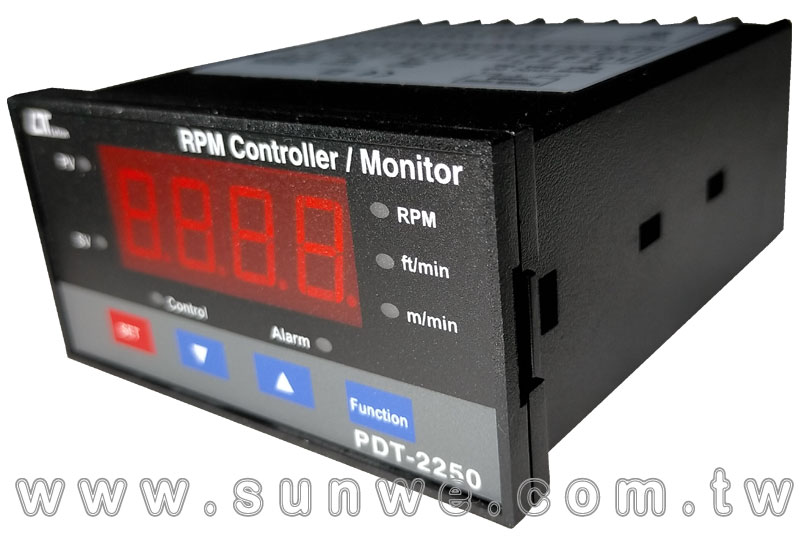

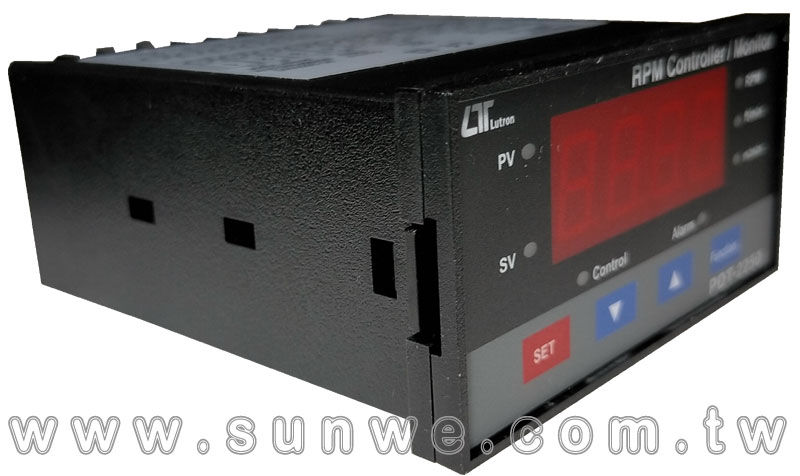

PDT-2250
轉速設定顯示錶
特色
- 測量範圍：5 ~ 100000RPM
- 可切換線速度測量(ft/min 或 m/min)
- 上/下限設定及警報設定功能
- 上/下限及警報設定繼電器輸出
- 工作電源：AC90 ~ 264V (50/60HZ)
- 可選購近接開關PX-01 或光電開關PI-06
- RS-232 / USB連接介面(軟體選購)
- Size: 96x48x107mm
FEATURES
- Professional Tachometer ( RPM, m/min., ft/min. ) monitor and controller.
- Build in control relay and the alarm relay.
- Alarm Relay will make action when the reading value reach to high/low alarm value.
- Control Relay will make action when the reading value reach to control value.
- Hysteresis value setting for control and alarm function.
- Can set input pulse no. of each round.
- Can set the roller's diameter for the surface speed ( m/min., ft/min. ) function.
- Can cooperate the optional proximity sensor or photo sensor.
- Large red LED display, high brightness and easy to read.
- RS232 computer interface.
- Microprocessor circuit ensures high accuracy and provides special functions and features.
- Standard 96 X 48 mm DIN case.
- Optional data acquisition software.
- Optional GSM controller.
一般規格
顯示 (Display)
- 4 digits red LED, digit size : 14 mm.
單位 (Unit)
- RPM
Surface speed :
- m/min ( meter per min. ) ; ft/min ( feet per min. )
電路 (Circuit)
- Custom chip of microprocessor LSI circuit.
取樣時間 (Sampling Time)
- Approx. 1 second.
- * Input : one pulse per round, ≧60 RPM
繼電器輸出 (Relay Output)
- Number : 2 relays
- Function :
- Relay 1 : Control relay.
- Relay 2 : High/Low alarm relay.
- Max load : 1 ACA/250 ACV ; 1 DCA/24 DCV
設定值 (Setting Value)
- Control value setting
- Alarm high limit value setting
- Alarm low limit value setting
- Pulse no. of each round
- Roller diameter value setting
- Hysteresis value setting
輸入訊號 (Input Signal)
- Pulse
時基 (Input Signal)
- Quartz crystal
外部電源供應 (External Power Supply)
- DC 12 V, 50 mA max.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temperature)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- 90 to 260 ACV, 50/60 Hz.
重量 (Weight)
- 384 g/ 0.84 LB.
電源損耗 (Power Consumption)
- Approx. 4.7 VA/AC 110V
- Approx. 5.3 VA/AC 220V.
體積大小 (Dimension)
- DIN size : 96 x 48 mm.
- Depth : 110 mm.
附件 (Accessories Included)
- Instruction manual......................1 PC
- Case holder with screw................. 2 PCs
選購附件 (Optional Accessories)
- Proximity sensor, PX-01.
- Photo sensor, PI-06.
- Data Acquisition software, SW-U801-WIN.
- RS232 cable, UPCB-02.
- USB cable, USB-01.
- GSM controller, GSM-889.
- Interface cable ( cable between meter to GSM-889 ), GMCB-89.
電器規格 (23±5 ℃)
範圍 (Range)
- Photo Tachometer : 10 to 99,999 RPM
- Surface Speed ( m/min. ) : 0.05 to 9,999 m/min.
- Surface Speed ( ft/min. ) : 0.2 to 32,805 ft/min.
精確度 (Accuracy)
- ± ( 0.1 % + 1 digit ).
解析度 (Resolution)
- RPM
- 0.1 RPM : < 1,000 RPM
- 1 RPM : 1,000 to 9,999 RPM
- 10 RPM : 10,000 to 99,999 RPM
- m/min
- 0.01 m/min. : < 100 m/min.
- 0.1 m/min. : 100 to 999 m/min.
- 1 m/min. : 1,000 to 9,999 m/min.
- ft/min
- 0.1 ft/min. : < 1000 ft/min.
- 1 ft/min. : 1,000 to 9,999 ft/min.
- 10 ft/min. : 10,000 to 32,805 ft/min.

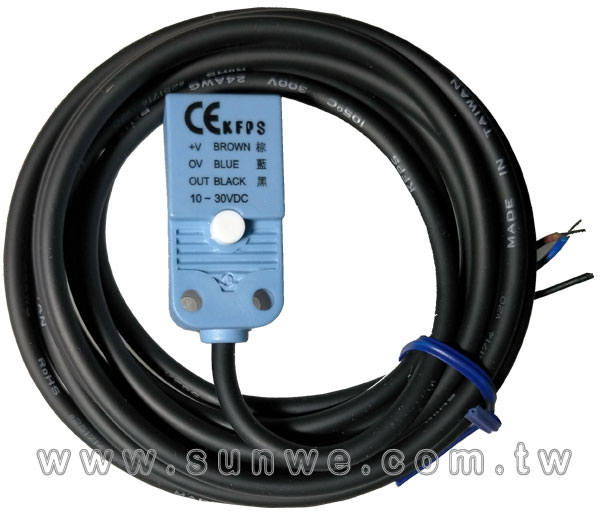

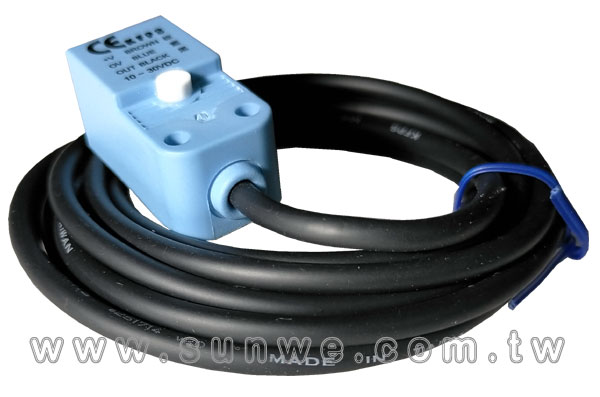

選購近接開關 Model : PX-01
應用 (Application)
- Sensor for PDT-2250 Panel RPM Controller, Monitor
- Sensor for DT-2240D Panel Tachometer
- Position Detector.
輸出方式 (Output method)
- PNP, NO(normal open)
感應方向 (Sensing direction)
- Vertical.
感應距離 (Sensing distance)
- 4 mm.
操作電壓 (Operating voltage)
- 10-30 VDC.
標準型感應器主體 (Standard Sensing object)
- Iron 18 x 18 x 1 mm.
電流損耗 (Current consumption)
- 8 mA, no load.
頻率反應 (Response frequency)
- 600 Hz.
輸出電流 (Output current)
- 250 mA max.
洩漏電流 (Leakage current)
- 1.1 mA.
殘餘電壓 (Residual voltage)
- 0.9 VDC.
操作溫度 (Operating Temperature)
- -20 to 70 ℃
操作溼度 (Operating Humidity)
- 35 to 95% RH.
電線體積 (Wire Dimension)
- 4.7 mm Dia. x 2 m x 3 cores.
應用 (Application)
- Sensor for PDT-2250 ' DT-224OD.
- Position Detector.
|
