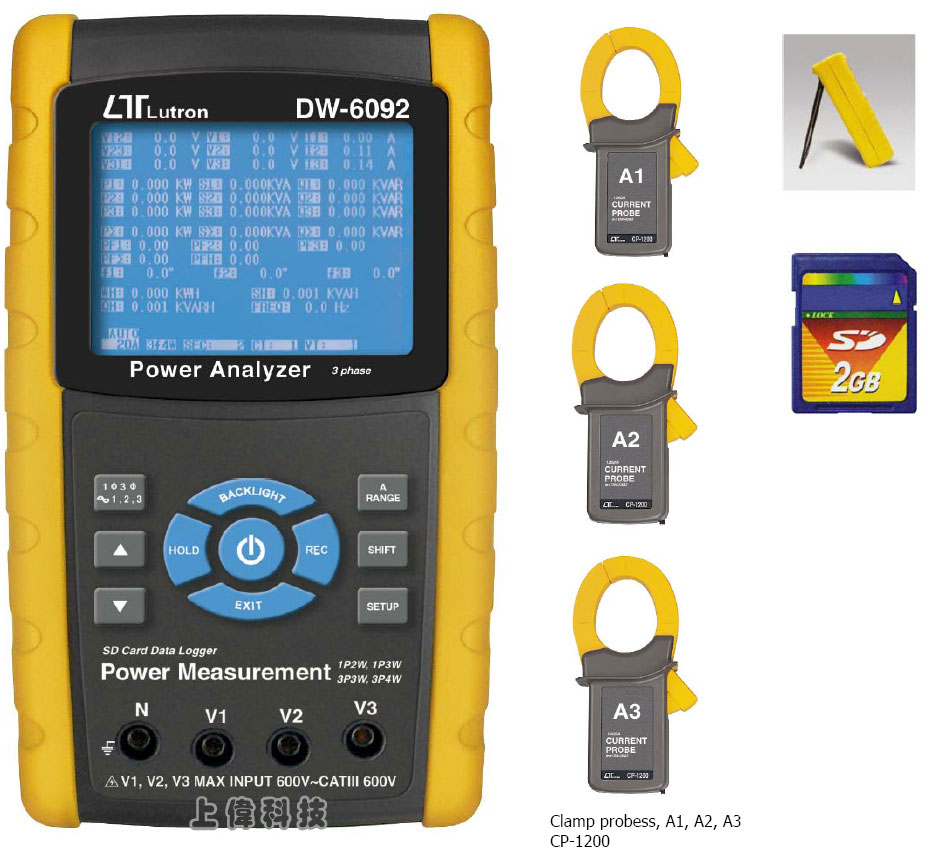

DW-6092
三相電力分析儀
特色
即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 做圖表分析 (記憶卡選購)
交流電壓 : 0.1 ~ 600.0V ±1%
交流電流 : 0.2 ~ 1200A
功率因素 : 0.01 ~ 1.00
相位角：-180° ~ 180°
交流瓦特 : 1W ~ 9.999MW
頻率 : 45 ~ 64Hz
視在功率 : 0.1KVA ~
9.999MVA
虛功率 : 0.1KVAR ~ 9.999MVAR
瓦特小時 : 0.1KVAH ~
9.999MVAH
適用三相三線、三相四線、單相兩線、單相三線

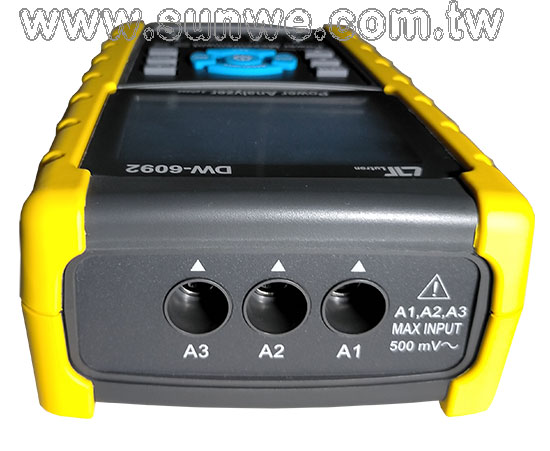

附三組電流感應夾
RS-232 / USB 連接介面.(軟體選購)
Size：225 X 125 X 64mm
FEATURES
- Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
- Voltage & Current are the True RMS value.
- True Power ( KW、MW、GW ) measurement.
- Apparent Power ( KVA、MVA、GVA ) measurement.
- Reactive Power ( KVAR MVAR、GVAR) measurement.
- Watt-Hour ( WH、SH、QH、PFH ).
- Power Factor( PF )、Phase Angle( Φ ).
- Voltage measurement range : 10 to 600 ACV
- Current measurement range: 0.2A to 1200 ACA.
- Programmable CT ratio (1 to 600) and PT ratio (1 to 1000).
- ACV input impedance is 10 Mega ohms.
- Safety Standard : IEC 1010, CAT III 600V
- Built-in clock and Calendar, real time data record with SD memory card , sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) to the Excel directly, then user can make the further data analysis by themselves.
- Complete set with 4 PCs Test Leads, 4 PCs Alligator clips, 3 PCs Clamp Probe, AC to DC 9V adapter, 2 G SD memory card and Carrying bag.
- Computer data output, can cooperate with USB Cable /USB-01 RS232 cable/UPCB-02 and Data Acquisition software, SW-U811-WIN.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit
顯示 (Display)
- * LCD Size : 81.4 X 61 mm ( 3.2 X 2.4 inch )
- * Dot Matrix LCD (320 X 240 pixels ) with back light.
測量 (Measurement)
- * ACV
- * ACA
- * AC WATT ( True Power )
- AC WATT( Apparent Power )
- AC WATT( Reactive Power )
- * Power factor
- * Phase angle
- * Frequency
線路連接 (Wire connections)
- 1P/2W, 1P/3W, 3P/3W, 3P/4W.
電壓範圍 (Voltage ranges)
- 10 ACV to 600 ACV, auto range.
電流範圍 (Current ranges)
- 0.2 ACA to 1200 ACA, auto range/manual range.
安全標準 (Safety standard)
- IEC1010 CAT III 600 V.
交流電壓輸入阻抗 (ACV input impedance)
- 10 Mega ohms.
範圍選擇 (Range select)
- ACV : Auto range.
- ACA : Auto range & manual range.
箝位頻率反應 (Clamp frequency response)
- 40 Hz to 1 KHz.
被測頻率規格 (Spec. tested frequency)
- 45 to 65 Hz.
過載保護 (Over load protection)
- ACV : 720 ACV rms
- ACA : 1300 ACA with clamp probe CP-1200
過載顯示 (Over Indicator)
- Show " OL ".
過低顯示 (Under Indicator)
- Show " UR ".
資料鎖定 (Data Hold)
- Freeze the display reading.
資料紀錄 (Data Record)
- SD Card Record.
取樣時間 (Sampling Time)
- Approx. 1 Sec.
電源開關機 (Power ON/OFF)
- Manual OFF by push button.
即時資料記錄器 (Real time data logger)
- * Real time data logger, saved the data into SD memory card and down load the all the measured value with the time information ( year/month/data/ hour/mimute/second ) down load to the Excel
- * Integration time for data logger : 2 seconds to 7200 seconds, the during of setting step are 2 seconds.
USB/RS232 資料輸出 (Data Output USB/RS232 * Computer interface)
- RS232 computer serial interface :
- * Connect the optional USB cable USB-01 will get the USB plug.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電源供應 (Power Supply)
- * DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery).
- * AC to DC 9V power adapter.
電源損耗 (Power Consumption)
- * Meter : 300 DCmA.
- * Clamp : 20 DCmA.
箝位連接器最大尺寸 (Clamp max. conductor Size)
- 86 mm ( 3.4 inch ) Dia.
重量 (Weight)
- * Meter: 1049g ( includes batteries )
- * Clamp : 522g
體積 (Dimension)
- Meter : 225 X 125 X 64 mm ( 8.86 X 4.92 X 2.52 inch )
- Clamp : 210 X 64 X 33mm ( 8.3 X 2.5 X 1.3 inch )
- Clamp Jaw : 50 mm (2.0 inch)- outside
附件 (Standard Accessories)
- * Instruction manual.......................1 PC
- * Test Leads (TL88-4AT)................. 1 Set (4 PCs)
- * Alligator clips (TL88-4AC)..............1 Set (4 PCs)

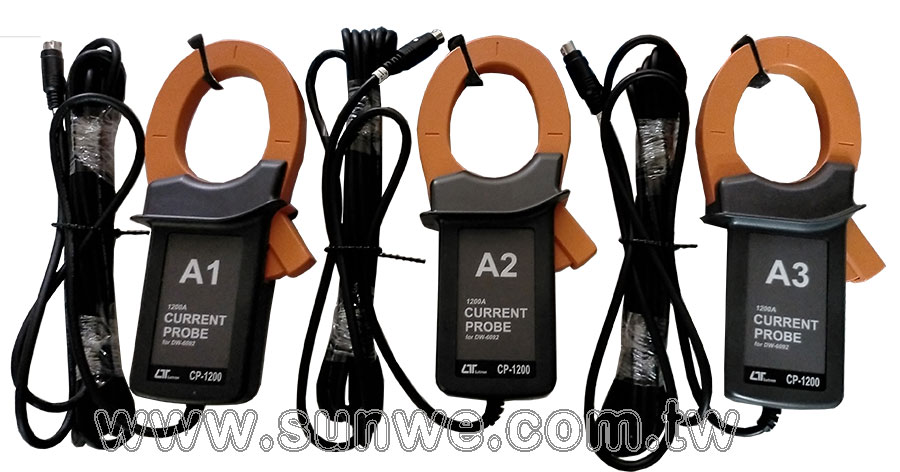

- * Clamp Probe ( CP-1200 ).............. 3 PCs
- * AC to DC 9V adapter.....................1 PC
- * SD card ( 2 G )............................ 1 PC
- * Carrying bag................................1 PC
選購附件 (Optional Accessories)
- * USB Cable , USB-01
- * RS232 cable, UPCB-02
- * Data Acquisition software, SW-U811-WIN
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
交流電壓 (ACV)
| Range |
Resolution |
Accuracy |
| 10.0V to 600.0V * Phase to neutral line |
0.1V |
± (0.5%+0.5V) |
| 10.0V to 600.0V * Phase to phase |
交流電流 (ACA)
| Range |
Resolution |
Accuracy |
| 20A |
0.001A, < 10 A |
± (0.5%+0.1A) |
| 0.01A, ≧ 10 A |
| 200A |
0.01A, < 100 A |
± (0.5%+0.5A) |
| 0.1A, ≧ 100 A |
| 1200A |
0.1A, < 1000 A |
± (0.5%+5A) |
| 1A, ≧ 1000 A |
功率因素 (Power factor)
| Range |
Resolution |
Accuracy |
| 0.00 to 1.00 |
0.01 |
± 0.04 |
- Remark :
- * PFH : Long term average power factor ( WH/SH)
- * PFΣ :
- For 3Φ 4W, 3Φ 3W：PFΣ = ( PF1 + PF2 + PF3 )/3
- For 1Φ 3W：PFΣ = ( PF1 + PF2 )/2
相位角度 Φ ( Phase angle )
| Range |
Resolution |
Accuracy |
| -180° to 180° |
0.1° |
± 1° * ACOS(PF) |
頻率 (Frequency)
| Range |
Resolution |
Accuracy |
| 45 to 65 Hz |
0.1 Hz |
0.1 Hz |
實功率 (Active (Real) Power)
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KW |
*0.001/0.01/0.1 KW |
± (1%+0.008 KW) |
| 10.00 to 99.99 KW |
*0.01/0.1 KW |
± (1%+0.08 KW) |
| 100.0 to 999.9 KW |
0.1 KW |
± (1%+0.8 KW) |
| 1.000 to 9.999 MW |
0.001 MW |
± (1%+0.008 MW) |
- * : The resolution is changed according the different ACA range.
視在功率 (Apparent Power)
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KVA |
*0.001/0.01/0.1 KVA |
± (1%+0.008 KVA) |
| 10.00 to 99.99 KVA |
*0.01/0.1 KVA |
± (1%+0.08 KVA) |
| 100.0 to 999.9 KVA |
0.1 KVA |
± (1%+0.8 KVA) |
| 1.000 to 9.999 MVA |
0.001 MVA |
± (1%+0.008 MVA) |
- * : The resolution is changed according the different ACA range.
虛功率 (Reactive Power)
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KVAR |
*0.001/0.01/0.1 KVAR |
± (1%+0.008 KVAR) |
| 10.00 to 99.99 KVAR |
*0.01/0/0.1 KVAR |
± (1%+0.08 KVAR) |
| 100.0 to 999.9 KVAR |
0.1 KVAR |
± (1%+0.8 KVAR) |
| 1.000 to 9.999 MVAR |
0.001 MVAR |
± (1%+0.008 MVAR) |
瓦特小時 Watt Hour ( Active Power Hour) : WH
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KWH |
0.001 KWH |
± (2%+0.008 KWH) |
| 10.00 to 99.99 KWH |
0.01 KWH |
± (2%+0.08 KWH) |
| 100.0 to 999.9 KWH |
0.1 KWH |
± (2%+0.8 KWH) |
| 1.000 to 9.999 MWH |
0.001 MWH |
± (2%+0.008 MWH) |
VA小時 VA Hour ( Apparent Power Hour ) : SH
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KVAH |
0.001 KVAH |
± (2%+0.008 KVAH) |
| 10.00 to 99.99 KVAH |
0.01 KVAH |
± (2%+0.08 KVAH) |
| 100.0 to 999.9 KVAH |
0.1 KVAH |
± (2%+0.8 KVAH) |
| 1.000 to 9.999 MVAH |
0.001 MVAH |
± (2%+0.008 MVAH) |
VAR小時 VAR Hour ( Reactive Power Hour ) : QH
| Range |
Resolution |
Accuracy |
| 0.000 to 9.999 KVARH |
0.001 KVARH |
± (2%+0.008 KVARH) |
| 10.00 to 99.99 KVARH |
0.01 KVARH |
± (2%+0.08 KVARH) |
| 100.0 to 999.9 KVARH |
0.1 KVARH |
± (2%+0.8 KVARH) |
| 1.000 to 9.999 MVARH |
0.001 MVARH |
± (2%+0.008 MVARH) |
|
