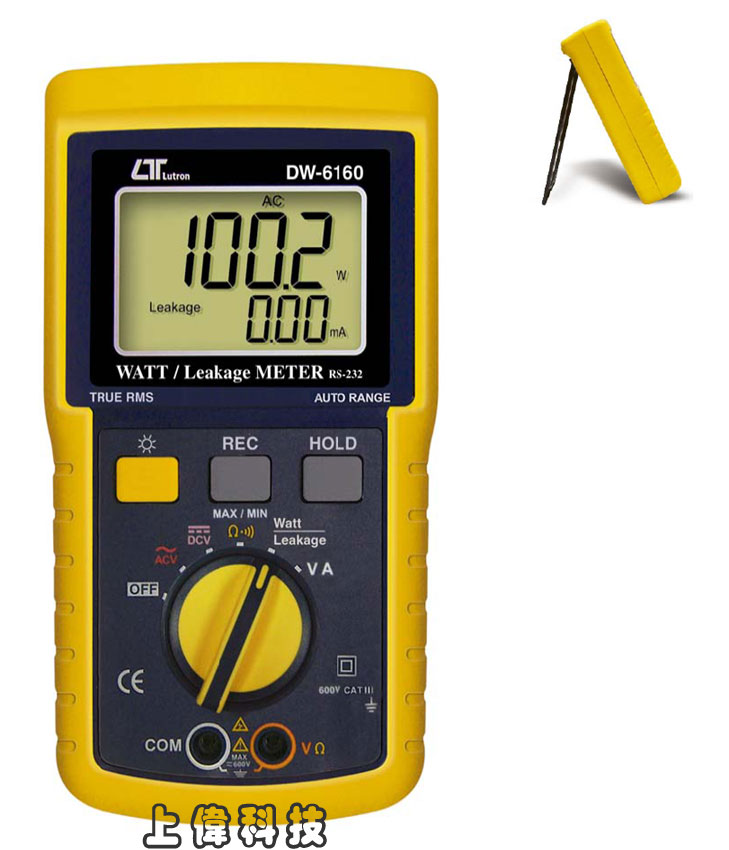

DW-6160
瓦特/洩漏電流計

特色
交流電壓 0.1 ~ 600.0V ±1%
交流電流 : 0.01 ~ 10.00A
瓦特(AC) : 0.1 ~ 2500Watt ±1.5%
洩漏電流(AC):0.01 ~ 20.00mA ±1%
電阻 : 1Ω ~ 20.00KΩ ±1%
可記錄最大值、最小值及讀值鎖定
RS-232 / USB 輸出介面 (軟體選購)
Size:224 X 125 X 65mm
FEATURES
- * Professional WATT meter with Leakage current tester, digital display , battery operated.
- * LSI - circuit provides high reliability and durability.
- * Measurement :
- WATT ( AC ) : 2500 W x 0.1 W/1 W.
- Leakage current ( AC mA ) : 20.00 mA x 0.01 mA.
- ACV : 600.0 V x 0.01 V/0.1 V.
- ACA : 10.00 A x 0.001 A/0.01 A.
- DCV : 600.0 V x 0.01 V/0.1 V.
- ohm : 2 K ohm x 0.001 K ohm , 20 K ohm x 0.01 K ohm
- * Low Watt measurement, 1.0 to 999.9 Watt x 0.1 Watt.
- * True Power and wide range , 0 to 2500 Watt .
- * True RMS ACV, ACA measurement.
- * Leakage current ( AC mA ) detection.
- * Auto range.
- * Continuity beeper.
- * Large LCD , dual value display with backlight.
- * Memory Record ( Max., Min. ).
- * Data Hold.
- * RS232/USB computer interface.
- * Power : DC 1.5V ( UM-3, AA ) x 8 PCs or DC 9V adapter in.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit
顯示 (Display)
- LCD display, max. reading 5999.
- Digit size : 74x47 mm.
- Dual value display with backlight
測量 (Measurement)
- ACV : 0.1 to 600.0 V
- DCV : 0.1 to 600.0V
- Ω : 0.001 kΩ to 20.00 kΩ
- WATT : 0.1 W to 2500 W
- Leakage current : 0.01m A to 20.00 m A
- ACA : 0.001A to 10.00 A
過載輸入 (Over input)
- "---- " mark indication .
極性 (Polarity)
- ** reverse polarity.
歸零調整 (Zero Adjustment)
- Automatic adjustment.
取樣時間 (Sampling Time)
- Approx. 1.5 Sec.
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
USB/RS232 資料輸出 (Data Output USB/RS232 * Computer interface)
- RS232 computer serial interface :
- * Connect the optional USB cable USB-01 will get the USB plug.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電源供應 (Power Supply)
- * DC 1.5V, AA ( UM-3 ) Battery X 8 PCs (Alkaline or heavy duty battery).
- * AC to DC 9V power adapter. ( AC/DC power adapter is optional ).
電源損耗 (Power Consumption)
- Approx. DC 33 mA.
重量 (Weight)
- 822 g/1.82 LB.
體積 (Dimension)
- 224 x 125 x 65 mm ( 8.8 x 4.8 x 2.5 inch )
附件 (Standard Accessories)
- * Instruction manual.......................1 PC
- * Test lead ( Red and Black ).................. 1 pair
選購附件 (Optional Accessories)
- * AC to DC 9V adapter.
- * USB cable, USB-01.
- * RS232 cable, UPCB-02.
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
交流/直流電壓 (AC / DC VOLTAGE)
Range |
Resolution |
Accuracy |
0.01 V to 99.99 V |
0.01 V |
ACV : ± (1 % + 5d ) |
DCV : ± (0.8 %+5d) |
100.0 V to 600 V |
0.1 V |
ACV : ± (1 %+5d) |
DCV : ± (0.8 %+5d) |
- * Measuring Signals come from the front panel terminals.
- * Auto range.
- * Max. input voltage : AC 600 V, DC 600 V.
- * ACV accuracy is test under input signal is sine wave, 50/60 Hz
- * ACV frequency response is from 40 to 400 Hz.
- * ACV is true rms measurement.
歐姆 (電阻) OHMS ( Resistance )
Range |
Resolution |
Accuracy |
2 KΩ |
1 Ω |
± (1 % + 1d ) |
20 KΩ |
10 Ω |
± (1 % + 1d ) |
瓦特 (實功率) WATT ( true power )
Range |
Resolution |
Accuracy |
1000 W |
0.1 W |
± (1.5 % + 5d ) |
1001 to 2500 W |
1 W |
± (1.5 % + 5d ) |
- * 0.1 W resolution : Input voltage < 200 AVC or Input current < 2 ACA.
- Beyond above input, the resolution will still be 1 W.
- * Measuring Signals come from the top power plug input.
- * Accuracy is test under input signal is sine wave, 50/60 Hz
- * ACV, ACA frequency response is from 40 to 400 Hz.
- * Max. input voltage : AC voltage 250 V, AC current : 10 A.
洩漏電流 Leakage ( AC mA )
Range |
Resolution |
Accuracy |
0 to 20 mA |
0.01 mA |
± (1 % + 5d ) |
V, A ( true rms )
Range |
Resolution |
Accuracy |
ACV 250 V |
0.01 V/0.1 V |
± (1 % + 5d ) |
ACA 10 A |
0.001 A/0.01A |
± (1 % + 3d ) |
- * ACV, 0.01 V resolution is valid from 0.01 V to 99.99 V.
- ACV, 0.1 V resolution is valid from > 100.0 V.
- * ACA, 0.001 A resolution is valid from 0.001 A to 1.999 A.
- ACA, 0.01 A resolution is valid from > 2 A.
- * Measuring signals come from the top power plug input ( power source ).
- * Auto range.
- * ACV, ACA accuracy is test under input signal is sine wave, 50/60 Hz
- * ACV, ACA frequency response is from 40 to 400 Hz.
- * ACV, ACA is true rms measurement..
- * Max. input voltage : AC voltage 250 V, AC current : 10 A.
|
|
