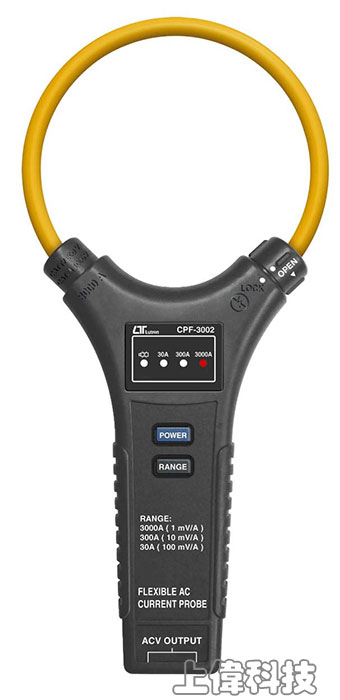

CPF-3002

可繞式電流鉤部

簡介

測量範圍 (ACA) : 30A / 300A / 3000A

輸出訊號 : 100mV/A , 10mV/A , 1mV/A

輸出電壓 : 3ACV (30A / 300A / 3000A)

工作頻率：50/60HZ

鉤部孔徑：300mm 線徑：8mm

FEATURES

Meet IEC 1010 CAT III 1000 V safety requirement.

Double insulation coil.

Range : 30 A/300 A/3000 A.

Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.

Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).

Measuring range LED indication.

Flexible probe length : 280 mm ( 11 inch ).

When change the new probe, the calibration procedures are not necessary to be executed.

Uses durable, long-lasting components, enclosed in strong, light weight ABS-plastic housing.

一般規格

測量範圍 (Measurement ranges)

30 A/300 A/3000 A, 3 ranges, push switch selectable

1st range value : 30 A

2nd range value : 300 A

3rd range value : 3000 A

輸出靈敏度 (Display)

100 mV/A, 10 mV/A, 1 mV/A, AC coupled.

精確度 (Accuracy)

± 1% F.S.

* Accuracy is specified that the measured conductor's position is on the center of " Flexible current probe ".

* 50/60 Hz.

* 23 ± 5 ℃

頻率範圍 (Frequency range)

45 to 400 Hz.

* Accuracy tested under 50/60 Hz.

線性 (Linearity)

± 0.2 % of reading value from 10 % to 100% of range value.

相位差 (Phase error)

< ± 1.5°

* 50/60 Hz.

導電體靈敏度 (Conductor position sensitivity)

± 2 % of range value.

* Recommend the measured conductor position should > 25 mm ( 1" ) away from the " Probe locker ".

外部電場影響 (External field influence)

increase ± 1.5 % of range value max.

* Recommend the distance between different " Flexibel current probe " should > 200 mm ( 8" ).

最低負載 (Minimum load)

100 K ohm for specified accuracy.

操作溫度 (Operating Temp.)

0 to 50 ℃ ( 32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Max. 80 % R.H.

電源供應 (Power Supply)

1. DC 1.5 V battery ( UM-4, AAA ) x 2 PCs

2. AC to DC 9V power adapter ( optional ).

3. Power supply from the meter ( DW-6093, DW-6095 ) via Power interface cable, PWCB-06 (included ). Power supply voltage from DW-6093, DW-6095 is DC 8V± 1V.

體積 (Dimension)

290 x138.3 x 26.5 mm ( 11.4x 5.4 x 1.0 inch ).

重量 (Weight)

183 g/0.404 LB ( w/o battery ).

附件 (Standard Accessories)

* Operating manual .................... 1 PC.

　
