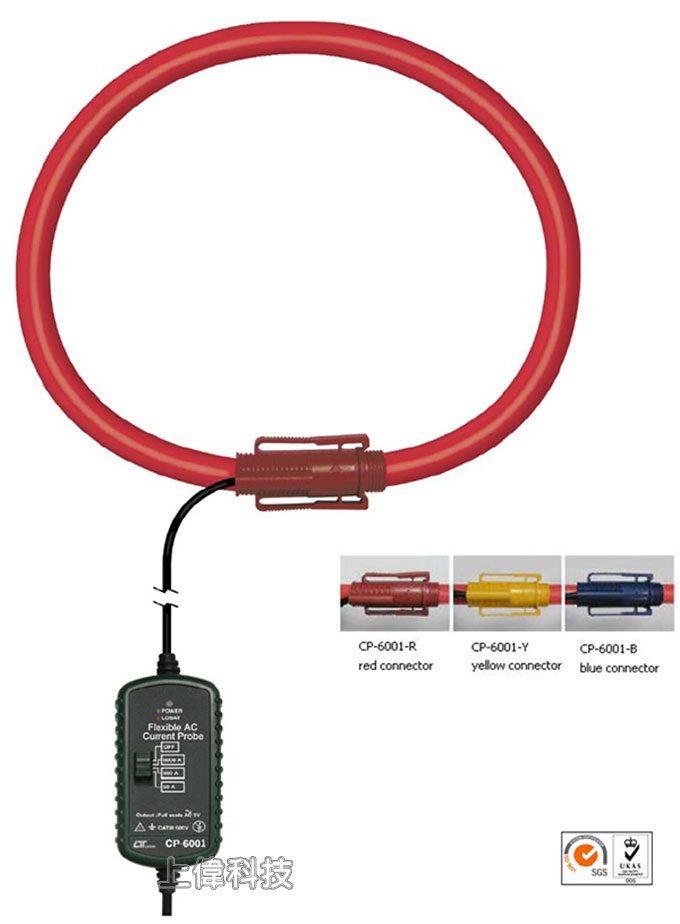

CP-6001
可繞式電流鉤部
6000A
簡介
測量範圍 :
60A / 600A / 6000A三檔
輸出訊號 : 100mV/A，10mV/A，1mV/A
輸出電壓 :
50mV/A，5mV/A，0.5mV/A
鉤部線長：900mm，直徑
14.5mm
工作頻率：45/400HZ
精確度：±1%
Size：105 X
56.5 X 33mm

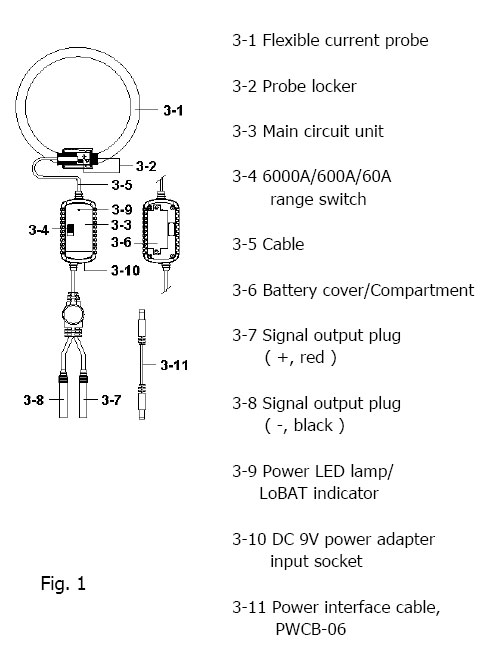

FEATURES
- Range : 60 A/600 A/6000 A.
- Output sensitivity : 50 mV/A, 5 mV/A,
0.5 mV/A.
- Output voltage : 3 ACV ( 60 A, 600 A,
6000 A ).
- Flexible probe length : 900 mm ( 35.4
inch ).
- Optional current probe for DW-6093, DW-6095.
- When change the new probe, the calibration
procedures are not necessary to be executed.
- Signal output use the banana plugs, durable
and safety.
- Power supply is from DC 1.5 V, AA ( UM-3 )
battery x 2 PCs or from the optional AC to DC 9V adapter. or from the meter
(DW-6093, DW-6095 ) via Power interface cable, PWCB-06.
一般規格
測量範圍 (Measurement ranges)
- 60 A/600 A/6000 A, 3 ranges, switch selectable
- 1st range value : 60 A
- 2nd range value : 600 A
- 3rd range value : 6000 A
輸出靈敏度 (Output sensitivity)
- 50 mV/A, 5 mV/A, 0.5 mV/A, AC coupled.
精確度 (Accuracy)
- ± 1% F.S.
- * Accuracy is specified that the measured conductor's position is on the center of " Flexible current probe ".
- * F.S. : Full scale of range.
- * 50/60 Hz. * 23 ± 5 ℃
頻率範圍 (Frequency range)
- 45 to 400 Hz.
- * Accuracy tested under 50/60 Hz.
線性 (Linearity)
- ± 0.2 % of reading value from 10 % to 100% of range value.
相位差 (Phase error)
- < ± 1.5°
- * 50/60 Hz.
導電體靈敏度 (Conductor position sensitivity)
- ± 2 % of range value.
- * Recommend the measured conductor position should > 25 mm ( 1" ) away from the " Probe locker ".
外部電場影響 (External field influence)
- increase ± 1.5 % of range value max.
- * Recommend the distance between different " Flexibel current probe " should > 200 mm ( 8" ).
最低負載 (Minimum load)
- 100 K ohm for specified accuracy.
包覆材質 (Enclosure material)
- UL 94-V0 rated.
安全標準 (Safety standard)
- IEC1010 CAT III 600 V.
電源供應 (Power Supply)
- DC 1.5 V, AA ( UM-3 ) battery x 2 PCs
- AC to DC 9V power adapter ( optional ).
- Power supply from the meter ( DW-6093, DW-6095 )
via Power interface cable, PWCB-06 ( included ).
- * Power supply voltage from DW-6093 , DW-6095 is DC 8V± 1V..
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
體積 (Dimension)
- Main circuit unit : 105 x 56.5 x 33 mm. ( 4.1 x 2.2 x 1.3 inch ).
- Flexible probe :
900 mm x 14.5 mm DIA. 35.4 inch x 0.57 inch DIA.
- Cable length :
3.3 meters ( 10.8 feet ).
- DC plug size :
5.5 mm x 2.5 mm DIA.
消耗電源 (Power
Consumption)
- Approx DC 9 mA.
重量 (Weight)
- 523 g ( 1.2 LB ).
附件 (Standard Accessories)
- Operating manual ...........................1
PC.
- Power interface cable, PWCB-06....... 1 PC.
選購附件 (Optional Accessories)
- AC to DC 9V power adapter.
|
