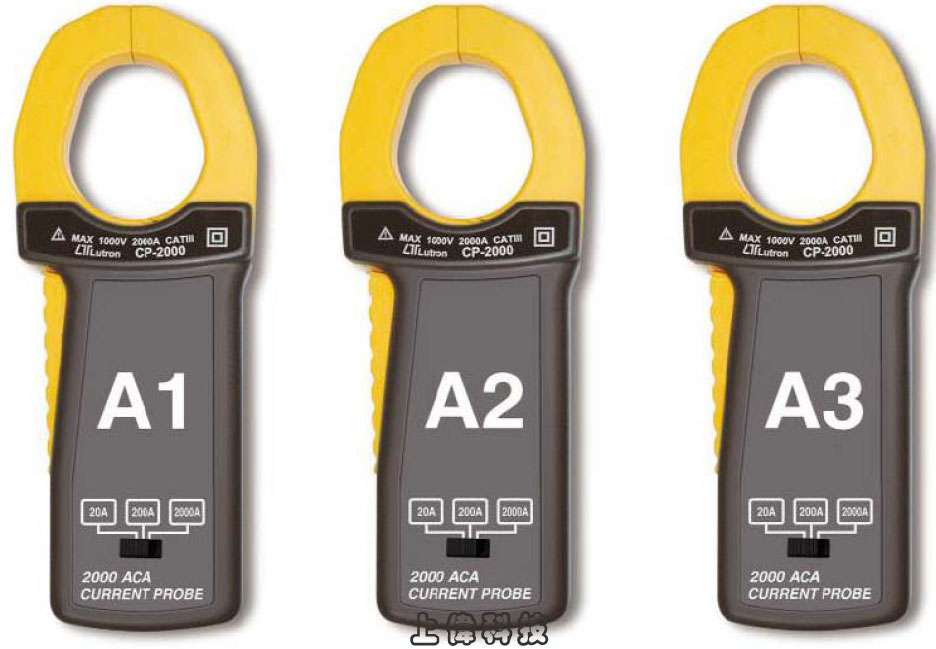

CP-2000
電流鉤部
2000A
簡介
測量範圍 : 20A / 200A / 2000A三檔
輸出訊號 : 100mV/A , 10mV/A , 1mV/A
輸出電壓 : 2ACV (20A / 200A / 2000A)
鉤部孔徑：51mm
工作頻率：50/60HZ
輸出訊號線長4米
DW-6095專用鉤部
FEATURES
- Range : 20 A / 200 A / 2000 A.
- Output sensitivity :
100 mV/A, 10 mV/A, 1 mV/A.
- Output voltage : 2 ACV ( 20 A, 200 A, 2000 A ).
- Max. conductor size :
51 mm ( 2.1 inch ) Dia.
- Operation frequency ; 50 Hz/60 Hz.
- Optional current probe for DW-6093, DW-6095.
- When change the new probe, the calibration procedures are not necessary.
- Output cable : 4 meters wire, used the banana plugs, durable and safety.
- Power supply is from the meter, battery is not necessary.
一般規格
測量範圍 (Measurement ranges)
- 20 A / 200 A / 2000 A , switch selectable
輸出靈敏度 (Display)
- 100 mV/A , 10 mV/A , 1 mV/A , AC coupled.
精確度 (Accuracy)
- ± 1% F.S.
- * F.S. : Full scale of range.
- * 50/60 Hz. * 23 ± 5 ℃
頻率範圍 (Frequency range)
- 45 to 400 Hz.
- * Accuracy tested under 50/60 Hz.
相位差 (Phase error)
- < ± 1°
* 50/60 Hz.
最低附載 (Minimum load)
- 100 K ohm for specified accuracy.
包覆材質 (Enclosure material)
- UL 94-V0 rated.
安全標準 (Safety standard)
- IEC1010 CAT III 600 V.
電源供應 (Power Supply)
- Power supply is from the meter (DW-6093, DW-6095 ), battery is not necessary.
- * Power supply voltage from DW-6093 , DW-6095 is DC 8V± 1V..
最大開口孔徑 (Max. Jaw Open Size)
- 51 mm ( 2.1 inch ) Dia.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
體積 (Dimension)
- 240.8 x 90.9 x 38.3 mm. ( 9.48 x 3.58 x 1.5 inch ).
- Cable length : 4 meters ( 13.1 feet ).
重量 (Weight)
- 586 g ( 1.29 LB ).
附件 (Standard Accessories)
- * Operating manual .................... 1 PC.
|
