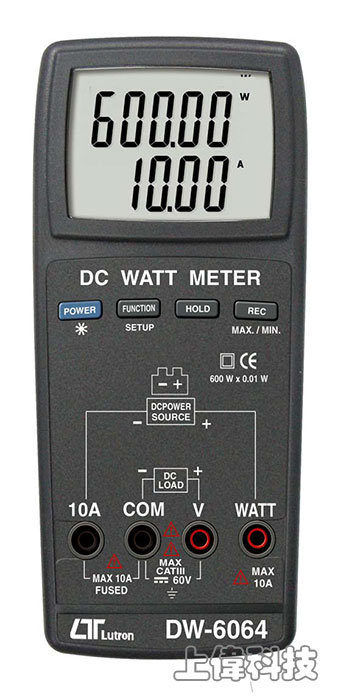

DW-6064

直流瓦特錶

特色

測量範圍：

瓦特 : DC 0.001 ~ 60.00 Watt

直流電壓：0V ~60.00V

直流電流 : 1mA ~ 10.00A

可記錄最大值、最小值及讀值鎖定功能

RS-232 / USB 輸出介面 (軟體選購)

Size：190 X 88 X 40mm

FEATURES

Professional precision DC WATT meter with 0.001W resolution special digital display , battery operated .

LSI - circuit provides high reliability and durability .

Directly operation.

DCV input impedance : 10MΩ .

Measurement

WATT ( DC ) : 600 W x 0.01 W/60.000 W x 0.001 W.

DCV : 60V x 0.01 V .

DCA : 10 A x 10 m A/2 A x 1 m A.

Low Watt measurement , 60.000 W x 0.001W .

Fast data logger with 50mS sampling time.

Data hold , Record ( Max. , Min.) .

Super large LCD , Dual display at same time .

Full function Auto range .

RS232 / USB Computer interface .

Built-in low battery indicator .

Built-in backlight easy to readout .

Power : DC 9V ( 006P ) or AC to DC 9V adapter in .

一般規格

電路 (Circuit)

Custom one-chip of microprocessor LSI circuit

顯示 (Display)

Large LCD display max. reading 60000.

Digit size : 21.8 x 8.5 mm.

Dual value display with backlight

測量單位 (Measurement Unit)

DCV：0.02 V - 60.00 V

DCA：1 mA to 10.00 A.

WATT：0.002 W to 600 W

過載輸入 (Over input)

"---- " mark indication .

歸零調整 (Zero Adjustment)

Automatic adjustment

取樣時間 (Sampling Time)

Approx. 0.5 second.

資料鎖定 (Data Hold)

Freeze the display reading .

記憶回叫 (Memory Recall)

Maximum & Minimum value

* Just for DC Watt and DC Ampere function only.

資料輸出 (Data Output)

RS232 computer serial interface :

* Connect the optional USB cable USB-01 will get the USB plug.

* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.

操作溫度 (Operating Temp.)

0 to 50 ℃ ( 32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80 % R.H.

電源供應 (Power Supply)

Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent.

電源損耗 (Power Consumption)

Approx. DC 8mA.

重量 (Weight)

364 g / 0.80 LB

體積 (Dimension)

190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).

附件 (Standard Accessories)

* Instruction manual.......................1 PC

* Test lead ( Red and Black )............. 1 pair

選購附件 (Optional Accessories)

AC to DC 9V adapter.

USB cable, USB-01.

RS232 cable, UPCB-02.

Data Acquisition software, SW-U801-WIN

Excel Data Acquisition software, SW-E802

Data transfer software, DL-2005

Excel data transfer software, SW-E2005

電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃

直流功率 (DC WATT)

* Auto range.

* Measuring Signal come from the front LOAD plug terminals.

* Accuracy is test under input signal is sine wave, 50/60 Hz

* Max. input value, DC voltage : 60V, DC current : 10A.

* Accuracy @ 23ºC ± 5

V/A ( true rms )

* Auto range.

* Max. input value : DC voltage : 60V , DC current : 10 A .

* Accuracy @ 23ºC ± 5 .

　
