CP-3000

可繞式電流鉤部

3000A

簡介

測量範圍 : 30A / 300A / 3000A三檔

輸出訊號 : 100mV/A , 10mV/A , 1mV/A

輸出電壓 : 3ACV (30A / 300A / 3000A)

鉤部孔徑：610mm

工作頻率：50/60HZ

輸出訊號線長4米

DW-6095專用鉤部

FEATURES

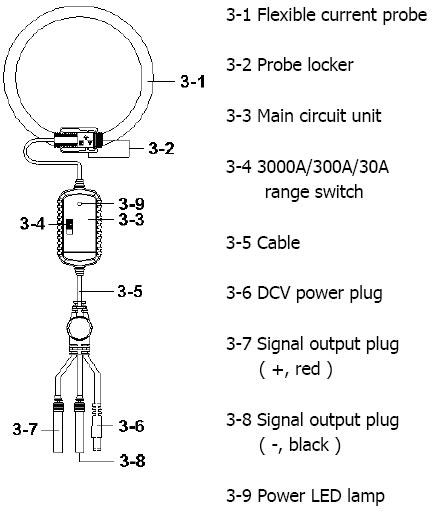

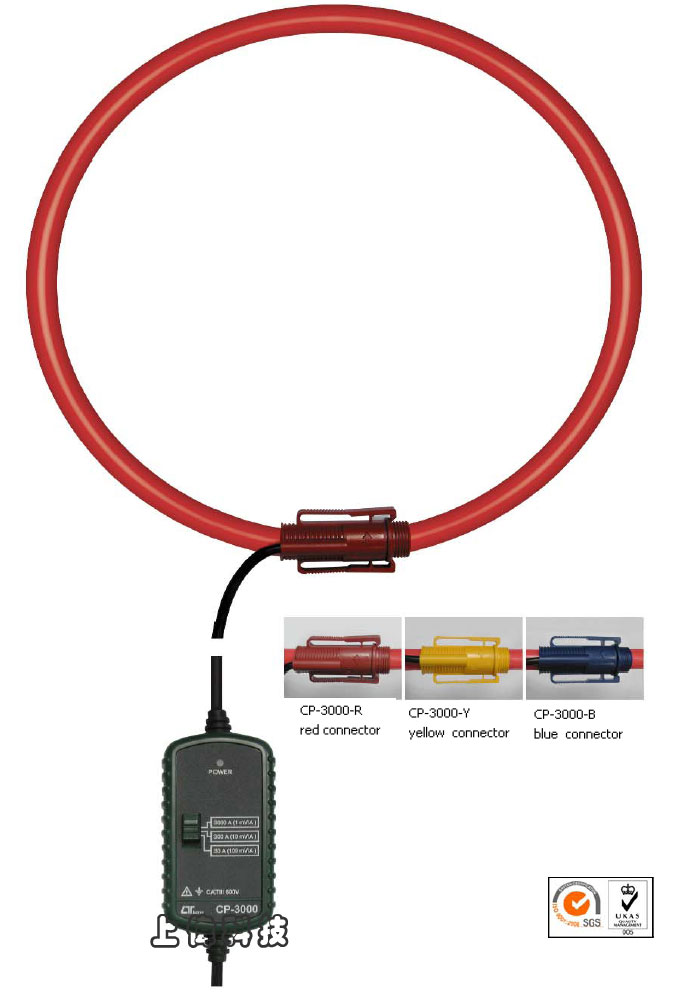

Model : CP-3001-R ( red connector ) ; CP-3001-Y ( yellow connector ) CP-3001-B ( blue connector )

Range : 30 A/300 A/3000 A.

Output sensitivity : 100 mV/A, 10 mV/A, 1 mV/A.

Output voltage : 3 ACV ( 30 A, 300 A, 3000 A ).

Flexible probe length : 600 mm ( 23.6 inch ) ; Flexible probe diameter : 15 mm.

Operation frequency ; 50 Hz/60 Hz.

Optional current probe for DW-6093, DW-6095.

When change the new probe, the calibration procedures are not necessary to be executed.

Signal output use the banana plugs, durable and safety.

Power supply is from the meter (DW-6093, DW-6095 ), battery is not necessary.

一般規格

測量範圍 (Measurement ranges)

30 A/300 A/3000 A, 3 ranges, switch selectable

1st range value : 30 A

2nd range value : 300 A

3rd range value : 3000 A

輸出靈敏度 (Display)

100 mV/A, 10 mV/A, 1 mV/A, AC coupled.

精確度 (Accuracy)

± 1% F.S.

* Accuracy is specified that the measured conductor's position is on the center of " Flexible current probe ".

* F.S. : Full scale of range.

* 50/60 Hz. * 23 ± 5 ℃

頻率範圍 (Frequency range)

45 to 400 Hz.

* Accuracy tested under 50/60 Hz.

線性 (Linearity)

± 0.2 % of reading value from 10 % to 100% of range value.

相位差 (Phase error)

< ± 1.5°

* 50/60 Hz.

導電體靈敏度 (Conductor position sensitivity)

± 2 % of range value.

* Recommend the measured conductor position should > 25 mm ( 1" ) away from the " Probe locker ".

外部電場影響 (External field influence)

increase ± 1.5 % of range value max.

* Recommend the distance between different " Flexibel current probe " should > 200 mm ( 8" ).

最低負載 (Minimum load)

100 K ohm for specified accuracy.

包覆材質 (Enclosure material)

UL 94-V0 rated.

安全標準 (Safety standard)

IEC1010 CAT III 600 V.

電源供應 (Power Supply)

Power supply is from the meter (DW-6093, DW-6095 ), battery is not necessary.

* Power supply voltage from DW-6093 , DW-6095 is DC 8V± 1V..

最大開口孔徑 (Max. Jaw Open Size)

19 mm ( 0.75 inch ) Dia.

操作溫度 (Operating Temp.)

0 to 50 ℃ ( 32 to 122 ℉ ).

操作溼度 (Operating Humidity)

Less than 80 % R.H.

體積 (Dimension)

Main circuit unit : 105 x 56.5 x 33 mm. ( 4.1 x 2.2 x 1.3 inch ).

Flexible probe : 600 mm x 14.5 mm DIA.  23.6 inch x 0.57 inch DIA.

Cable length : 3.4 meters ( 11.2 feet ).

DC plug size : 5.5 mm x 2.5 mm DIA.

重量 (Weight)

480 g ( 1.06 LB ).

附件 (Standard Accessories)

* Operating manual .................... 1 PC.

　
