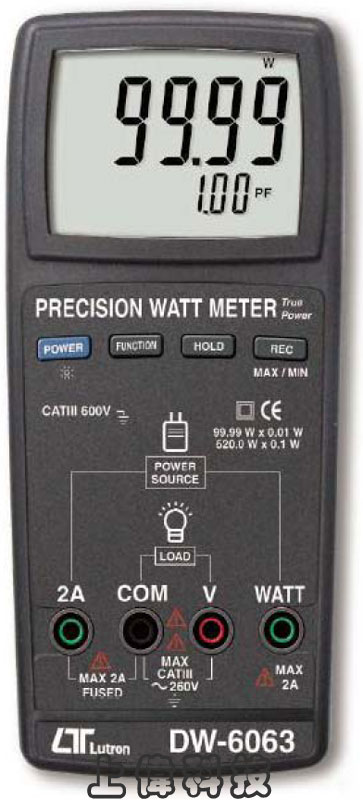

DW-6063
精密型瓦特錶
特色
- 測量範圍：
- 瓦特 : 0.1 ~ 520.0 Watt
- 功率因素：0.01 ~ 1.00PF
- 交流電壓：90.0V ~260.0V
- 交流電流 : 0.01A ~ 10.00A
- 可記錄最大值、最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size：185 X 88 X 40mm
FEATURES
- * 0.01 W resolution, precision Watt meter is special for low power measurement.
- * Designed for the high resolution low power measurement.
- * LSI - circuit provides high reliability and durability.
- * Directly operation.
- * Watt, Power factor, ACV, ACA.
- * True power ( watt ) measurement.
- * True rms measurement for ACV, ACA.
- * Auto range for Watt measurement :
- Range 1 : 0.00 to 99.99 W x 0.01 W.
- Range 2 : 100.0 to 520.0 W x 0.1 W.
- * Power factor : 0.01 to 1.00 x 0.01 PF.
- * ACV : 90.0 to 260.0 V x 0.1 V.
- * ACA : 0 to 2.000 A x 0.001 A.
- * ACV input impedance : 10 Mega OHM.
- * Data Hold, Record ( Max., Min. ).
- * RS232/USB Computer interface.
- * Optional data Acquisition software, SW-U801-WIN, SW-E802.
- * Optional USB cable, USB-01.一般規格
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit
顯示 (Display)
- LCD display, max. reading 9999.
- Digit size : 21.8 x 8.5 mm.
- Dual value display with backlight
測量 (Measurement)
- ACV : 0.1 to 260.0 V
- ACA : 0.1 mA to 2000 mA.
- WATT : 0.01 W to 520.0 W
- PF : 0.01 to 1.00
過載輸入 (Over input)
- "---- " mark indication .
歸零調整 (Zero Adjustment)
- Automatic adjustment.
取樣時間 (Sampling Time)
- Approx. 1 Sec.
資料鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
資料輸出 (Data Output) -
RS232 computer serial interface :
- * Connect the optional USB cable USB-01 will get the USB plug.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ ( 32 to 122 ℉ ).
操作溼度 (Operating Humidity)
- Less than 80 % R.H.
電源供應 (Power Supply)
- Alkaline or Heavy duty type DC 9V battery 006P , MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 10mA.
重量 (Weight)
- 398g / 0.88 LB.
體積 (Dimension)
- 190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).
附件 (Standard Accessories)
- * Instruction manual.......................1 PC
- * Test lead ( Red and Black )............. 1 pair
選購附件
(Optional Accessories) - * AC to DC 9V adapter.
- * USB cable, USB-01.
-
* RS232 cable, UPCB-02.
- * Data Acquisition software, SW-U801-WIN
- * Excel Data Acquisition software, SW-E802
電氣規格 (ELECTRICAL SPECIFICATIONS) 23±5 ℃
瓦特 (實功率) WATT ( true power )
|
Range |
Resolution |
Accuracy |
| 520 W |
0.1 W |
± ( 1% + 0.5 W ) |
| 0 to 99.99 W |
0.01 W |
± ( 1% + 0.5 W ) |
- * Auto range.
- * Measuring Signal come from the front LOAD plug terminals.
- * Accuracy is test under input signal is sine wave, 50/60 Hz
- * ACV, ACA frequency response is from 40 to 400 Hz.
- * Max. input value, AC voltage : 260V, AC current : 2 A.
- * Accuracy @ 23ºC ± 5
V/A ( true rms )
| Range |
Resolution |
Accuracy |
| ACV 260 V |
0.1 V |
± ( 0.3 % + 0.3 V ) |
| ACA 1 A |
0.1 mA |
± ( 0.3 % + 0.3 mA ) |
| ACA 2 A |
1 mA |
± ( 0.3 % + 3 mA ) |
- * Auto range.
- * ACV, ACA accuracy is test under input signal is sine wave, 50/ 60 Hz.
- * ACV, ACA frequency response is from 40 to 400 Hz.
- * Max. input value, AC voltage : 260V, AC current : 2 A.
- * Accuracy @ 23ºC ± 5 .
功率因素 ( Power factor )
|
Range |
Resolution |
Accuracy |
| 1.00 |
0.01 | ± (1 % + 2d ) |
- * ACV, ACA accuracy is test under input signal is sine wave, 50/ 60 Hz.
- * ACV, ACA frequency response is from 40 to 400 Hz.
- * Max. input value, AC voltage : 260V, AC current : 2 A.
- * Accuracy @ 23ºC ± 5 .
|
