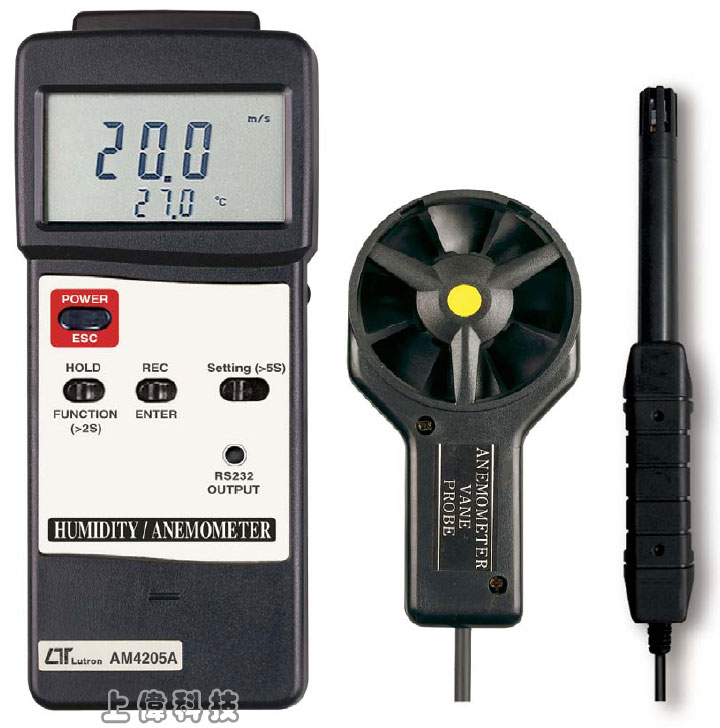

AM-4205A
風速、溫溼度計
特色
- 風速範圍 :
- 0.4 ~ 25.0 公尺/秒
- 1.4 ~ 90.0 公里/小時
- 0.9 ~ 55.9 海浬/小時
- 80 ~ 4930 英呎/分鐘
- 1.9 ~ 38.8 哩/小時
- 溫溼度範圍 :
- 10 ~ 95.0% RH. ±3%
- 0 ~ 50.0°C. ±0.8°C
- CFM：0 ~ 999900 ft3/min
- 溫度範圍 :
- Type K：-50°C ~ 1300.0°C
- Type J：-50°C ~ 1100.0°C
- 附風速 /風溫度測棒及溫溼度測棒
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32mm.
FEATURES
- Anemometer, Humidity/Temp. and type K/J thermometer meter are combined into one meter, intelligent design.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD display, easy readout.
- Dual function meter's display.
- Low-friction ball vane wheels is accurate in both high & low velocities for anemometer.
- Thin-film capacitance sensor for humidity measurement, high precision, fast response.
- Records Maximum & Minimum readings with recall.
- Data hold.
- Auto shut off saves battery life.
- RS 232 PC serial interface.
- The portable anemometer provides fast, accurate readings, with digital readability and the convenience of a remote sensor separately.
- Multi-functions for air flow measurement: m/s, km/h, ft/min, knots. mile/h.
- Build in temperature ℃, ℉ measurement.
- Thermistor sensor for Temp. measurement, fast response time.
- Used the durable, long-lasting components.
- Heavy duty & compact housing case.
- Deluxe hard carrying case, easy carryout & storage.
- Wide applications : To check air conditioning & heating systems, measure air velocities, wind speeds, humidity temperature...etc.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- * 13 mm ( 0.5" ) Super large LCD display.
- * Dual function meter's display.
測量 (Measurement)
- Anemometer :
- m/s ( meters per second )
- km/h ( kilometers per hour )
- ft/min ( feet/per minute )
- knots ( nautical miles per hour )
- mile/h ( miles per hour )
- Temperature - ℃, ℉.
- Humidity meter :
- R.H. ( Relative Humidity )
- Temperature - ℃, ℉.
- Type k thermometer :
- -199 ℃ to 1300.0 ℃
- -327.8 ℉ to 2372.0 ℉
感應器結構 (Sensor Structure)
- Anemometer :
- Air velocity : Conventional twisted van arm and low friction ball bearing design.
- Temperature : Precision thermistor.
- Humidity meter :
- Humidity : High precision thin-film capacitance sensor.
- Temperature : Precision thermistor.
- Type K/J thermometer :
- Thermocouple probe.
資料鎖定 (Data hold)
- To freeze the display reading on the LCD display.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
記憶回叫 (Memory Recall)
- Records Maximum & Minimum readings with recall.
關機 (Power off)
- Auto shut off saves battery life or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- 006P DC 9V battery (heavy duty type).
電源損耗 (Power Consumption)
- Approx. DC 8.3 mA.
重量 (Weight)
- 350 g/0.77 LB, main instrument.
尺寸 (Size)
- Main instrumen :
180x72x32 mm (7.1x2.8x1.3 inch).
- Anemometer probe :
Round, 72 mm Dia.
- Humidity Probe :
Round 26 mm Dia. x 160 mm.
附件 (Standard Accessory)
- Instruction manual................. 1 PC
- Anemometer probe....................1 PC
- Humidity Probe..................... 1 PC.
- Carrying case.......................1 PC.
選購附件 (Optional & accessories Temp. Probe)
- 33 % RH CALIBRATION REF. CAPSULES, RHA-33
- 75 % RH CALIBRATION REF. CAPSULES, RHA-75
- Type k thermocouple Probe : TP-01, TP-02A, TP-03, TP-04
- RS232 cable, UPCB-01
- USB cable, USB-01
- Data Acquisition software, SW-U801-WIN
風速計電器規格 ELECTRICAL SPECIFICATIONS for ANEMOMETER (23 ±5℃)
| Measurement |
Range |
Resolution |
Accuracy |
| m/s |
0.4 - 25.0 m/s |
0.1 m/s |
± ( 2 % + 2 d ) |
| km/h |
1.4 - 90.0 km/h |
0.1 km/h |
| mile/h |
0.9 - 55.9 mile/h |
0.1 mile/h |
| knots |
0.8 - 48.6 knots |
0.1 knots |
| ft/min |
|
1 ft/min |
± ( 2 % + 20 ft/min ) |
| Temperature ( ℃ ) |
0 ℃ to 50 ℃ |
0.1 ℃ |
± 0.8 ℃ |
| Temperature ( ℉ ) |
32 ℉ to 122 ℉ |
0.1 ℉ |
± 1.5 ℉ |
Note: m/s - meters per second
km/h - kilometers per hour
ft/min - feet/per minute
knots - nautical miles per hour
mile/h - miles per hour
濕度計電器規格 ELECTRICAL SPECIFICATIONS for HUMIDITY METER
| Humidity |
Range |
10 % to 95 % R.H. |
| Resolution |
0.1 % R.H. |
| Accuracy(23± 5 ℃) (after calibration) |
70 % R.H. - ± ( 3 % reading + 1 % R.H.) < 70 % R.H. - ± 3 % R.H. |
| Temperature |
Range |
0 ℃ to 50 ℃, 32 ℉ to 122 ℉. |
| Resolution |
0.1 degree. |
| Accuracy |
℃ - ± 0.8 ℃. , ℉ - ± 1.5 ℉. |
K/J型溫度計電器規格 ELECTRICAL SPECIFICATIONS for TYPE K/J THERMOMETER
| Sensor type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉
|
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-50.0 to 1100.0 ℃ |
± ( 0.4 % + 0.8 ℃ ) |
| -50.1 to -199.9 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.4 % + 1.5 ℉ ) |
| -58.1 to -327.8 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
- * Accuracy value is specified for the meter only.
- * Temp. probe ( Type K, TP-01 TP-02A, TP-03. TP-04 ) is the optional accessories
|
