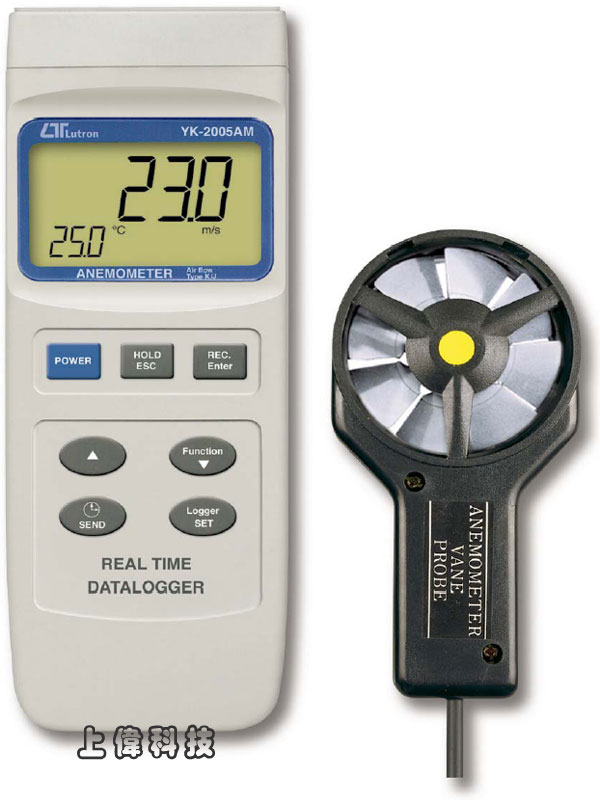

YK-2005AM
記憶式風速/風量/溫度計
特色
- 記錄 16000 筆資料 ,含時間記錄 (年月日時分秒)
- 風速範圍 : 0.4 ~ 30.0 公尺/秒 ±2%
- 量範圍 :
- CMM : 0 ~ 999900 m3/min
- CFM : 0 ~ 999900 ft3/min.
- 風速溫度範圍 : 0°C ~ 50.0°C ±0.8°C.
- 溫度 :
- Type K : -50.0 ~1300.0°C. ±0.2%
- Type J : -100.0 ~1100.0°C. ±0.2%
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 203 x 76 x 38mm.
FEATURES
- Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
- Air flow : CMM ( m^3/min. ) and CFM ( ft^3/min. ).
- Air temperature ( ℃, ℉ )
- Type K/ Type J thermocouple thermometer.
- Real time data logger, build in clock ( hour-min.-sec., year-month-date ).
- Auto data record, 16,000 Data logger no.
- Wide sampling time adjustment range from two seconds to 8 hours 59 minutes 59 seconds.
- RS232 computer interface.
- Can default auto power off or manual power off.
- Can default the air velocity, air flow, Temp. unit.
- Air flow measurement can set the area dimension.
- Multi function with easy operation
- Low-friction ball vane wheels make sure high accuracy in high & low velocities.
- Metal vane, high reliability.
- Large LCD with multiple display.
- Data hold, record max. and min. reading.
- Microcomputer circuit provides special function & offer high accuracy.
- Air Temp. used thermistor sensor, fast response time.
- Power by UM3 ( 1.5 V ) x 4 batteries or DC 9V adapter.
- RS232 PC serial interface.
- Separate probe, easy for operation of different measurement environment.
- Wide applications:
use this anemometer to check air conditioning & heating systems, measure air velocities, wind temperature...etc.
一般規格
電路 (Circuit)
- Exclusive one-chip of microcomputer LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm.
測量 (Measurement)
- Air velocity:
- m/s ( meters per second )
- km/h ( kilometers per hour )
- Knot ( nautical miles per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Air flow:
- CMM ( m^3/min. )
- CFM ( ft^3/min. ).
- Air Temperature :
℃ or ℉.
- Type K/ Type J thermometer. ℃, ℉
資料集錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec.
- @ Auto datalogger
感應器結構 (Sensor Structure)
- Air velocity & Air flow : Conventional twisted van arm and low friction ball bearing design. vane use metal material.
- Temperature : Thermistor.
- Type K/ Type J thermometer. Thermocouple
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the Type K/J thermometer.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Record maximum & minimum reading value with recall.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp. )
- 0℃ to 50℃( 32℉to 122℉).
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 4 PCs.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源損耗 (Power Consumption)
- Approx. DC 21.5 mA @ Main instrument.
- DC 27.5 mA. @ Main instrument. + Anemometer probe.
重量 (Weight)
- 515 g/ 1.13 LB. @ Battery is included.
尺寸 (Size)
- Main instrument :
8203 x 76 x 38 mm
- Anemometer sensor head : Round, 72 mm Dia.
附件 (Standard Accessory)
- Instruction manual............. 1 PC
- Anemometer probe............... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- Type K thermocouple probe.
- AC to DC 9V adapter
- RS232 cable/UPCB-02, USB cable/USB-01
- Data Acquisition software, SW-U801-WIN.
- Data Logger software, SW-DL2005.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/S |
0.4 - 30.0 m/s |
0.1 m/s |
± (2% + 0.2 m/sec) |
| Km/h |
1.4 - 126.0 km/h |
0.1 km/h |
± (2% + 0.8 km/h) |
| Knot |
0.8 - 68.0 knots |
0.1 knots |
± (2% + 0.4 knots) |
| Ft/min |
79 - 6890 ft/min |
1 ft/min |
± (2% + 40 ft/min) |
| Mile/h |
0.9 - 78.3 mph |
0.1 mile/h |
± (2% + 0.4 mile/h) |
Remark :
- ft/min : feet per minute
- MPH : miles per hour
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
風量 (Air flow)
| Measurement |
Range |
Resolution |
Area |
| CMM ( m^3/min. ) |
0-999,900 m^3/min. |
0.001-100 m^3/min. |
0.001-9,999 m^3/min. |
| CFM ( ft^3/min. ). |
0-999,900 ft^3/min. |
0.001-100 ft^3/min. |
0.001-9,999 ft^3/min. |
溫度 (Air Temperature)
| Measurement |
Range |
Resolution |
Accureacy |
| Temperature |
0 ℃ to 50 ℃ |
0.01 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.01 ℉ |
± 1.5 ℉. |
K/J型溫度計 (Type K/J thermometer)
| Sensor type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-50.0 to 1100.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
|
