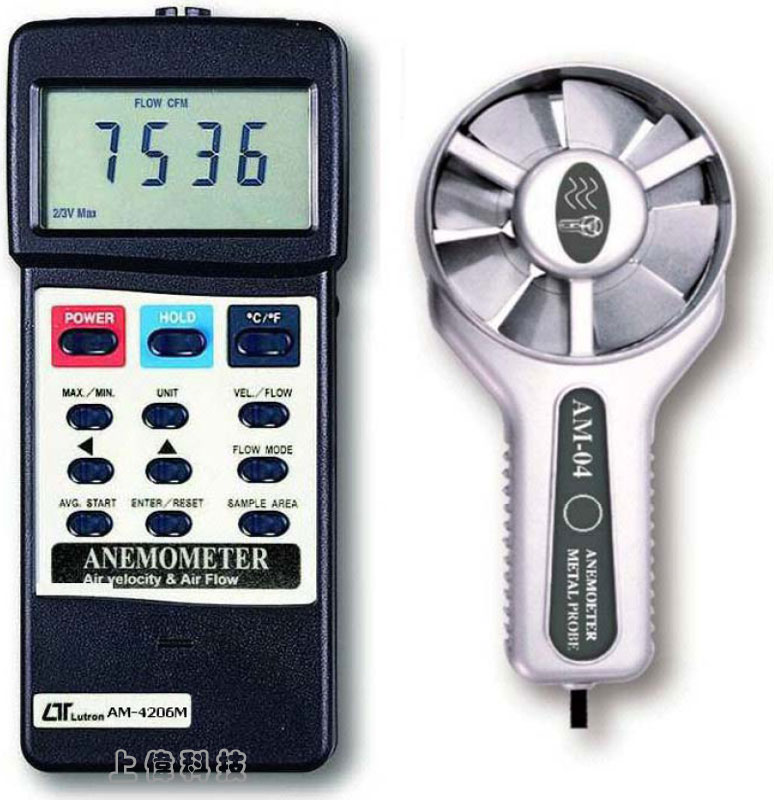

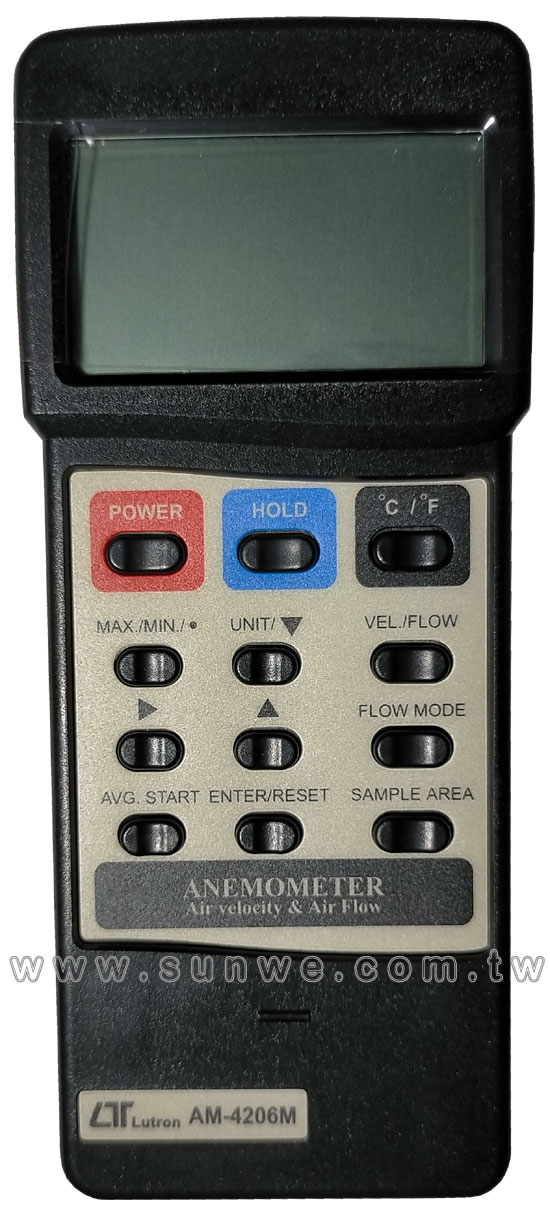

AM-4206M
風速/風量/溫度計
特色
- 風速範圍 :
- 0.4 ~ 35.0 公尺/秒
- 1.4 ~ 126.0 公里/小時
- 0.9 ~ 78.3 海浬/小時
- 79 ~ 6890 英呎/分鐘
- 0.8 ~ 68.0 哩/小時
- 風量範圍 :
- CMM : 0 ~ 999900 m3/min
- CFM : 0 ~ 999900 ft3/min
- 溫度範圍 : 0°C ~ 80.0°C (32.0 ~ 122.0°F)
- 精確度 :
- 風速 : ±2%
- 溫度 : ±0.8°C
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 180 x 72 x 32mm.
FEATURES
- Metal vane pobe, heavy duty, wide range measurement.
- Air flow : CMM ( m^3/min. ) and CFM ( ft^3/min. )
- Air velocity :
m/s, ft/min, km/h, knots.
- Air temperature :
C degree, F degree.
- 3 air flow mode : Instant, 2/3 Vmax, Average.
- Low-friction ball vane wheels is accurate in both high & low velocities.
- Large LCD with dual display.
- Record maximum and minimum reading with recall.
- Data hold.
- Microcomputer circuit provides special function & offer high accuracy.
- Auto shut off saves battery life.
- Thermistor sensor for temp. measurement, fast response time.
- Build-in low battery indicator.
- Operates from 006P DC 9V battery.
- RS 232 PC serial interface.
- Separate probe, easy for operation of the different measurement environment.
- Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind speeds, temperature...etc.
一般規格
電路 (Circuit)
- Exclusive one-chip of microcomputer LSI circuit.
顯示 (Display)
- * 13 mm (0.5") Super large LCD display.
- * Dual functions display.
測量 (Measurement)
- Air velocity:
- m/s ( meters per second )
- km/h ( kilometers per hour )
- Knot ( nautical miles per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Air flow:
- CMM ( m^3/min. )
- CFM ( ft^3/min. ).
- Air Temperature :
℃ or ℉.
- Data hold.
感應器結構 (Sensor Structure)

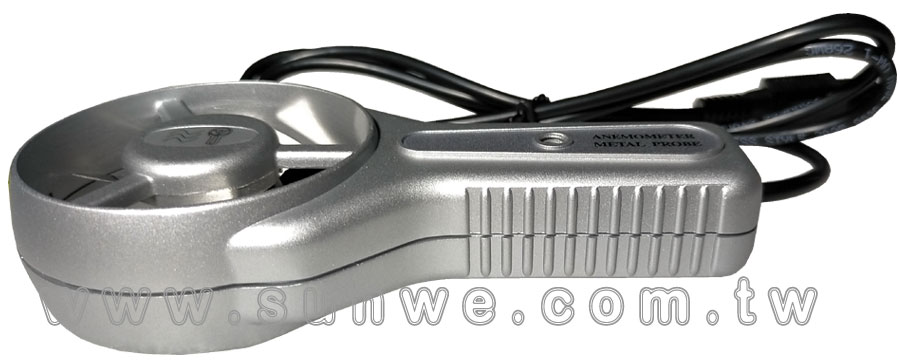

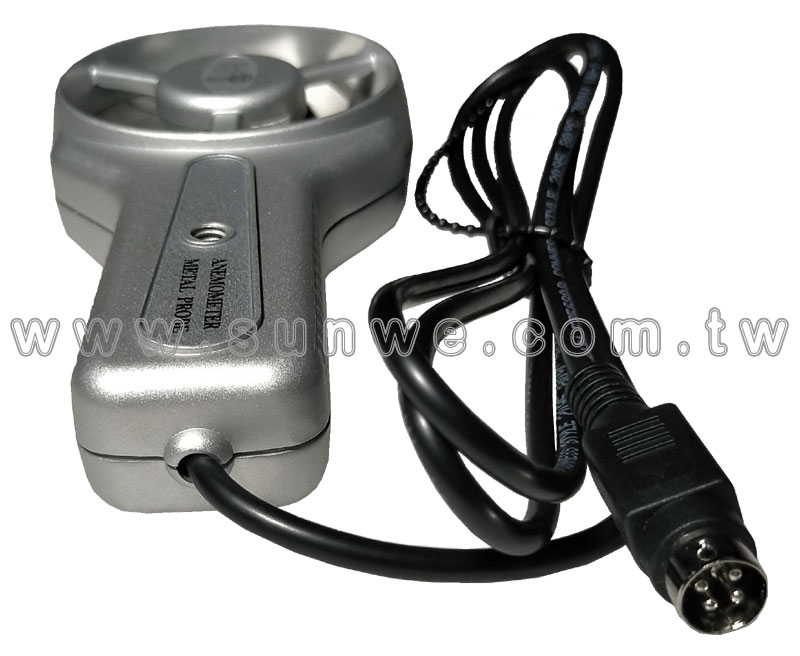

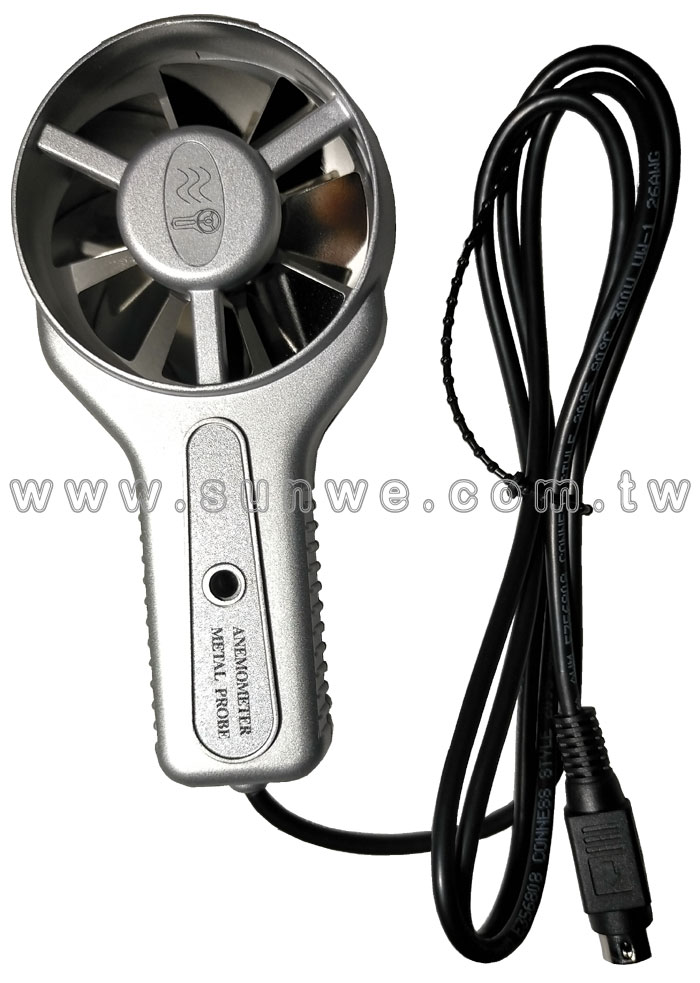

- Air velocity & Air flow : Metal structure, Conventional twisted van arm and low friction ball bearing design.
- Temperature : Thermistor.
記憶回叫 (Memory Recall)
- Record maximum & minimum reading value with recall.
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
取樣時間 (Sampling Time)
- Approx. 0.8 sec
資料輸出 (Data Output)

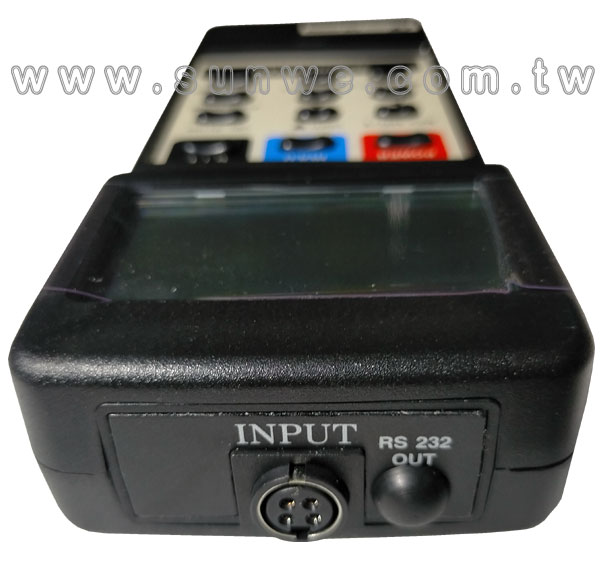

- RS 232 PC serial interface.
操作溫度 (Operating Temp.)
- Meter : 0℃ to 50℃( 32℉to 122℉).
- Probe : 0 ℃ to 80 ℃/32 ℉ to 176 ℉.
操作溼度 (Operating Humidity)
- Less than 80% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty type DC 9V battery, 006P, MN1604 (PP3) or equivalent.
電源損耗 (Power Consumption)
- Approx. DC 8.3 mA.
重量 (Weight)
- 381 g/0.84 LB, main instrument
尺寸 (Size)
- Main instrument :
180 x 72 x 32 mm ( 7.1 x 2.8 x1.3 inch ).
- Sensor head : Round, 72 mm Dia.

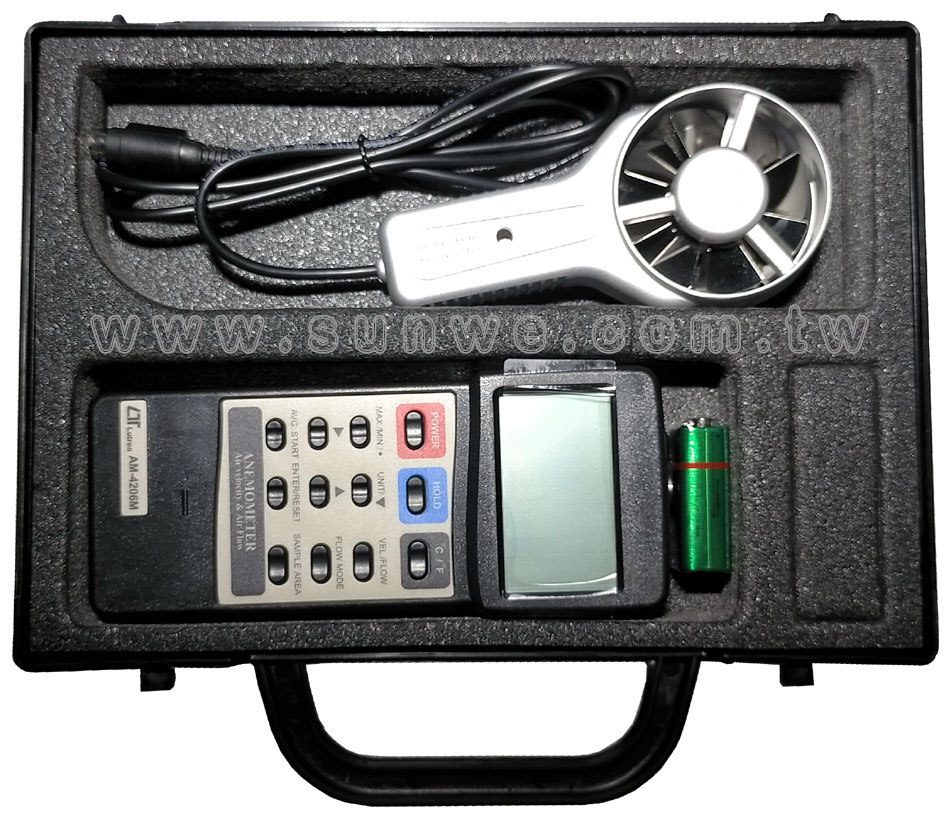

附件 (Standard Accessory)
- Instruction manual............. 1 PC
- Sensor probe................... 1 PC.
- Carrying Case.................. 1 PC.
選購附件 (Optional & accessories Temp. Probe)
- RS232 cable, UPCB-01
- USB cable, USB-01
- Data Acquisition software, SW-801-WIN
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/S |
0.4 - 35.0 m/s |
0.1 m/s * 0.01m/s, <10m/s |
± (2% + 0.2 m/sec) |
| Km/h |
1.4 - 126.0 km/h |
0.1 km/h |
± (2% + 0.8 km/h) |
| Knot |
0.8 - 68.0 knots |
0.1 knots |
± (2% + 0.4 knots) |
| Ft/min |
79 - 6890 ft/min |
1 ft/min |
± (2% + 40 ft/min) |
| Mile/h |
0.9 - 78.3 mph |
0.1 mile/h |
± (2% + 0.4 mile/h) |
Remark :
- ft/min : feet per minute
- MPH : miles per hour
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
風量 (Air flow)
| Measurement |
Range |
Resolution |
Area |
| CMM ( m^3/min. ) |
0-999,900 m^3/min. |
0.001-100 m^3/min. |
0.001-9,999 m^3/min. |
| CFM ( ft^3/min. ). |
0-999,900 ft^3/min. |
0.001-100 ft^3/min. |
0.001-9,999 ft^3/min. |
溫度 (Air Temperature)
| Measurement |
Range |
Resolution |
Accureacy |
| Temperature |
0 ℃ to 50 ℃ |
0.1 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.1 ℉ |
± 1.5 ℉. |
|
