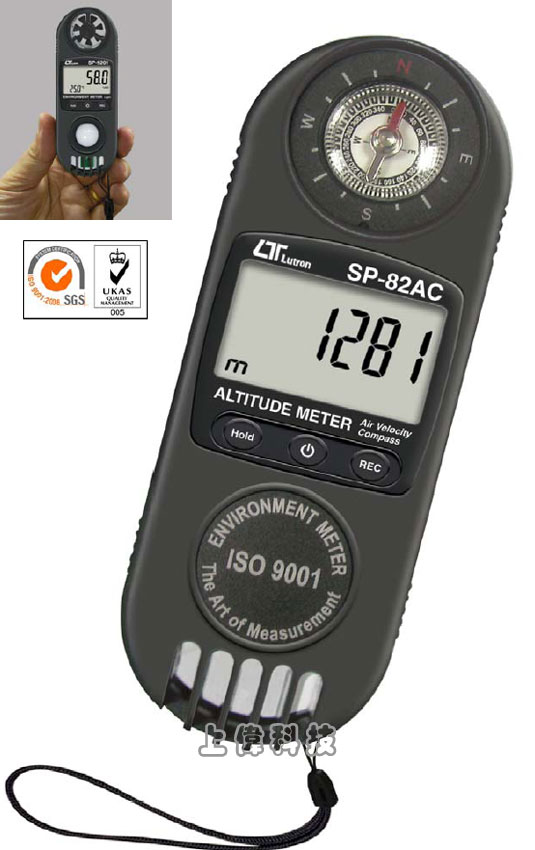

SP-82AC
高度/氣壓/風速計/指南針
特色
- 高度 :
- -2000米 ~9000米. ±15米
- -6000英尺 ~ 30000英尺 ±50英尺
- 大氣壓力 : 10.0 ~ 1100(毫巴) hpa
- 風速 : 0.4 ~ 20.0 公尺/秒 (五種單位選擇)
- 讀值鎖定及記錄測量中之最大/最小值
- 內建指南針
- Size : 156 x 60 x 33mm.
FEATURES
- 3 in 1, Precision Altitude meter + Barometer + Compass.
- Build in precision baro sensor for the atomsphere value
- Tiny bone shape with lightweight and small size case
- Wristlet design provides extra protection to the instrument
- Built- in microprocessor circuit assures excellent performance
- Concise and compact buttons arrangement, easy operation.
- Memorize the maximum and minimum value with recall.
- Hold function to freeze the current reading value.
一般規格
顯示 (Display)
- LCD display, 8 mm digit size.
測量 (Measurement)
- 1. Altitude
- 2. Barometer
- 3. Compass
過載輸入指示 (Over Input Display)
- Indication of "- - - - "
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Less than 80% RH.
電源供應 (Power Supply)
- CR 2032 DC 3V battery.
電源損耗 (Power Consumption)
- Approx. DC 5 mA.
重量 (Weight)
- 160g (battery included)
尺寸 (Size)
- HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch).
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
高度 Altitude
| Unit |
Range |
Resolution |
Accuracy |
| m |
-2000 to 9000 m |
1 m |
± 15 m |
| ft |
-6000 to 30000 ft |
1 ft |
± 50 ft |
大氣壓力 Barometric pressure ( Barometer)
| Measurement |
Range |
Resolution |
Accuracy |
| hPa |
10.0 to 999.9 |
0.1 hpa |
± 1.5 hPa |
| 1000 to 1100 |
1 hpa |
± 2 hPa |
| mmHg |
7.5 to 825.0 |
0.1 mmHg |
± 1.2 mmHg |
| inHg |
0.29 to 32.48 |
0.01 inHg |
± 0.05 inHg |
|
