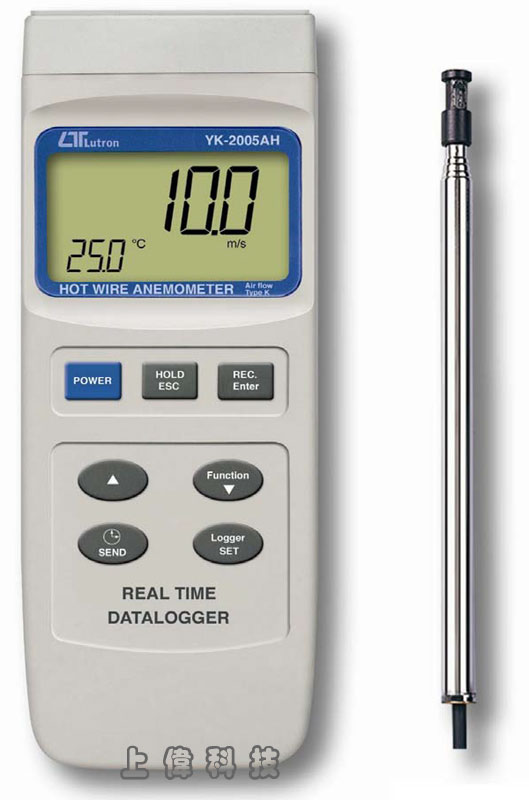

YK-2005AH
記憶式熱線風速/風量/溫度計
特色
- 記錄 16000 筆資料 , 含時間記錄 (年月日時分秒)
- 風速範圍 : 0.2 ~ 20.0 公尺/秒 ±2%
- 風量範圍 :
- CMM : 0 ~ 999900 m3/min
- CFM : 0 ~ 999900 ft3/min
- 風速溫度範圍 : 0°C ~ 50.0°C ±0.8°C
- 溫度
- Type K : -50.0 ~1300.0°C. ±0.2%
- Type J : -100.0 ~1100.0°C. ±0.2%
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 203 x 76 x38 mm.
FEATURES
- Combination of hot wire and standard thermistor, deliver rapid and precise measurements even at low air velocity value.
- Slim probe, ideal for grilles & diffusers.
- Air velocity : m/S, Ft/min, Km/h, Knot, Mile/h,
- Air flow : CMM ( m^3/min. ) and CFM ( ft^3/min. ).
- Air temperature (℃ , ℉)
- Type K/ Type J thermocouple thermometer.
- Real time data logger, build in clock ( hour-min.-sec., year-month-date ).
- Auto data record, 16,000 Data logger no.
- Wide sampling time adjustment range from two seconds to 8 hours 59 minutes 59 seconds.
- Zero adjustment.
- Can default auto power off or manual power off.
- Can default the air velocity, air flow, Temp. unit.
- Air flow measurement can set the area dimension.

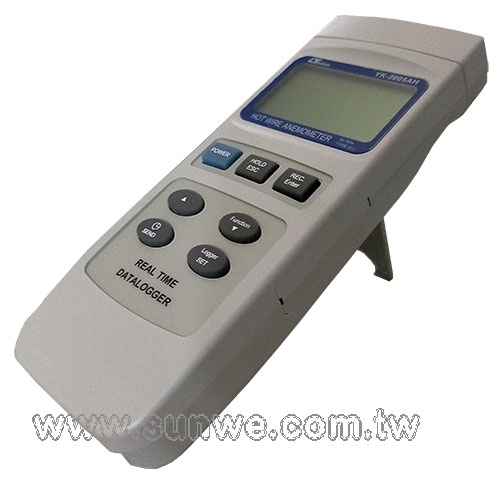

- Large LCD with multiple display.
- Data hold, record max. and min. reading.
- Microcomputer circuit provides special function & offer high accuracy.
- Air Temp. used thermistor sensor, fast response time.
- Power by UM3 ( 1.5 V ) x 4 batteries or DC 9V adapter.
- RS232 computer interface.
- Separate probe, easy for remote measurement.
- Applications : Environmental testing, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 58 mm x 34 mm.
測量 (Measurement)
- Air velocity:
- m/s ( meters per second )
- km/h ( kilometers per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Knot ( nautical miles per hour )
- Air flow:
- CMM ( m^3/min. )
- CFM ( ft^3/min. ).
- Air Temperature : ℃ or ℉.
- Type K/ Type J thermometer.℃ ℉
資料記錄器取樣時間 (Sampling Time of Data Logger)
- 2 sec to 8 hour 59 min. 59 sec.
- @ Auto datalogger
感應器結構 (Sensor Structure)
- Air velocity & Air flow : Tiny glass bead thermistor.
- Air temperature : Thermistor.

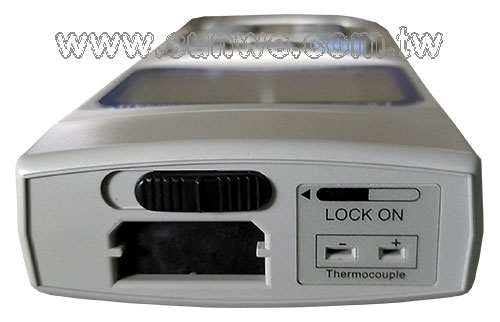

- Type K/ Type J thermometer :Thermocouple
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the Type K/J thermometer.
讀值鎖定 (Data Hold)
- Freeze the display reading.
記憶回叫 (Memory Recal)
- Maximum & Minimum value.
顯示取樣時間 (Sampling Time of display)
- Approx. 1 second.
關機 (Power off)
- Auto shut off saves battery life. or manual off by push button.
資料輸出 (Data Output)
- RS 232 PC serial interface.
操作溫度 (Operating Temp.)
- 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 80% R.H
電源供應 (Power Supply)
- DC 1,5 V battery ( UM3 ) x 4 PCs, ( Heavy duty type ).
- DC 9V adapter input.
- @ AC/DC power adapter is optional.
電源損耗 (Power Consumption)
- Approx. DC 21.5 mA @ Main instrument.
- Approx. DC 70 mA @ Main instrument. + Hot wire probe.
重量 (Weight)
- 515 g/ 1.13 LB. @ Battery is included.
體積 (Dimension)
- Main instrument : 203 x 76 x 38 mm

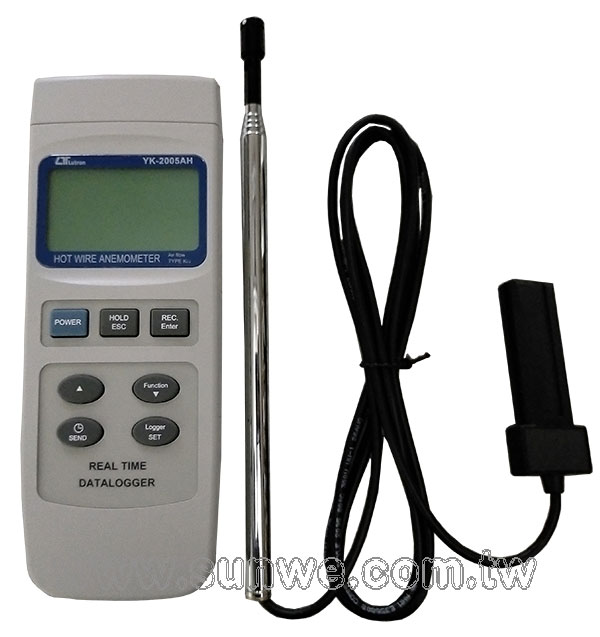

- Telescope Probe :
- Round, 12 mm Dia x 280 mm ( min. length ).
- Round, 12 mm Dia x 940 mm ( max. length ).

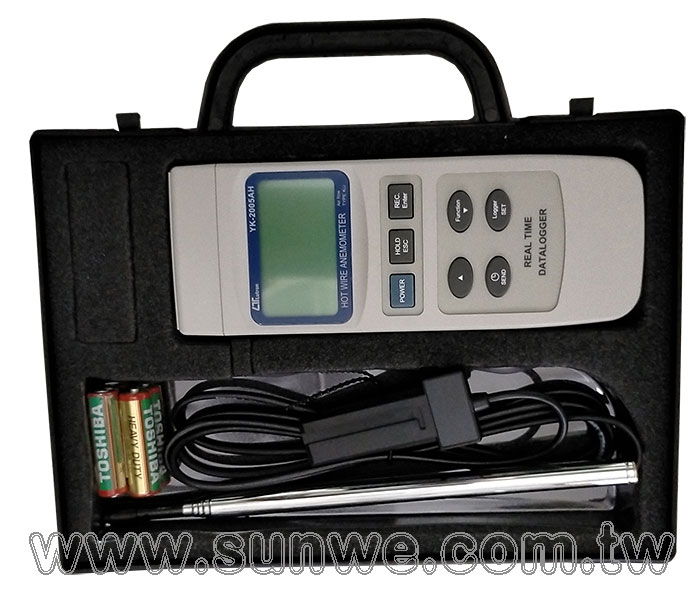

附件 (Accessories Included )
- Instruction manual............................ 1 PC
- Telescope Probe................................1 PC
- Carrying case................................. 1 PC
選購附件 (Optional accessories)
- Type K thermocouple probe.
- AC to DC 9V adapter.
- RS232 cable/UPCB-02, USB cable/USB-01
- Data Acquisition software,SW-U801-WIN.
- Data Logger software, SW-DL2005.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/S |
0.2 to 20.0 m/s |
0.1 m/S |
± ( 5% + a ) reading or ± ( 1% + a ) full scale |
| Km/h |
0.7-72.0 km/h |
0.1 Km/h |
| Mile/h |
0.5-44.7 mph |
0.1 Mile/h |
| Knot |
0.4-38.8 knot |
0.1 Knot |
| Ft/min |
40-3940 ft/min |
1 Ft/min |
- @ a = 0.1 m/s, 0.1 km/h, 0.1 mile/h, 0.1 knot, 10 ft/min
Remark :
- ft/min : feet per minute
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
風量 (Air flow)
| Measurement |
Range |
Resolution |
Area |
| CMM (m^3/min.) |
0 to 36,000 m^3/min. |
0.001-1 |
0.001-30.0 m^3/min. |
| CFM (ft^3/min.). |
0 to 1,271,200 ft^3/min. |
0.01-100 |
0.01-322.91 ft^3/min. |
風溫 (Air Temperature)
| Measuring Range |
0℃ to 50℃ / 32℉ to 122℉ |
| Resolution |
0.1℃ / 0.1℉ |
| Accuracy |
± 0.8℃ / 1.5℉ |
K/J型熱電偶 (Type K/J thermometer)
| Sensor type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.2 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-100.0 to 1100.0 ℃ |
± ( 0.2 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.2 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2012.0 ℉ |
± ( 0.2 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 2 + 1.8 ℉ ) |
|
