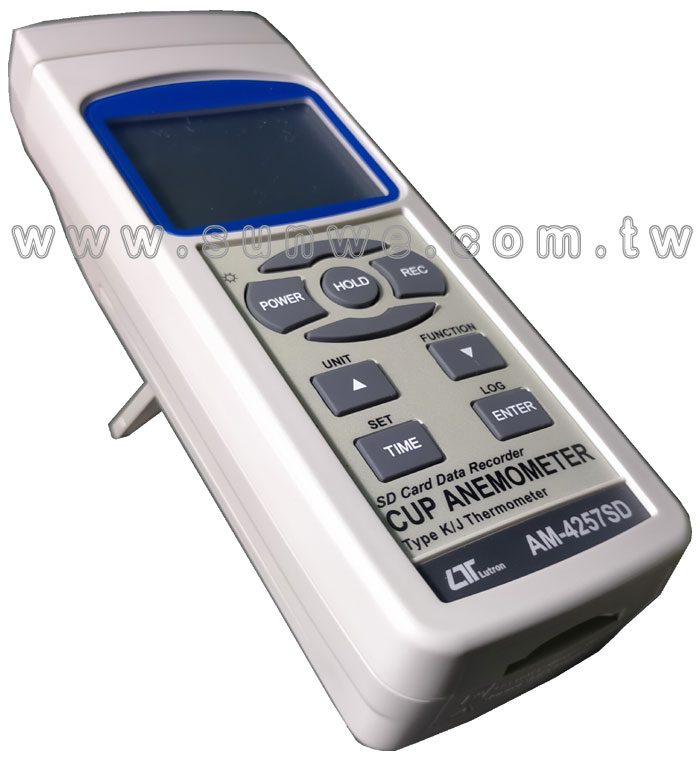

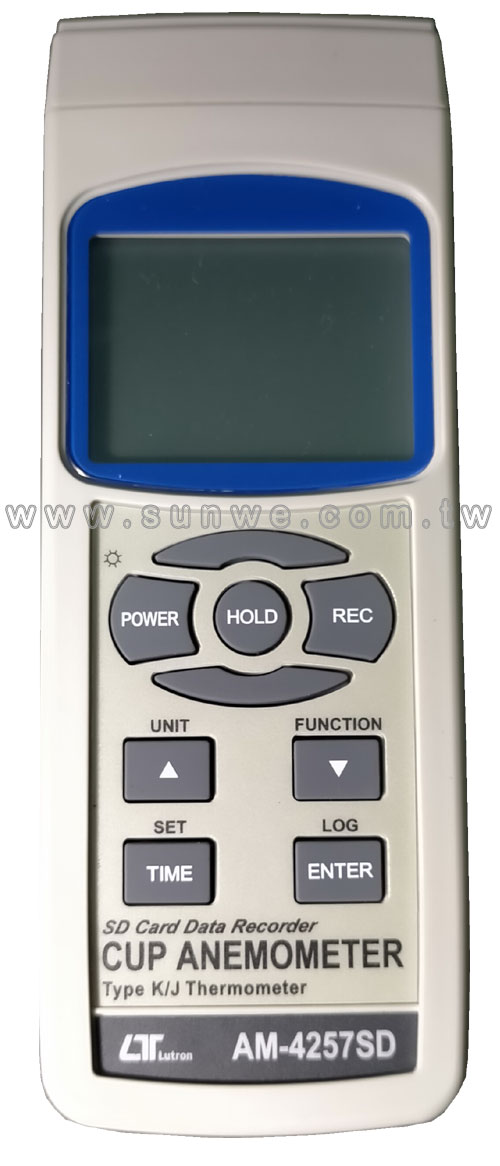

AM-4257SD
記憶杯式風速/溫度計
特色
- 即時將儀表輸出數據紀錄儲存於 SD 記憶卡 , 資料可下載到 Excel , 座圖表分析 (記憶卡選購)
- 風速範圍 : 0.9 ~ 35.0 公尺/秒 ±2%
- 風溫測量範圍 : 0°C ~ 50.0°C ±0.8°C
- 溫度 :
- Type K : -50 ~1300.0°C. ±0.4%
- Type J : -50 ~1200.0°C. ±0.4%
- 雙視窗顯示 , 可同時顯示風速及溫度值
- 可記錄最大值,最小值及讀值鎖定功能
- RS-232 / USB 輸出介面 (軟體選購)
- Size : 203 x 76 x 38mm.
FEATURES

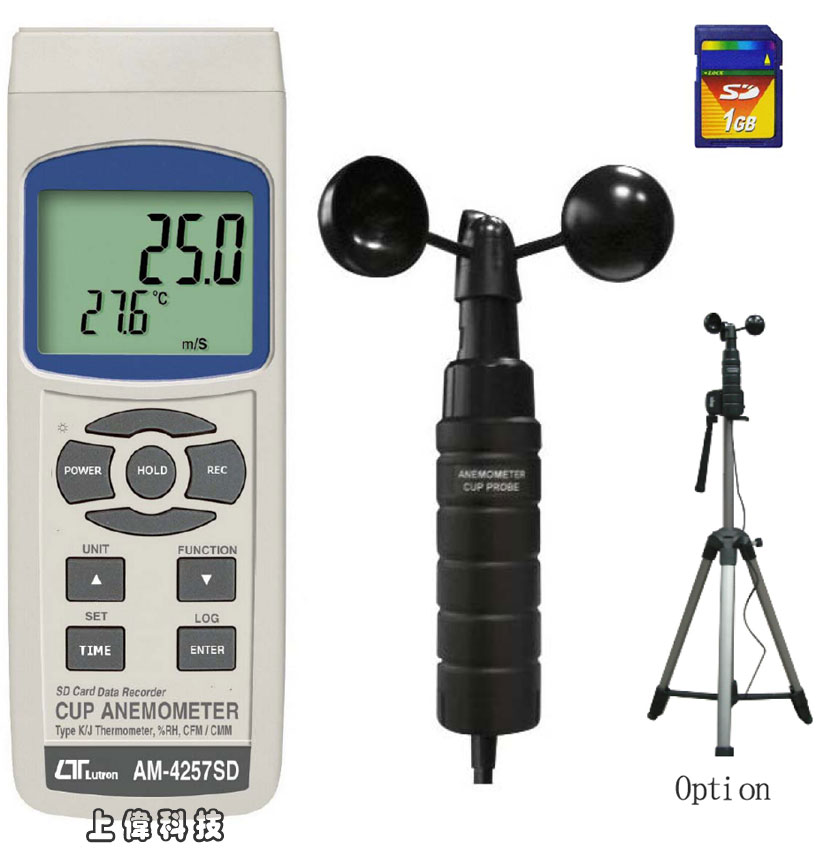

- Cup anemometer, available for the outside air speed measurement and recording.

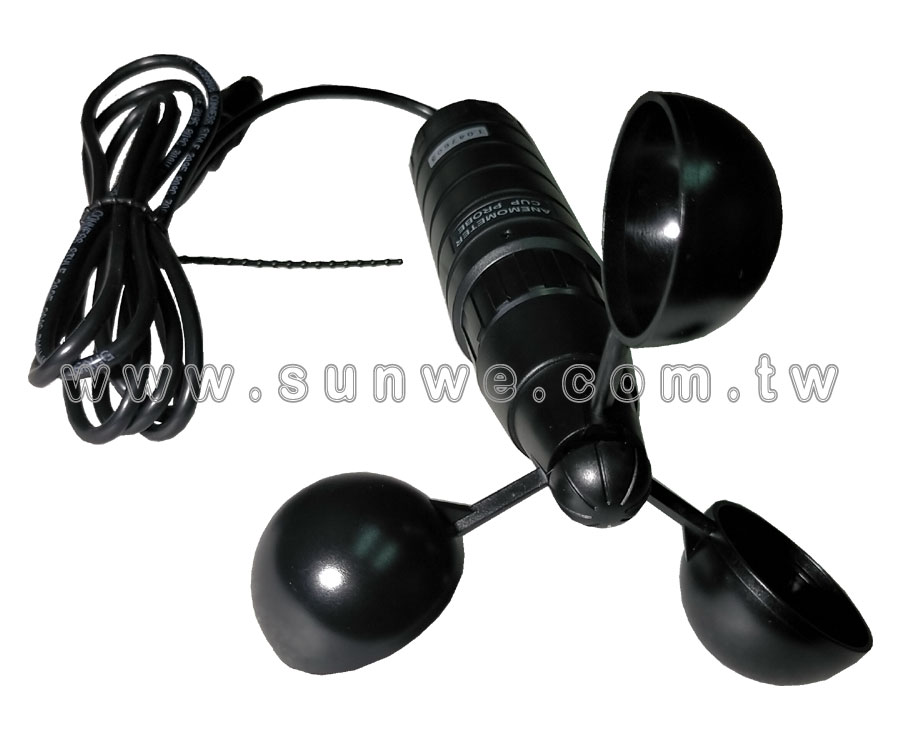

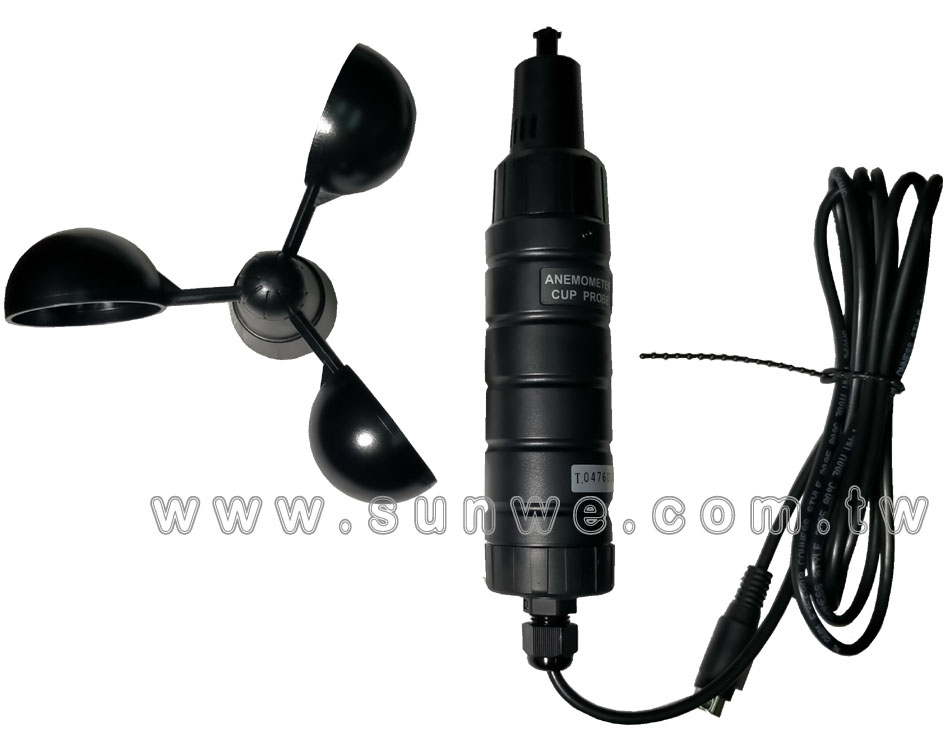

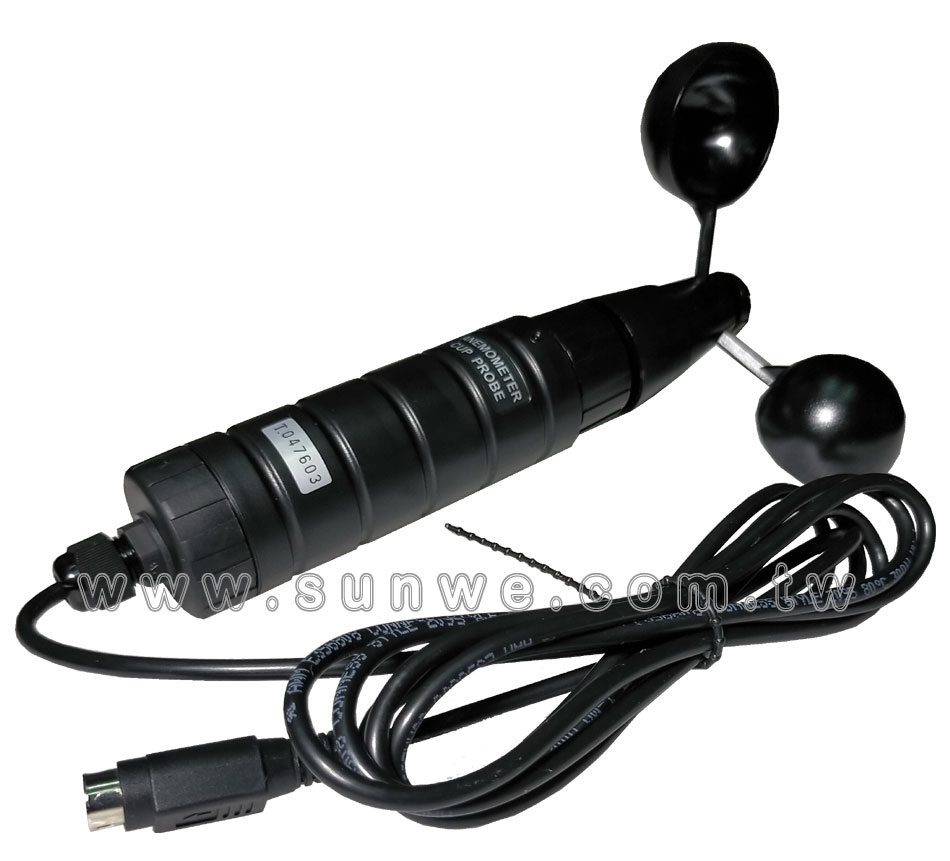

- Cup probe is built in tripod fix nut.
- Air velocity : m/S, Ft/min, Km/h, Knots, Mile/h,
- Air temperature (℃ ,℉ )
- Type K, Type J thermocouple thermometer.
- Air Temp. used thermistor sensor, fast response time.
- Real time SD memory card Datalogger, it Built-in Clock and Calendar, real time data recorder , sampling time set from 1 second to 3600 seconds.
- Manual datalogger is available ( set the sampling time to 0 ), during execute the manual datalogger function, it can set the different position ( location ) No. ( position 1 to position 99 ).
- Innovation and easy operation, computer is not need to setup extra software, after execute datalogger, just take away the SD card from the meter and plug in the SD card into the computer, it can down load the all the measured value with the time information (year/month/date/ hour/minute/second ) to the Excel directly, then user can make the further data or graphic analysis by themselves.
- SD card capacity : 1 GB to 16 GB.
- LCD with green light backlight, easy reading.
- Can default auto power off or manual power off
- Data hold, record max. and min. reading.
- Microcomputer circuit, high accuracy.
- Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.

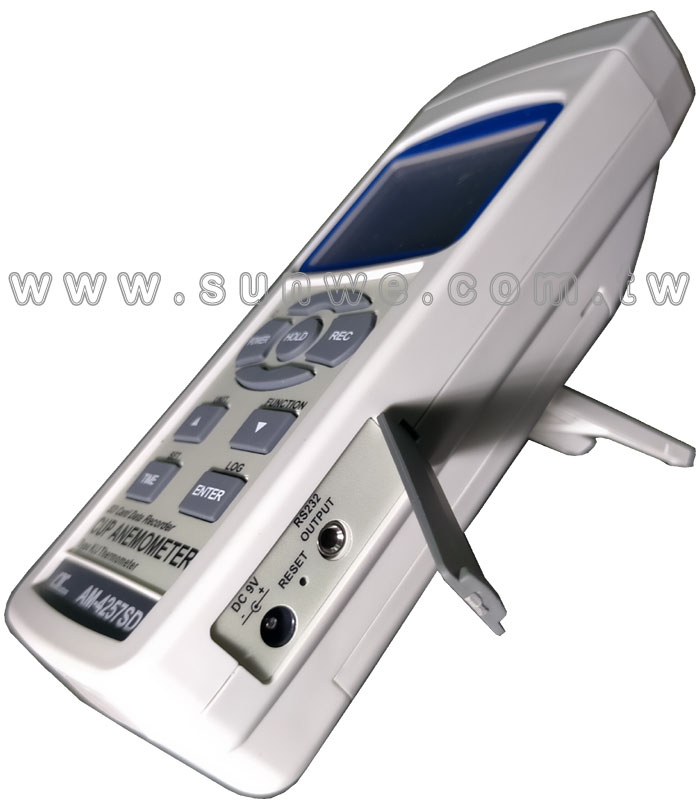

- RS232/USB PC COMPUTER interface.

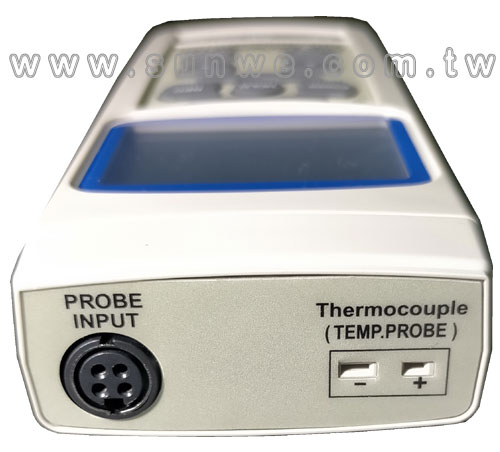

- Separate probe, easy for operation of different measurement environment.
- Wide applications: use this anemometer to check air conditioning & heating systems, measure air velocities, wind temperature...etc.
一般規格
電路 (Circuit)
- Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
- LCD size : 52 mm x 38 mm
- LCD with green backlight ( ON/OFF ).
測量單位 (Measurement Unit)
- Air velocity:
- m/s ( meters per second )
- km/h ( kilometers per hour )
- Knot ( nautical miles per hour )
- ft/min ( feet per minute )
- mile/h ( miles per hour )
- Air Temperature :
℃ or ℉.
- Type K/ Type J thermometer. ℃, ℉
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
- Auto : 1, 2, 5, 10, 30, 60, 120, 300, 600, 1800 3600 second.
- @ Sampling time can set to 1 second, but memory data may loss.
- Manual : Push the data logger button once will save data one time.
- @ Set the sampling time to 0 second.
- @ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
- SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
- * Set clock time ( Year/Month/Date, Hour/Minute/ Second )
- * Decimal point of SD card setting
- * Auto power OFF management
- * Set beep Sound ON/OFF
- * Set thermometer type to Type K or Type J
- * Set temperature unit to ℃ or ℉
- * Set sampling time
- * SD memory card Format
溫度補償 (Temperature Compensation)
- Automatic temp. compensation for the humidity function and the type K/J thermometer.
資料鎖定 (Data hold)
- Freeze the display reading.
記憶回叫 (Memory Recall)
- Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
- Approx. 1 sec
資料輸出 (Data Output)
- RS 232/USB PC computer interface.
- * Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
- * Connect the optional USB cable USB-01 will get the USB plug.
操作溫度 (Operating Temp. )
- Meter : 0 to 50 ℃.
操作溼度 (Operating Humidity)
- Less than 85% R.H.
電源供應 (Power Supply)
- Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
- DC 9V adapter input.
- * AC/DC power adapter is optional.
電源電流 (Power Current)
- Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 15 mA
- When SD card save the data but and LCD Backlight is OFF) : Approx. DC 36 mA.
重量 (Weight)
- 347 g/ 0.76 LB. * Meter only
體積 (Dimension)
- Main instrument :
182 x 73 x 47.5 mm ( 7.1 x 2.9 x 1.9 inch )
- Anemometer sensor head : Round, 72 mm Dia.
附件 (Standard Accessory)
- Instruction manual................... 1 PC
- Anemometer probe......................1 PC
- Hard carrying case ( CA-06 )..........1 PC
選購附件 (Optional & accessories Temp. Probe)
- SD Card ( 2 GB )
- Type K thermocouple probe.
- AC to DC 9V adapter.
- USB cable, USB-01.
- RS232 cable, UPCB-02.
- Data Acquisition software, SW-U811-WIN.
- Excel data acquisition software, SW-E802.
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 (Air velocity)
| Measurement |
Range |
Resolution |
Accuracy |
| m/S |
0. - 35.0 m/s |
0.1 m/s |
± (2% + 0.2 m/sec) |
| Km/h |
2.5 - 126.0 km/h |
0.1 km/h |
± (2% + 0.8 km/h) |
| Knot |
1.4 - 68.0 knots |
0.1 knots |
± (2% + 0.4 knots) |
| Ft/min |
144 - 6895 ft/min |
1 ft/min |
± (2% + 40 ft/min) |
| Mile/h |
1.6 - 78.2mile/h |
0.1 mile/h |
± (2% + 0.4 mile/h) |
Remark :
- ft/min : feet per minute
- MPH : miles per hour
- m/s : meters per second
- knots : nautical miles per hour
- km/h : kilometers per hour
- Ft-cd : feet candle
氣溫 (Air Temperature)
| Measurement |
Range |
Resolution |
Accureacy |
| Temperature |
0 ℃ to 50 ℃ |
0.1 ℃ |
± 0.8 ℃. |
| 32 ℉ to 122 ℉. |
0.1 ℉ |
± 1.5 ℉. |
K/J型熱電偶 (Type K/J thermometer)
| Sensor type |
Resolution |
Range |
Accuracy |
| Type K |
0.1 ℃ |
-50.0 to 1300.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2372.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
| Type J |
0.1 ℃ |
-50.0 to 1200.0 ℃ |
± ( 0.4 % + 0.5 ℃ ) |
| -50.1 to -100.0 ℃ |
± ( 0.4 % + 1 ℃ ) |
| 0.1 ℉ |
-58.0 to 2192.0 ℉ |
± ( 0.4 % + 1 ℉ ) |
| -58.1 to -148.0 ℉ |
± ( 0.4 % + 1.8 ℉ ) |
|
