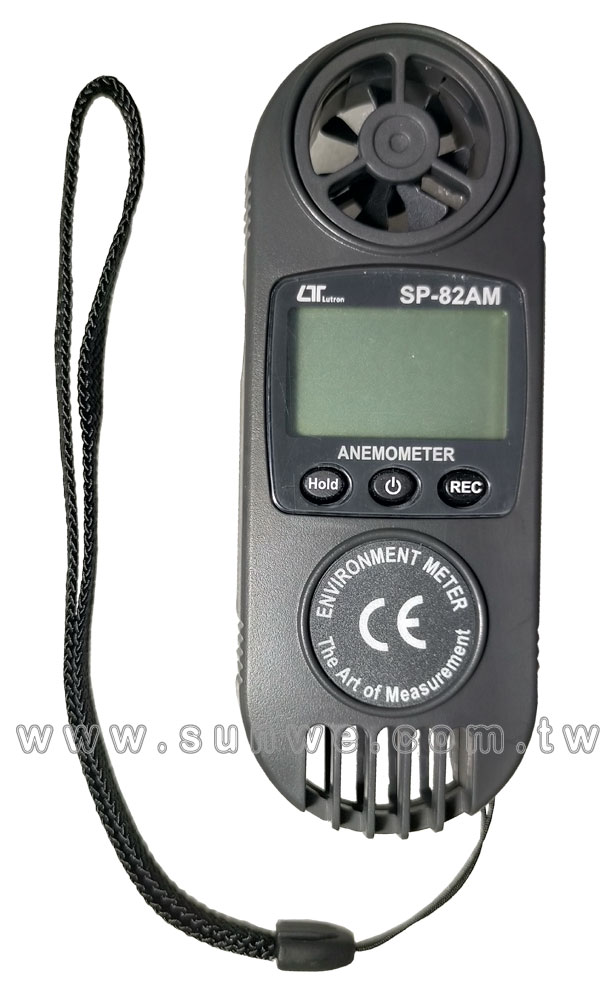

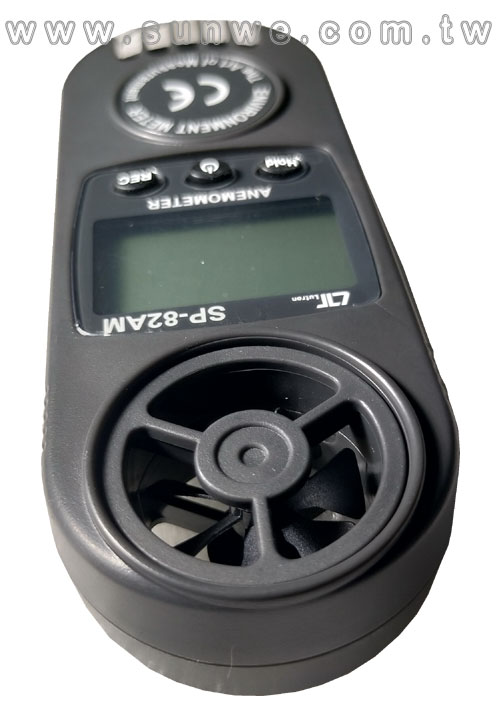

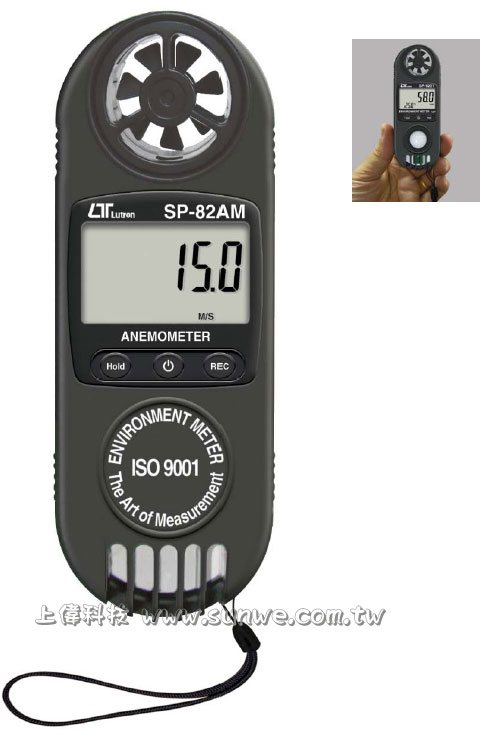

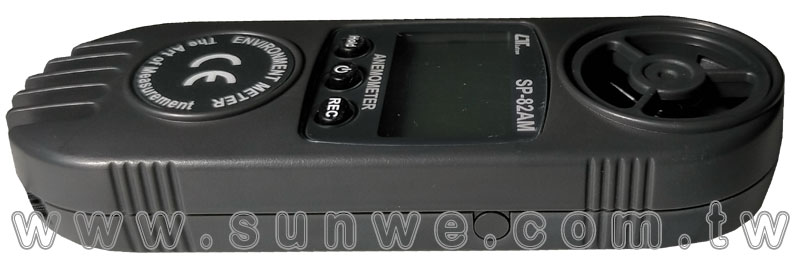

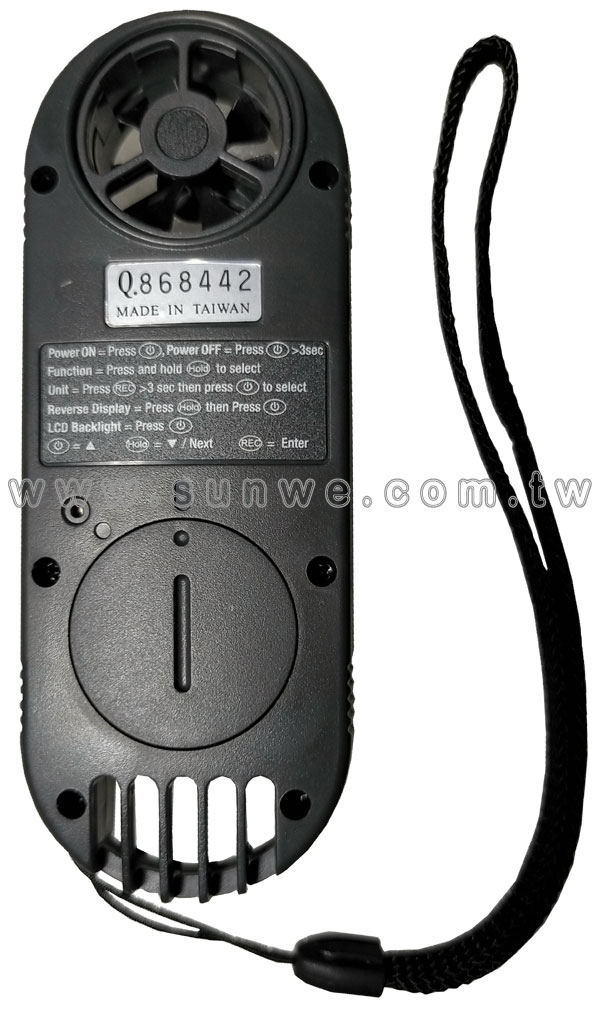

SP-82AM
掌上型風速風量計
簡介
- 極為輕巧細緻的外觀設計,適合單手操作
- 風速範圍：
- 0.4~20.0米/秒
- 80~3937英呎/分鐘
- 1.4~72公里/小時
- 0.9~44.7英哩/小時
- 8~58.3海浬/小時. ±3%
- 風量範圍：
- CMM: 0.024~36000m3/min
- CFM:0.847~1271300 ft3/min
- 讀值鎖定及記錄測量中之最大/最小值
- Size:120*45*20mm.
FEATURES
- 2 in 1 professional environment
instruments:
- 1. Air velocty
- 2. Air flow ( CMM, CFM )
- Tiny bone shape with lightweight and small
size case design are suitable for handling with one hand.
- Wristlet design provides extra protection to
the instrument especially for user one hand operation.
- Low-friction ball bearing mounted wheel design
provides high accuracy at high and low air velocity.
- Built- in microprocessor circuit assures
excellent performance and accuracy.
- Concise and compact buttons arrangement, easy
operation.
- Memorize the maximum and minimum value with
recall.
- Hold function to freeze the current reading
value.
一般規格
顯示 (Display)
- LCD display, 8 mm digit size.
測量 (Measurement)
- 1. Air velocty
- 2. Air flow ( CMM, CFM )
過載輸入指示 (Over Input Display)
- Indication of "- - - - "
操作溫度 (Operating Temp.)
- 0 to 50 ℃ (32 to 122 ℉).
操作溼度 (Operating Humidity)
- Max.80% RH.
電源供應 (Power Supply)
- CR 2032 DC 3V battery.
電源損耗 (Power Consumption)
- Approx. DC 5 mA.
重量 (Weight)
- 160g (battery included)
尺寸 (Size)
- HWD 120 x 45 x 20 mm (4.7 x 1.8 x 1.2 inch).
附件 (Standard Accessory)
- Instruction manual.................... 1 PC
電器規格 ELECTRICAL SPECIFICATIONS (23 ±5℃)
風速 Air velocity
|
Unit |
Range |
Resolution |
Accuracy |
| ft/min |
80 to 3937
ft/min |
1 ft/min |
± 3% F.S
@ F.S. : full scale
|
| m/s |
0.4 to 20.0
m/s |
0.1 m/s |
| km/h |
1.4 to 72.0
km/h |
0.1 km/h |
| MPH |
0.9 to 44.7
mile/h |
0.1 MPH |
| knots |
0.8 to 38.8
knots |
0.1 knots |
Remark :
- ft/min : feet per minute
- m/s : meters per second
- km/h : kilometers per hour
- MPH : miles per hour
- knots : nautical miles per hour
風量 Ar flow
|
Unit |
Range |
Resolution |
| CMM |
0.024 to
36000 |
0.001/0.01/0.1/1 |
| CFM |
0.847 to
1271300 |
0.001/0.01/0.1/1/10 (x10)/100 (x100) |
|
